Midea Встроенная система кондиционирования воздуха Средний статический трубопровод промышленного кондиционера для
- Категория: Air Conditioners >>>
- Поставщик: Beijing,Midea,Overseas,Engineering&Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1666.50 $* | 1749.19 $* |
| Aug-15-2025 | 1652.92 $* | 1735.57 $* |
| Jul-15-2025 | 1386.99 $* | 1455.85 $* |
| Jun-15-2025 | 1624.12 $* | 1705.7 $* |
| May-15-2025 | 1414.49 $* | 1485.57 $* |
| Apr-15-2025 | 1596.32 $* | 1676.46 $* |
| Mar-15-2025 | 1582.2 $* | 1661.14 $* |
| Feb-15-2025 | 1568.84 $* | 1646.9 $* |
| Jan-15-2025 | 1554.29 $* | 1632.10 $* |
Характеристики
Product Presentation
Midea VRF indoor unit Medium Static Pressure Duct
---Slim, compact design for limited space with duct distribution to the indoor space.
Why Choose Us
1.Experience
Over 50-years Experience in Air
Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2.Professional design
We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design
scheme.
3.Professional selectoion
According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.
4.Providing One-Stop Solution of HVAC System
We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.
5.Technical Support
We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.
Product Line
Product name | Midea VRF system indoor unit Medium Static Pressure Duct | ||||||
Power Supply | 220-240V/1Ph/50（60）Hz | ||||||
Cooling | capacity | 2.2~14.0 Kw | |||||
capacity | 7.5-47.8 KBtu/h | ||||||
power input | 40.0~250.0 W | ||||||
Heating | capacity | 2.6~15.5 Kw | |||||
capacity | 8.2~52.9 KBtu/h | ||||||
power input | 40.0~250.0 Kw | ||||||
Air flow | (520/480/440/400/360/330/300)~(1960/1860/1760/1660/1560/1460/1360) cubic meter/h | ||||||
External static pressure | 10(0～50)~40(30～150）Pa | ||||||
Sound pressure level | (32/31/29/28/26/25/23)~(41/39/38/37/36/35/33) dB(A) | ||||||
---Comfort
1.Quiet Operation
The Medium Static Pressure Duct indoor unit utilizes centrifugal blowers, reducing noise levels to as low as 23dB(A), and is an excellent choice for hotels and other noise-sensitive locations.
2. 0.5°C/1°C Setting Temperature Adjustment
Set temperature can be adjusted in 0.5°C or 1°C steps, enabling precise comfort control.
Indoor unit displays can be shut off at night and buzzer sound can be set off to not disturb the user, creating a better environment for rest.
---Health
1.Optional G3-class Air Filter
G3-class filter is optional for Medium Static Pressure Duct installation. Filtering effect of the G3-class filter reaches up to 80%-90% against coarse dust (particle size > 10 µm), creating a cleaner living environment.
2.Innovative Puro-air Kit
Puro-Air kit, powered by OSRAM's UVC lamps, can effectively kill bacteria, viruses and odors of indoor air to provide a healthy and safe indoor environment. It is also innovatively designed so that it could prevent UV damage to the eyes, skin, and respiratory tract.
---Air flow
1.Static Pressure 10 Steps Control
---Depending on the installation environment, Medium Static
Pressure Duct is controlled the static pressure up to 10steps via wired remote controller, for providing comfortable
environment suitable for any environment.
Pressure Duct is controlled the static pressure up to 10steps via wired remote controller, for providing comfortable
environment suitable for any environment.
2.Multiple Fan Speeds
---The DC Series comes with 7 indoor fan speed options and AC Series with 3 indoor fan speed options to meet theneeds of different indoor conditions..
1.Compact size
---Models 22 to 71 are just 210mm high whilst models 80 to 112 are 270mm high and model 140 to 160 are 300mm high.
---Models 22 to 71 are just 210mm high whilst models 80 to 112 are 270mm high and model 140 to 160 are 300mm high.
---Stylish air discharge panel can be integrated with any decoration style (optional for models 17 to 71).
---To provide the flflexibility to adapt to diffffering installation
situations, the air inlet may be positioned either on the under
side or the rear of the unit.
situations, the air inlet may be positioned either on the under
side or the rear of the unit.
---A drain pump with a 750mm raise height is fitted as standard, simplifying installation of the drain piping.
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
How to get a quick quotation?
Information needed Midea Group's management system before prepare quotation details for you.
1.Project name :building name or building type, such as ××× office project, residential house project etc.
2.Project accurate address;
3.Your company contact information ＆ address；
4.Please provide product list or engineer drawing with product type marked.
5.When you expect to process purchase ＆ logistics for this project?
6.Is it tender project or not? Because tender project you may need our authorization letter.
Product packaging
We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container

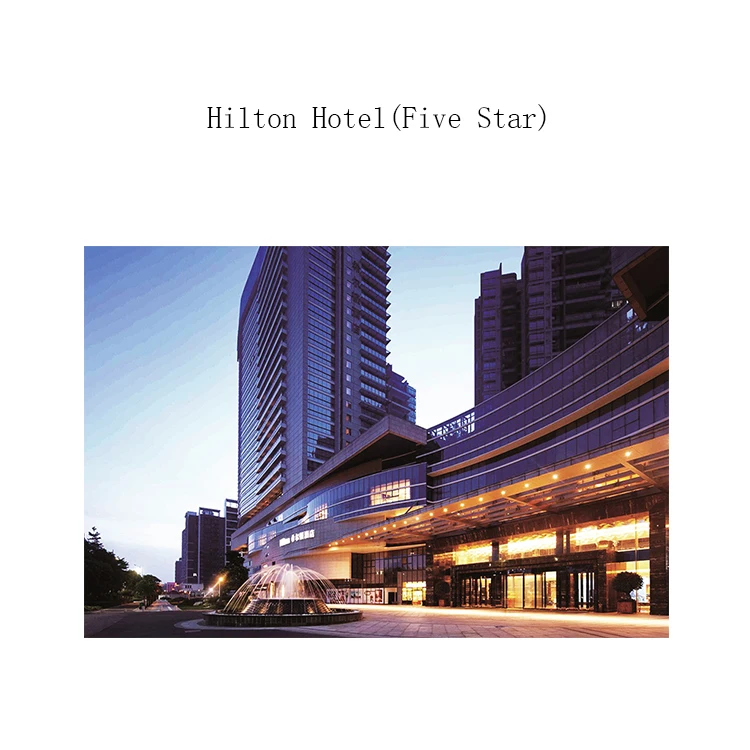

Midea Product Show
We have a lot of successful project experience, you can trust to give the project to us.
