50 кГц-200 МГц Малахитовый SDR радио Malahit DSP 3 5 дюймов сенсорный экран scsreen ветронепроницаемый трансивер приемник STM32H742 без
- Категория: Satellite TV Receiver >>>
- Поставщик: Shenzhen,Muting,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 126.42 $* | 129.90 $* |
| Jul-18-2025 | 102.22 $* | 104.29 $* |
| Jun-18-2025 | 124.81 $* | 126.58 $* |
| May-18-2025 | 123.65 $* | 125.17 $* |
| Apr-18-2025 | 98.39 $* | 100.85 $* |
| Mar-18-2025 | 121.74 $* | 123.86 $* |
| Feb-18-2025 | 120.61 $* | 122.14 $* |
| Jan-18-2025 | 119.76 $* | 121.84 $* |
Характеристики
Product Description

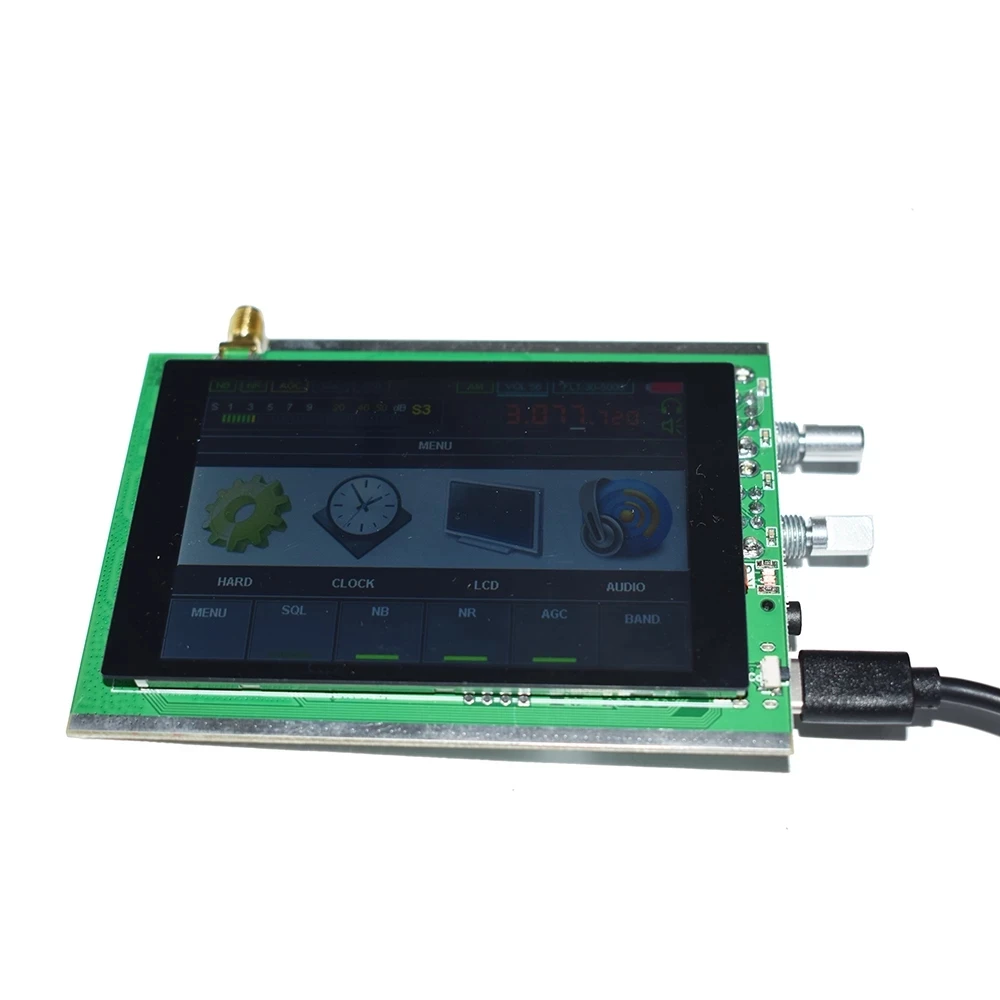

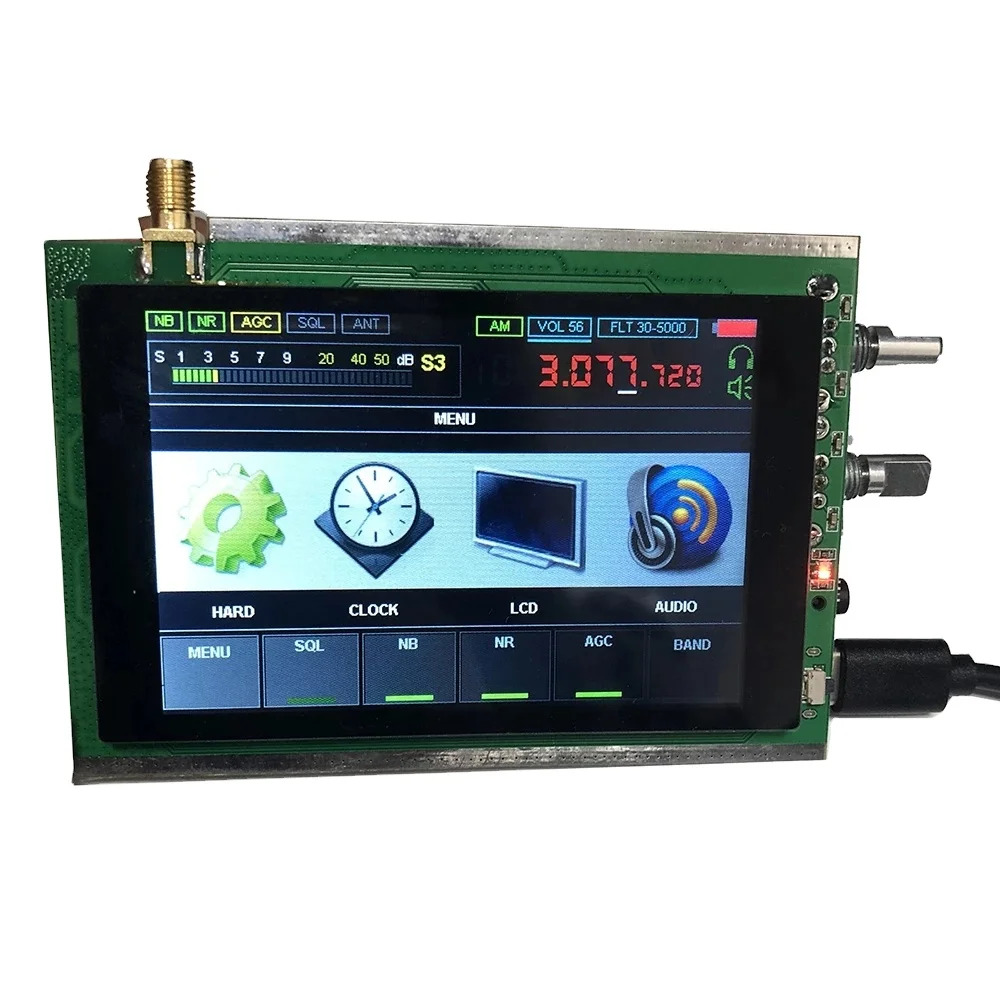

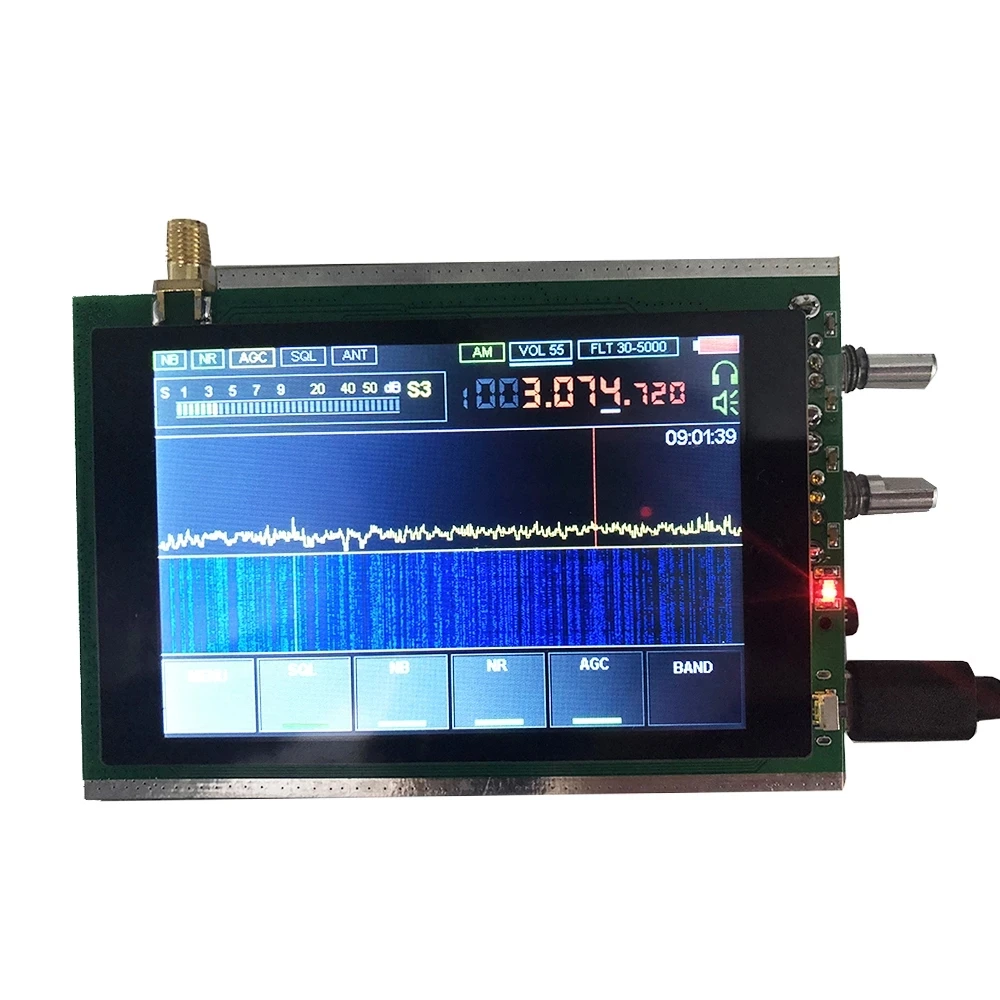

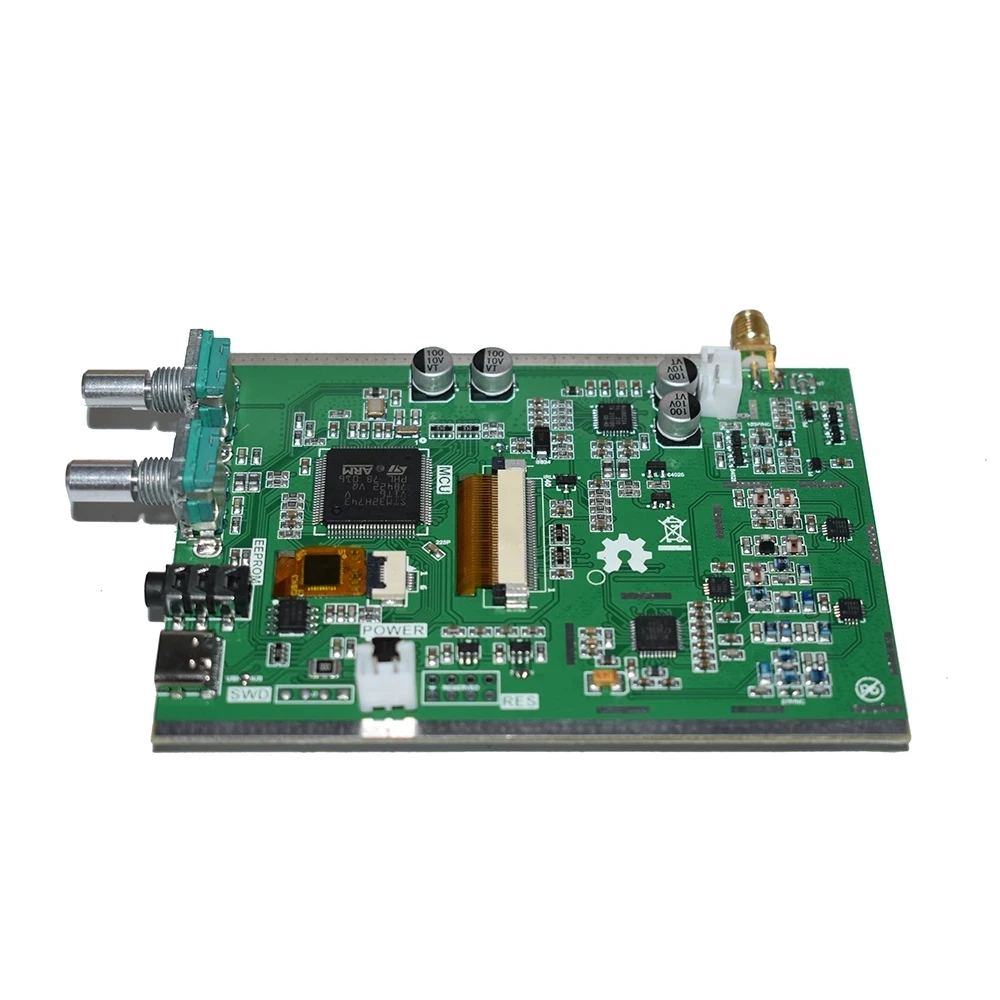

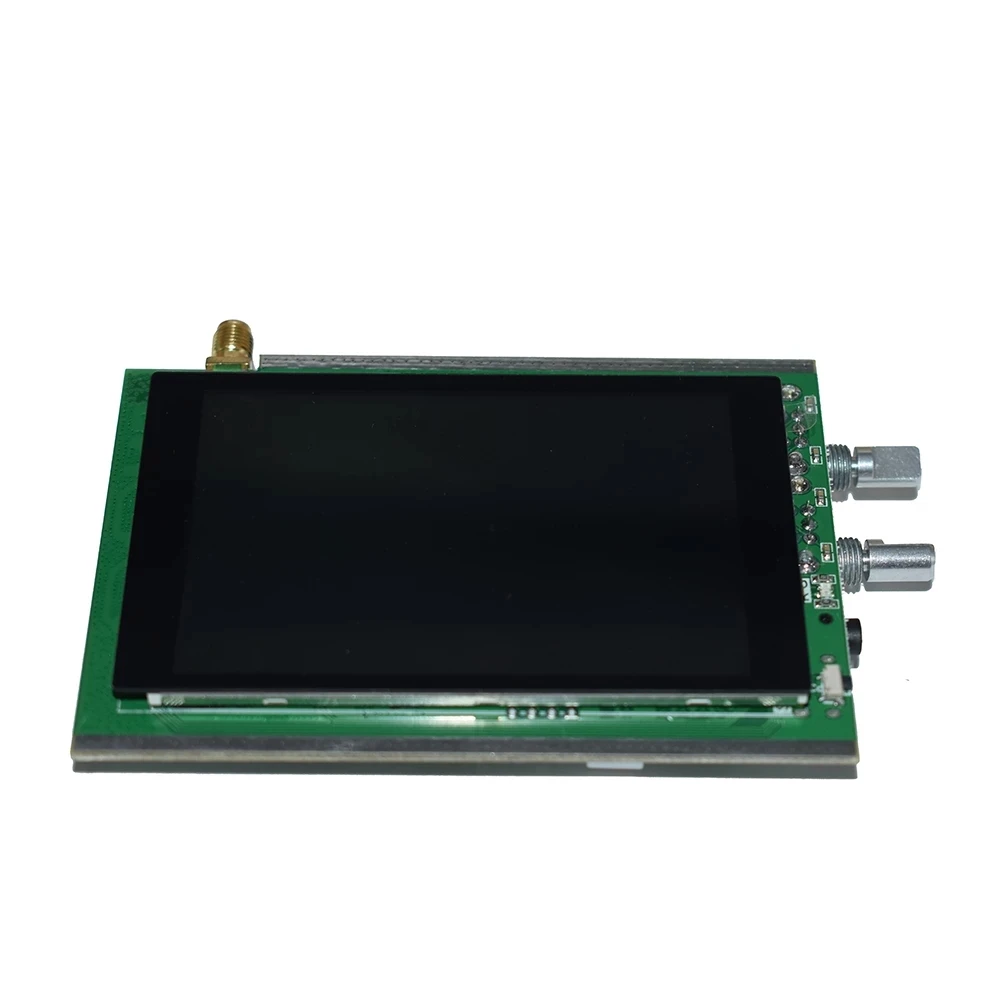

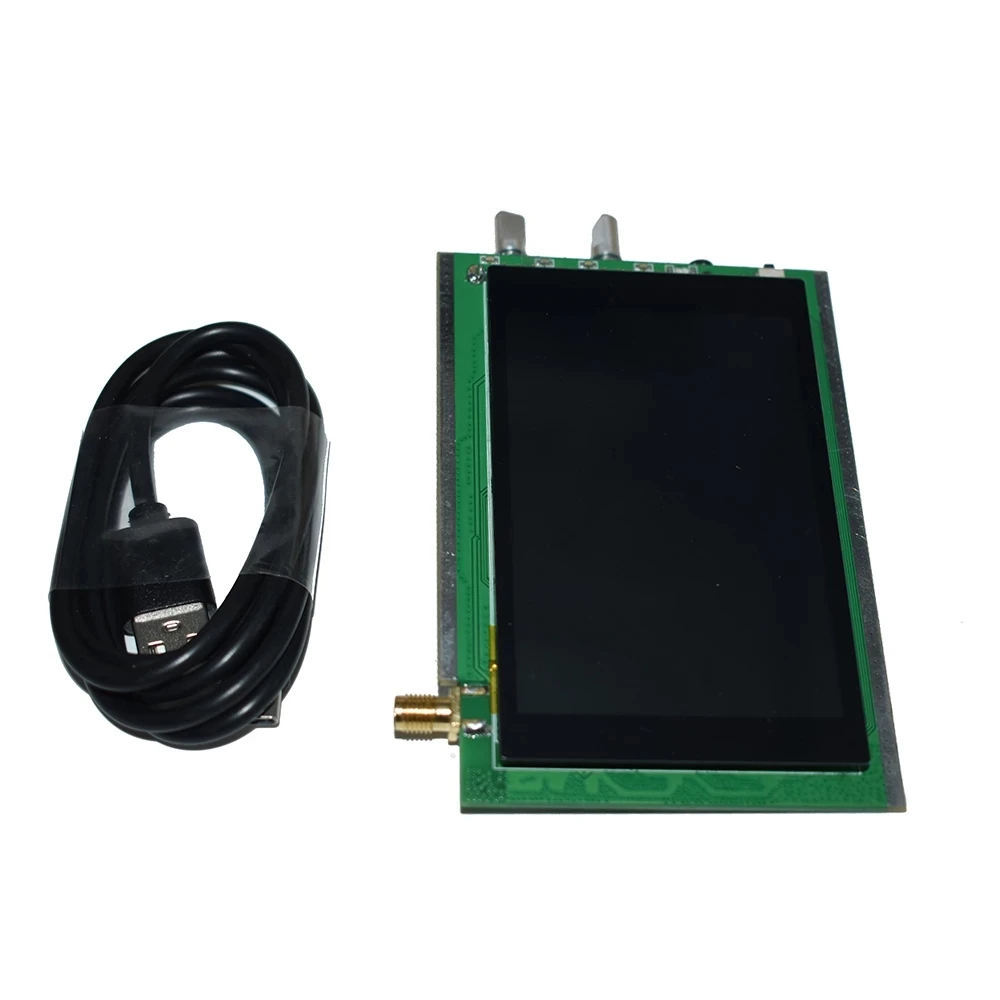

50Khz-200MHz Malachite SDR Radio Malahit DSP SDR HAM Transceiver Receiver
NO case,no battery
Description:
1. Frequency range: 50KHz to 200MHz, can up to 2GHz after purchase registration code from the officia !
2. with 3.5 inch Touch LCD !
3. support rechargble battery !
4. The radio is built on the principle of SDR - the function is determined by the loaded software;
5. All types of analog modulation: AM, SSB, NFM, WFM
6. Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC,
equalizer;
7. use cheap but fully functional chip msi001;
8. The powerful stm32h743 with clock frequency of 480mhz is applied;
9 . Control - 2 encoders with buttons and touch screen;
10 .Powered by built-in battery and USB, charged by USB. The capacity of built-in battery shall not be less than 1500mA / h.
11. Consumption - 300mA when listening to headphones;
12. In order to improve HF reception on the telescope antenna, an additional board with a source follower is developed. The board
will be built into the standard receiver design.
13. Connecting to the computer via USB, you can transfer cat, IQ and audio.
14. 160 kHz span, expandable;
15.Sensitivity - 0.3 μ v = 10dB at S / w up to 250MHz; no measurement was carried out due to lack of measuring equipment;
16. dynamic blocking range is about 85dB due to the characteristics of msi001 chip used.
17. housing made by PCB ;
18) backlight control;
19) SMA antenna socket;
20) receiver size 120x88x39mm;
1. Frequency range: 50KHz to 200MHz, can up to 2GHz after purchase registration code from the officia !
2. with 3.5 inch Touch LCD !
3. support rechargble battery !
4. The radio is built on the principle of SDR - the function is determined by the loaded software;
5. All types of analog modulation: AM, SSB, NFM, WFM
6. Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC,
equalizer;
7. use cheap but fully functional chip msi001;
8. The powerful stm32h743 with clock frequency of 480mhz is applied;
9 . Control - 2 encoders with buttons and touch screen;
10 .Powered by built-in battery and USB, charged by USB. The capacity of built-in battery shall not be less than 1500mA / h.
11. Consumption - 300mA when listening to headphones;
12. In order to improve HF reception on the telescope antenna, an additional board with a source follower is developed. The board
will be built into the standard receiver design.
13. Connecting to the computer via USB, you can transfer cat, IQ and audio.
14. 160 kHz span, expandable;
15.Sensitivity - 0.3 μ v = 10dB at S / w up to 250MHz; no measurement was carried out due to lack of measuring equipment;
16. dynamic blocking range is about 85dB due to the characteristics of msi001 chip used.
17. housing made by PCB ;
18) backlight control;
19) SMA antenna socket;
20) receiver size 120x88x39mm;
Specification
item | Transceiver Receiver |
Style | PORTABLE |
Private Mold | Yes |
Type | Transceiver Receiver |
Place of Origin | China |
Guangdong | |
Brand Name | OEM |
Model Number | D2-013 |
Screen | Yes |
Function | For Malachite SDR Radio |
Power Supply | None |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
