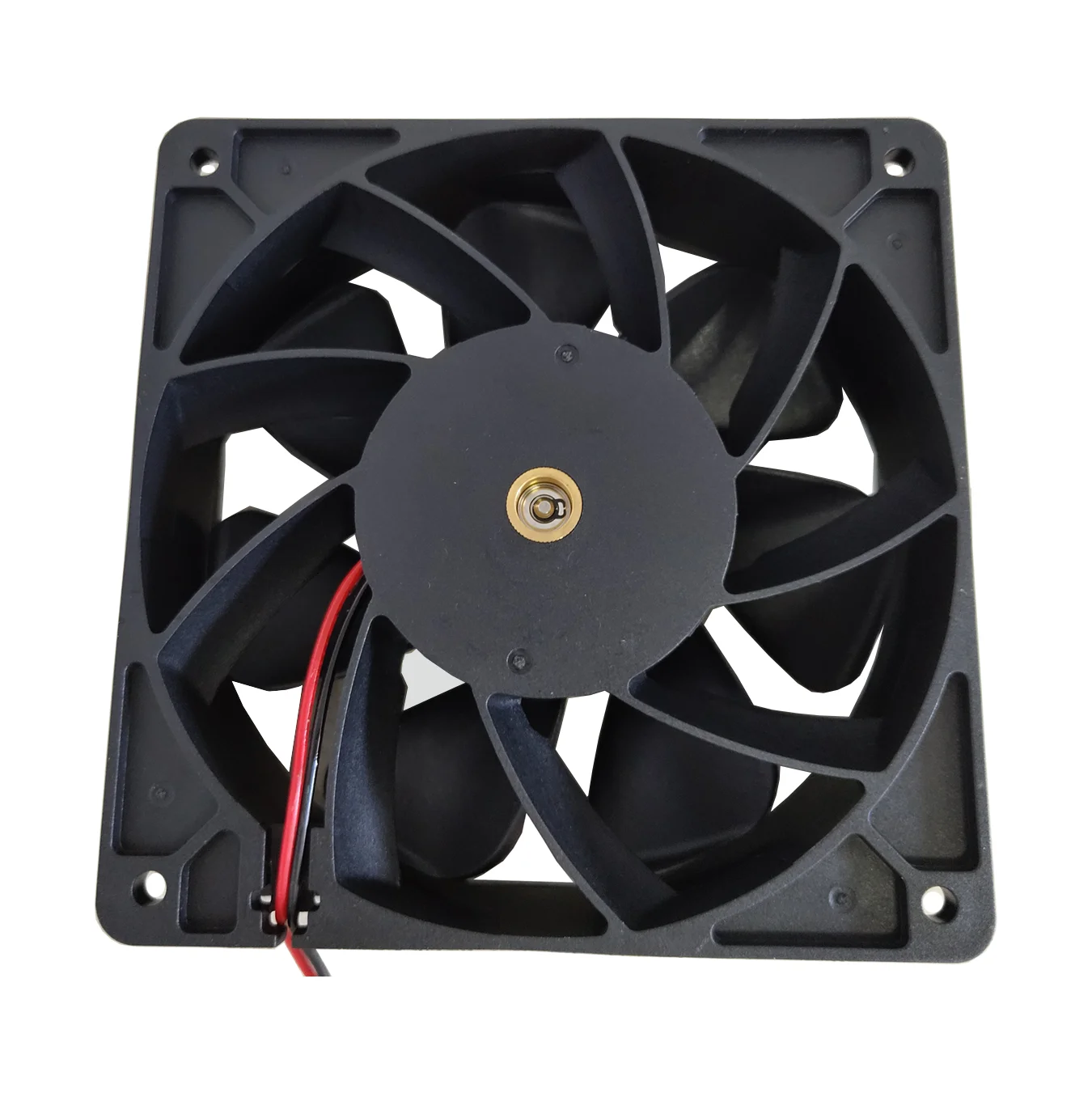

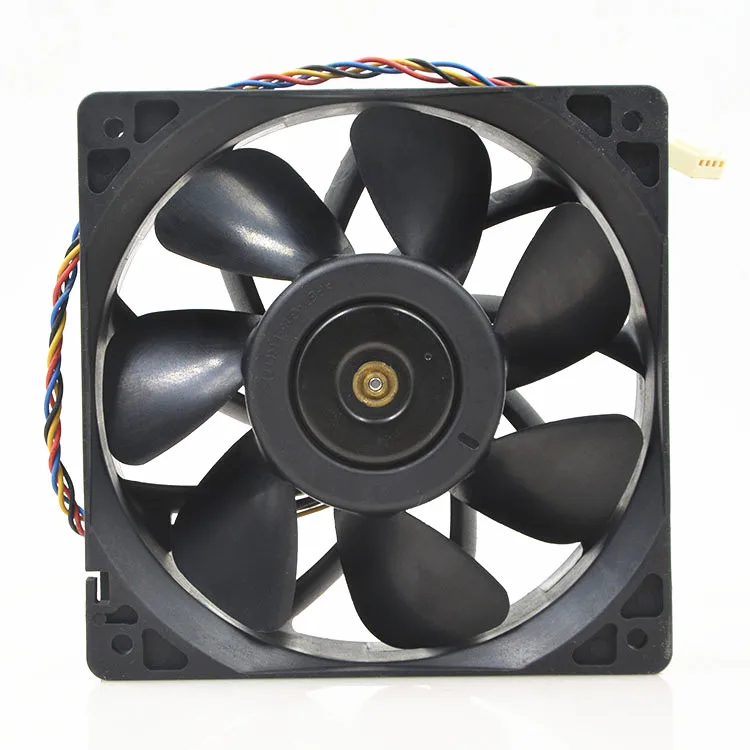

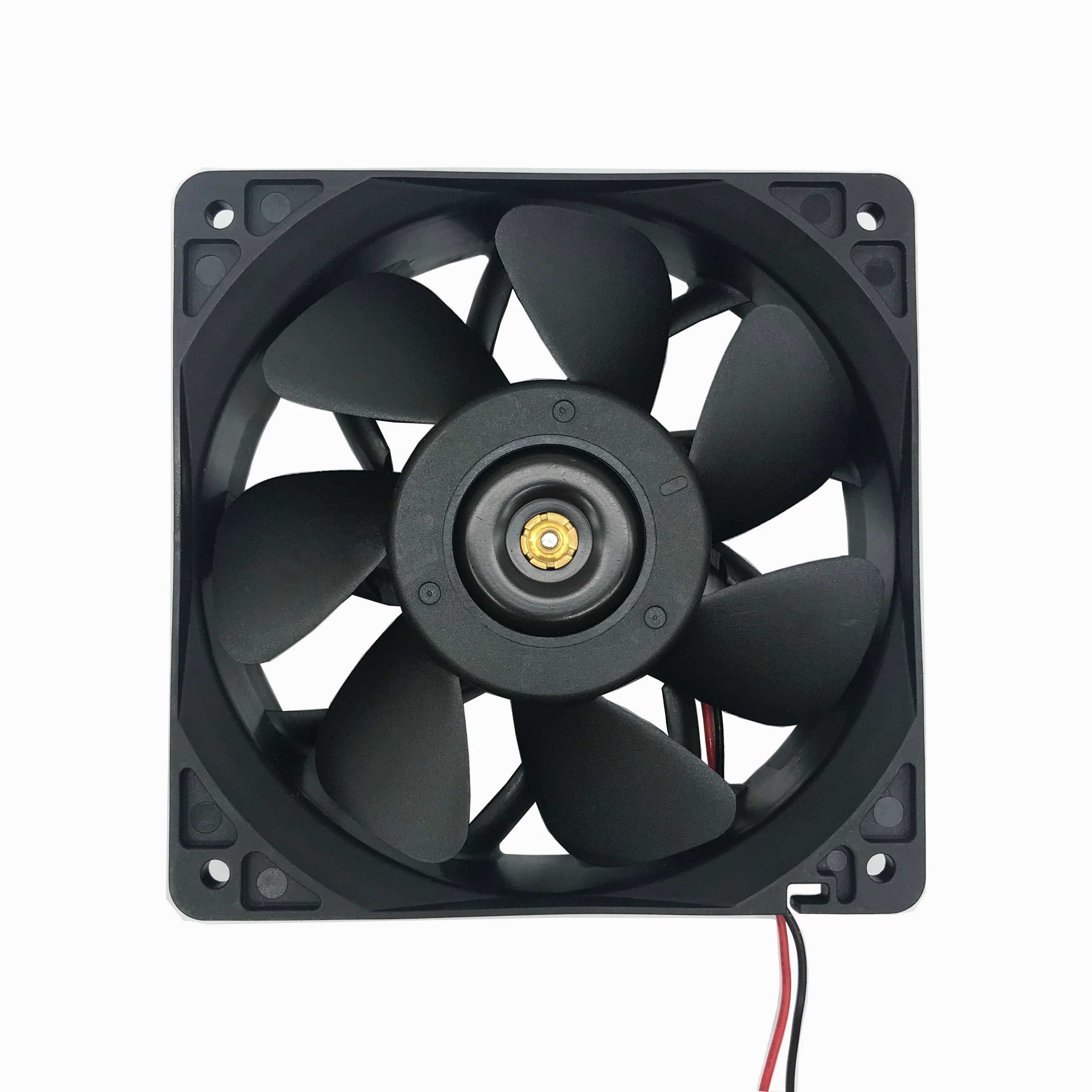

Вентиляторы для графической карты осевой вентилятор 120x120x38 мм Компьютерный Вентилятор корпуса сервера блока питания Delta
- Категория: Graphics Cards >>>
- Поставщик: Shenzhen,Duo,Li,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 6.56 $* | 6.80 $* |
| Jul-19-2025 | 5.6 $* | 5.1 $* |
| Jun-19-2025 | 6.76 $* | 6.76 $* |
| May-19-2025 | 6.51 $* | 6.62 $* |
| Apr-19-2025 | 5.50 $* | 5.87 $* |
| Mar-19-2025 | 6.0 $* | 6.89 $* |
| Feb-19-2025 | 6.63 $* | 6.9 $* |
| Jan-19-2025 | 6.24 $* | 6.84 $* |
Характеристики
Product Description
Pls kindly noted that all parameter can be customized by your requirement, like if you need 12v or 48v, all is possible.
Any question or suggestion about the fans, pls let us know, we are happy to help.
ITEM | Specification Condition | |||||
01 | Part No. | DID12038ABH1 | ||||
02 | Dimension | 120×120×38mm | ||||
03 | Rated Voltage | 12VDC | ||||
04 | Start-up Voltage | 7VDC | ||||
05 | Operating Voltage | 7~13 VDC | a.Rated Voltage | |||
06 | Rated Speed | 5000rpm | 6000rpm | 7000rpm | ±10% | b. 25℃ |
07 | Rated Current | 1.1 A | 2.0 A | 3.2 A | c. 65% RH | |
08 | Rated Power | 13.2 W | 24.0 W | 38.4 W | d. Measured after 5 Mins | |
09 | Max Airflow | 170.6 CFM | 210.3 CFM | 251.6 CFM | ±10% | a. PQ Measurement Apparatus : (LW9266-SR) b. Standard : AMCA c. Rated Voltage d.Rated Current
|
| 4.84M3/Min | 5.95 M3/Min | 7.14M3/Min | ||||
10 | Max Static Pressure | 0.844 Inch-H2O | 1.17 Inch-H2O | 1.496 Inch-H2O | ±10% | |
| 21.43 mmH2O | 29.81 mmH2O | 37.99 mmH2O | ||||
11 | Life Expectancy | 50000hrs at 40℃ | 50000hrs at 25℃ | 50000hrs at 25℃ | a.L10 at Conf. Level 90% b.Rated Voltage | |
12 | Noise Level | 59.5dB | 64.5dB | 69.5dB | a.Rated Voltage b.Non-Echo Chamber c.Standard:CNS 8753/ISO3744 d.Test Condition:ISO 7779 e.Distance: 1.0M | |
13 | No. of Pole | 4Poles | ||||
14 | Moisture protection ip55 | |||||
 |  |
Application
S19 S19J S19 PRO S19J PROS19 XP S17 S17 PRO T17L7 L3+ L3++DR5 Z15 E9A10 PRO A11 A1246 A1166M21S M20S M31S M31S++
M30S M30S+ M30S++M32
 |  |
