JA поставщик солнечных панелей jasolar 500 Вт JAM72D30 солнечные панели 570
- Категория: Renewable Energy >>>
- Поставщик: S,K,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.70 $* | 0.84 $* |
| Aug-16-2025 | 0.38 $* | 0.55 $* |
| Jul-16-2025 | 0.48 $* | 0.96 $* |
| Jun-16-2025 | 0.69 $* | 0.87 $* |
| May-16-2025 | 0.89 $* | 0.56 $* |
| Apr-16-2025 | 0.14 $* | 0.2 $* |
| Mar-16-2025 | 0.44 $* | 0.93 $* |
| Feb-16-2025 | 0.10 $* | 0.18 $* |
| Jan-16-2025 | 0.14 $* | 0.10 $* |
Характеристики
Why Buy JA From Sunway Solar
JA Solar Official Authorized Online Distributor
Professional and timely service
24h On-Line Fast Response
JA Largest MBB Half Cell
Production Base In Hefei City
JA Solar Inventory ≥ 1MW,
Ready To Ship
Orders Below 1 Container
Also Acceptable
Product Parameter
Item | JAM60S10/PR | JAM72S20/MR | JAM72D30/MB | ||
Size | 2015*996*40±2mm | 2112*1052*35±2mm | 2285*1134*35±2mm | ||
Panel Efficiency | 20.4% | 21.2% | 21.2% | ||
Certificate | CE TUV INMETRO ETL | ||||
Warranty | 25 /30 year | ||||
Module | JA Solar Panel | ||||
Cell Orientation | 144Cell(6*24) | 144Cell(6*24) | 144Cell(6*24) | ||
Weight | 22.7KG±3% | 24.7KG±3% | 31.6KG±3% | ||
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass | ||||
Backsheet | White/Black | ||||
Frame | Silver / Black Anodized Aluminium Alloy | ||||
Junction Box | IP68,3 diodes | ||||
Cables | TUV 1*4.0mm²/UL 12AWG | ||||
TYPE | 390-410W | 445-470W | 525-580W | ||
Operating Temperature | -40℃~+85℃ | ||||
Product Details
*Antireflective glass
*Self-cleaning function
*Module eficiency is increased by 2%
*Service life is as long as 25 years (30 years
optional)
optional)
*Translucency of normal luminance is increased by 2%
Solar Cell
*Uniform color
*High PID resistant
*Low breakage rate
*High shunt-resistance
*High model efficiency up to 20%
* Conventional frame
* Seal-lip design glue injection
*Silver or black frames are optional
* Serrated-clip design tensile strength
* Boost bearing capability and prolong service life
*Heat dissipation
*Long service life
*>IP67 protection level
*Innovative Full-Glue-Filled
*Waterproofness Junction Box

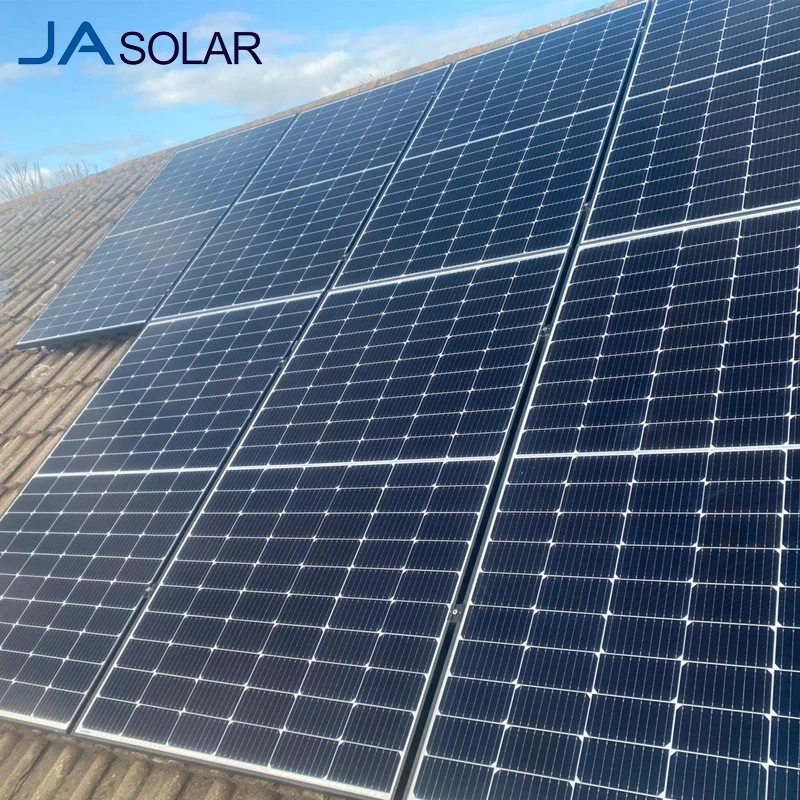

Product Dispaly
59MW Solar Power Station, Philippines

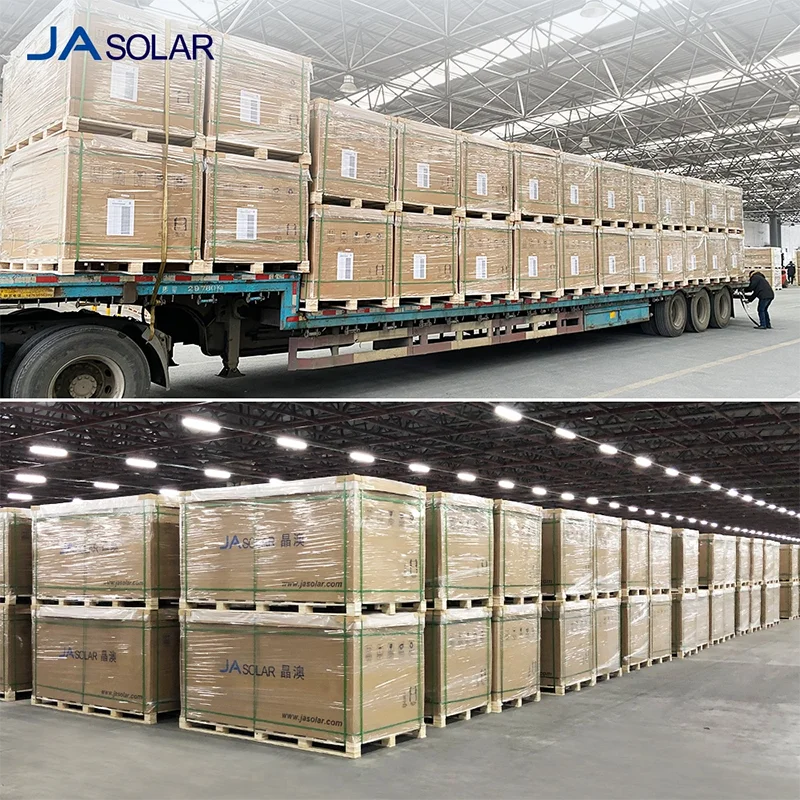

Product Packaging
PACKAGE INFO OF JA Solar Panel | ||||||
Container | JAM60S10/PR | JAM72S20/MR | JAM72S20/MR | |||
Pallet | 27PCS | 31PCS | 31PCS | |||
20GP | 270PCS | 310PCS | 310PCS | |||
40GP | 648PCS | 682PCS | 620PCS | |||
Certifications
