Конкурентоспособные цены производитель печатных плат многослойная печатная плата по индивидуальному
- Категория: Multilayer PCB >>>
- Поставщик: Ucreate,Pcb,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.21 $* | 0.99 $* |
| Aug-17-2025 | 0.64 $* | 0.81 $* |
| Jul-17-2025 | 0.86 $* | 0.20 $* |
| Jun-17-2025 | 0.21 $* | 0.61 $* |
| May-17-2025 | 0.99 $* | 0.36 $* |
| Apr-17-2025 | 0.93 $* | 0.61 $* |
| Mar-17-2025 | 0.76 $* | 0.56 $* |
| Feb-17-2025 | 0.41 $* | 0.96 $* |
| Jan-17-2025 | 0.58 $* | 0.84 $* |
Характеристики
Products Description
Detailed Specification of PCB Board Manufacturing | ||
Layers | 1-30layers | |
HDI | 1+N+1&2+N+2&3+N+3 | |
Material | FR4, CEM3, Rogers, High TG, High Frequency Board,Aluminum, Copper, Ceramic etc. | |
Finised inner/outer copper thickness | 0.5-6oz, regular 1oz | |
Finished board thickness | 0.2-7.0mm,regular 1.6mm | |
Min through holes size | 0.15mm | |
Max panel size | 800*1200mm | |
Min panel size | 5*5mm | |
Finger(Au) | 1-50U'', regular 30U'' | |
Solder Mask | White, Black, Green, Red, Blue, Yellow, etc | |
Silk Screen | White, Black, etc. | |
Silk Screen Min Line Width | 0.1mm | |
Min Trace/Gap | 3/3mil | |
Surface Finish | HASL, HASL lead free, ENIG, OSP, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold | |
Controlled Impedance | +/-5% | |
Plugging vias capability | 0.2-0.8mm | |
Outline profile | Routing/Punch/V-cut/Stamp Hole | |
Cutting | V-score | |
Certification | UL USA, UL Canada, ROHS, ISO13485, ISO9001, ISO14001, IATF 16949 | |

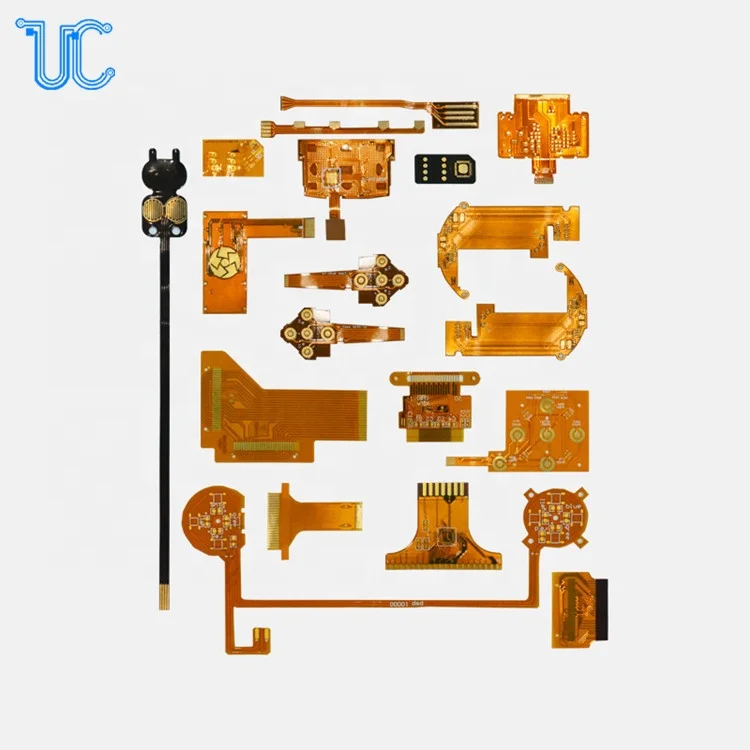

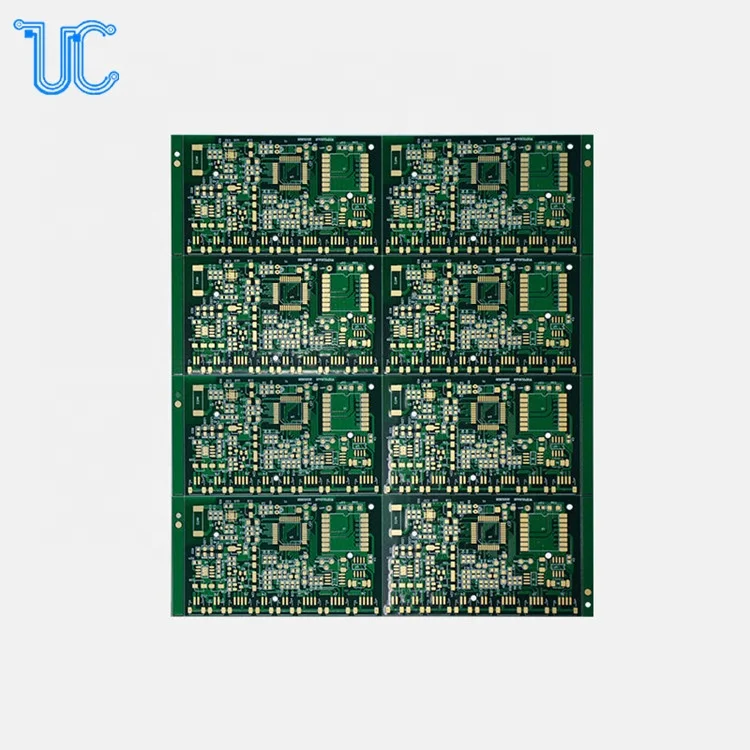

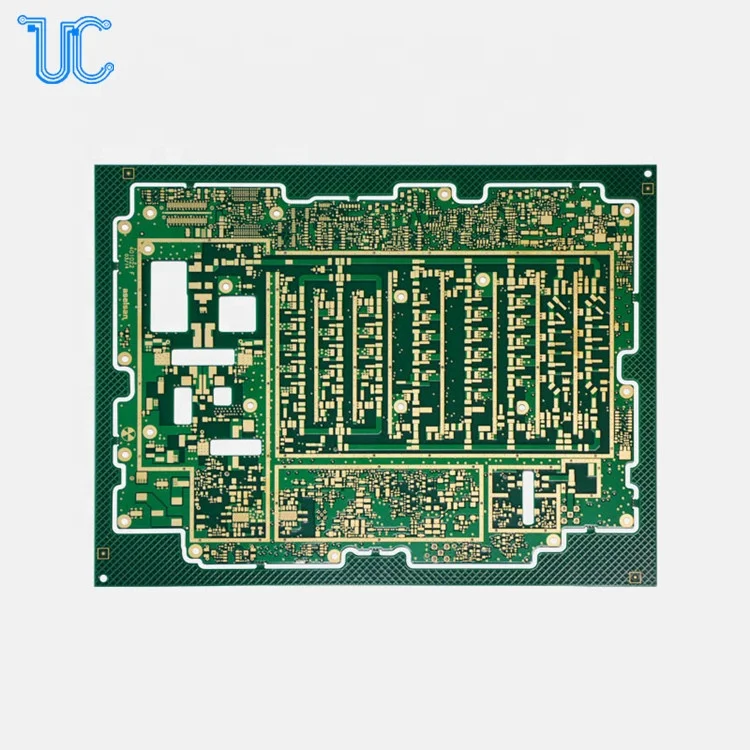

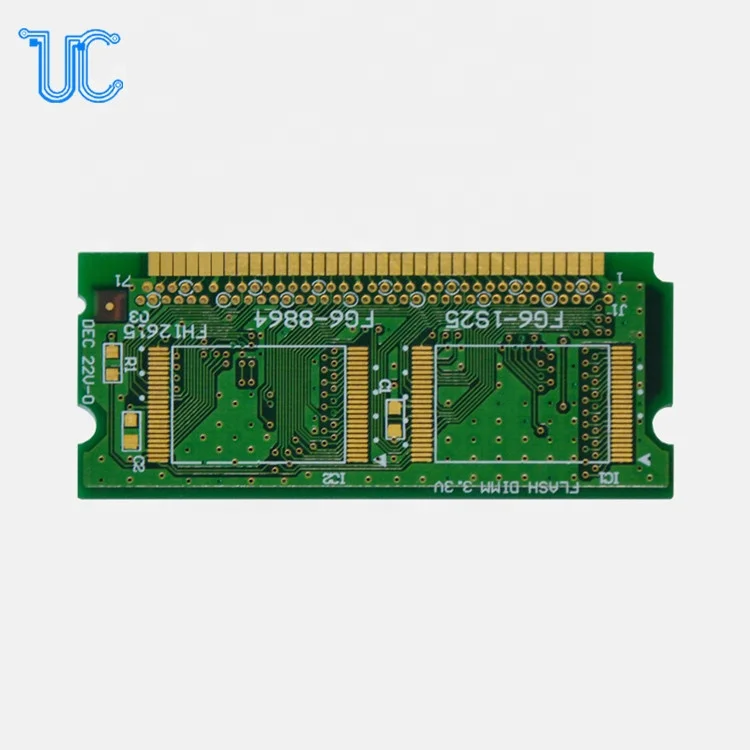

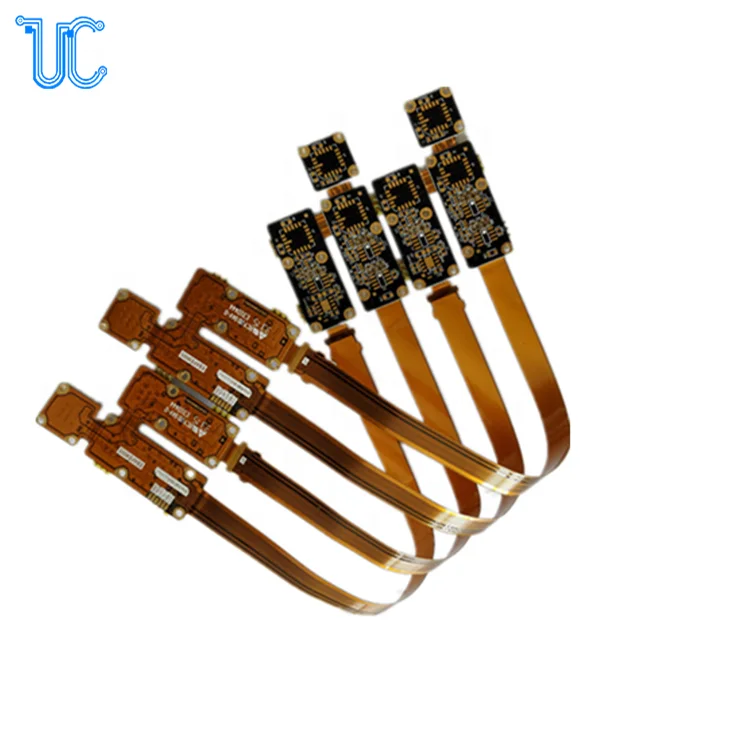

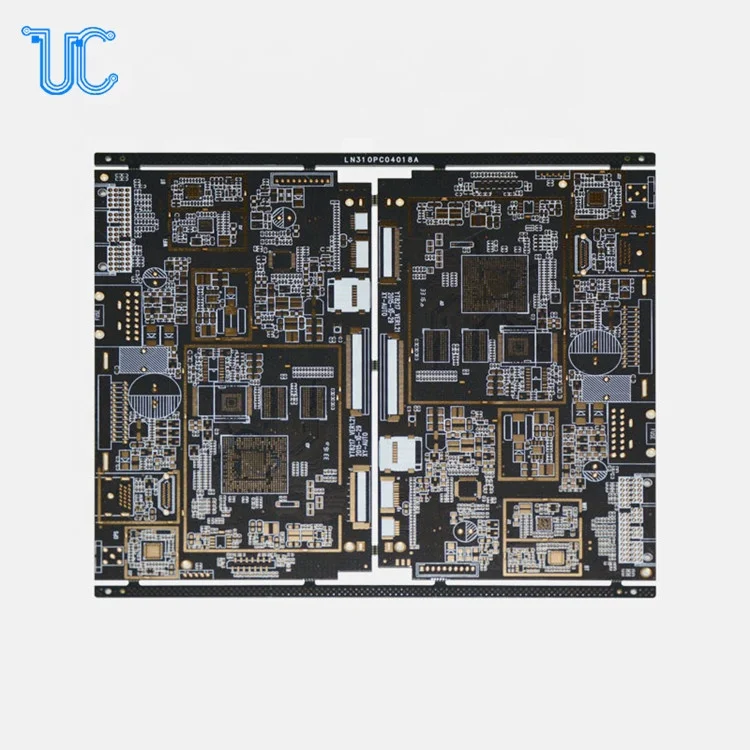

Proudct Photos
PCBA process
• Equiped with SPI machine and AOI inspection machine
• 01005 components, fine pitch and high count BGAs, Package on Package
(POP)
• Chip on Board, fiber optics, RF microelectronics, press fit connectors
• Hybrid processes (tin-lead and lead-free), pin through hole, wave &
selective soldering, double and single sided reflow, wide body and
backplanes
• Quick turn prototype assembly, RoHS compliance certification, conformal &
parylene coating, laser marking
• Inspection and testing using the latest SPI, AOI, Flying probe and X-Ray
equipment
• Comprehensive electrical testing and test system development for
boundary scan, in-circuit test (ICT), functional test and burn in test (BIT)
• 01005 components, fine pitch and high count BGAs, Package on Package
(POP)
• Chip on Board, fiber optics, RF microelectronics, press fit connectors
• Hybrid processes (tin-lead and lead-free), pin through hole, wave &
selective soldering, double and single sided reflow, wide body and
backplanes
• Quick turn prototype assembly, RoHS compliance certification, conformal &
parylene coating, laser marking
• Inspection and testing using the latest SPI, AOI, Flying probe and X-Ray
equipment
• Comprehensive electrical testing and test system development for
boundary scan, in-circuit test (ICT), functional test and burn in test (BIT)
Our Advantages
Our service
Ucreate has the capability to manufacture pcb ranging from basic single sided boards up to 30 layer multilayers ,
We provide one stop services, including pcb layout, manufacture, assembly, components sourcing and function testing.
We provide one stop services, including pcb layout, manufacture, assembly, components sourcing and function testing.
Application
Consuming
Telecom
Industry control
Security
Computer
Automotive
Medical
Others
Telecom
Industry control
Security
Computer
Automotive
Medical
Others
Company Profile
Title goes here.
Ucreate has been established in 2004, being always attention to fabricating the printed circuit boards (PCB). Through over 10
years, we have developed into such a well-known PCB manufacturer in the south of China, with more than 800 of employees.
We are always trying our best to developing the PCB fabrication technology and quality. Through our great efforts, we are
confident of being your honest and best PCB supplier.
years, we have developed into such a well-known PCB manufacturer in the south of China, with more than 800 of employees.
We are always trying our best to developing the PCB fabrication technology and quality. Through our great efforts, we are
confident of being your honest and best PCB supplier.
Our Factory
FAQ
Q: What service can you supply ? We are OEM PCB and PCBA and component sourcing support. Q: What is your minimum order quantity ? We no have limitation on MOQ or MOV(Minimum Order Value). Q: What kind of PCB file format can you accept for production? *For PCB board, you need to prepare files of Gerber file RS-274X.
*For PCBA, Gerber file of PCB, BOM list (components list on PCB board), Pick Place file(txt format). Q: How can you ensure the quality of the PCBs?
We make 100% test including Flying Probe Test, E-test and AOI. Q: Are my design files safe?
We protected very well for any customer's file in our factory and we will not let any third parties.We can sign NDA with you. Q: Do you support several part number together into one panel?
Yes, this is usually happen in our factory, this way can help customers reduce some cost and reduce some assembly cost. Q: Do you support put our logo on products? SURE, and it's free. Q: Produce time?
Normally samples in 4-5working days, small batch in 8-12 working days,mass-produced in 18-25 wking days.
But that depends on the real condition when we get your order.
If your order is urgently,we will priority to deal it and do our best to give you satisfied delivery time. Q: How do you ship the goods and how long does it take to arrive?
Express we usually ship by DHL, UPS, FedEx, it usually takes 3-5 working days to arrive. Airline and sea shipping also optional.
*For PCBA, Gerber file of PCB, BOM list (components list on PCB board), Pick Place file(txt format). Q: How can you ensure the quality of the PCBs?
We make 100% test including Flying Probe Test, E-test and AOI. Q: Are my design files safe?
We protected very well for any customer's file in our factory and we will not let any third parties.We can sign NDA with you. Q: Do you support several part number together into one panel?
Yes, this is usually happen in our factory, this way can help customers reduce some cost and reduce some assembly cost. Q: Do you support put our logo on products? SURE, and it's free. Q: Produce time?
Normally samples in 4-5working days, small batch in 8-12 working days,mass-produced in 18-25 wking days.
But that depends on the real condition when we get your order.
If your order is urgently,we will priority to deal it and do our best to give you satisfied delivery time. Q: How do you ship the goods and how long does it take to arrive?
Express we usually ship by DHL, UPS, FedEx, it usually takes 3-5 working days to arrive. Airline and sea shipping also optional.
