Сигнальный Огонь AI-9 оптического волокна Splicer сплавливания шесть мотор AI9 сведение по сердцевине узлов для стыковочной
- Категория: Telecommunications >>>
- Поставщик: Shenzhen,CREDEK,Technology,Co.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1045.6 $* | 1097.82 $* |
| Aug-16-2025 | 1036.4 $* | 1088.41 $* |
| Jul-16-2025 | 869.60 $* | 912.77 $* |
| Jun-16-2025 | 1018.93 $* | 1069.18 $* |
| May-16-2025 | 887.39 $* | 931.45 $* |
| Apr-16-2025 | 1001.84 $* | 1051.7 $* |
| Mar-16-2025 | 992.41 $* | 1042.45 $* |
| Feb-16-2025 | 983.76 $* | 1032.12 $* |
| Jan-16-2025 | 975.12 $* | 1024.54 $* |
Характеристики

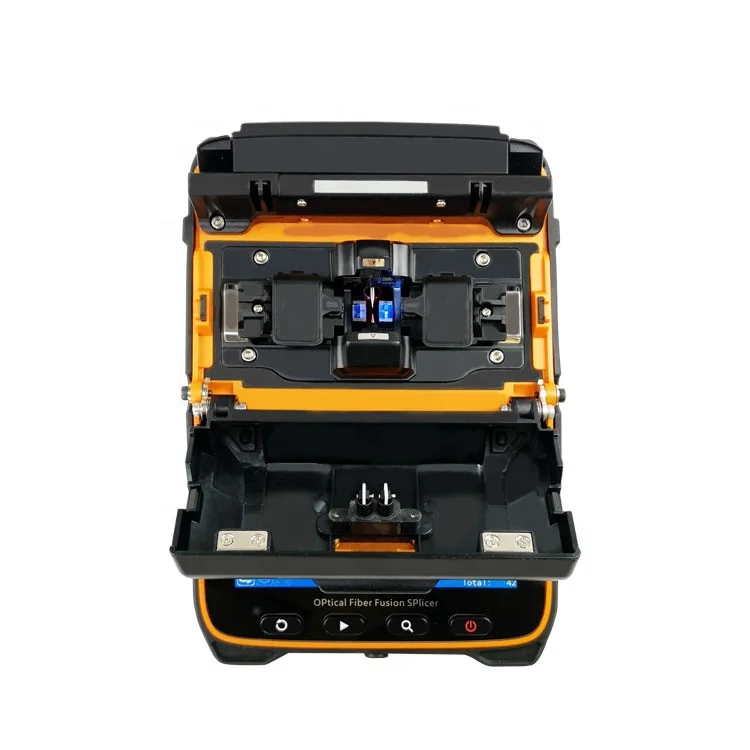

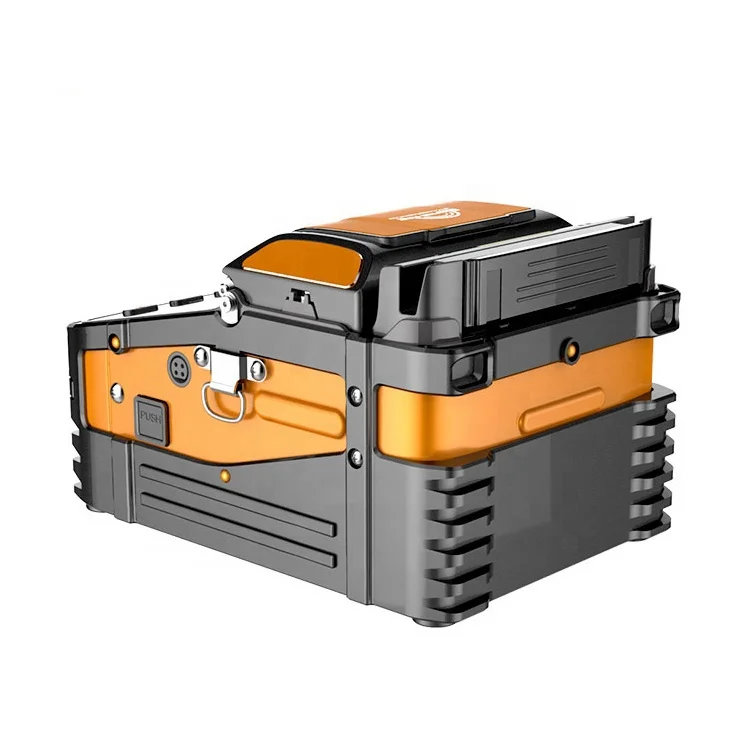

Ai 9 Six Motor Core Alignment Fiber Fusion Splicer Machine
Signal Fire AI-7C/7V/8C/9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.
Products Description
Product Paramenters
Applicable Fibers | SM(G.652&G.657)、MM（G.651）、DS(G.657)、NZDS（G.655） |
Tension Test | Standard 2N |
Splice Loss | 0.025dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
Fiber holders | Multi function holders，Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
Focus mode | Auto focus |
Magnification | 300 for X or Y view, 150 for X or Y view |
Fiber alignment | Core/cladding alignment Manual alignment |
Screen | 5.1 inch TFT color display |
Typical splicing time | 5S（AI-9） ／ 6S（AI-8C） ／6S（AI-7V） ／ 8S（AI-7C） |
Typical heating time | 15S （AI-9） ／ 15 S （AI-8C） ／15 S （AI-7V） ／ 18 S （AI-7C） |
Fast heating function, heating time can be set | |
Control technology | Real-time control and calibration of fusion ARC |
Splicing Mode | Normal / high precision splicing |
Return loss | Better than 60DB |
Fiber Cleave Length | Coating less than 250µm：8-16mmCoating less m250-1000μm:16mm |
Fiber diameter | Cladding Diameter 80-150μm，Coating Diameter 100-1000μm |
Heat shrinkable tube | 60mm、40mm |
Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
Software upgrade | Mobile APP update,Turn on Bluetooth sync to the machine |
Built-in battery | 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 240 times |
Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power |
Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ～ 5000m. Resist max. wind speed: ≤ 15m / s |
lighting | External |

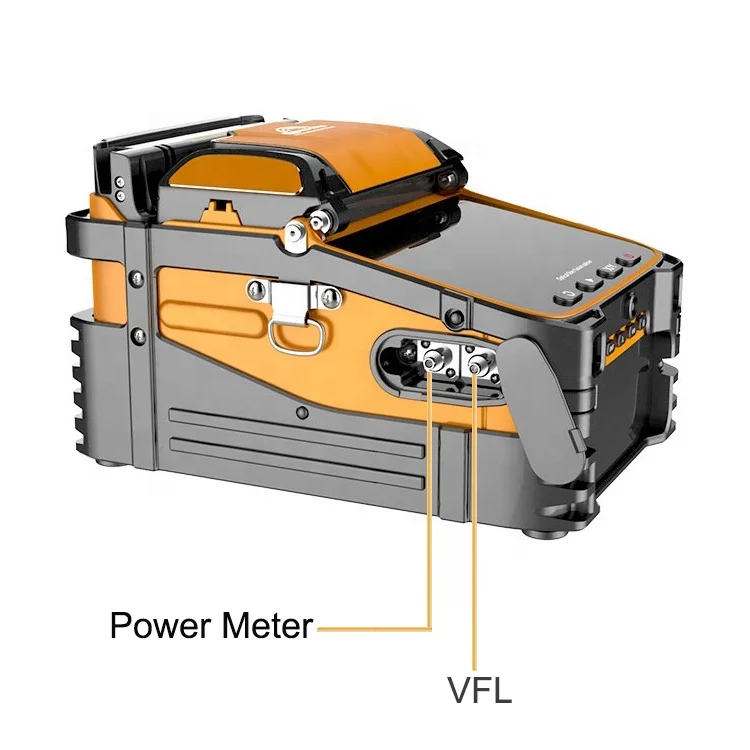

Visual Fault Locator(AI-9) | Power:15mw,2hzflashing And Constantly Bright Mode |
Optical Power Meter(AI-9) | Wavelength:850nm、1300nm、1310nm、1490nm、1550nm、1625nm |
Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range) |
