Китайский бренд DONGFENG Электрический грузовой автомобиль 3 5 T GVM выносливость 280 км с фургоном
- Категория: Cargo Trucks >>>
- Поставщик: Shiyan,Hangtai,Auto,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 30940.12 $* | 32487.90 $* |
| Aug-17-2025 | 30680.18 $* | 32214.29 $* |
| Jul-17-2025 | 25740.53 $* | 27027.51 $* |
| Jun-17-2025 | 30160.46 $* | 31668.45 $* |
| May-17-2025 | 26260.84 $* | 27573.75 $* |
| Apr-17-2025 | 29640.97 $* | 31122.63 $* |
| Mar-17-2025 | 29380.94 $* | 30849.84 $* |
| Feb-17-2025 | 29120.6 $* | 30576.1 $* |
| Jan-17-2025 | 28860.51 $* | 30303.33 $* |
Характеристики

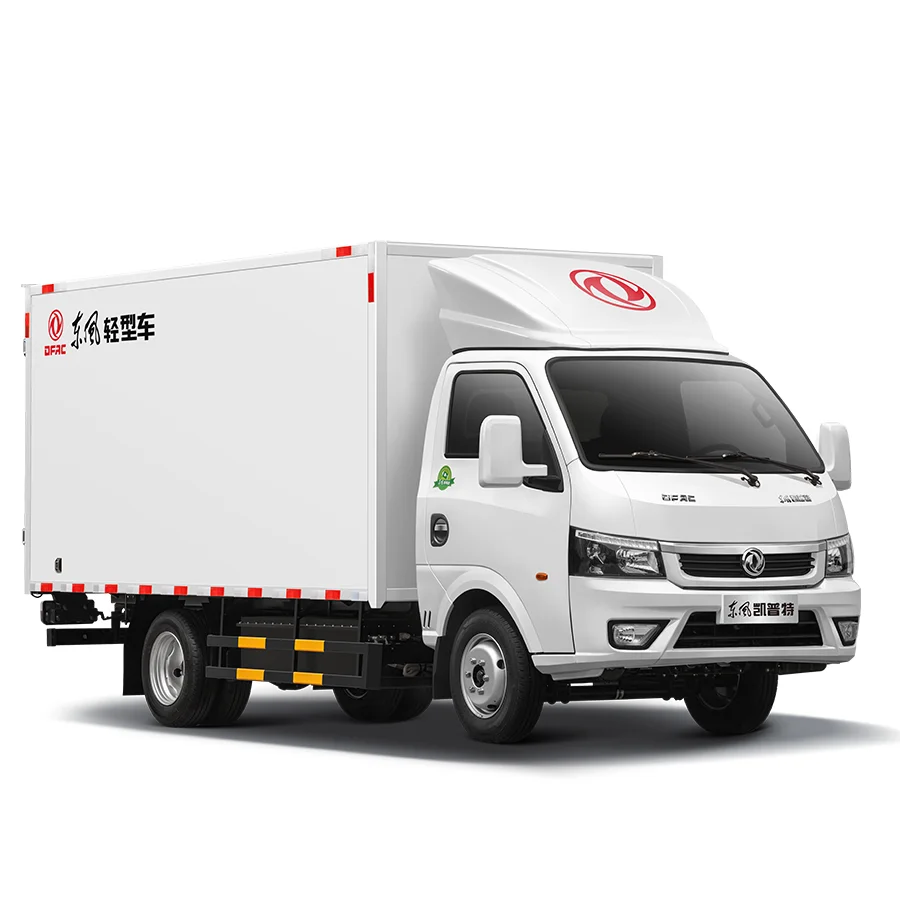

Chinese Brand DONGFENG Electric Cargo Truck 3.5T GVM Endurance 280KM With Van Small Cargo Truck
Product Description
Product Specification
Model Code | D92-100 | ||
GVW（t） | 3.5 | ||
Chassis Curb weight(kg) | 1850 | ||
Chassis dimension(lenght×width×height)（mm） | 5500*1650*1950 | ||
Vehicle dimension(lenght×width×height)（mm） | 5750*1910*2670 | ||
Cargo box dimension(lenght×width×height)（mm） | 3965*1860*1750 | ||
Qty of axles | 2 | ||
Wheel base（mm） | 3000 | ||
Wheel track(front/rear)(mm) | 1387/1242 | ||
front overhang/rear overhang(mm) | 1180/1320 | ||
Maximum gradeability(%) | 20 | ||
1km highest speed（km/h） | 90 | ||
Battery voltage（V）/Capacity（Ah） | 12/68 | ||
Model of cab | T15 1650/Single Row | ||
Drive motor | Supplier/Model | JING-JIN electric TZ180XSA02 | |
Type | Permanent magnet synchronous | ||
Technology | electric Motor+reduction gearbox | ||
Reduce/gearbox ratio | 3.045 | ||
Rated/peak torque(N.m) | 90/230 | ||
Rated/peak power(kW) | 42/70 | ||
Rated/maximum speed(r/min) | 4500/12000 | ||
Power controller/multi-in-one | Model | INVT KTZ34X37S-GVD52031 | |
Technology | three-in-one （PDU+MCU+DCDC） | ||
Rated operational voltage(V) | 336 | ||
DCDC rated power(kW) | 2.5 | ||
Rated/maximum capacity(KVA) | 65/130 | ||
power battery | Assembly Supplier | CATL | |
Cell manufacturer/type | CATL/LFP | ||
layout types | LEFT ,MIDDEL, RIGHT Tiled | ||
Energy density (Wh/kg) | 154.59 | ||
Rated power (kWh) | 66.8 | ||
Rated voltage (V) | 386.4 | ||
Front axle | Rated Load(kg） | 1500 | |
Leaf spring spacing distance（mm） | 700 | ||
Brake type/Size（mm） | Disc/￠264 | ||
Rear axle | Rated Load(kg） | 3000 | |
Ratio | 4.875 | ||
Leaf spring spacing distance（mm） | 700 | ||
Brake type/Size（mm） | Drum/￠280*64 | ||
Chassis frame | Chassis frame width（mm） | 750 | |
Longitudinal beam size（mm） | 140*50*4 | ||
Pieces of leaf spring (front/rear) | 3/5 | ||
Tyre | Model | 185R15LT 8PR | |
Qty | 6 rear double/4 rear single | ||
A/C | Cold | YES | |
Warm | YES | ||
Brake | Type | Hydraulic | |
ABS/ESC | ABS | ||
automatic adjustable arm | YES | ||
Electricity output | Electricity output | YES | |
Specs | DC380V， 3.5/8kW | ||
Charging port | Fast charging | YES（EU connector） | |
Location of Charging port | under battery pack, Left | ||
Loacation of nameplate | Chassis nameplate | B pillar right side of cab | |
Vehicle nameplate | - | ||
Slow-charging | YES/NO | YES | |
power(kW) | 6.6 | ||
Slow charging plug | NO | ||
Reversing camera | Optional | ||
Deflector | Optional | ||
Transverse stabilizer bar | YES | ||
Spare tyre | YES | ||
ECE configuration requirements | Cargo box high brake lamp | YES | |
Automatic headlights on | YES | ||
Seat belt not fastened warning (middle/passenger) | YES | ||
Low speed warning system | YES | ||
Related Products
Products Configuration
COMPANY PROFILE
Shiyan Hangtai Automobile is located in Hubei Province, China. The company has a strong design, production and after-sales service support system to provide customers in China and around the world with high quality products from trucks, buses and other commercial vehicles to complete vehicle parts. As the authorized exporter of well-known bus and truck manufacturers such as Dongfeng Special Commercial Vehicle Co., LTD. We are professional automobile industry experts, we have 20 years of automobile business experience, we can solve any problem you, welcome to buy our products in Alibaba
PACKING & SHIPPING
FAQ
Q1. How to purchase the truck from our company?
A:You can choose the model from our website. Also, you can tell our sales manger
your specific requirements and we will recommend the suitable model to you. After you confirm the model and price, we can sign the contract.
your specific requirements and we will recommend the suitable model to you. After you confirm the model and price, we can sign the contract.
Q2. How to ensure product quality?
A:Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.
A:Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.
Q3. Can you offer customized service?
A:Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
A:Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
Q4.What is the warranty term?
A:We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
A:We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
Q5. How to visit our factory?
A:After arriving in China, please contact us. Our company has someone to pick you up in any city, and then we will take you to the city where the company is located
A:After arriving in China, please contact us. Our company has someone to pick you up in any city, and then we will take you to the city where the company is located
