Характеристики

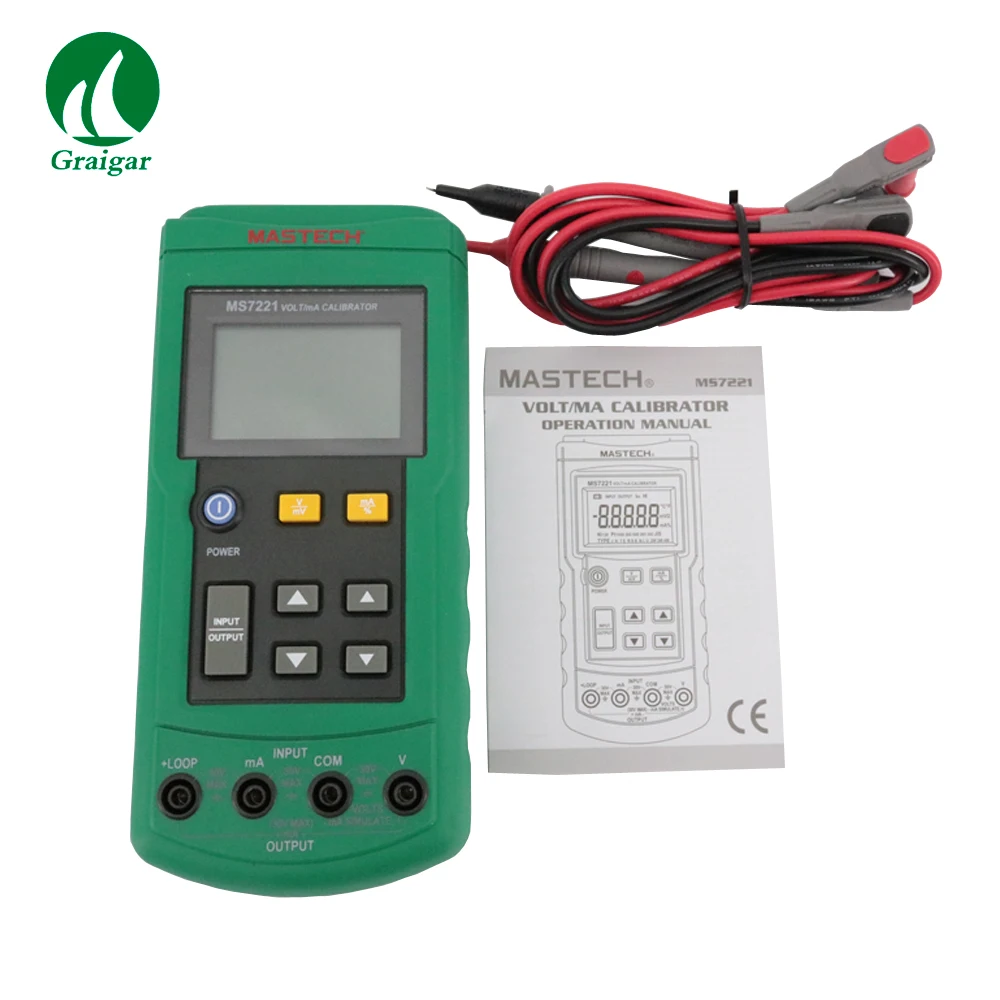

MS7221 Volt/mA Calibrator Current&Voltage Process calibrator Volt mA Calibrator Holster features test lead storage
MS7221 Volt/mA Calibrator is a source and measurement tool. This Calibrator can be used in measurement or output 0 to 24 mA DC current loop, and 0 to 10 V DC voltage.
· Measure loop current (0-20 mA, 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution
· Measure voltage output process signals from PLCs, transmitters
· Source or simulate 24 mA loop current
· Source voltage to 100 mV or 10V
· 24V loop supply with simultaneous current measurement
· Enhanced voltage and current measure and source accuracy
· Improved battery life
· 250 ohm HART resistor with loop power

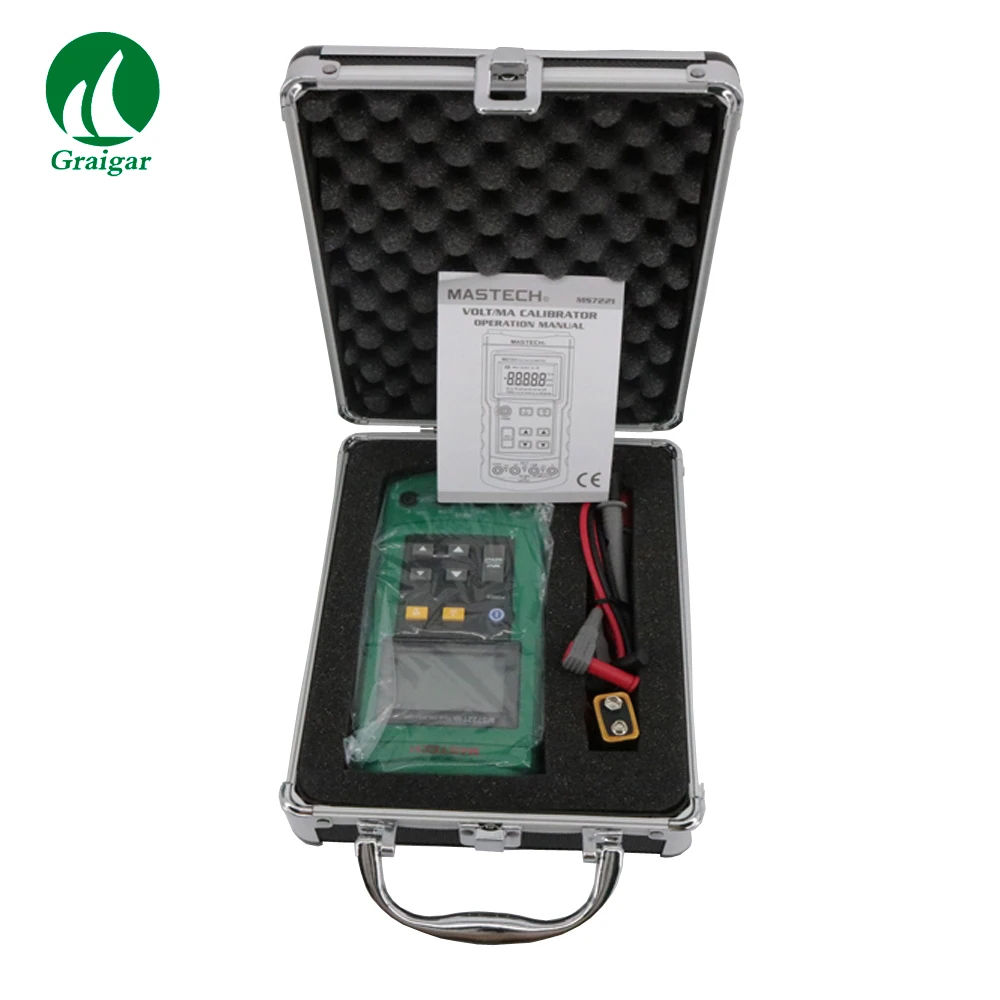

· Holster features test lead storage
· Compatible with toolpack magnetic hanging system
· Step and linear ramp output function
· Configurable zero and span settings
Functional specifications
| Measure / Source mV | Range: | 0 to 100 mV |
| Resolution: | 0.01 mV | |
| Accuracy: | 0.02% + 2 counts | |
| Measure / Source V | Range: | 0 to 10 V |
| Resolution: | 0.001 V | |
| Accuracy: | 0.02% + 2 counts | |
| Measure / Source/ Simulate mA (% of span) | Range: | 0 to 24 mA (-25% to 125%) |
| Resolution: | 0.001 mA | |
| Accuracy: | 0.015% + 4 counts | |
| Note: Sink (simulate transmitter) Display mA or % of span | ||
Specifications
| Loop Power | Range: | 24 V dc |
| Accuracy: | +/- 10% | |
| Note: Drive; 20 mA into 1000 Ω for battery >6.8V; 700 Ω for battery 5.8 to 6.8 V | ||

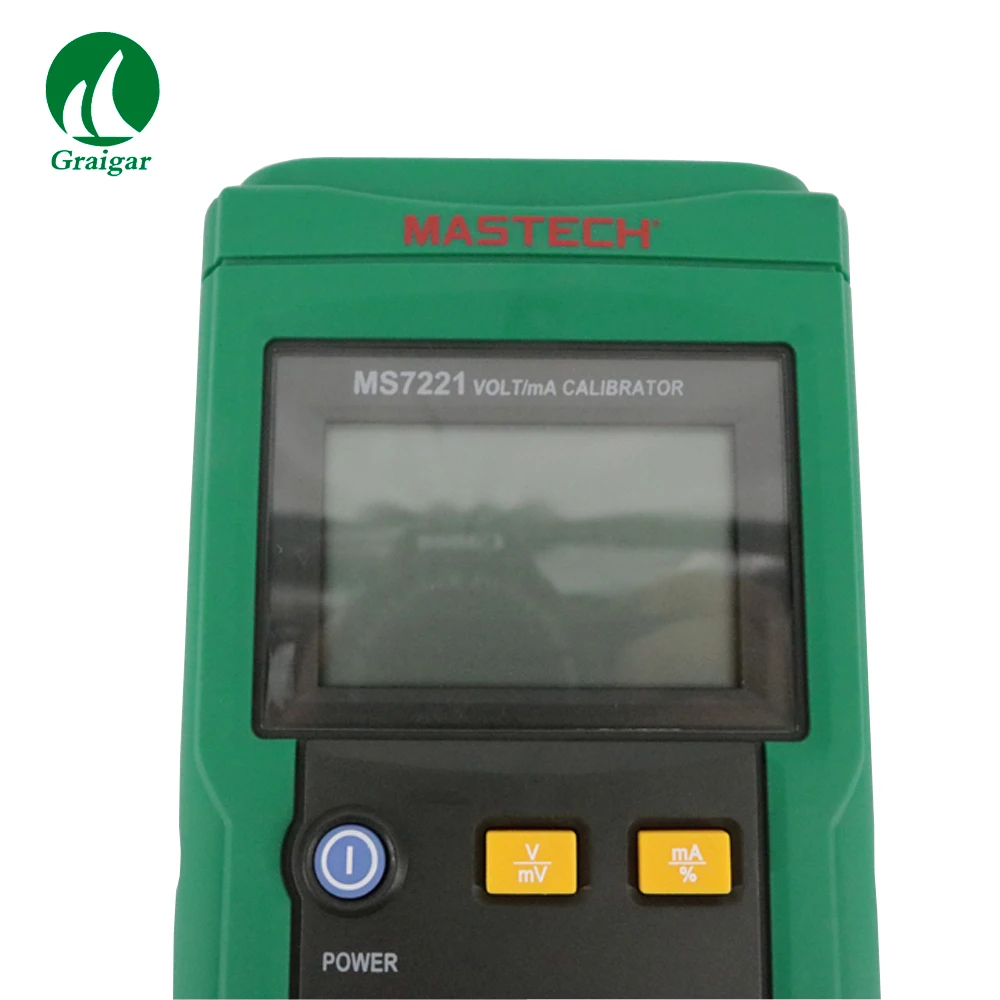

| Display | Clear 5 digit LCD | |
