Плавкий предохранитель 50A-300A (только клеммный MRBF) 58 В постоянного тока максимум
- Категория: Fuses >>>
- Поставщик: Dongguan,Tianrui,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.32 $* | 0.38 $* |
| Aug-18-2025 | 0.12 $* | 0.28 $* |
| Jul-18-2025 | 0.87 $* | 0.64 $* |
| Jun-18-2025 | 0.32 $* | 0.67 $* |
| May-18-2025 | 0.53 $* | 0.64 $* |
| Apr-18-2025 | 0.66 $* | 0.43 $* |
| Mar-18-2025 | 0.56 $* | 0.77 $* |
| Feb-18-2025 | 0.87 $* | 0.53 $* |
| Jan-18-2025 | 0.52 $* | 0.46 $* |
Характеристики
Product Description

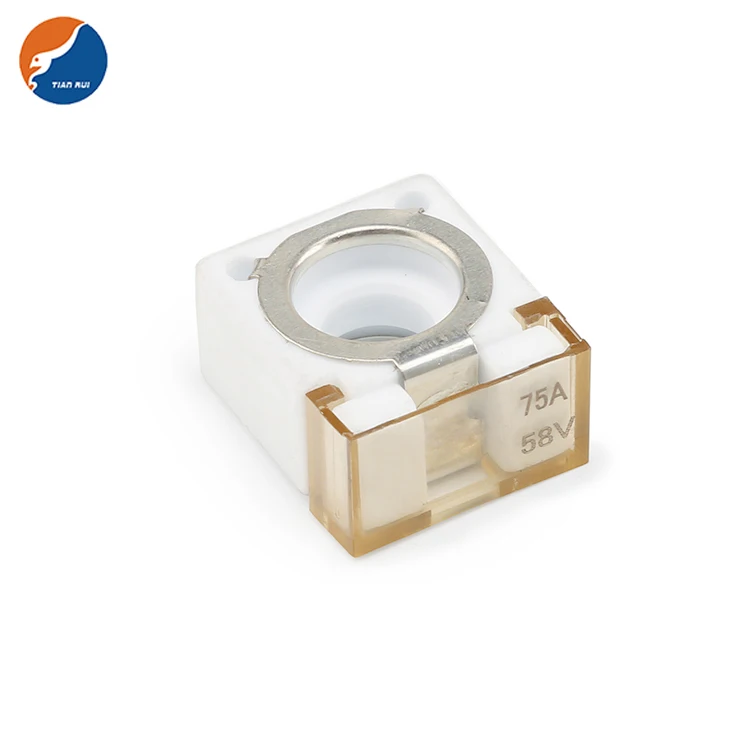

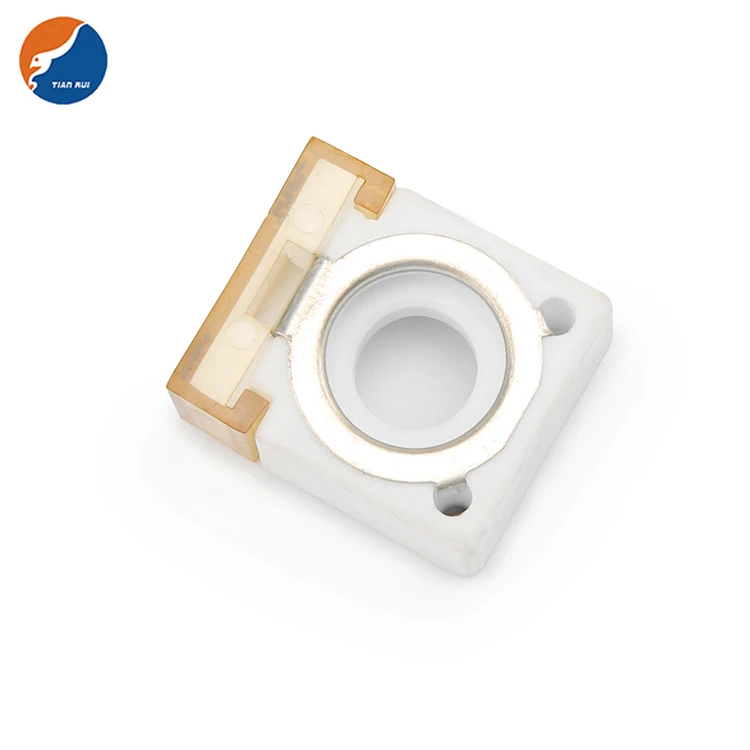

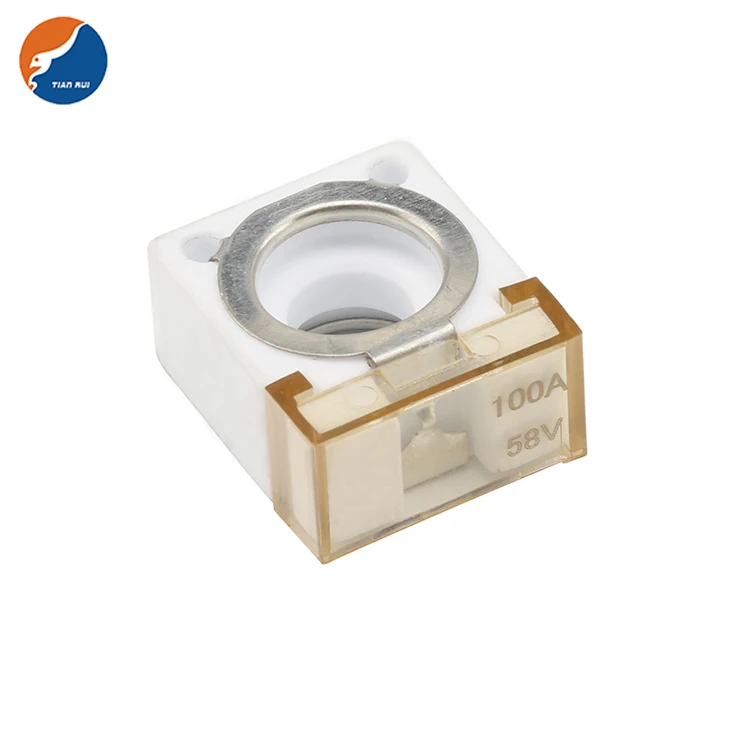

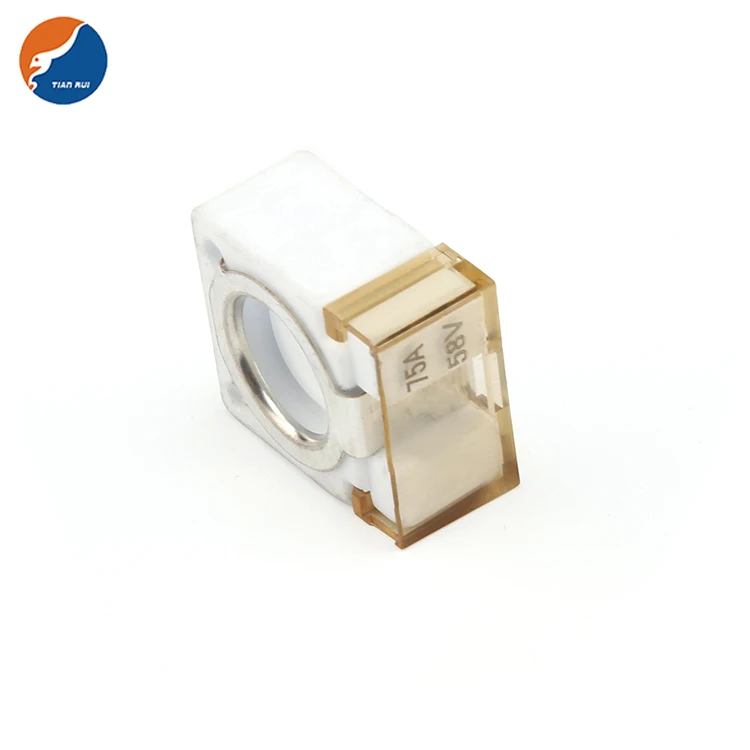

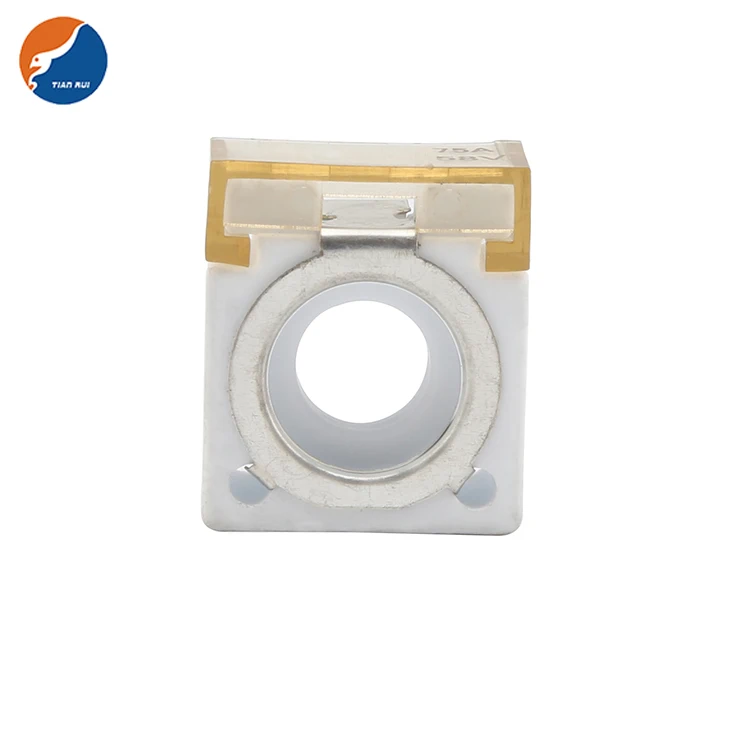

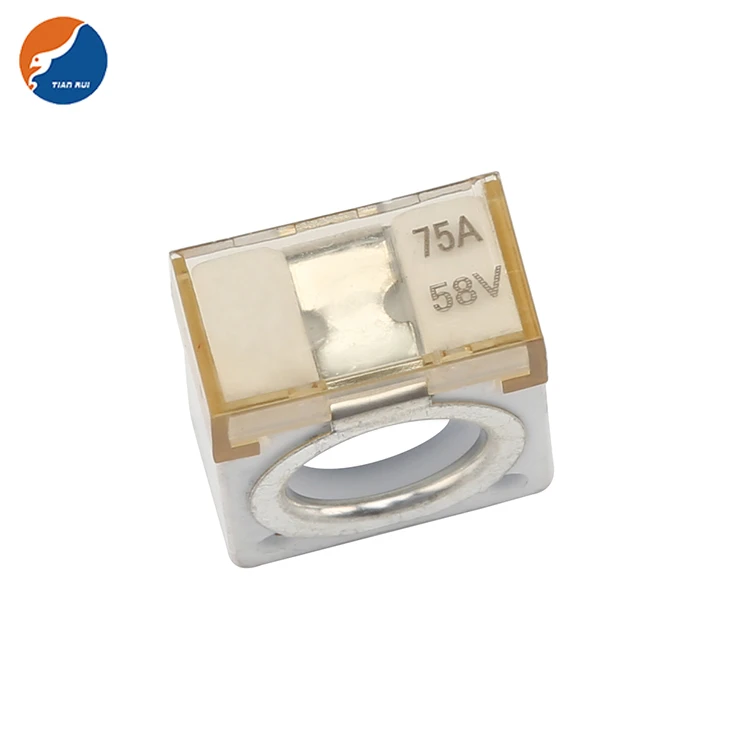

Marine Rated battery Fuses
Designed for the most demanding environment to provide high current protection for the tightest space constraints. Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs and accessory circuits. Alleviates having to make up a short wire to connect to a standard fuse block to the battery. Safe for installation aboard gasoline powered boats.
Application of 50A-300A Marine Rated battery Fuses (MRBF Terminal Fuse Only) 58V DC Maximum IP66
Full range circuit protection for automotive and marine applications. The breaking capacity meets the requirements of conventional vehicle batteries and 12V, 24V and 42V electrical networks. Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Ignition protected when used with MRBF Terminal Fuse Blocks. Isolated stud design uses standard M8 hardware and
permits stacking of terminals.
Stud Size: 5/16" (M8), accepts 5/16" ring terminals
Terminal Mounting Hole: 3/8" (M10)
Maximum Voltage Rating: 58Vdc
Amperage Rating: 50A – 300A
Interrupt Rating: 10,000A @ 14Vdc / 5,000A @ 32Vdc / 2,000A @ 58Vdc
Maximum Torque Rating: 12 N•m (106 in-lbs)
Material: Body - Ceramic; Housing & Cover: UL-rated 94V0 Thermoplastic; Ring Terminals - Tin Plated
Time-Current Characteristics
Ratings
Pre-Arcing Time-Limits
Dimensions
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
If you have another question, pls feel free to contact us.
