Геоячейка для железнодорожной кровати высотой 30
- Категория: Earthwork Products >>>
- Поставщик: Uning,New,Materials,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.37 $* |
| Aug-19-2025 | 0.30 $* | 0.53 $* |
| Jul-19-2025 | 0.96 $* | 0.28 $* |
| Jun-19-2025 | 0.27 $* | 0.69 $* |
| May-19-2025 | 0.21 $* | 0.99 $* |
| Apr-19-2025 | 0.23 $* | 0.71 $* |
| Mar-19-2025 | 0.71 $* | 0.6 $* |
| Feb-19-2025 | 0.36 $* | 0.21 $* |
| Jan-19-2025 | 0.56 $* | 0.48 $* |
Характеристики
Products Description
30 -200mm Height Geocell Factory Geocell Production For Railway Bed

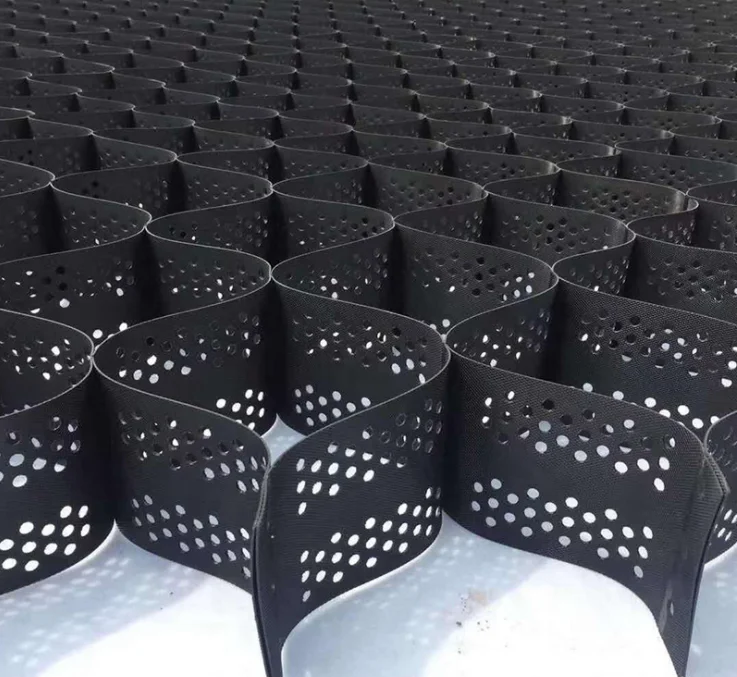

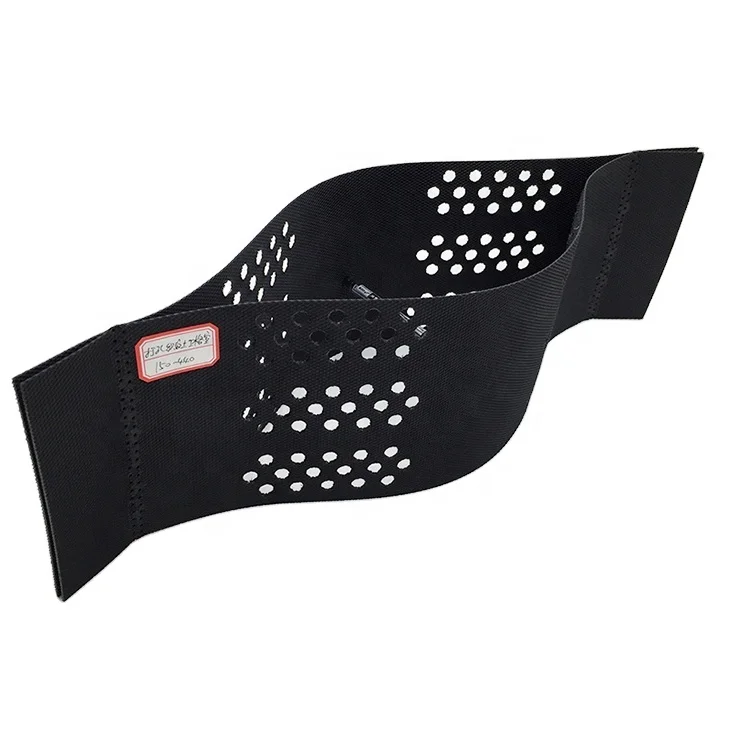

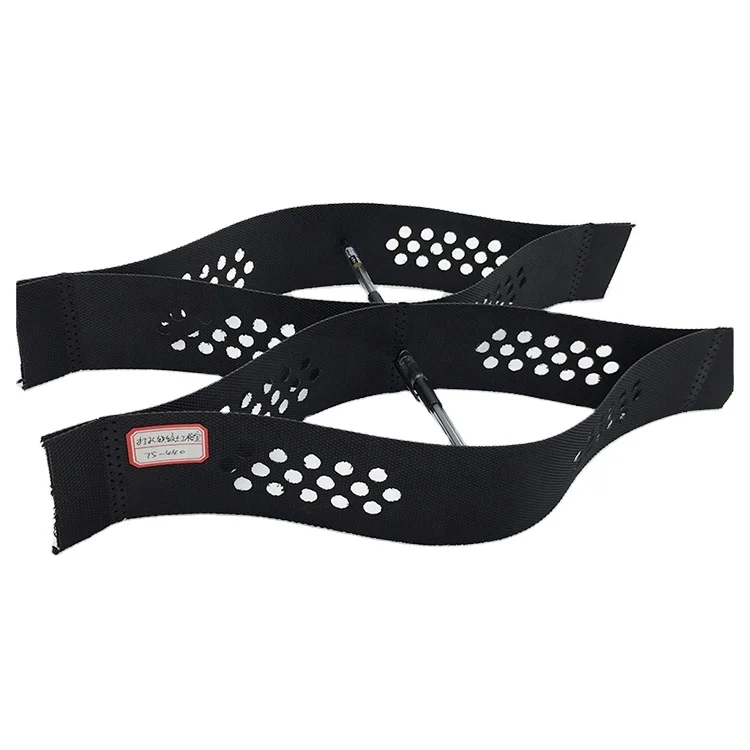

The high-strength geocell is a honeycomb shaped geocell composed of PET sheets. It is a kind of 3D limiting material. Its core function is to form a complex with large tensile stiffness and shear strength by using the joint action of geocell and filler, which can effectively diffuse stress and make the load distribution more uniform, Thus, the settlement of the top surface of the subgrade can be flexible and coordinated.Material | 100% Original HDPE | ||
Standard Color | Black/Green/Milk White | ||
Height(mm) | 30-200(or as required) | ||
Jointing | Ultrasonic Welding | ||
Welding Disdance (mm) | 330-1000(or as per required) | ||
Surface | Smooth, Textured, Perforated, Non-Perforated | ||
Density(g/cm3) | >0.94 | ASTM D1505 | |
Carbon Black Content(%) | 1.5~2.0~2.5 | ASTM D 1603 | |
Sheet Thickness(mm) | 1mm,1.05mm,1.1mm,1.15mm,1.2mm | ASTM D 5199 | |
Seam Peel Strength(KN/m) | ≥10 (GB) ≥14 (ASTM) | GB or ASTM | |
Low Temperature Brittleness(℃) | <-77 | ASTM D 746 | |
Environment Stress Crack Resistance(Hours) | >4000 | ASTM D 169 | |
Application
Applications where our products are used include:

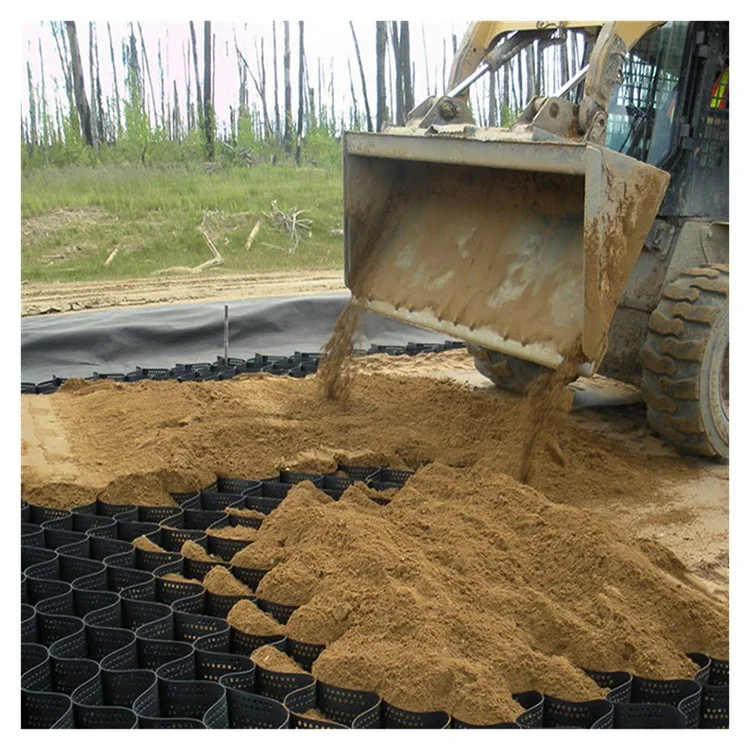

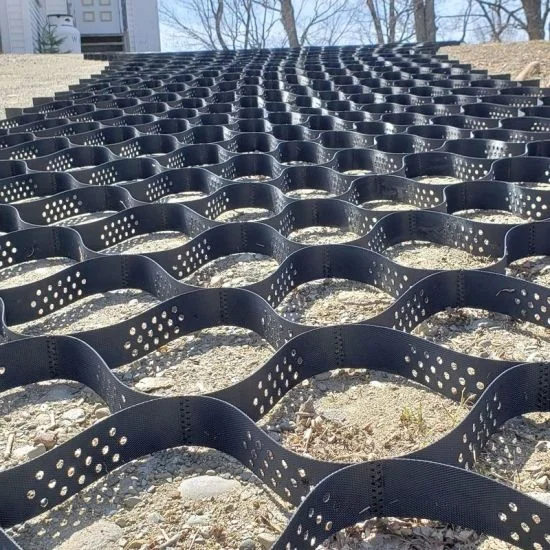

1.roads and railways (e.g. surface repair, sub-grade stabilization)
2. drainage andfiltration (e.g. subsoil drains, waste and stormwater attenuation soak aways)

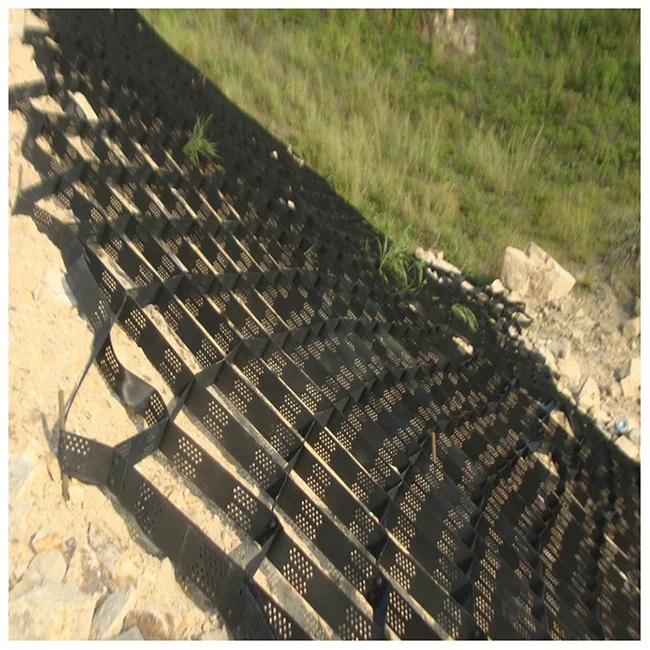

3.erosion control (e.g. steep slopes) reinforcement(e.g. retaining walls, basal reinforcement)
4.separation and liner protections (e.g. embankments, in landfills, dam lining)
Our Main Products
Company Profile
Into Uning New Material
Uning new materials (Shanghai) Co., Ltd. is a China company that manufactures and supplies geosynthetic products to the civil engineering industry.
Uning's focus on innovation and technology has allowed us to become a leader in the soil reinforcement industry. Our team includes a full research and development department that works to develop products to push the boundaries of what is possible to solve even the toughest challenges.
Uning's focus on innovation and technology has allowed us to become a leader in the soil reinforcement industry. Our team includes a full research and development department that works to develop products to push the boundaries of what is possible to solve even the toughest challenges.
As an China pioneer in geosynthetic production, we have established a reputation as a reliable supplier
to the mining, civil engineering and building sectors. We have provided geosynthetic solutions for more than 30 years. Our factory
in Shangdon,China is an ISO 9001 accredited facility and our material is manufactured from 100% recycled raw material .our main products are included :
to the mining, civil engineering and building sectors. We have provided geosynthetic solutions for more than 30 years. Our factory
in Shangdon,China is an ISO 9001 accredited facility and our material is manufactured from 100% recycled raw material .our main products are included :
geogrid,geocell,geomembranes,geotexiles,geosynthetic clay liner etc.
Applications where our products are
used include: roads and railways (e.g. surface repair, sub-grade stabilization) waste and water containment (e.g. landfills, dam
lining) drainage and filtration (e.g. subsoil drains, waste and stormwater attenuation soak aways) erosion control (e.g. steep
slopes) reinforcement (e.g. retaining walls, basal reinforcement) separation and liner protections (e.g. embankments, in
landfills, dam lining).
used include: roads and railways (e.g. surface repair, sub-grade stabilization) waste and water containment (e.g. landfills, dam
lining) drainage and filtration (e.g. subsoil drains, waste and stormwater attenuation soak aways) erosion control (e.g. steep
slopes) reinforcement (e.g. retaining walls, basal reinforcement) separation and liner protections (e.g. embankments, in
landfills, dam lining).
Workshop & Warehouse
Uning Quality Control
Global Market
Uning Market
Uning Products such as geogrid,geocell,geotextile ,geomembrane ect. have beening widely used to the global market. our customers come from all over the world . such as Africa , Europe, Soutueast Asia, Middle East.Latin America etc.our good quality and low price geosynthetic have won their reconfnition .
FAQ
1. Who are we?
We are based in Shanghai, China.specalized in manufacturing and suppling geosynthetic products,such as geogrid ,geocell,geotextile etc.
We are based in Shanghai, China.specalized in manufacturing and suppling geosynthetic products,such as geogrid ,geocell,geotextile etc.
2. What is your advantages?
Both quality and price :we have our own factory and all the production engineers worked for more than 10 years in this industry.and also we have good raw material suppliers in China ,so our price can be lower 20%-30% than China other suppliers.
Both quality and price :we have our own factory and all the production engineers worked for more than 10 years in this industry.and also we have good raw material suppliers in China ,so our price can be lower 20%-30% than China other suppliers.
3. How can we guarantee quality?
All raw material are environment friendly and all the engineers are worked more than 10 years in soil reinforcement industry.all the products are checked before shipment.
4. How you can help ?
We are not only selling products , but also provide necessary and professional suggestions for the products using .
5. What services can we provide?
We are not only selling products , but also provide necessary and professional suggestions for the products using .
5. What services can we provide?
we can provide different kinds of geosynthetic and the supports of export or import .
6.How to directly contact ?
6.How to directly contact ?
Sales:Candy Chen
Wechat/Whatsapp:+86 134 2135 1153
Email:candy AT uning.com.cn
