Высокочастотные небольшие точечные сварочные машины сварочная машина для водяного раковины резервуар
- Категория: Seam Welders >>>
- Поставщик: Chengdu,Xinwei,Welding,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2975.40 $* | 3124.56 $* |
| Aug-20-2025 | 2950.34 $* | 3098.32 $* |
| Jul-20-2025 | 2475.6 $* | 2599.68 $* |
| Jun-20-2025 | 2900.36 $* | 3045.21 $* |
| May-20-2025 | 2525.59 $* | 2651.13 $* |
| Apr-20-2025 | 2850.92 $* | 2993.4 $* |
| Mar-20-2025 | 2825.0 $* | 2966.40 $* |
| Feb-20-2025 | 2800.91 $* | 2940.69 $* |
| Jan-20-2025 | 2775.12 $* | 2914.42 $* |
Характеристики

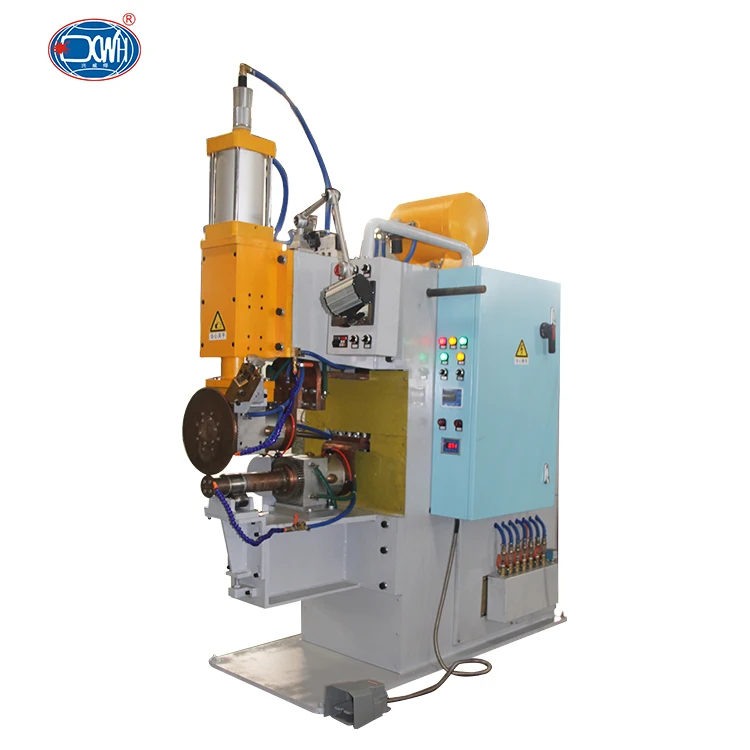

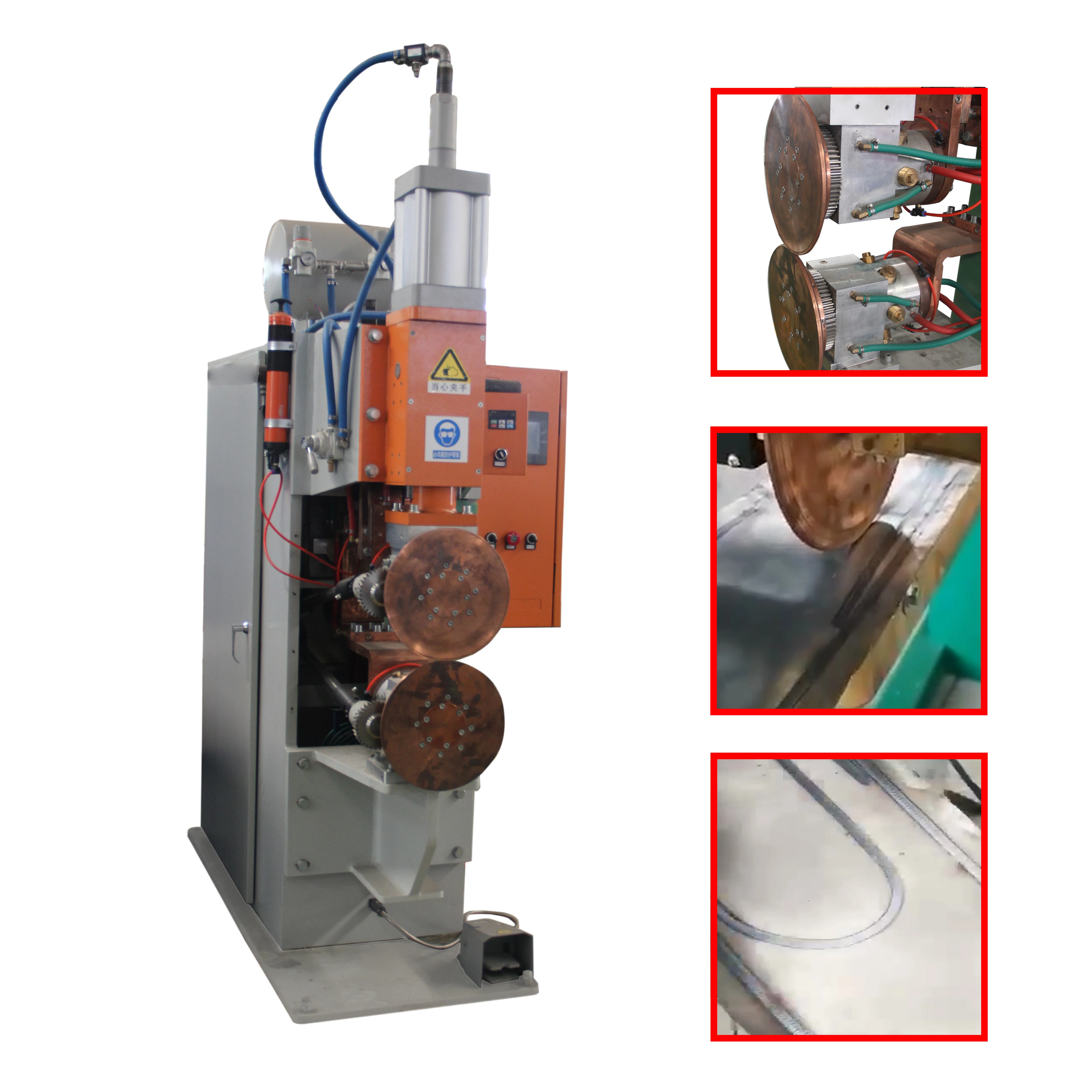

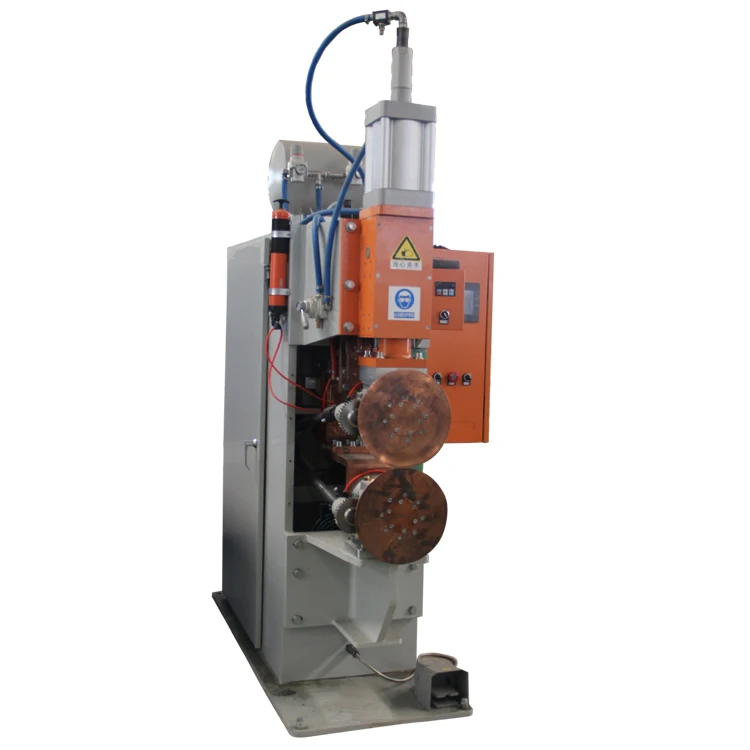

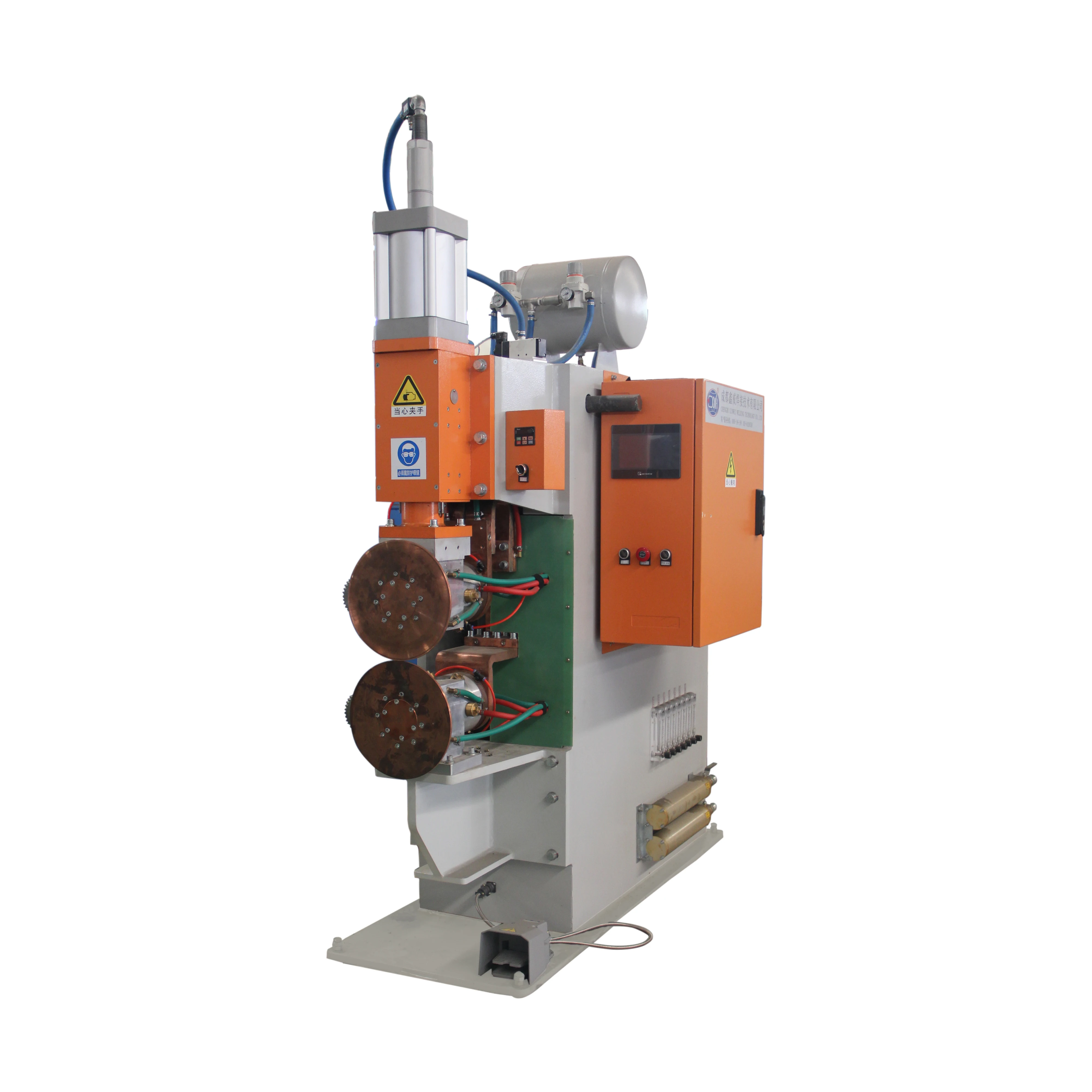

Product Display
1.The welding process is stable and easy to adjust.

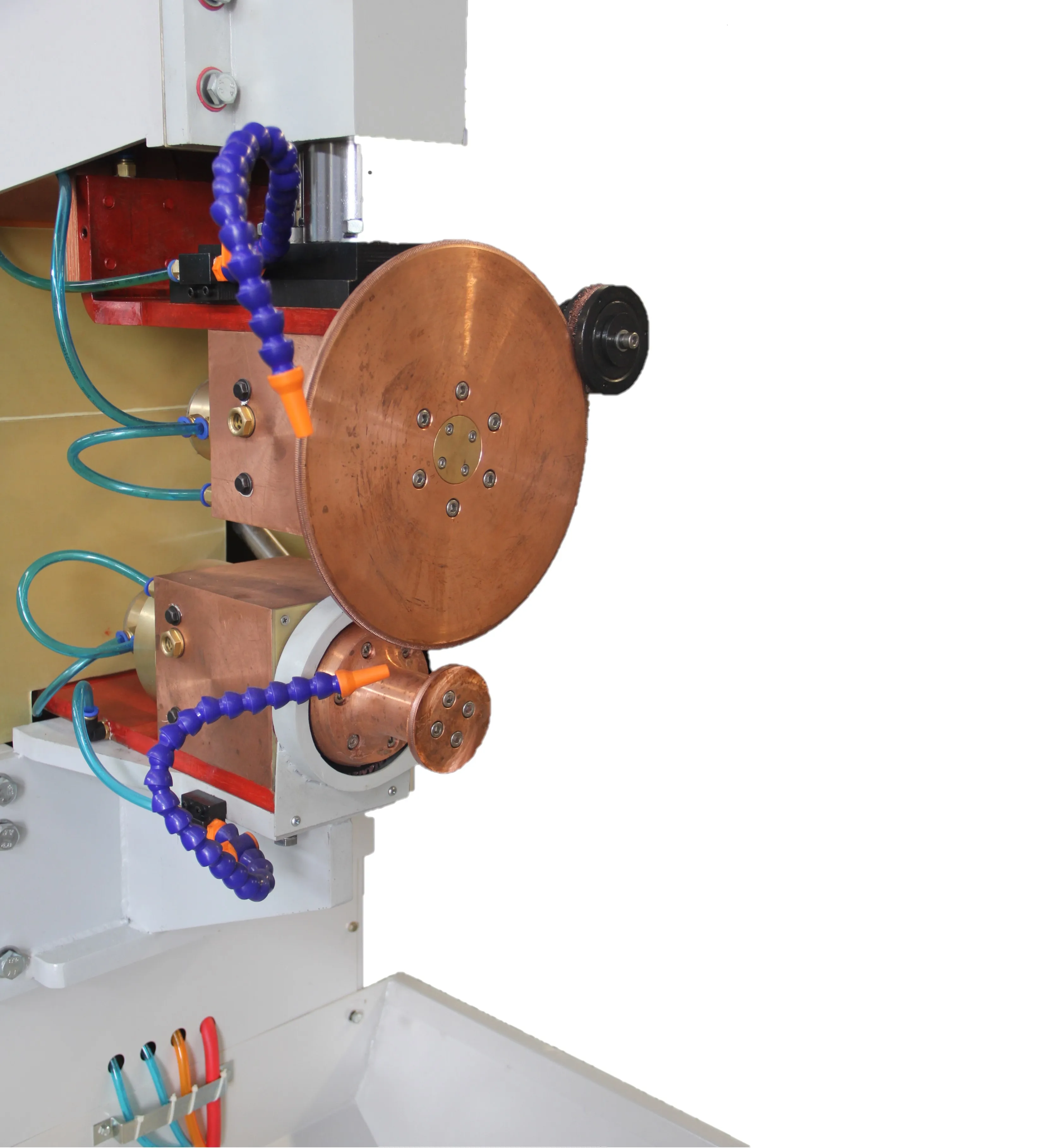

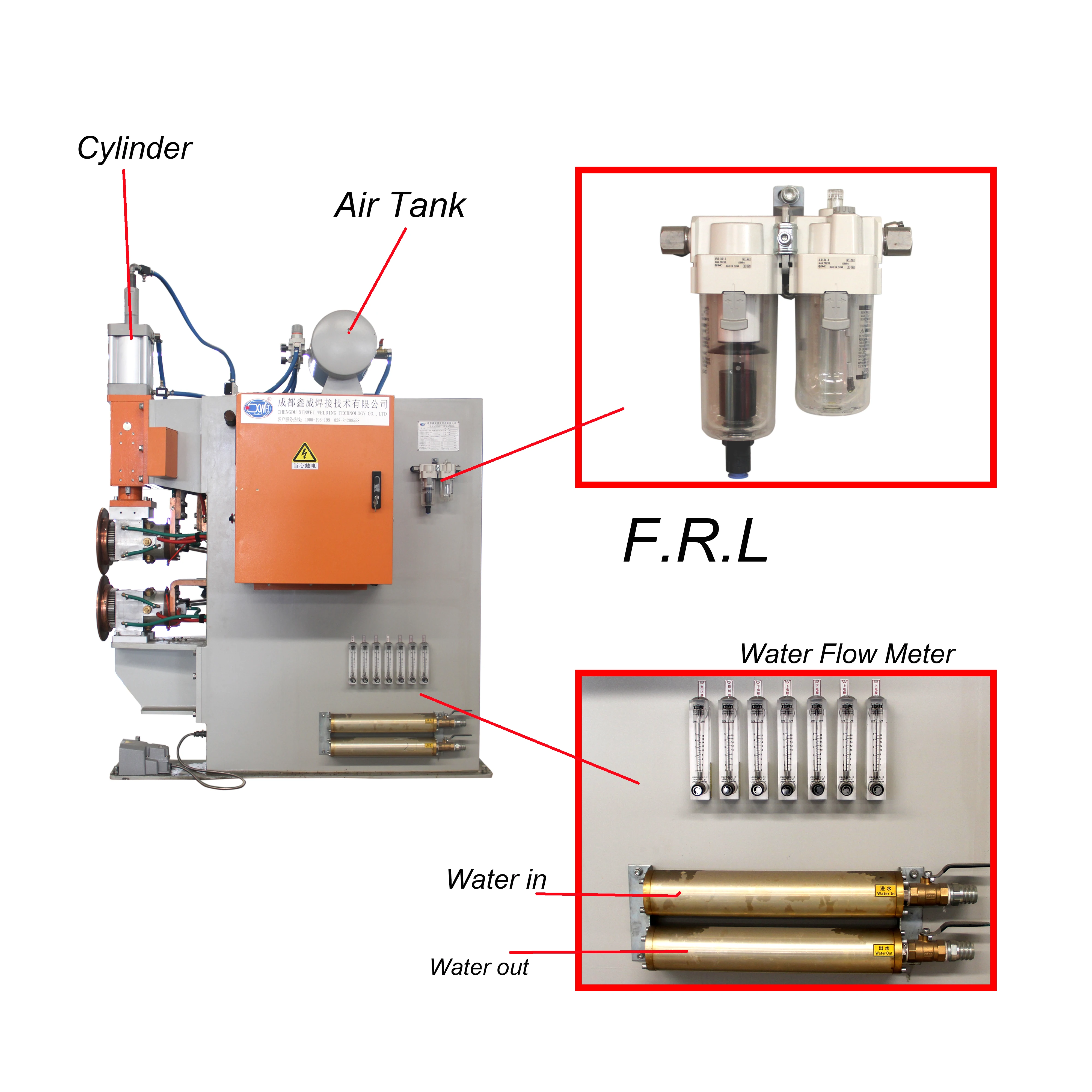

2.Internal cooling used in the welder, while external cooling of the welding wheel..3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the
conductivity and the rotation flexibility .
4.Two kinds of welding modes: Horizontal and Vertical
5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated capacity | KVA | 80 | 100 | 160 | 100 | 160 |
Rated primary voltage | V | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding thickness | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Related Products
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
Transportation Display
