Лидер продаж высококачественный воздушный регулятор smc типа frl ac40 фильтр смазка комбинированный очиститель источника воздуха порт
- Категория: Machinery Accessories >>>
- Поставщик: Ningbo,Yuxin,Pneumatic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 14.11 $* | 14.21 $* |
| Jul-20-2025 | 11.11 $* | 11.80 $* |
| Jun-20-2025 | 14.53 $* | 14.66 $* |
| May-20-2025 | 14.19 $* | 14.5 $* |
| Apr-20-2025 | 11.13 $* | 11.6 $* |
| Mar-20-2025 | 13.78 $* | 13.77 $* |
| Feb-20-2025 | 13.96 $* | 13.33 $* |
| Jan-20-2025 | 13.22 $* | 13.4 $* |
Характеристики
Products Description

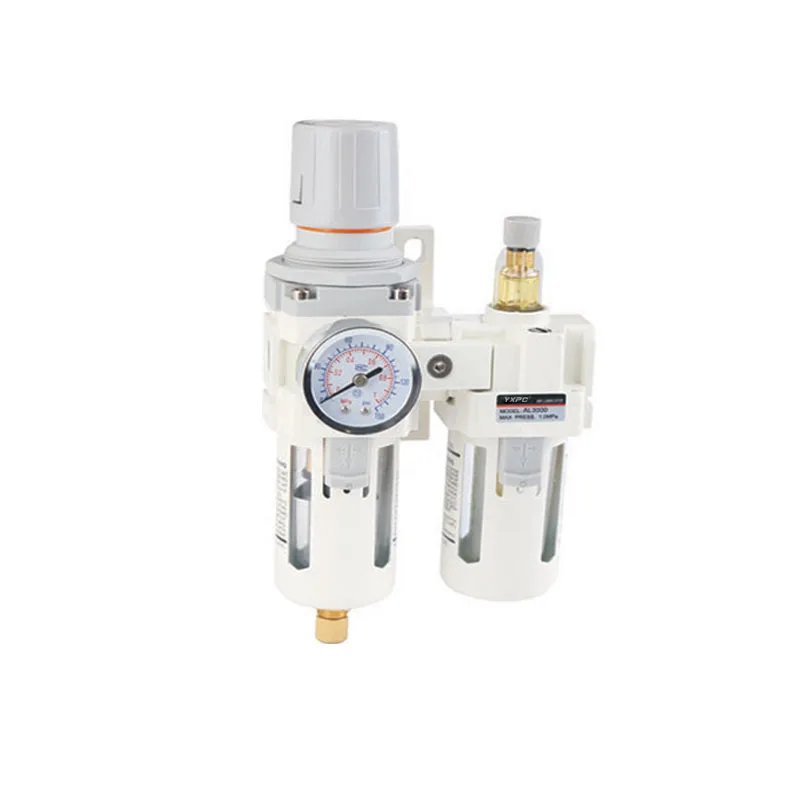

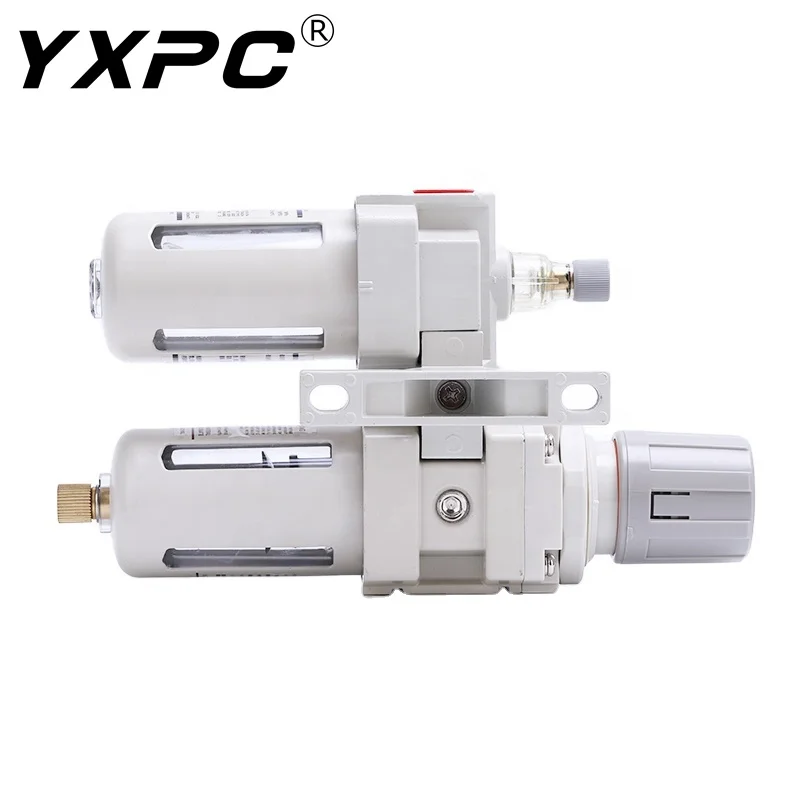

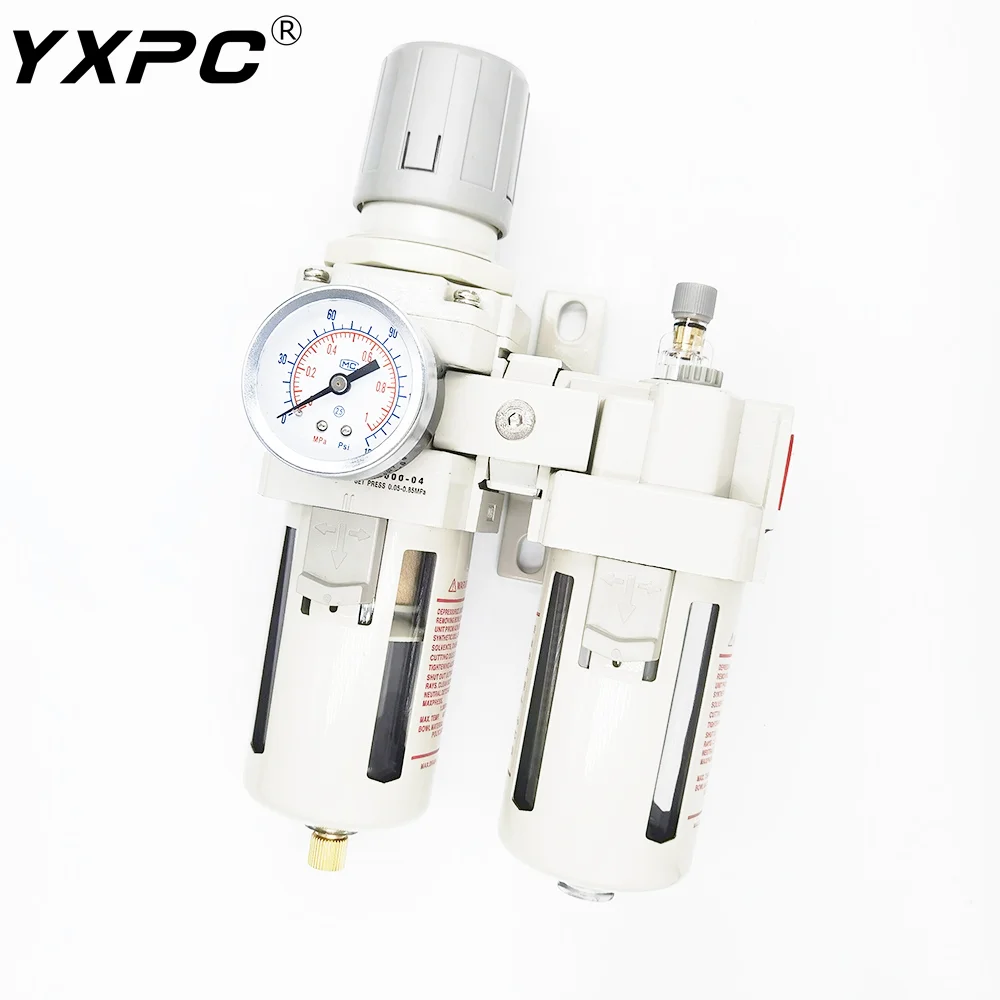

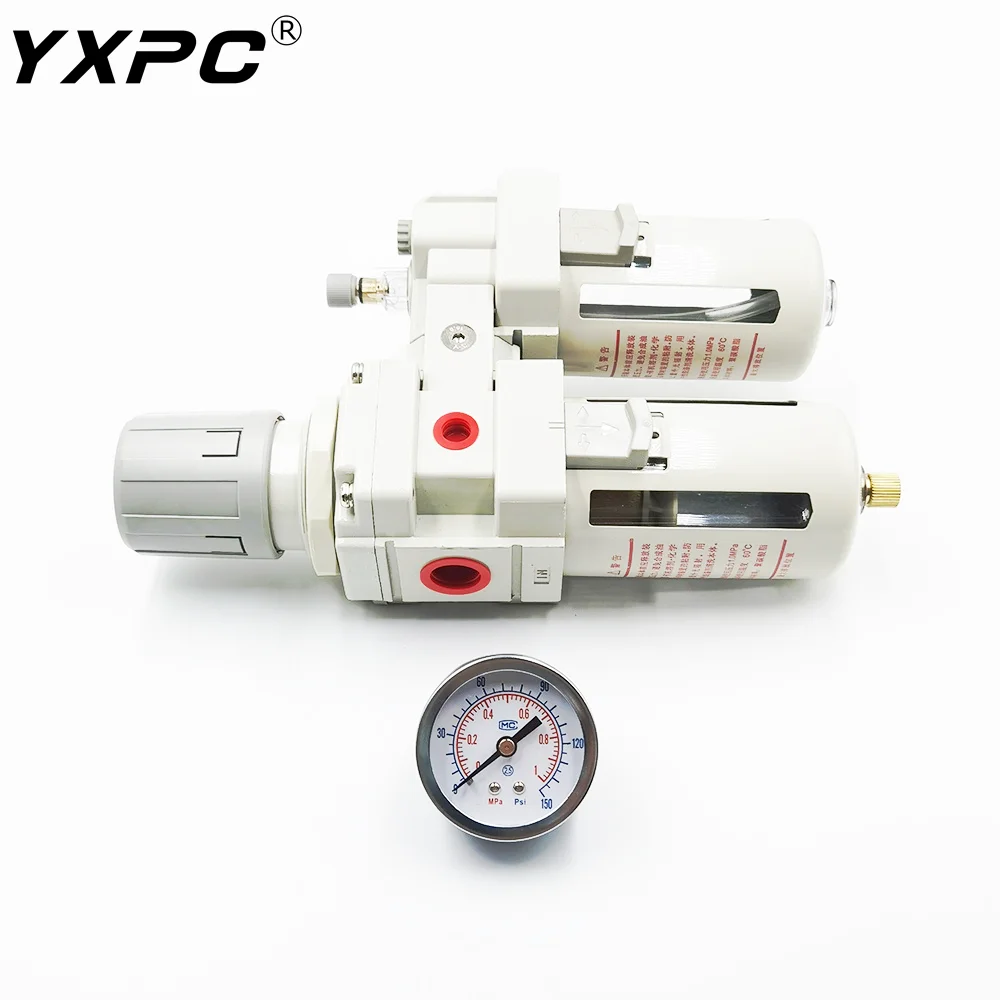

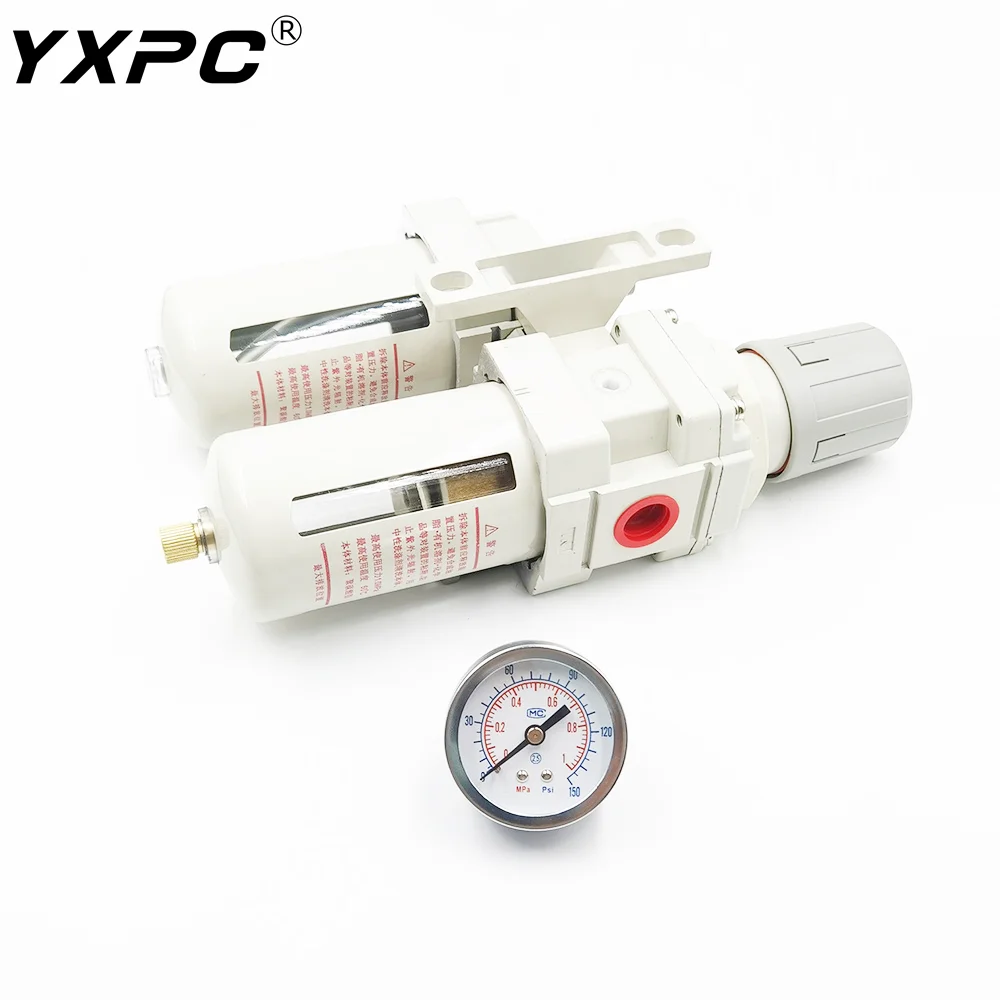

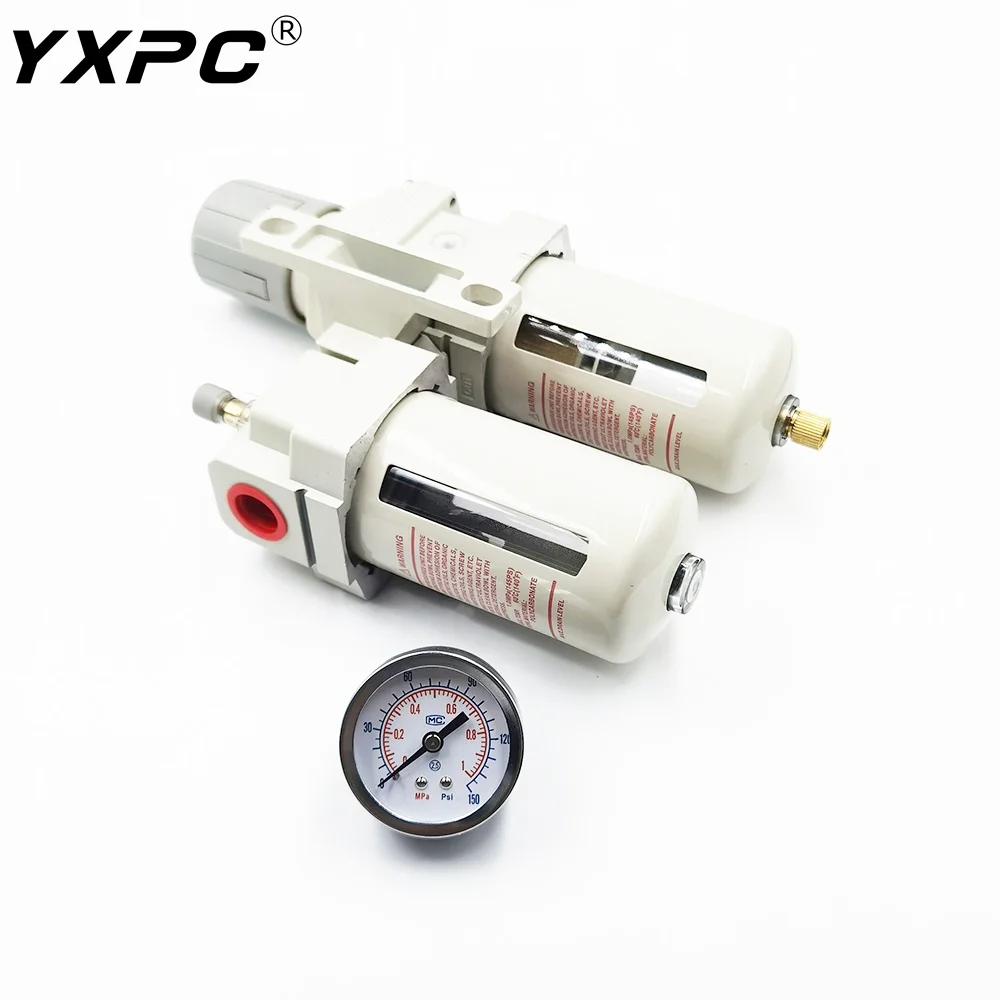

best selling top quality smc type frl ac40 air regulator filter lubricator combination air source treatment unit fr.l 1/2 PORT
AC4010-04 model is same as & nice replacement for SMC type. It includes 2 parts: filter & regulator and lubricator. But still have 3 function: filtration, decompression and lubricating. FR.L is more compact than F.R.L. Auto Drain can be selected. All size have overflow function.1.Standard Modular Design, Can Be Arbitrarily Decomposed And Combined, The Product Design Is Reasonable, Easy To Use, Small Horizontal Space, Can Meet The Different Requirements Of The System. 2.The Filter Element And The Cup Cover Are Integrated, Easy To Replace The Filter Element. 3.Use A Transparent Fully Enclosed Cup Body Protection Cover, Improved Visibility And Safety. 4.Working Medium: Air, Simple Exhaust Treatment, No Pollution To The Environment And Low Cost.
Model | AC2010-02 AC2010-02D | AC3010-03 AC3010-03D | AC4010-04 AC4010-04D | AC5010-06 AC5010-06D | AC5010-10 AC5010-10D | ||||
Port size RC(PT) | 1/4" | 3/8" | 1/2" | 3/4" | 1" | ||||
Pressure gauge port size | 1/8" | 1/4" | |||||||
Flow rate(L/Min) | 550 | 2000 | 4000 | 5500 | 5500 | ||||
Proof pressure | 1.5Mpa(15.3kgf/cm²) | ||||||||
Max.operating pressure | 1.0Mpa(15.3kgf/cm²) | ||||||||
Ambient & fluid temperature | 5~60°C | ||||||||
Nominal filtration rate | 40µm | ||||||||
Adjustable Pressure range | 0.05~0.85 | ||||||||
Pressure gauge | Y40-01 | Y50-02 | |||||||
How to order
Dimension size
Company Profile
NINGBO YUNXIN PNEUMATIC Co., Ltd
which is a professional pneumatic components manufacturer at Ningbo China, mainly engaged in the design, development, processing on valves,The company’s main products include high temperature solenoid valves, explosion proof solenoid valve ,single control valves, plate solenoid valves , fluid control valves, ,pulse valve, pneumatic actuator, air treatment units ,cylinders and pneumatic accessories, which have the strong R&D capability to offer technology solutions in nonstandard customized .We are looking forward to forming successful business relationships with new clients around the world in the near future.
workshop
We have own factory and We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force. including 30 sets CNC mahines and advanced on-line testing equipment to promise providing high quality pneumatic components before shipment .
Our Advantages
What we offer:
1)Nonstandard customize service with good quality control
2) Highly competitive prices supply goods from factory directly.
3) state-of-art technology products.
4) Best professional team of researching in pneumatic field.
5) Smooth communication with after-sales team to deal with customer suggestions and complaints.
6) Effective OEM&ODM service
7) Own advanced CNS machines, drill machines, online-testing system etc.
8) applied lots of patent for solenoid valve
9) introduced professional engineers to to provide innovative solutions.
10)Factory production quality control
2) Highly competitive prices supply goods from factory directly.
3) state-of-art technology products.
4) Best professional team of researching in pneumatic field.
5) Smooth communication with after-sales team to deal with customer suggestions and complaints.
6) Effective OEM&ODM service
7) Own advanced CNS machines, drill machines, online-testing system etc.
8) applied lots of patent for solenoid valve
9) introduced professional engineers to to provide innovative solutions.
10)Factory production quality control
FAQ
1.Is sample order acceptable?
Yes,it is ok.Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
2 Whether you could make our brand on your products?
Yes. We canprint your Logo on both the products and the packages if you can meet our MOQ.
3, How to guarantee the quality of your products?
Strict detection during production and Strict sampling inspection on products before shipment and intact product packaging ensured.
2 Whether you could make our brand on your products?
Yes. We canprint your Logo on both the products and the packages if you can meet our MOQ.
3, How to guarantee the quality of your products?
Strict detection during production and Strict sampling inspection on products before shipment and intact product packaging ensured.
4.How to place the order?
You can send us email or inquiry at Alibaba directly.
5.How to make the payment?
We accept Bank T/T, and Trade assurance on Alibaba.
6. Is there cheap shipping cost to import to our country?
For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to
ship by air.
5.Can we make customized product for smc type frl ac40?
Yes, we are good at making customized products.
5.How to make the payment?
We accept Bank T/T, and Trade assurance on Alibaba.
6. Is there cheap shipping cost to import to our country?
For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to
ship by air.
5.Can we make customized product for smc type frl ac40?
Yes, we are good at making customized products.
