Характеристики










Please note: We are the company who is doing our best to support students and education all over the world. We reserve Zero profit for education purpose procurement. if you are a student/teacher or if you are working at any education organizations or if you are doing your own effort to support educations, Please feel free to ping me. we have special price for you!





Product Summary

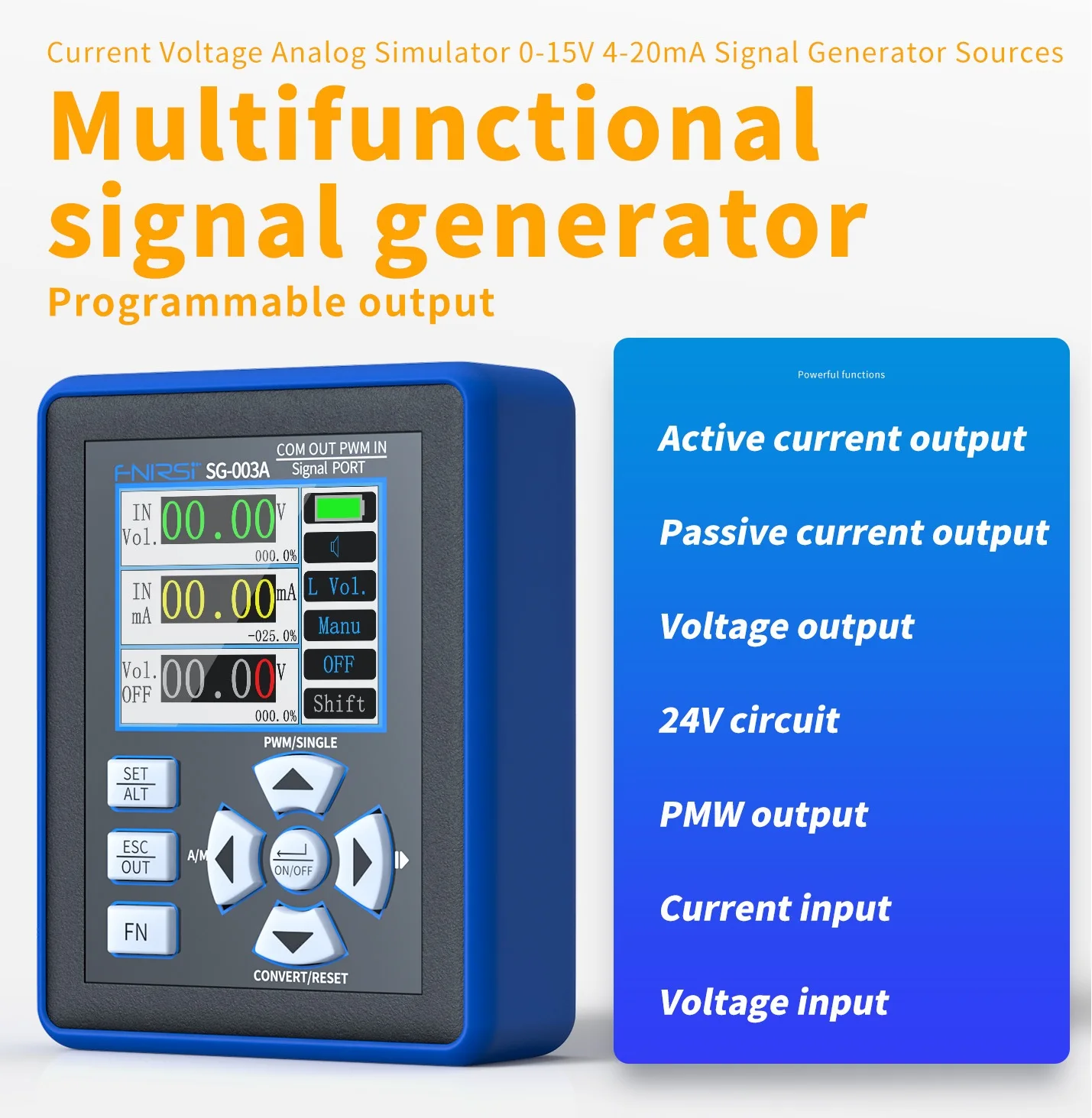

FNIRSI SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Signal Generator Sources transmitter calibrator Transmitte



Description :

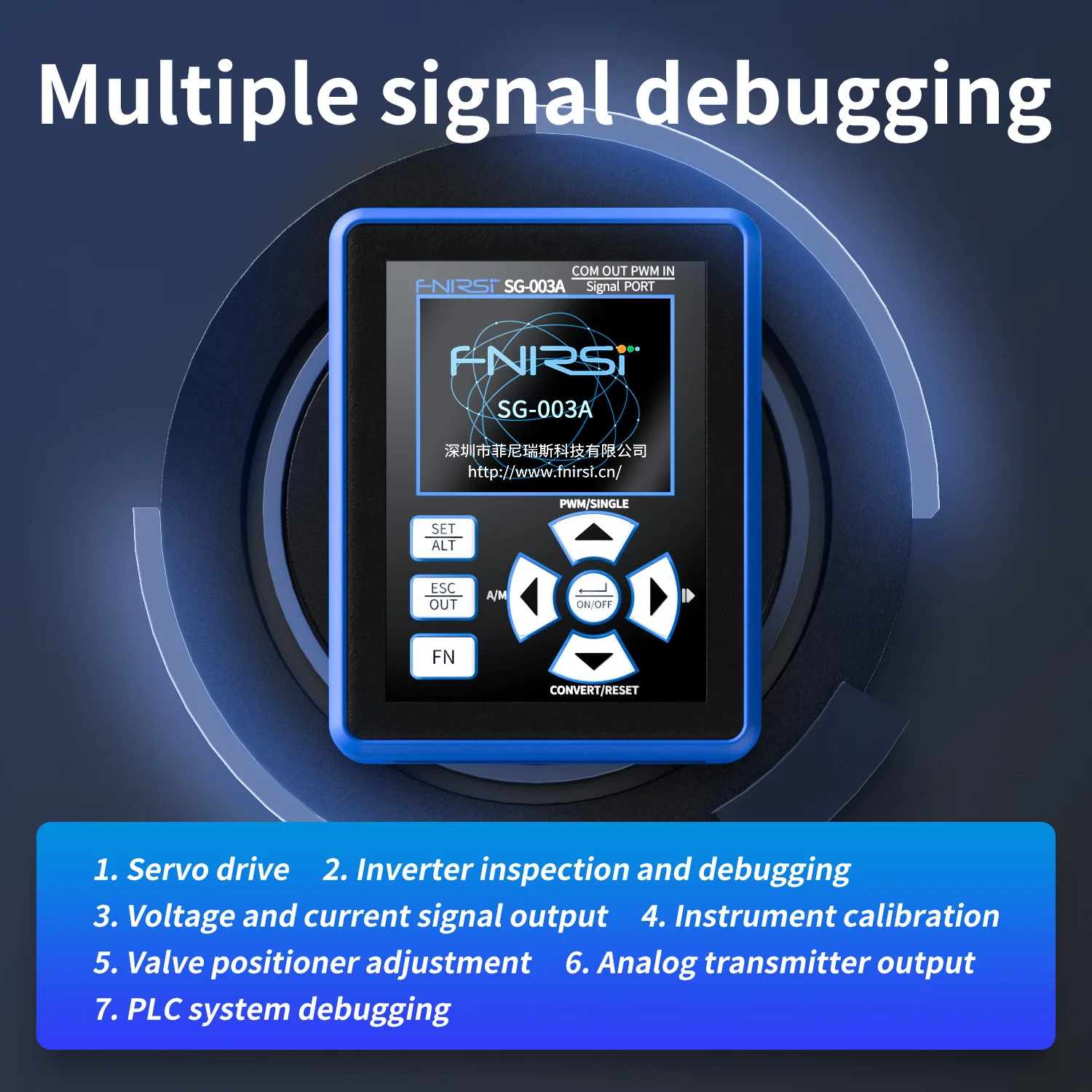

FNIRSI SG-003A signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve and

so forth. Friendly operation interface is easy to use. The FNIRSI SG-003A signal generator is small and light but has a long

standby time and high precision.Easy to carry when you go out to work.Adjustable button backlight and high-definition TFT color

LCD screen make it more convenient for users to operate at night and during the day



Features :

1. Expect with the conventional signal input and output functions

2. Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle.

3. With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode.

4. The output has a custom function,the upper and lower output limits can be set arbitrarily.

6. Voltage input diagram,current input diagram,the frame rate is 10 frames.

7. PWM output can set frequency and duty cycle respectively.

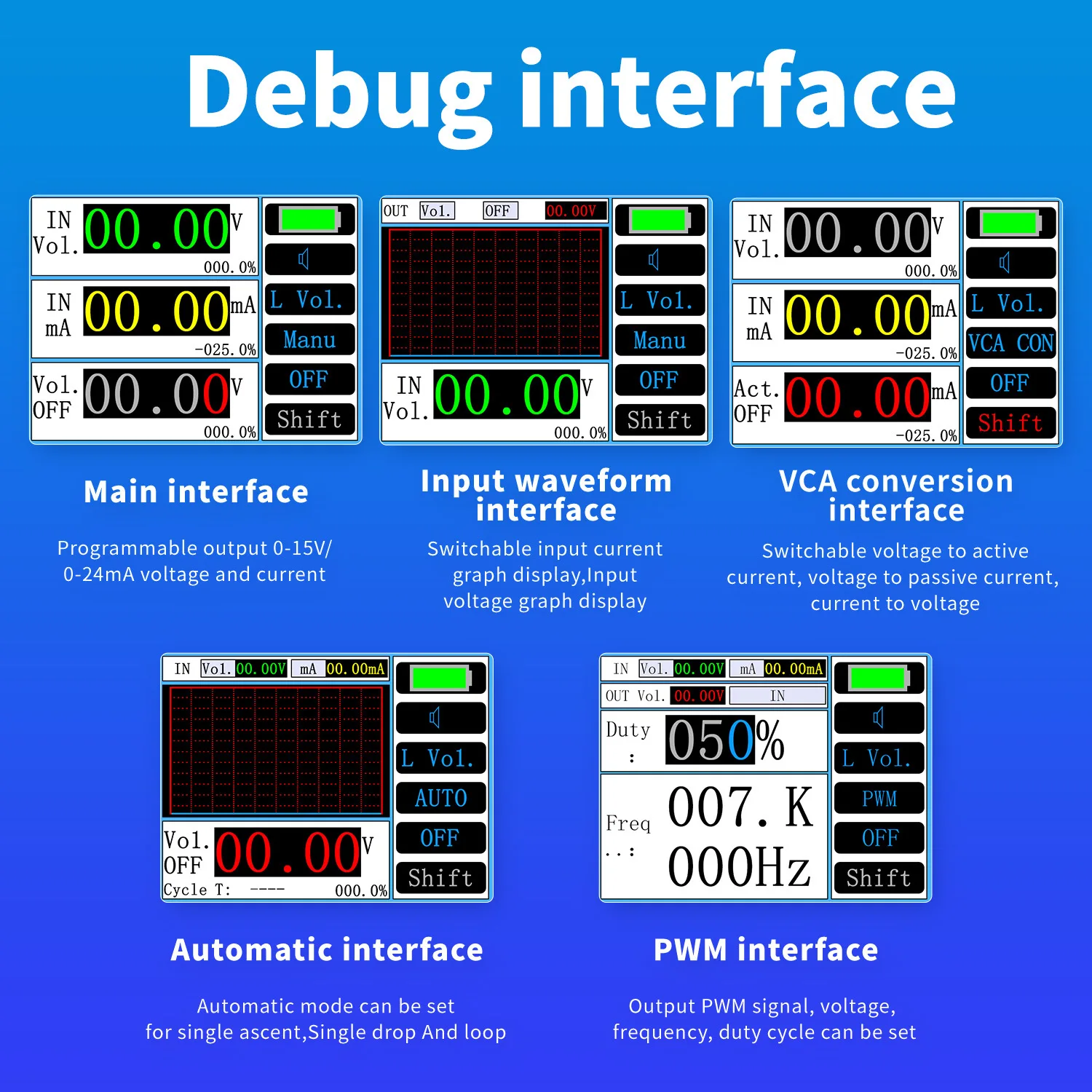

8. Real-time curve:Real-time observation of changes in voltage and current

9. It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium

battery is 3000mHA,Super long working hours

10. The high-definition TFT color LCD screen makes the reading more eye-catching.The resolution is 240*320.Low power

consumption,Maximum power consumption: 0.32W



Technical Parameters:

1. Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750Ω;Precision:±(0.1%+0.005)

2. Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005)

3. Voltage output: range: 0-12 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005)

4. 24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005)

5. Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100Ω;Precision:±(0.1%+0.05)

6. Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2MΩ;Precision:±(0.1%+0.05)

7. PWM output (frequency):Range: 0-20K, 45K, 90K, 180K;Resolution: 1Hz;Accuracy: ±2%

8 .PWM output (frequency):Range: 0-20K, 45K, 90K, 180K;Resolution: 1%Accuracy: ±2%

9. A sngle 3.7V 3000mAh lithium battery power supply; Standby time is 26 hours;the using time varies, based on the usage(It can be

8-10 hours with 20mA continuous output)

10. Operating environment: 0 °C - 50 °C.

11. Internal reverse and overcurrent protection; protection voltage:30V

12. Output automatically

13. Size: 92mm*72mm*30mm

14. Weight:（With silicone sleeve）

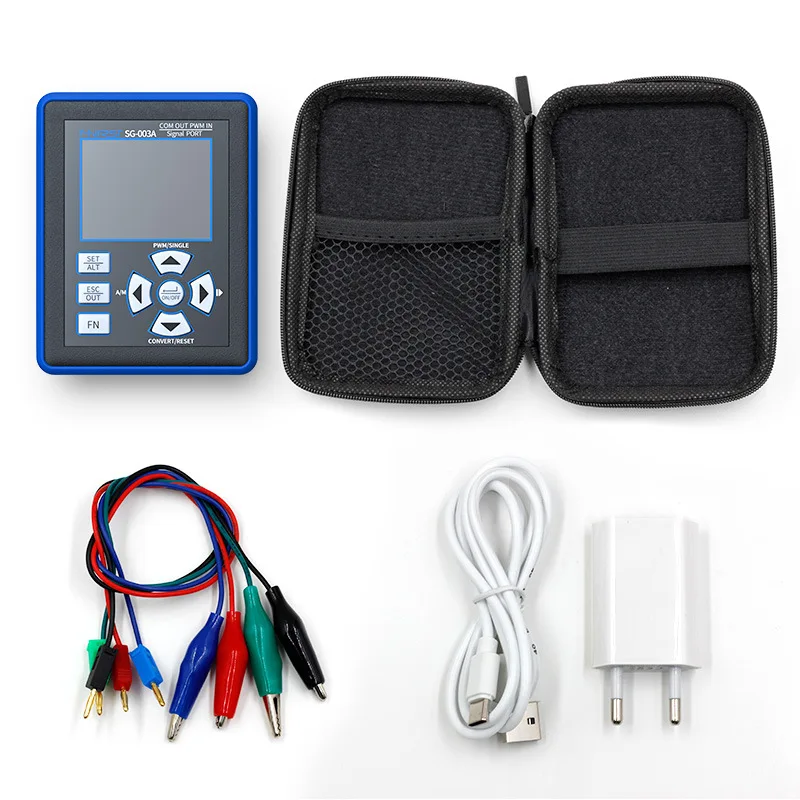

Package include:

1*FNIRSI SG-003A multifunctional signal generator calibrator

1*Black storage bag

4*test clip

1*FNIRSI SG-003A silicone protective sleeve

1*USB charging cable

1*EU charger
