Характеристики



Product Description




Specification


Brand Name
Dexing
Model Number
DX-F30
Space measure range
200mm x 200mm x 200mm (X,Y,Z)
Resolution ratio
0.00039mm
Positional accuracy
0.01mm
Repeat positional accuracy
<0.005mm
Rotation travel angle resolution ratio
<0.0002°


Intruction
It can test the whole magnetic field three-dimensional distribution of the stator and rotor of permanent magnet motor, AC motor, micro motor, etc., and test the three-dimensional magnetic field values of different points at different levels of each angle. so as to fully understand the overall distribution of the internal magnetic field of the motor and the magnetic leakage outside the motor.


Overview

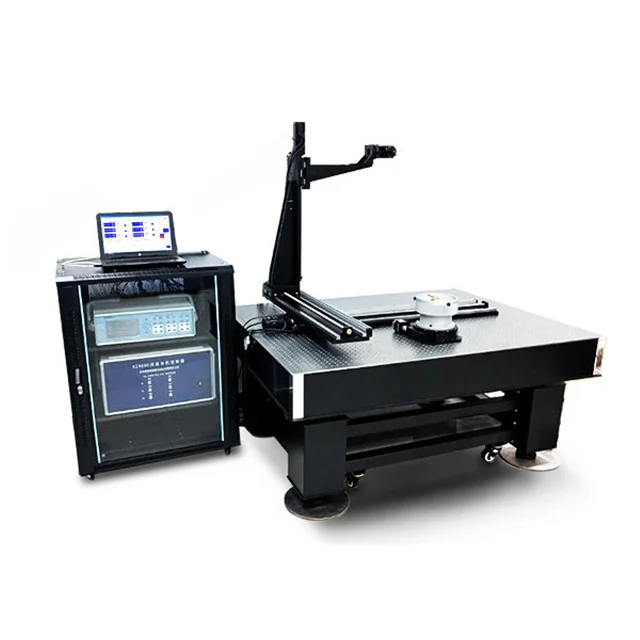

Multi-dimensional high precision digital magnetic measuring system developed by our company is magnetic measure platform of high-precision and digitation and automation that has the highest international level, it insists of high-precision numerical control micro-platform and multi-dimensional high-precision digital gauss meter and control acquisition software, It can measure the magnetic field characteristic of high precision, such as the distribution of magnetic field, magnet surface and three-dimension, and the distribution of uniformity, magnetic loop and N/S magnetic pole, motor magnetic, superconducting magnetic field, magnetic resonance magnetic field and so on, then it can draw all kinds of graphics, save data, preserve and print them out. The system applies to all kinds of magnetic research, and it is of immense importance in terms of the analysis of the high-precision magnetic field, which has been widely used by numerous domestic and international aerospace, military industry, scientific research and colleges.


Characteristic
1. Wide range of measurement：Space measure range is 200mm x 200mm x 200mm (X,Y,Z)（it can be customized, please advise if there's special requirement), free tour optional three directions, and will reached 5Axis platform when rational platform attached to it. Translation meticulous(Resolution ratio: 0.00039mm),Positional accuracy 0.01mm,Repeat positional accuracy＜0.005mm, Rotation travel angle resolution ratio ＜0.0002°, positional accuracy 0.01, Repeat positional accuracy ＜0.005°,Velocity of movement can be divided into 2-64 classes. Fine distribution of measure space on the physical space.
2. High accuracy of system measurement: Using high-precision digital Gauss meter (one-dimensional or multi-dimensional) equipped with micro Hall probes (one dimensional ɸ0.5mm,two-dimensional ɸ1.2mm,three-dimensional ɸ1.2mm)make space and surface magnetic measurement up to higher accuracy.(One-dimensional precision can up to ± 0.05% of reading, range±0.005.Three-dimensional precision can up to ± 0.10% of reading, range ± 0.005 )
3. Automation and Digitization: The real-time control and data acquisition controlled by computer, system software design measure processes that can be divided into many forms, user can directly enter data parameters of the measured object for fully automated measurement, data is automatically recorded and saved, based on test data system can generate one dimensional, two-dimensional, three-dimensional graphics and measurement data logging, database format is Access and print the chart.
4. Flexible combinations: Three-dimensional translation platform and rotation platform can be assembled in many suitable situation for various measure methods to meet the needs of the different measurement, system software covers control and data acquisition and software function can also be extended as required, realizing full automation of unmanned monitoring measurement.
5. Gauss meter tested by National Institute of Metrology，China; System software registered and approved by CPCC（Copyright Protection Center of China）


System configuration




CNC Multi Axis Platform
（X ﹑Y﹑Z﹑T、θz）
Axis can be selected, panning trips and rotating table diameter can be selected


Direction
Panning trips
Resolution
X
50mm-4000mm
0.00039mm
Y
50mm-2000mm
0.00039mm
Z
50mm-2000mm
0.00039mm
T(Rotary table)
360°
0.0002º
θz(Rotary table)
360°
0.0002º


Composite Structures






Practical Effect Diagram of Composite Structures




FAQ


1. who are we?
We are based in Fujian, China, start from 2008,sell to North America(23.00%),Southeast Asia(15.00%),Western Europe(15.00%),Eastern Asia(12.00%),Mid East(8.00%),Oceania(6.00%),South Asia(5.30%),Eastern Europe(5.00%),Northern Europe(4.80%),Domestic Market(2.40%),Africa(2.00%),Southern Europe(1.80%),South America(1.40%),Central America(0.70%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Helmholtz Coil,Vibrating Sample Magnetometer,Hall Effect System,Electromagnet,Gauss Meter etc.

4. why should you buy from us not from other suppliers?
Dexing company with a sound scientific research team, that has a long-term technical superiority in the magnetic field and magnetic circuit design. Dexing company also cooperate with many domestic and foreign universities and research institutes.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
