Factory Price High Quality Black Annealed Iron Wire  Cold Drawn Soft Binding Wire With Small Coil



Carbon black Binding wire



1.  Material: low carbon steel rod Q195, SAE1006,1008

2.  Wire gauge / diameter: 8#- 22#,  6.0mm-0.5mm

3.  Tensile Strength: 350-550 N / mm2 (=35-55kgs/mm2)

4.  Coil wire,cut wire,u-type wire.



Specifications

hard drawn black wire

low carbon hard drawn wire

high strength for nails make (500kg/coil)

tensile strength:400-900n/mm2

 Black Iron Wire is also called Black Hard-Drawn Wire. It is drawn by the low cardon steel wire Q195.

As the Black Iron Wire has the super hardness, it is mainly used in making of wire mesh,hangers and nails, fencing and weled wire mesh panels etc..



Black Annealed binding Iron Wire
Wire Gauge	SWG(mm)	BWG(mm)	Metric(mm)
8	4.05	4.19	4.00
9	3.66	3.76	4.00
10	3.25	3.40	3.50
11	2.95	3.05	3.00
12	2.64	2.77	2.80
13	2.34	2.41	2.50
14	2.03	2.11	2.50
15	1.83	1.83	1.80
16	1.63	1.65	1.65
17	1.42	1.47	1.40
18	1.22	1.25	1.20
19	1.02	1.07	1.00
20	0.91	0.84	0.90
21	0.81	0.81	0.80
22	0.71





wire drawing----oxygen free annealed---simply oil painted against rust.

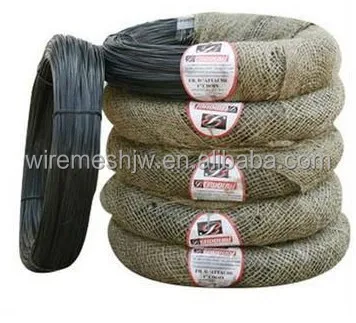

3.  Carbon Black binding Wire Packing:



25/50/500kg/coil; 5-10kg/coil; 0.4-1.0kg/coils, 10coils/bundle; plastic film inside and hessian/woven bag outside or according to the customers' requirement.





Very Glad to Receive ur Enquiry PLS Contact US Freely.
