DP88 новый HD видео 15 клавиатура SIP дверной телефон
US $10.00-$299.00
Интеллектуальный SIP-контроллер для помещений
- Категория: Broadcast Intercom System >>>
- Поставщик: Shenzhen,Dinstar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.62 $* | 0.79 $* |
| Aug-19-2025 | 0.27 $* | 0.19 $* |
| Jul-19-2025 | 0.73 $* | 0.90 $* |
| Jun-19-2025 | 0.72 $* | 0.56 $* |
| May-19-2025 | 0.71 $* | 0.98 $* |
| Apr-19-2025 | 0.55 $* | 0.5 $* |
| Mar-19-2025 | 0.50 $* | 0.70 $* |
| Feb-19-2025 | 0.86 $* | 0.43 $* |
| Jan-19-2025 | 0.44 $* | 0.4 $* |
Характеристики
Introduction

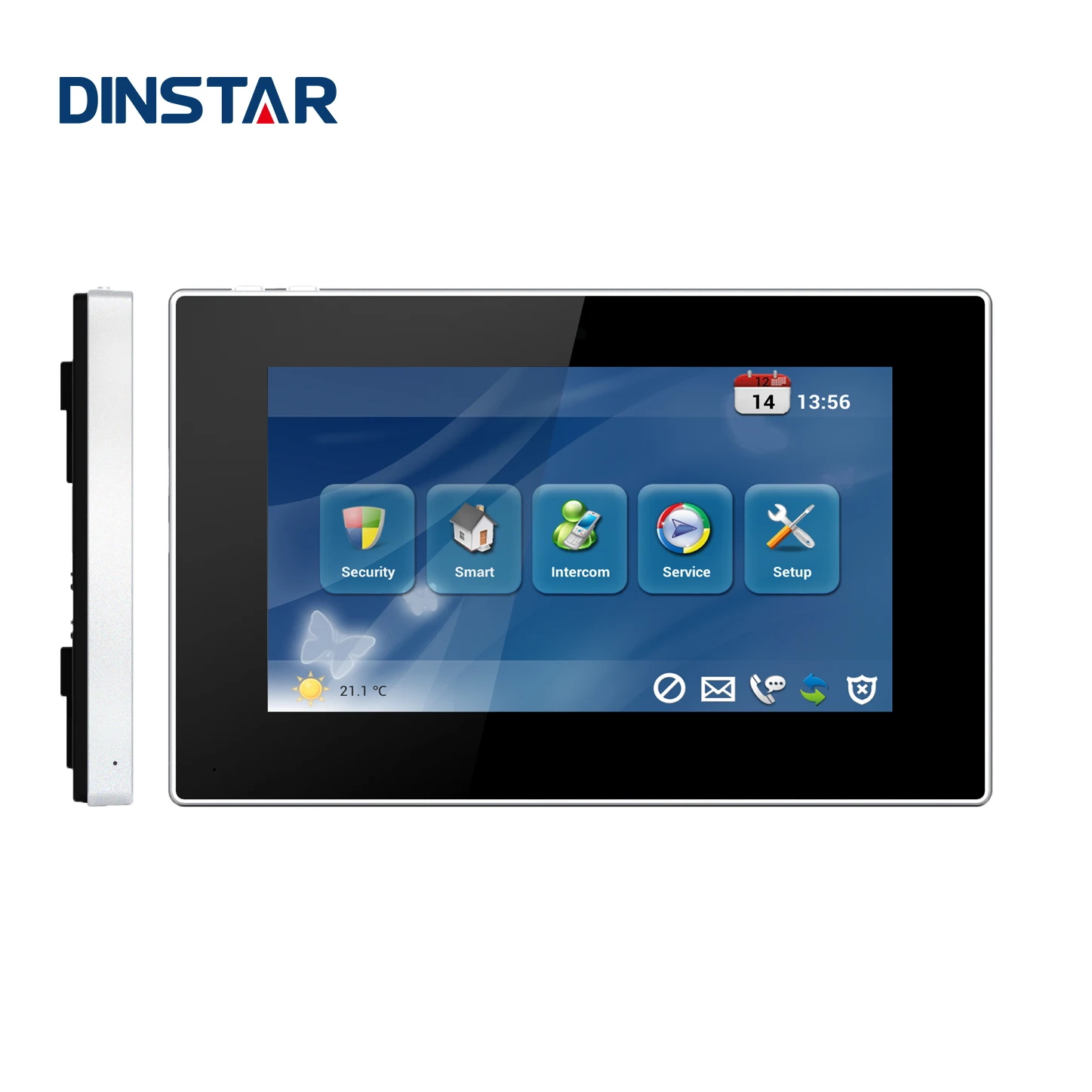

The DP70 is a Linux platform-based indoor touch pad, it offers multiple functions, including video intercom, door access, emergency call, security alarm, and property management and customizable UI, etc.It also supports communication with IP phone or SIP softphone, etc. via SIP protocol. According to your needs, it can be used with home automation and lift control system.
Compatible with SIP intercom door phones
●Through the DP70, users can watch videos from the out intercom camera at any time.
Compatible with many types IPPBX
●Standard SIP 2.0 protocol, DP70 can easily integrate into 3rd part IPPBX system.
Easily administration management through Web
●Users can do configure & management easily through the DP70 friendly Web interface
The DP70 is a Linux platform-based indoor touch pad, it offers multiple functions, including video intercom, door access, emergency call, security alarm, and property management and customizable UI, etc.It also supports communication with IP phone or SIP softphone, etc. via SIP protocol. According to your needs, it can be used with home automation and lift control system.
7” TFT Touch Screen
●7-inch touch screen with high resolution and wide viewing angle. Simple operation and good user experience.
●7-inch touch screen with high resolution and wide viewing angle. Simple operation and good user experience.
Compatible with SIP intercom door phones
●Through the DP70, users can watch videos from the out intercom camera at any time.
Compatible with many types IPPBX
●Standard SIP 2.0 protocol, DP70 can easily integrate into 3rd part IPPBX system.
Easily administration management through Web
●Users can do configure & management easily through the DP70 friendly Web interface
Video Feature
●Screen size：7 inch
●Display：Capacitive, Touch Screen
●Resolution：800x480
●Video codec：H.264
●Picture Record：64PCS
●Display：Capacitive, Touch Screen
●Resolution：800x480
●Video codec：H.264
●Picture Record：64PCS
Audio Feature
●HD voice
●Two-way audio stream
●codec：G.711
●Echo cancellation with G.168
●Voice activity detection (VAD)
●Comfort noise generator(CNG)
●Built-in Micro and speaker
●Two-way audio stream
●codec：G.711
●Echo cancellation with G.168
●Voice activity detection (VAD)
●Comfort noise generator(CNG)
●Built-in Micro and speaker
OS feature
●CPU：1GHz,ARM
●RAM：64M
●Storage：128M
●OS：Linux
●RAM：64M
●Storage：128M
●OS：Linux
Port Feature
●1 X RS485 port
●8 ports alarm input
●8 way IP Camera Support
●8 ports alarm input
●8 way IP Camera Support
Protocols & Network
●SIP v2 (RFC3261)
●RTSP
●TCP/IPv4/UDP
●RTP/RTCP, RFC2198, 1889
●HTTP
●RTSP
●TCP/IPv4/UDP
●RTP/RTCP, RFC2198, 1889
●HTTP
Physical Specification
●Power：DC12V1A or 802.3af PoE
●Power requirment：802.3af PoE class 3 IEEE 802.3af POE
●1xRJ45 10/100M Ethernet jacks
●Wall-mounted /Embedded installation
●Dimension：205mmx 129mmx 18mm
●Power requirment：802.3af PoE class 3 IEEE 802.3af POE
●1xRJ45 10/100M Ethernet jacks
●Wall-mounted /Embedded installation
●Dimension：205mmx 129mmx 18mm
Environments
●Operating Temperature:-10℃ - +55℃
●Storage Temperature: -10~60℃
●Relative Humidity: 20~85%
●Storage Temperature: -10~60℃
●Relative Humidity: 20~85%
