Product Description

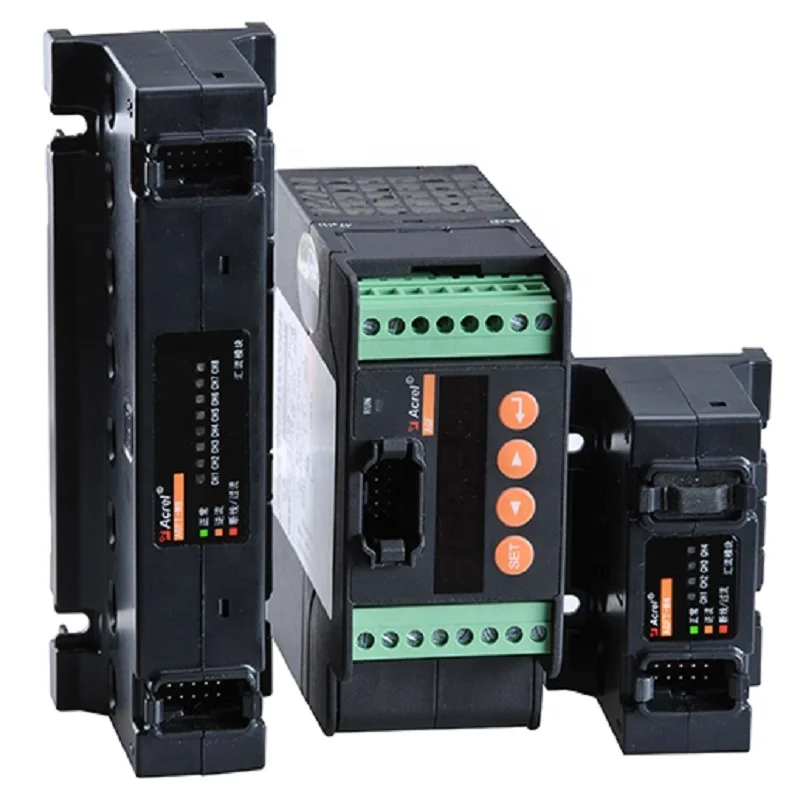

AGF-M20T Solar Device Box PV Array Monitor Device Smart PV Combine Box
1 General

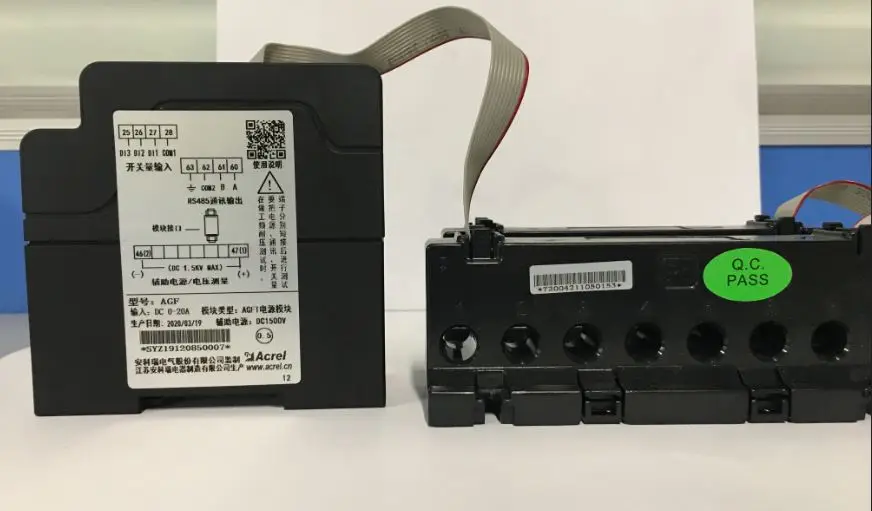

AGF-T Perforation type PV confluence acquisition device is specially designed for smart PV combiner box. It is used for
monitoring the running state of solar panels in solar cell arrays, measuring the currents of solar cell, detecting the state of
surge protection devices and DC breaker. The device is equipped with RS485(Modbus) communication port for transmitting all the datas to master device.
monitoring the running state of solar panels in solar cell arrays, measuring the currents of solar cell, detecting the state of
surge protection devices and DC breaker. The device is equipped with RS485(Modbus) communication port for transmitting all the datas to master device.
2 Product Naming
3 Characteristics

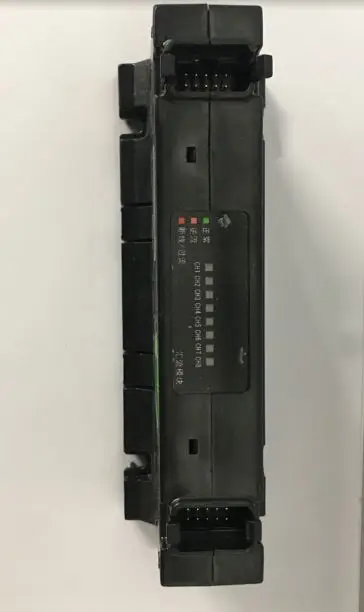

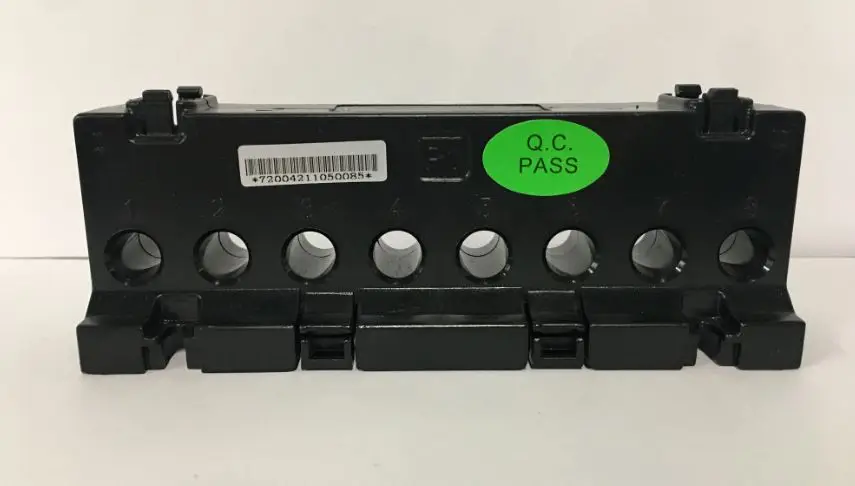

◆ Primary current is connected in through perforation. Easy installation, high safety.
◆ With Hall sensor, the max isolation measuring current 20A.
◆ Voltage measurement range for Bus bar is up to DC1.5kV.
◆ LED display, fit for checking and testing operation in wide-temperature or outside environment.
◆ With the function of inner temperature measurement for real-time measurement of the inner temperature of combiner box.
◆ With RS485 Modbus RTU.
◆ More options of power supply.
◆ Compatible with din rail installation and baseboard fixation installation, small dimension saving more box space.
4 Product function
◆ Photovoltaic cell open circuit alarm to cooperate with group string voltage and judge Comprehensively.
◆ With 3-channel switching state monitoring to collect output idle contact information of DC breaker,lightning protector,
protector etc.
◆ Option RS485 port, Modbus-RTU protocol; programmable slave address, baud rate, data format.

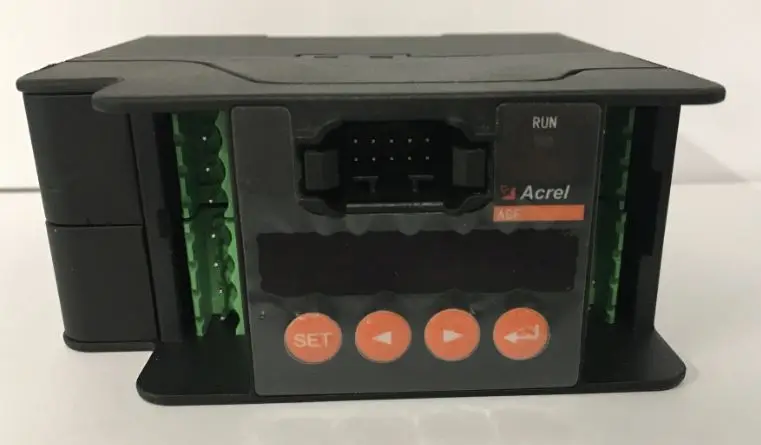

◆ English LCD display,convenient to set parameters and check the data.
◆ With Hall sensor, the max isolation measuring current 20A.
◆ Voltage measurement range for Bus bar is up to DC1.5kV.
◆ LED display, fit for checking and testing operation in wide-temperature or outside environment.
◆ With the function of inner temperature measurement for real-time measurement of the inner temperature of combiner box.
◆ With RS485 Modbus RTU.
◆ More options of power supply.
◆ Compatible with din rail installation and baseboard fixation installation, small dimension saving more box space.
4 Product function
◆ Photovoltaic cell open circuit alarm to cooperate with group string voltage and judge Comprehensively.
◆ With 3-channel switching state monitoring to collect output idle contact information of DC breaker,lightning protector,
protector etc.
◆ Option RS485 port, Modbus-RTU protocol; programmable slave address, baud rate, data format.
◆ English LCD display,convenient to set parameters and check the data.
Specification
Item | AGF-M4T | AGF-M8T | AGF-M12T | AGF-M16T | AGF-M20T | AGF-M24T | ||||||
Input channels | 4 | 8 | 12 | 16 | 20 | 24 | ||||||
Rated current | DC 0~20A | |||||||||||
Response time | 1s | |||||||||||
Accuracy | 0.5 class | |||||||||||
Temperature coefficient | 400ppm | |||||||||||
RS485 communication | RS485/ModBus-RTU protocol，4800/9600/19200/38400bps | |||||||||||
General technical parameters | ||||||||||||
Temperature/ Humidity | Working temperature: -35~+65℃， humidity95%,no condensation, no corrosion gas place *Display module work temperature:-20~+70℃ | |||||||||||
Temperature measurement function | To measure the inner temperature of box （-20℃～100℃） | |||||||||||
Altitude | ≤3000m | |||||||||||
Insulation resistance | ≥100MΩ | |||||||||||
Industrial frequency withstand voltage | power/communication/switching input/cell voltage input--AC 2kV/1min (When the auxiliary power supply is DC1500V, the withstand voltage between the power supply, photocell input and other circuit is AC 2.7kV) Current input/power、cell voltage、communication、switching state—AC3.5kV/1min | |||||||||||
Power supply | AC85V～265V or DC300V～880V（1kV no damage）or DC 24V(±10%) | |||||||||||
EMC | GB_T 17626.2-2006； Electrostatic discharge immunity test 3rd grade, air discharge 8kV, contact discharge 6kV. | |||||||||||
GB_T 17626.4-2008； Electrical fast transient immunity test grade 4, common mode 4kV, difference mode 2kV | ||||||||||||
GB_T 17626.5-2008； Surge(shock) immunity test grade 4, common mode 4kV, difference mode 2kV | ||||||||||||
GB_T 17626.8-2006； Power frequency magnetic field immunity test grade 4 | ||||||||||||
