Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
Высокогибкий кабель с сертификацией CE буксирный для роботов силовой line0 25 мм2
- Категория: Control Cables >>>
- Поставщик: Guangzhou,Chengjia,Wire&Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.50 $* | 1.96 $* |
| Jul-17-2025 | 1.58 $* | 1.10 $* |
| Jun-17-2025 | 1.95 $* | 1.74 $* |
| May-17-2025 | 1.12 $* | 1.40 $* |
| Apr-17-2025 | 1.77 $* | 1.51 $* |
| Mar-17-2025 | 1.38 $* | 1.85 $* |
| Feb-17-2025 | 1.14 $* | 1.69 $* |
| Jan-17-2025 | 1.61 $* | 1.23 $* |
Характеристики
CE Certification High Flexible Cable Robot Towline Cable Power Line0.25mm2 Flexible Control Cable
Products Description
It is suitable for installation under continuous reciprocating motion, especially the frequent bending occasions under the industrial environment, the drag chain of modern machinery standard components and the logistics system, operating system, mechanical automation system and other CNC machine tools, electronic equipment, metal stamping, wood and stone Machinery, glass and door and window machinery, injection molding machines, manipulators, robots, construction machinery, heavy machinery factories, automobile manufacturing, lifting and transportation equipment, automated warehouses, docks, fire trucks and other indoor and outdoor environments
Product Feature
Technical Parameter
Standard | Comply with EU RoHS and Reach regulations | ||||||
Conductor | adopts high-quality tinned copper stranded copper wire | ||||||
Insulation material | Special PVC sheath with high flexibility | ||||||
Temperature range: | Mobile installation -5°C to +70°c Fixed installation -15°C to +80°c | ||||||
Insulation resistance: | Minimum 20 MOhm x km | ||||||
Color | Black (other colors can be customized) | ||||||
Minimum bending radius: | Mobile installation 7.5×cable diameter Fixed installation 6x cable diameter | ||||||
Nominal voltage | Uo/U 300/300 V | ||||||
Test voltage | 1500 V | ||||||
Application: | Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives, woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation, ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability. | ||||||

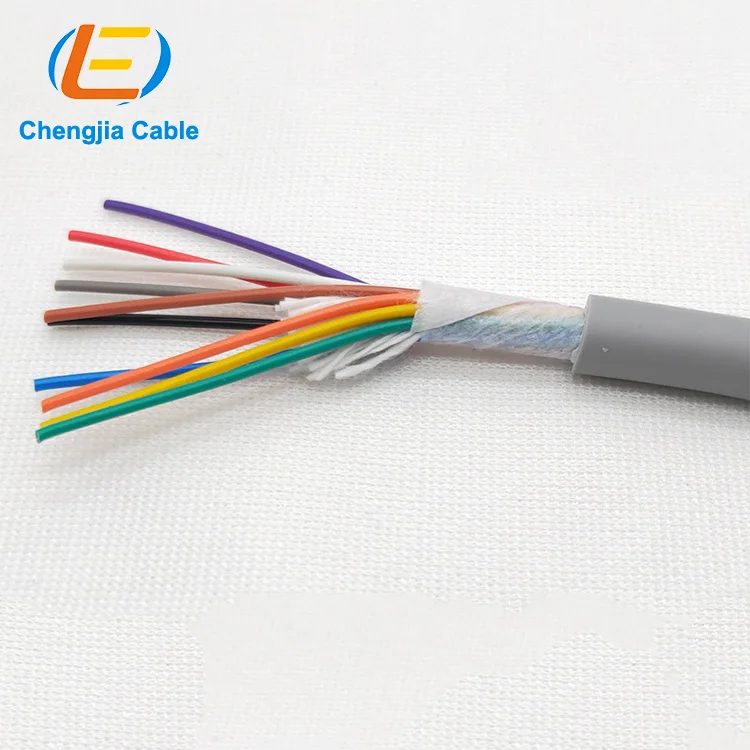

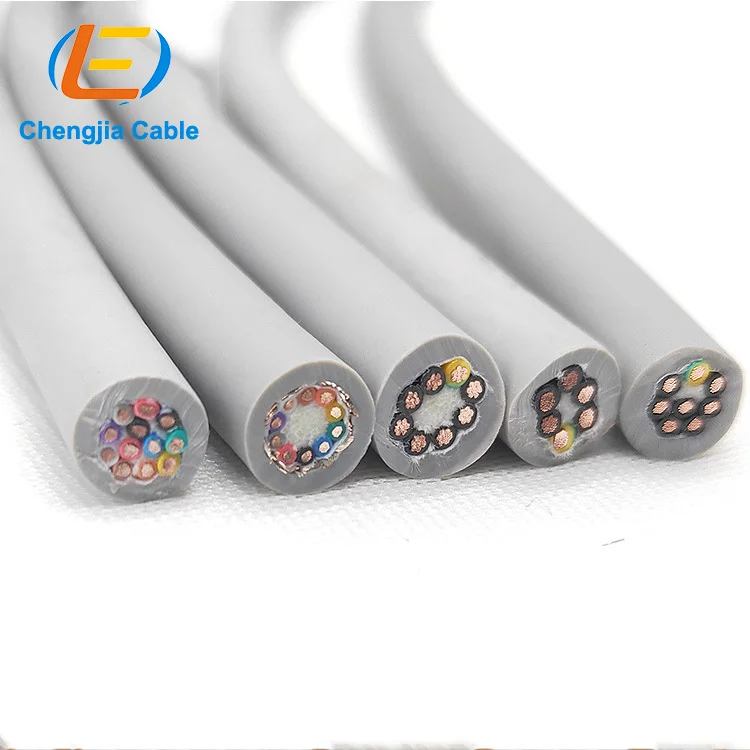

Cable Structure
Control Cable Structure
1. Tinned copper conductor, ultra-fine copper wire
Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core adopts the best pitch layered and twisted special PVC outer sheath
5. Gray (RAL 7001) matte
Complies with DIN VDE 0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification
4. The wire core adopts the best pitch layered and twisted special PVC outer sheath
5. Gray (RAL 7001) matte
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | 20℃ Conductor DC resistance Ω/km | |||||
1 | YY1001.02.0020 | 2x0.2 | 4.4 | Gray | 95 | |||||
2 | YY1001.03.0020 | 3x0.2 | 4.6 | Gray | 95 | |||||
3 | YY1001.04.0020 | 4x0.2 | 5.0 | Gray | 95 | |||||
4 | YY1001.05.0020 | 5x0.2 | 5.2 | Gray | 95 | |||||
5 | YY1001.06.0020 | 6x0.2 | 5.6 | Gray | 95 | |||||
6 | YY1001.08.0020 | 8x0.2 | 6.4 | Gray | 95 | |||||
7 | YY1001.10.0020 | 10x0.2 | 7.2 | Gray | 95 | |||||
8 | YY1001.12.0020 | 12x0.2 | 7.0 | Gray | 95 | |||||
9 | YY1001.16.0020 | 16x0.2 | 7.5 | Gray | 95 | |||||
10 | YY1001.20.0020 | 20x0.2 | 8.2 | Gray | 95 | |||||
11 | YY1001.02.0030 | 2x0.3 | 4.6 | Gray | 71.2 | |||||
12 | YY1001.03.0030 | 3x0.3 | 4.8 | Gray | 71.2 | |||||
13 | YY1001.04.0030 | 4x0.3 | 5.2 | Gray | 71.2 | |||||
14 | YY1001.05.0030 | 5x0.3 | 5.6 | Gray | 71.2 | |||||
15 | YY1001.06.0030 | 6x0.3 | 6.0 | Gray | 71.2 | |||||
16 | YY1001.08.0030 | 8x0.3 | 6.8 | Gray | 71.2 | |||||
17 | YY1001.10.0030 | 10x0.3 | 7.6 | Gray | 71.2 | |||||
18 | YY1001.12.0030 | 12x0.3 | 7.4 | Gray | 71.2 | |||||
19 | YY1001.16.0030 | 16x0.3 | 8.0 | Gray | 71.2 | |||||
20 | YY1001.20.0030 | 20x0.3 | 8.6 | Gray | 71.2 | |||||
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters | ||||||||||
Company Profile
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
FAQ
Q Are you a manufacturer or a trading company?
A We are a manufacturer,we can control your order from the first beginning to the last.Welcome to visit us.We’ll pick you up in Guangzhou.
Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.
Q l didn't find my needed cable in the page.
A Dear Friend, If you don't find the cable you need, please contact us.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
A Dear Friend, If you don't find the cable you need, please contact us.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
Q What is your MOQ?
A Normally, 500 meters can be accepted. For special cable the minimum order quantity will be negotiated.
Q How can l get a sample to check your quality?
Q How can l get a sample to check your quality?
A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
