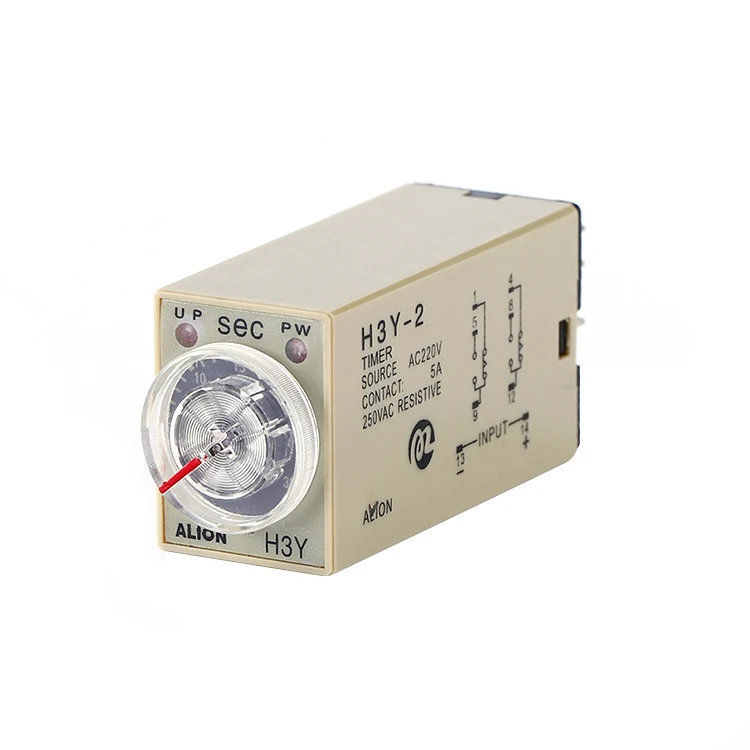

H3Y-2 датчик движения с таймером протектор задержки по времени Dc электронный выключатель
- Категория: Timers >>>
- Поставщик: Alion,Holding,Group,Zhejiang,Imp.&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.61 $* | 0.87 $* |
| Aug-15-2025 | 0.55 $* | 0.1 $* |
| Jul-15-2025 | 0.62 $* | 0.9 $* |
| Jun-15-2025 | 0.77 $* | 0.78 $* |
| May-15-2025 | 0.4 $* | 0.67 $* |
| Apr-15-2025 | 0.68 $* | 0.14 $* |
| Mar-15-2025 | 0.11 $* | 0.35 $* |
| Feb-15-2025 | 0.22 $* | 0.5 $* |
| Jan-15-2025 | 0.17 $* | 0.30 $* |
Характеристики
Products Description
Focus On Time Control For 24 Years
The H3Y series Miniature analogue timer is a time-limited type of timer. It have a variety of time setting ranges and voltages you
can choose, it mainly used for equipment control.
Description
- Miniature analogue timer
- Customized CMOS IC for low power consumption,high operation stability and extreme timing accuracy
- A flat-blade and Phillips screwdriver can also be used for time setting.
- Flush mount with Type Y-20 adapter and surface mount with PYF08A(E) or PYF14A(E) base
- MY relay socket compatible
can choose, it mainly used for equipment control.
Description
- Miniature analogue timer
- Customized CMOS IC for low power consumption,high operation stability and extreme timing accuracy
- A flat-blade and Phillips screwdriver can also be used for time setting.
- Flush mount with Type Y-20 adapter and surface mount with PYF08A(E) or PYF14A(E) base
- MY relay socket compatible
Product Selection
Type | Timing model | Output contact | Time range |
H3Y-2 | Variable | 2C | Second:1/3/5/10/30/60/120S Minute:3/5/10/30/60M Hour:3H |
H3Y-4 | 4C |
Technical Data
Product Type | AH3 |
Operation voltage | DC(V):12,24 |
AC(V):12 24 110 220 240 380 | |
Allowable operating voltage range | 85~110% of rated operating voltage |
Rated frequency | 50/60Hz |
Indicator operating | ON-UP Operating |
Contact rating | 250VAC 5A (resistive load) |
Life | Mechanical 5×106times |
Electrical 1×105times | |
Accuracy | Repeat error ±3.0%max |
Setting error -- | |
Voltage error ±2.0%max | |
Temperature error ±5.0%max | |
Reset time | Max 0.2sec |
Insulation resistance | 100MΩ(DC 500V)min |
Dielectric strength | 1500VAC |
Power consumption | 3VA |
Ambient temperature | -10℃~+55℃ |
Ambient humidity | 48~85%RH |
Mounting and Socket | Surface(-N): PYF08A(E) PYF14A(E) |
Flush(-Y): Y-20 | |
Weight | 45g |
Dimensions | 28H×21W×52.6D |
Connection Example
Timing chart:
H3Y-2 H3Y-4
Scale Drawings
N type(Surface Mounting): H3Y-2 Using PYF08A(E) Socket, H3Y-4 Using PYF14A(E) Socket
N type(Surface Mounting): H3Y-2 Using PYF08A(E) Socket, H3Y-4 Using PYF14A(E) Socket
Y type(Flush Mounting): H3Y-2 and H3Y-4 Using Y-20 Frame
