Product Overview

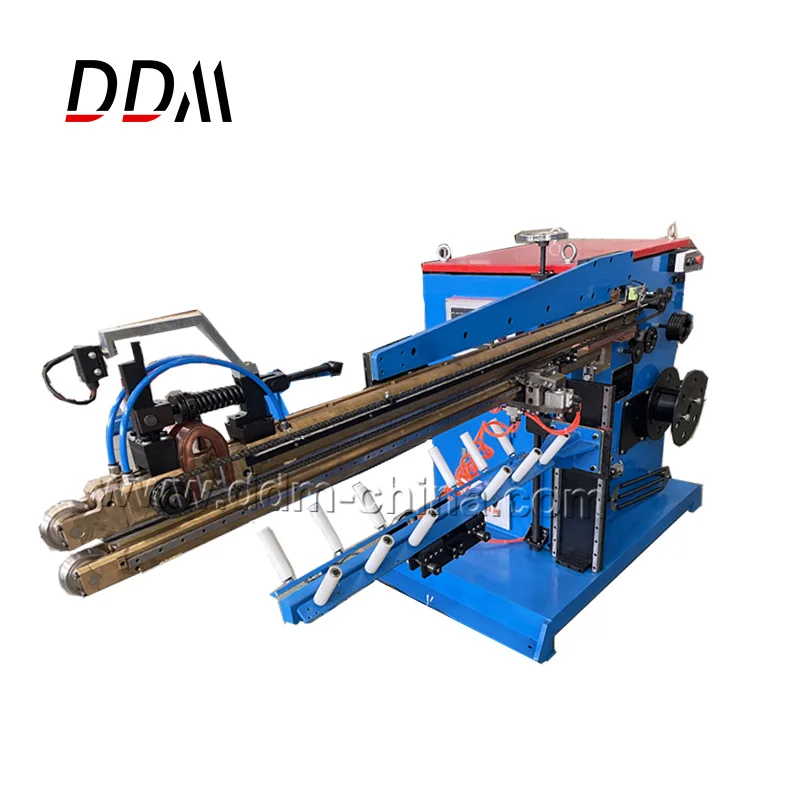

2022 NEW Design DDM Brand DMSW -30-1Z/6 HAVC Duct Seam Welding and Stitch Welder Machine
Machine Features
Stichwelder
This machine is a semi automatic stitchseam welding machine, designed for welding round duct / pipe / drums in large diameter range. Based on the seam welding machines,
this machine is a special one whose electrode arms are lengthened to weld HVAC pipes.
It is controlled by PLC and easy to operate.
1.Large diameter range: 100mm~1000mm length：50-1000mm
2.High production efficiency
3. Good welding quality because of adopting double-wire technology
4. Reasonable structure and simple maintenance: compact structure; welding electrodes and main driving mechanism are of simple assembly.
5. Fast change welding pipe diameter
6. PLC & inverter control the welding speed and stitch welding pitch
This machine is a semi automatic stitchseam welding machine, designed for welding round duct / pipe / drums in large diameter range. Based on the seam welding machines,
this machine is a special one whose electrode arms are lengthened to weld HVAC pipes.
It is controlled by PLC and easy to operate.
1.Large diameter range: 100mm~1000mm length：50-1000mm
2.High production efficiency
3. Good welding quality because of adopting double-wire technology
4. Reasonable structure and simple maintenance: compact structure; welding electrodes and main driving mechanism are of simple assembly.
5. Fast change welding pipe diameter
6. PLC & inverter control the welding speed and stitch welding pitch

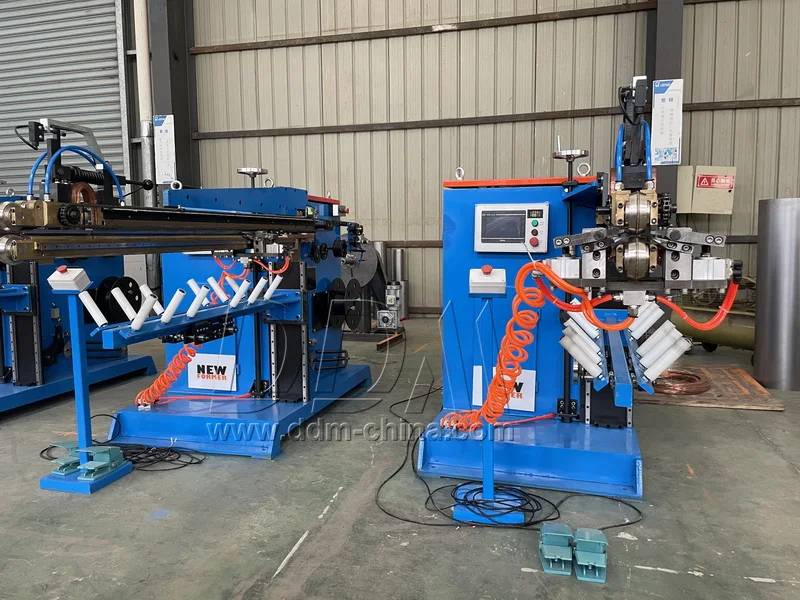

The over view of DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z

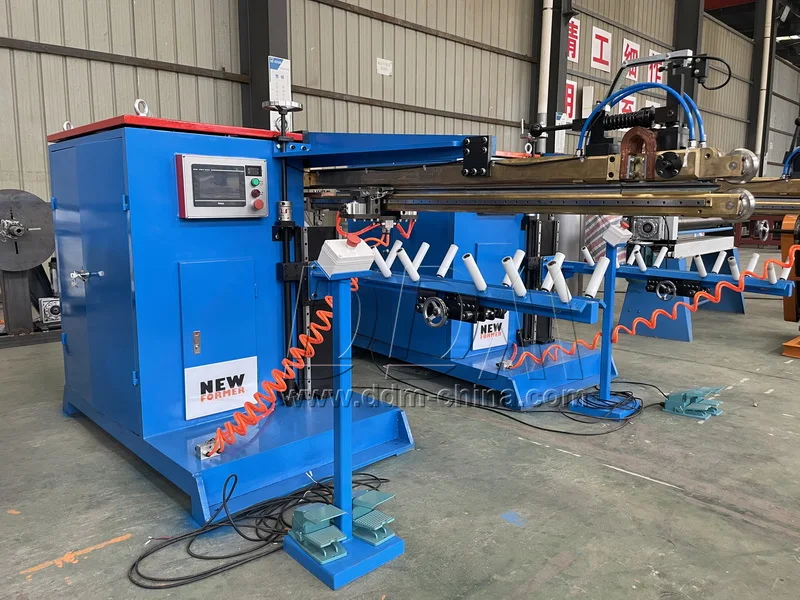

The back view of DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z

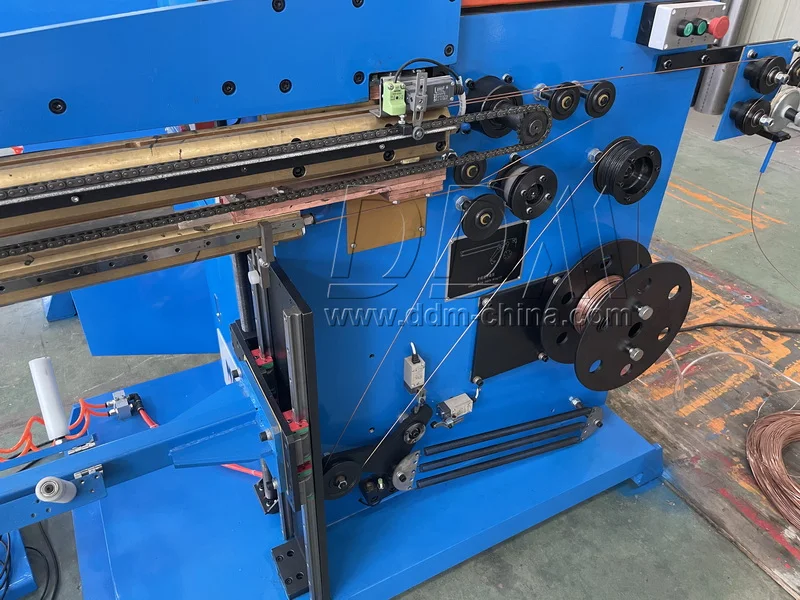

The working station of DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z
1000W water cooling machine for our DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z

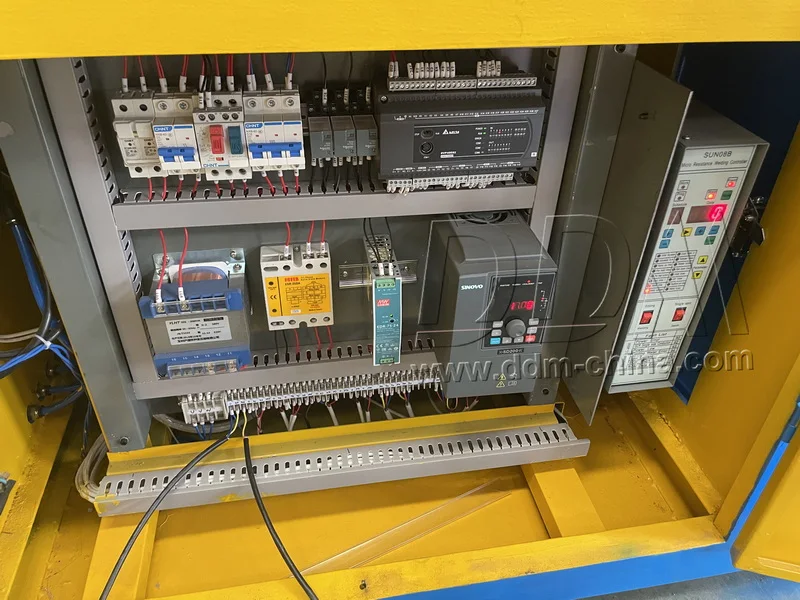

The high quality eletrical parts and controller panel of DDM Brand HAVC Duct Seam Welding and Stitch Welder Machine DMSW-30-1/1Z
Before delivery ,our stichwelder machine will be well packed by export wooden case
Machine Parameters
Technical Data | ||
Model | SW-30-1Z | |
thickness (mm) | 0.4-1.2mm | |
Range length | 50-1000mm | |
Overlap | 6mm | |
Speed | 2m/min | |
copper diameter | Φ2.0-2.2mm | |
Max Power | 40KW | |
Weight | 2500KG | |
Dimension (MM) | 2650X800X1000 | |
Packing & Delivery
