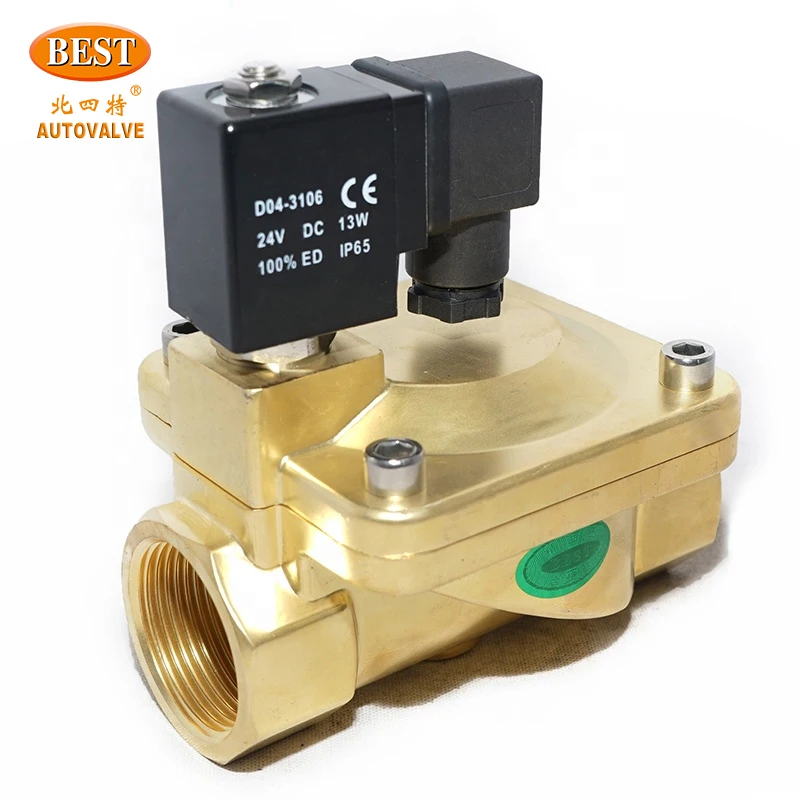

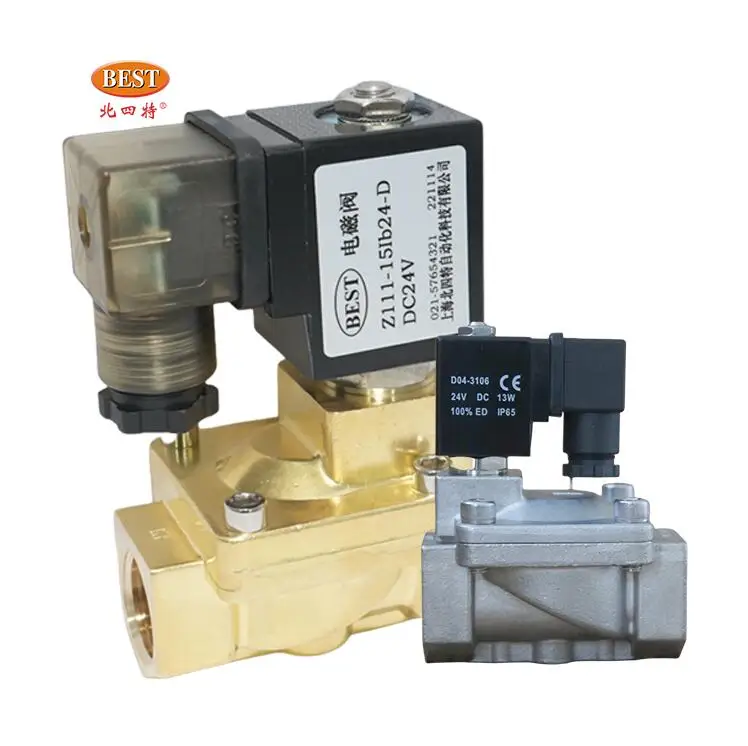

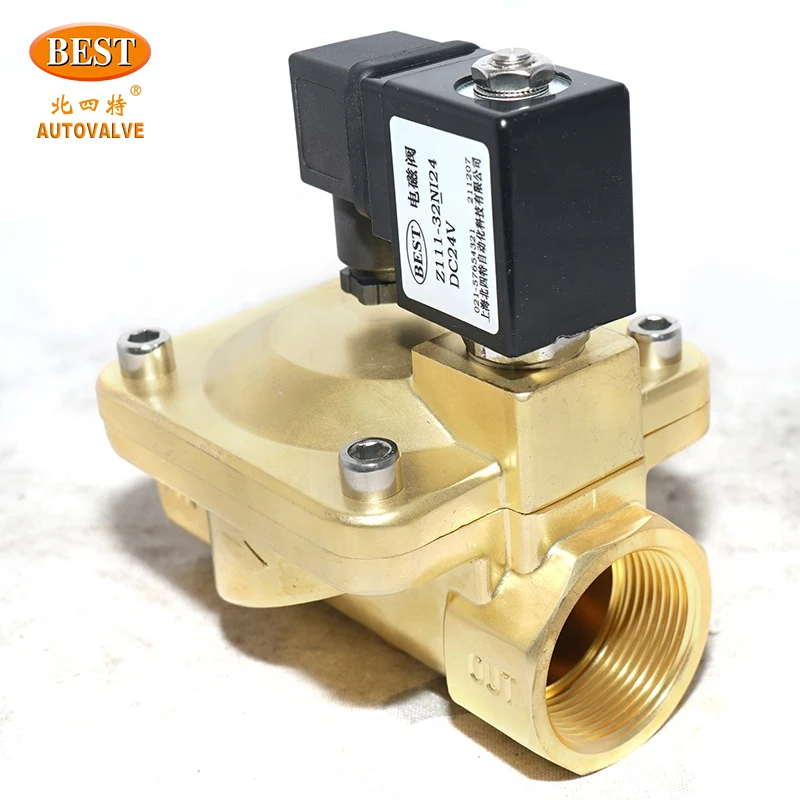

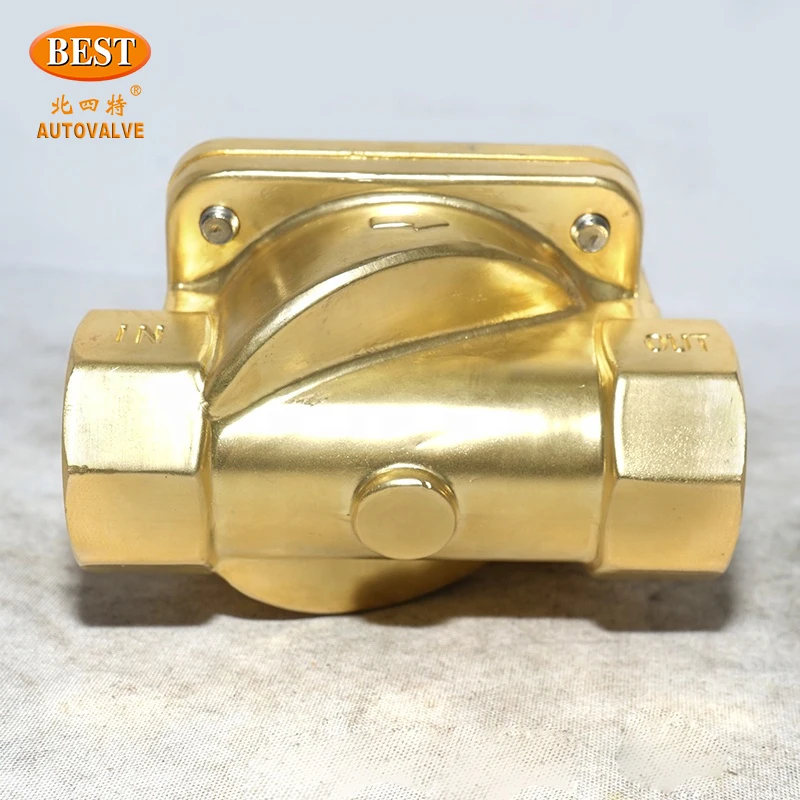

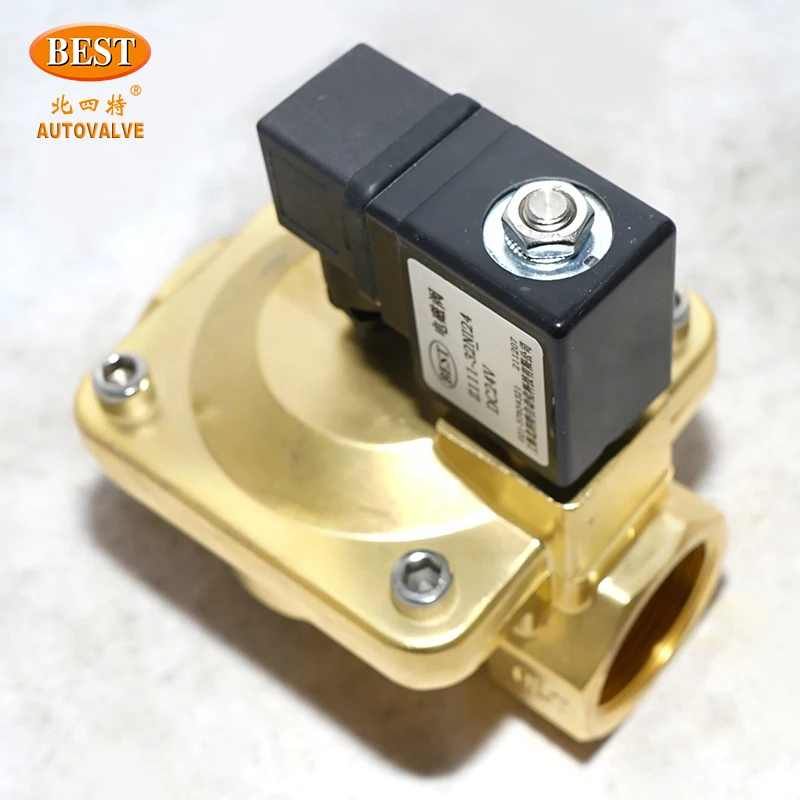

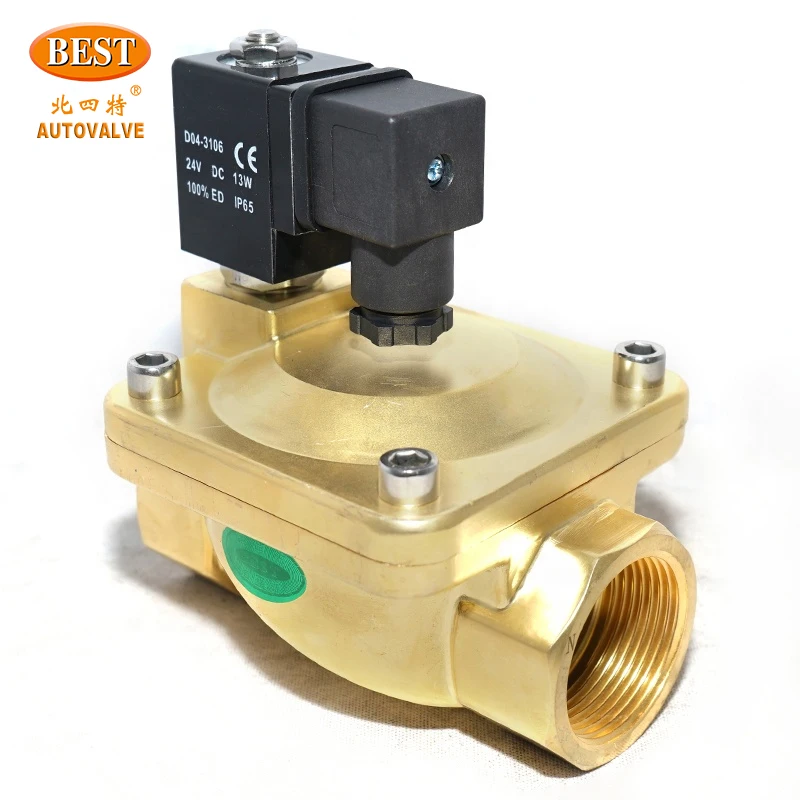

Электромагнитные клапаны водяной гидравлический Z111 2-ходовой Электрический клапан 12 В 24 постоянного тока 110 переменного 1 дюйм латунный 220 вольтовый
- Категория: Valves >>>
- Поставщик: Shanghai,Best,Automation,Technology,Co.,Ltd.Shanghai,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2692.17 $* | 2827.51 $* |
| Aug-16-2025 | 2669.38 $* | 2802.10 $* |
| Jul-16-2025 | 2239.24 $* | 2351.88 $* |
| Jun-16-2025 | 2624.36 $* | 2755.87 $* |
| May-16-2025 | 2285.37 $* | 2399.57 $* |
| Apr-16-2025 | 2579.89 $* | 2708.97 $* |
| Mar-16-2025 | 2556.94 $* | 2684.13 $* |
| Feb-16-2025 | 2533.3 $* | 2660.21 $* |
| Jan-16-2025 | 2511.38 $* | 2637.67 $* |
Характеристики
VR
Products Description
Name | Nominal diameter | Vavle body material | Nominal pressure | Suitable temp. | ||||
Solenoid valve | DN2.5-50 | Brass | 16 | ＜120℃ | ||||
Others can customize according to your requirements | ||||||||
Key Specifications/Special Features:
01.Exported type【used in spray-cooling systems of 2010 Shanghai Expo】
02.Leakage:0ml/min
03.Max. action frequency:3times/s
04.Max. pressure tolerance:16kgf/cm2
05.Ambient temperature:-15~75℃
06.Kinematic viscosity value of applicable medium:≤25CSt(mm2/s)
07.Pilot operated structure, operated pressure differential is required (Z111-2.5~03 is Direct Acting Type; Z111-05~06 is either Pilot Operated Type or Direct Acting Type)
08.Mounted at any angle, keep coil vertically upward＆installed horizontally which may extend life span
09.Diaphragm material:normal Ib---NBR(code:N), special Ⅱe---VITON(code:V), Ⅱc---EPDM(code:E)
10.Body material:forged brass(code:[T])
11.Normal voltage:AC220/AC230/AC240V 50/60Hz, DC24V, allowable tolerance ±10%, customization accepted
02.Leakage:0ml/min
03.Max. action frequency:3times/s
04.Max. pressure tolerance:16kgf/cm2
05.Ambient temperature:-15~75℃
06.Kinematic viscosity value of applicable medium:≤25CSt(mm2/s)
07.Pilot operated structure, operated pressure differential is required (Z111-2.5~03 is Direct Acting Type; Z111-05~06 is either Pilot Operated Type or Direct Acting Type)
08.Mounted at any angle, keep coil vertically upward＆installed horizontally which may extend life span
09.Diaphragm material:normal Ib---NBR(code:N), special Ⅱe---VITON(code:V), Ⅱc---EPDM(code:E)
10.Body material:forged brass(code:[T])
11.Normal voltage:AC220/AC230/AC240V 50/60Hz, DC24V, allowable tolerance ±10%, customization accepted
