Характеристики

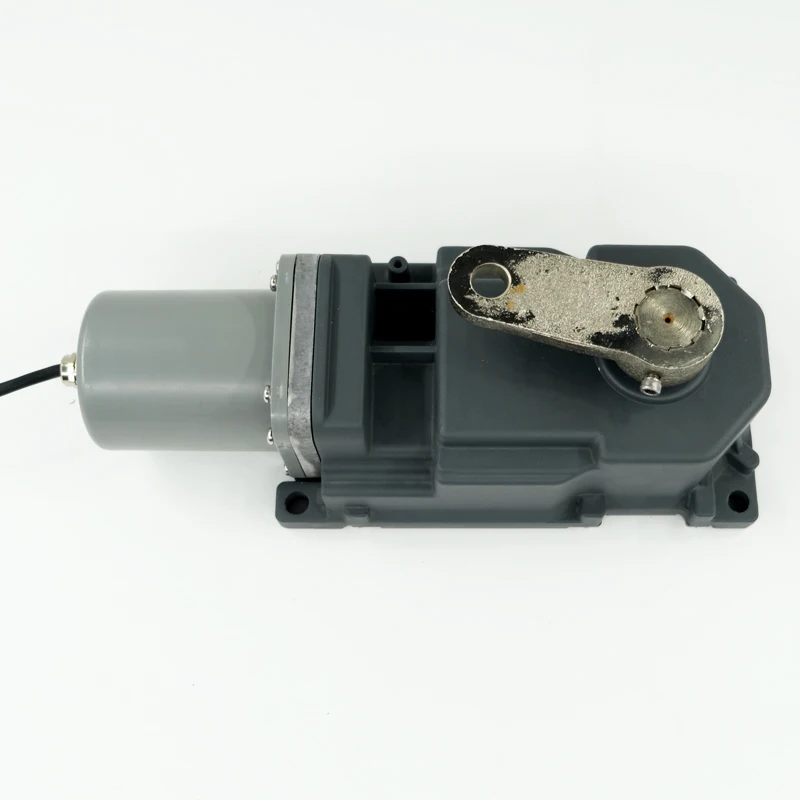

New Style Underground Auto Gate Opener Double for Villa Swing Door With Stopper Limit Switch![New Style Underground Auto Gate Opener Double for Villa Swing Door With Stopper Limit Switch]()
Product Description
| Model | U1-AC |
| Power Supply | AC220V±10V 50HZ,AC110V±10V,60Hz |
| Electric motor | AC220/110V |
| Current | 1.5A |
| Absorbeb power of motor | 320W |
| Max leaf length | 3.5m |
| Max gate weight | 500kg |
| Opening gate speed | 14S/90degrees |
| Rotational Motor speed | 1450RPM/min |
| Thrust | 500nm |
| Running time protection | Adjustable |
| Auto closing delay time | programmable (from 0 to 99 seconds) |
| Operating Temperature | -20°C~+70°C |
| Relative Humidity | ≤95%, No Condensation |
| Protection class | IP67 |
| Application | home automation |
| limit switch | with stopper limit switch |
| condenser | 8F(AC220V),25uf(AC110V) |
| Door opening angle | Max 110° |
| Packing | 65kg 2 motor in 2 cartons:400*180*180 2 mounting box in 2 carton:500*300*170 Together 4 cartons |
Product Details

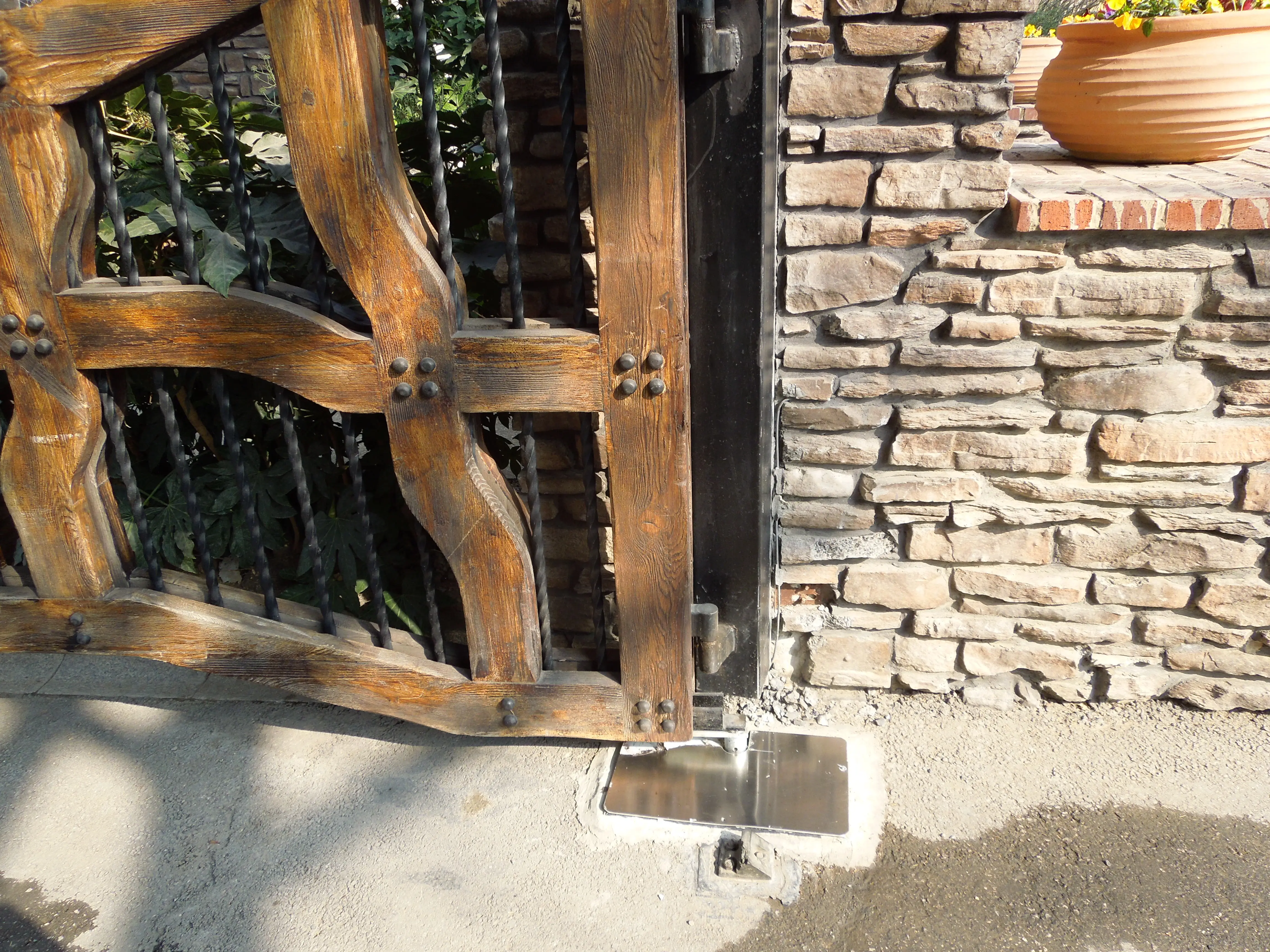

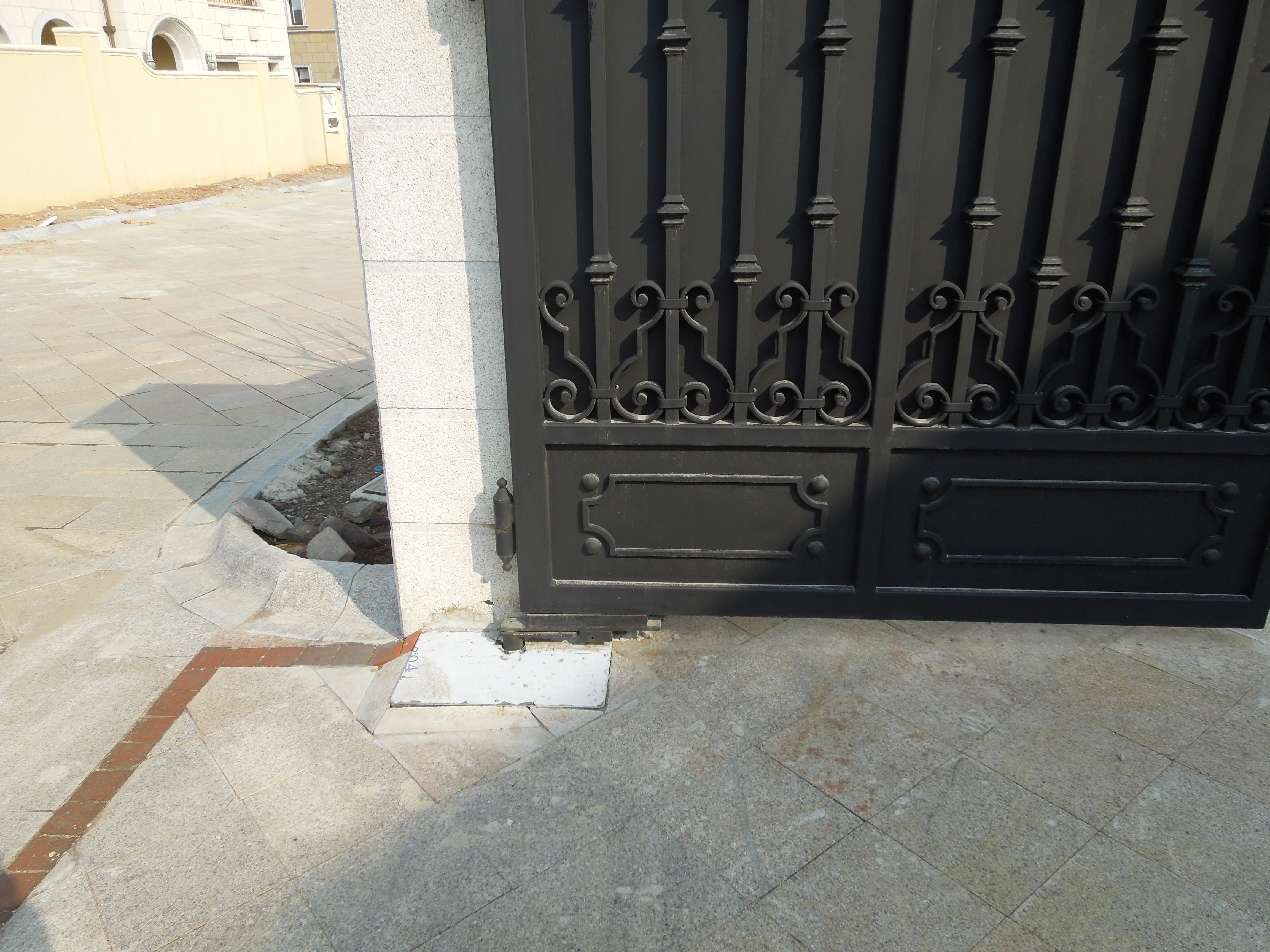

Installation
Company Information
FAQ
Q1:What is material this product made of ?
A1: It is steel housing motor box,the motor wires is copper.
Q2:Can it be used outside ?
A2: Yes,our dual underground gate opener could be used inside and outside of gate.
Q3:What is the frequncy of your remote control ?
A3: It is 433Hz.
Q4:What is the longest time for opening and closing the gates ?
A4: It is about 14S/90degrees.It could be set up depending on your demand.
Q5:What's you warranty?
A5: 1 year time warranty.
