Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
CE Ручная гидравлическая шланговая прессовочная машина высокого давления трубы кабель нажатия ковка машины на продажу по хорошей
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Weifang,Mension,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 583.38 $* | 612.1 $* |
| Aug-19-2025 | 578.47 $* | 607.35 $* |
| Jul-19-2025 | 485.31 $* | 509.67 $* |
| Jun-19-2025 | 568.74 $* | 596.65 $* |
| May-19-2025 | 495.16 $* | 520.68 $* |
| Apr-19-2025 | 559.2 $* | 587.67 $* |
| Mar-19-2025 | 554.5 $* | 582.32 $* |
| Feb-19-2025 | 549.33 $* | 576.35 $* |
| Jan-19-2025 | 544.48 $* | 571.25 $* |
Характеристики
Product Description

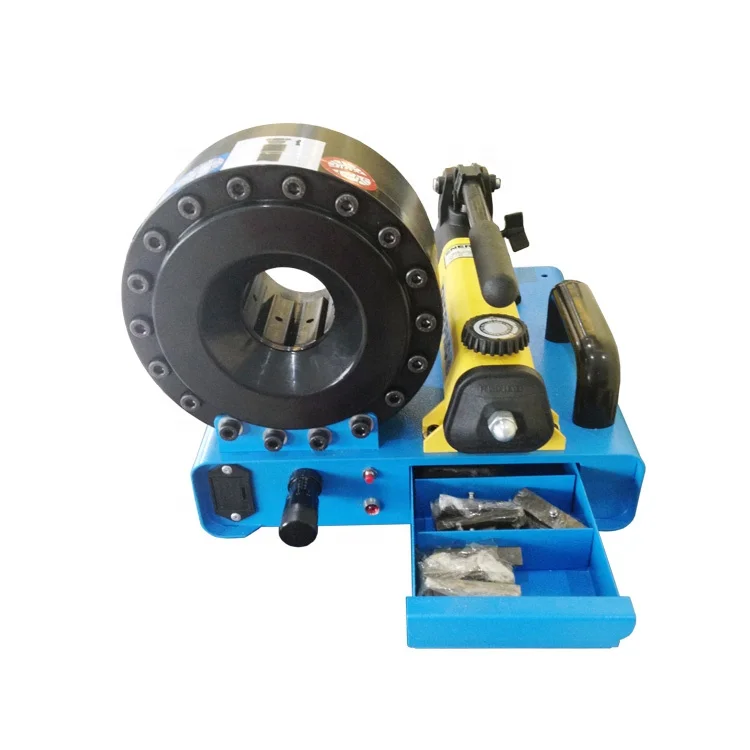

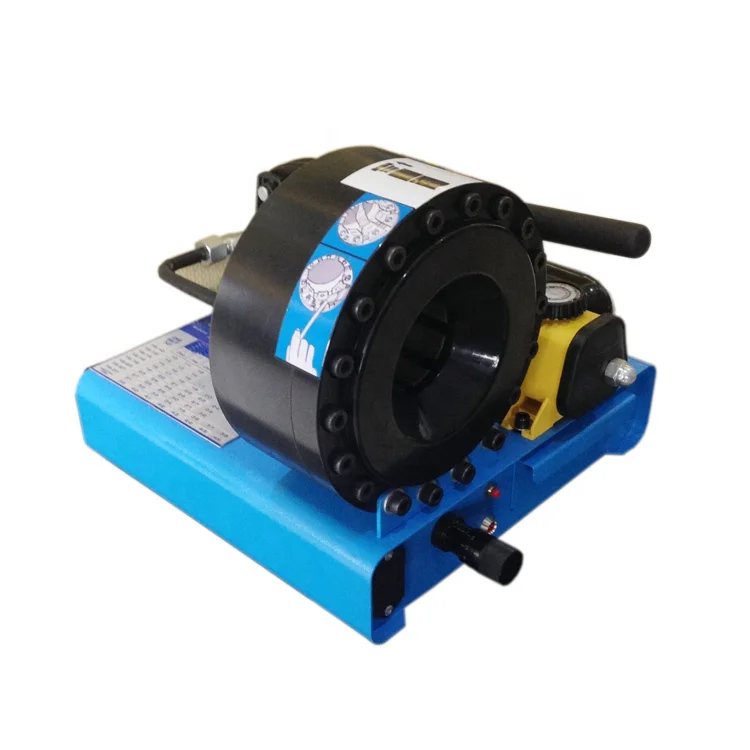

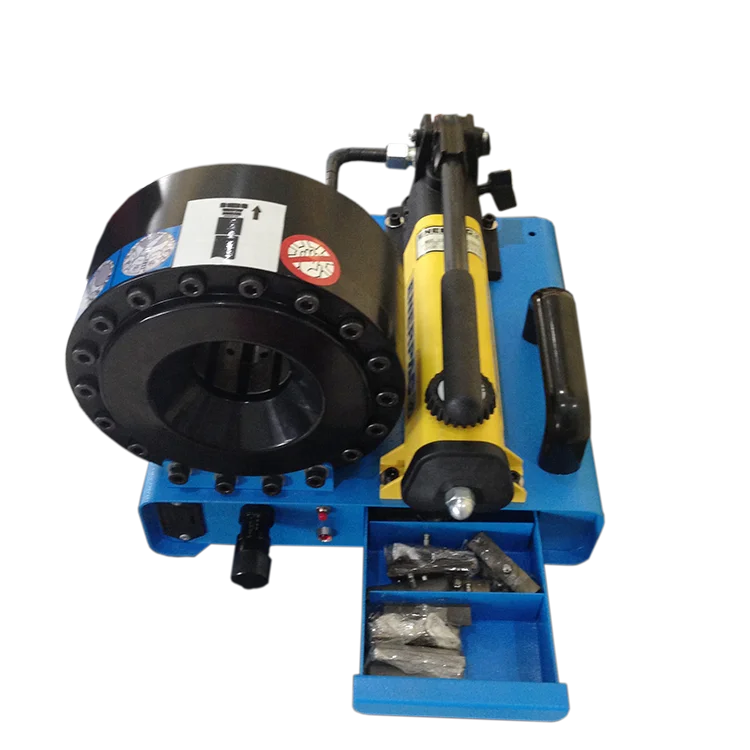

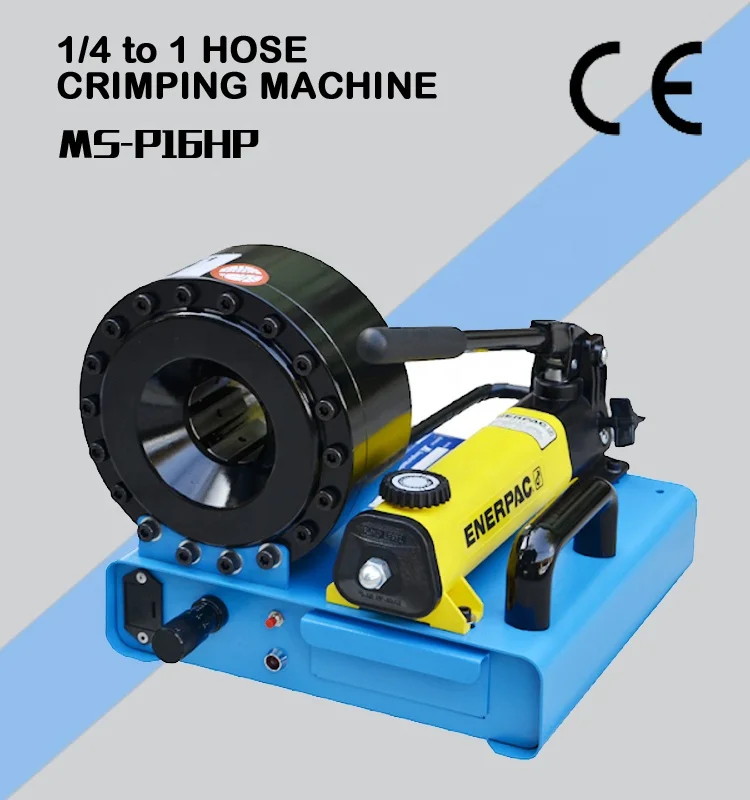

MS-P16HP Hydraulic Hose Crimping Machine.
Manual type MS-P16HP is widely used in the field where there is no power supply.
It has the capacity of crimping high pressure hose from 1/4 inch to 1 inch with standard seven die sets.
P16HP uses the world famous hydraulic hand pump ''ENERPAC'', to enable it work with high accuracy and high stability.
It has the advantage of light weight '' 30KG'' before fill oil, so it is easy to take to any place that need.
Specification
Type: | MS-P16HP finn power manual hydraulic hose crimping machine |
Crimping Range: | 1/4''-1'' |
Crimping Force: | 1500KN |
Free Dies: | 7 sets |
Operate Mode: | Manual |
Pump Type: | Hand Pump '' ENERPAC'' |
Weight: | 30KG |
Dimension: | 400*300*400mm |
Hydraulic Oil: | T46 Telus or Equvalent |
Details Images
Light Weight.
MS-P16HP is with 30KG light weight, can be take to any place that needed.
The hose crimping machine is operated by hand pump, no power supply need.
High Precision Micrometer.
MS-P16HP can crimp hose from 1/4'' to 1'', with standard 7 die sets. The crimping size is controlled by a high precision micrometer up to 0.01mm accuracy.

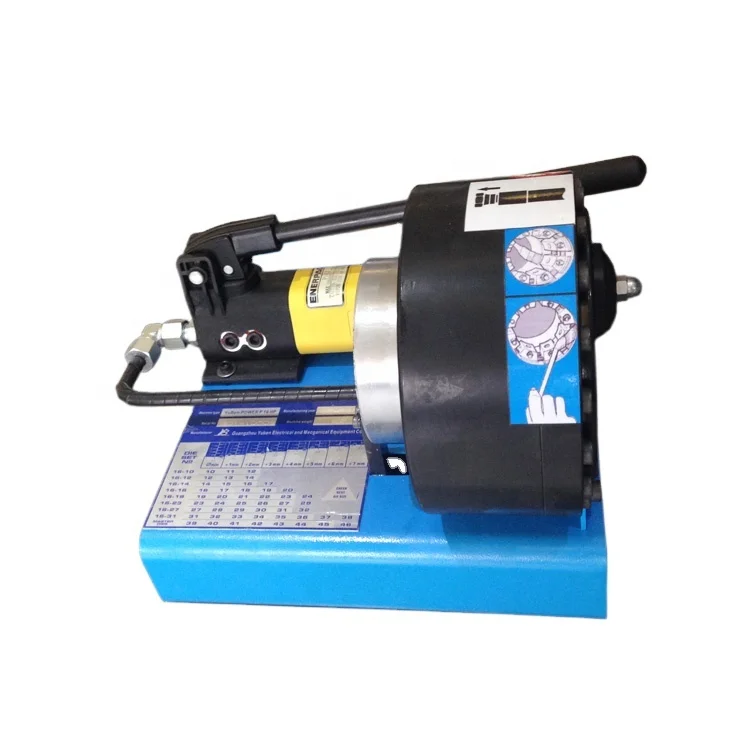

Crimping Reference Table.
MS-P16HP is offered with a crimping reference chart, to tell the user, especially the new user, how to choose the die sets. Each die set has its own crimping range, choose the proper die sets for the crimping piece, will get a better crimping effect. The grey part is not recommended.
Die sets.
The 7 sets dies are put into the box on the bottom of the machine. It make the user easier to store the die sets when it not been used.
High stability hydraulic pump..
MS-P16HP utilize famous ''ENERPAC'' manual hydraulic pump from USA. It has the advantage of:
1. Lightweight and compact design
2. Decreasing reinforced engineering plastic fuel tank and nylon encapsulated aluminum pump body corrosion.
3. Double speed operation, the handle stroke is reduced by 78% by single speed operation.
4. Handle labor, reduce operator labor intensity
5. With 4-way valve to operable double-acting cylinder
6. Chain handle and lightweight structure easy
7. Special handle guarantees operator safety
8. Built-in safety valve for overload protection
1. Lightweight and compact design
2. Decreasing reinforced engineering plastic fuel tank and nylon encapsulated aluminum pump body corrosion.
3. Double speed operation, the handle stroke is reduced by 78% by single speed operation.
4. Handle labor, reduce operator labor intensity
5. With 4-way valve to operable double-acting cylinder
6. Chain handle and lightweight structure easy
7. Special handle guarantees operator safety
8. Built-in safety valve for overload protection
Tight Package.
MS-P16HP is tightly fasten on the bottom pallet.
Utilize plywood case as the final package, free fumigation for many countries, like Australia.
New hose crimping machine do not comes with hydraulic oil, users need to add new Telus T46 or equivalent hydraulic oil.
The working volume of the hydraulic pump is about 328mL. Add enough hydraulic oil to enable the machine can works well.
Application Field
Application of the hydraulic hose crimping machine.
MS-P16HP portable crimping machines are designed for field service when repairs must be made on-site.
It can crimp hydraulic hose from 1/4'' to 1''. Also capable of crimping small tubes and pipes, wires and cable, etc.
They are used globally in such industries as hydraulic hoses, automotive components, construction equipment, heavy machinery, rail road, marine, electric power transmission, industrial hoses and tube, pipe, wire and cable industry, etc.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
General Questions You May Ask
1. Guarantee
Q: What kind of guarantee do you offer on your proffessional range of hydraulic hose crimping machine?
A: We offer a full 12 months back to base warranty on the crimping machine.
This covers electrical and mechanicalparts under 'normal use'.
Please see a list of our terms and conditions.
2. Delivery
Q: How do you send your hydraulic hose crimping machine?
A: They are firstly greased thouroughly and packaged in a free-fumigation wooden crate.
Usually, we send machine by ship, sometimes, as customer's requirement, send by air or by train.
When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered. Or we can arrange the cargo agent to send goods to your door.
3. Customized Service
Q: I want a size that you don't make as standard, is this possible?
A: Absolutely, we design and manufacture everything ourselves and indeed do many custom builds.
4. Operate
Q: I am new to hydraulic crimping machine, how difficult are your machines to operate?
A: We help a lot of beginners in hydraulic crimping machine, if you have a reasonable knowledge of electric and are willing to spend a little time learning it is not that bad.
Quite often when we sell a machine we send the manual out before the machine is ready for the customer to read ahead.
5. Language
Q: Does machine comes with Operation Manual of my laguange?
A: Yes, we offer operation manual with machine, so it will be more convenient for you to operate machine.
Any laguange, like English, Spainish, French, Italian, Russian, etc....
6. Training
Q: Do you offer training about products?
A: Yes, we can assign technician arrive at your company for the training at some charge, and accommodation, food, tickets will be charged.
7. Retailer
Q: Are there any machine in my area I can observe?
A: MENSION have machines at many countries, if there is our machine in your country, we can contact the customer to arrange a visit for you.
1. Guarantee
Q: What kind of guarantee do you offer on your proffessional range of hydraulic hose crimping machine?
A: We offer a full 12 months back to base warranty on the crimping machine.
This covers electrical and mechanicalparts under 'normal use'.
Please see a list of our terms and conditions.
2. Delivery
Q: How do you send your hydraulic hose crimping machine?
A: They are firstly greased thouroughly and packaged in a free-fumigation wooden crate.
Usually, we send machine by ship, sometimes, as customer's requirement, send by air or by train.
When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered. Or we can arrange the cargo agent to send goods to your door.
3. Customized Service
Q: I want a size that you don't make as standard, is this possible?
A: Absolutely, we design and manufacture everything ourselves and indeed do many custom builds.
4. Operate
Q: I am new to hydraulic crimping machine, how difficult are your machines to operate?
A: We help a lot of beginners in hydraulic crimping machine, if you have a reasonable knowledge of electric and are willing to spend a little time learning it is not that bad.
Quite often when we sell a machine we send the manual out before the machine is ready for the customer to read ahead.
5. Language
Q: Does machine comes with Operation Manual of my laguange?
A: Yes, we offer operation manual with machine, so it will be more convenient for you to operate machine.
Any laguange, like English, Spainish, French, Italian, Russian, etc....
6. Training
Q: Do you offer training about products?
A: Yes, we can assign technician arrive at your company for the training at some charge, and accommodation, food, tickets will be charged.
7. Retailer
Q: Are there any machine in my area I can observe?
A: MENSION have machines at many countries, if there is our machine in your country, we can contact the customer to arrange a visit for you.
