PWM частота импульсов рабочий цикл регулируемый модуль меандр прямоугольной волны генератор сигналов

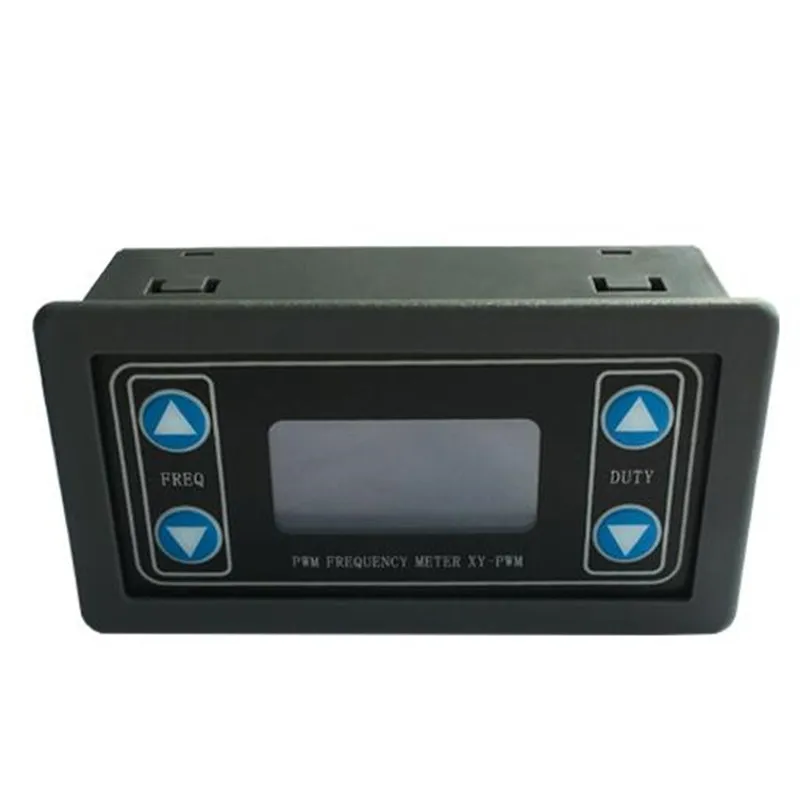

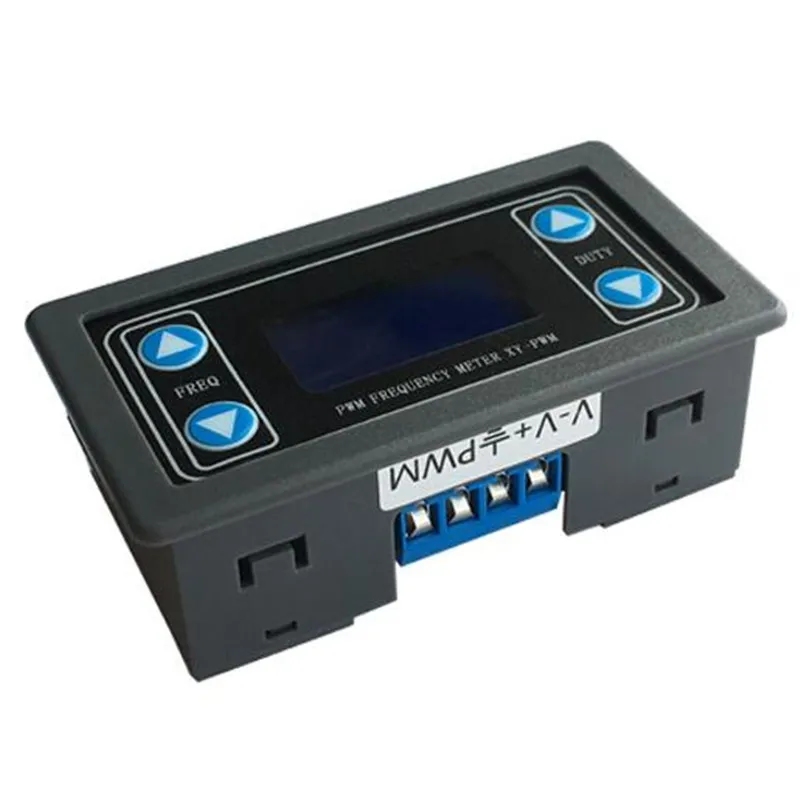

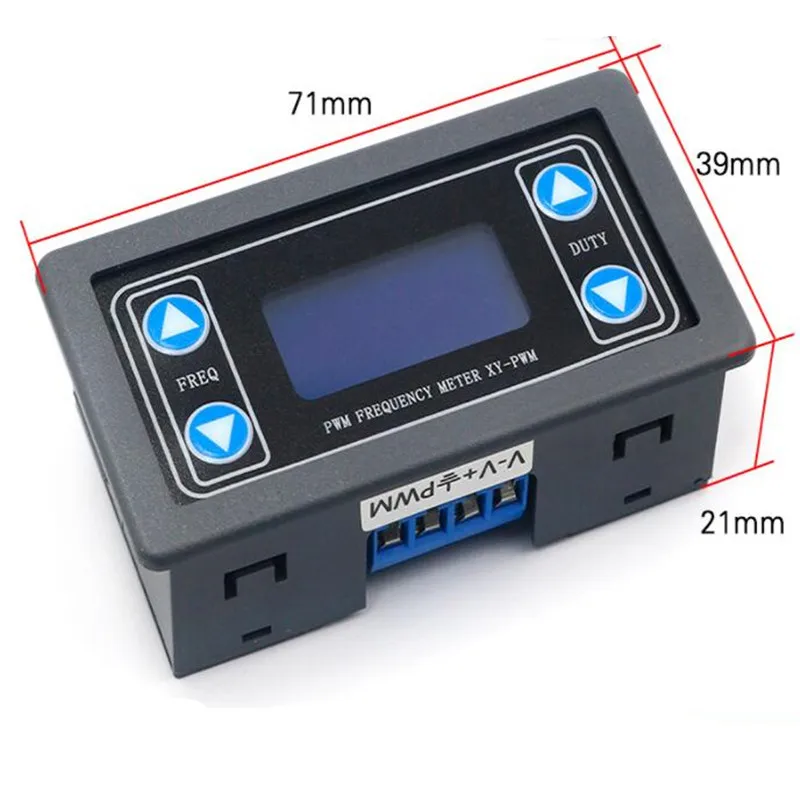

 PWM pulse frequency duty cycle adjustable module/square wave rectangular wave signal generator XY-PWM

 Module Parameters:

1. Working voltage: 3.3~30V;

2. Frequency range: 1Hz~150KHz;

3 frequency accuracy: the accuracy of each range is about 2%;

4. Signal load capacity: output current can be about 5~ 30mA;

5 output amplitude: PWM amplitude is equal to the supply voltage;

6. Ambient temperature: -20~+70℃.

Parameter setting

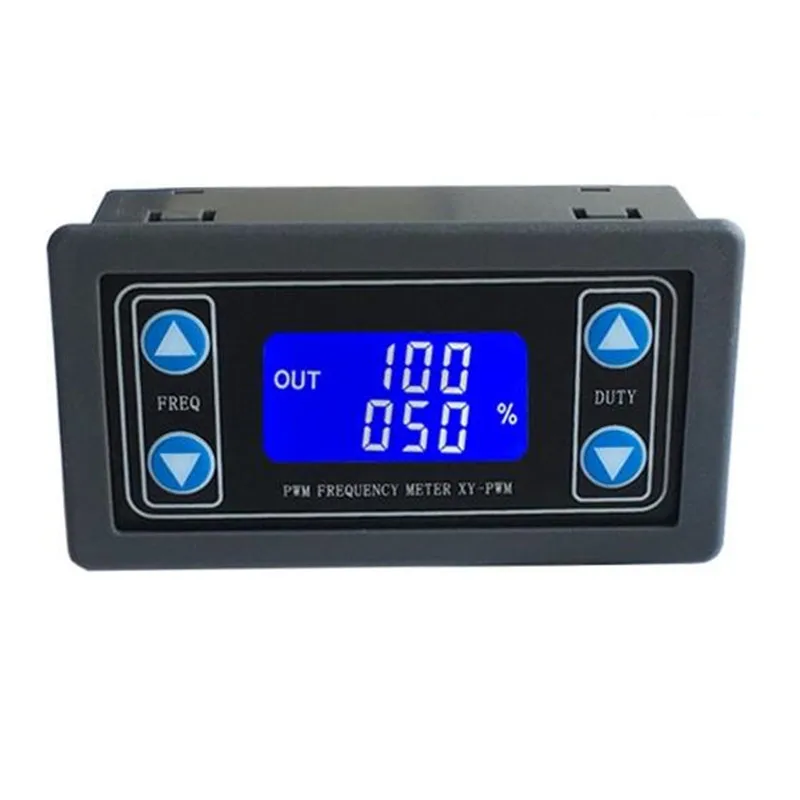

Module has 4 independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (rapid increase or decrease), very simple, set parameters automatically save, power failure will not be lost.

scope of application:

2. Square wave signal used to generate control motor driver;

3. Generate adjustable pulse for MCU use;

4. Generate adjustable pulse, control the relevant circuit (PWM dimming speed regulation and other applications).

 setting is successful: DOWN;
