YW-762F портативный цифровой RPM фотоэлектрический
- Категория: Speed Measuring Instruments >>>
- Поставщик: Shenzhen,Yowexa,Sensor,System,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 29.82 $* | 30.53 $* |
| Jul-19-2025 | 24.85 $* | 24.56 $* |
| Jun-19-2025 | 29.81 $* | 30.51 $* |
| May-19-2025 | 29.68 $* | 30.43 $* |
| Apr-19-2025 | 23.48 $* | 23.10 $* |
| Mar-19-2025 | 28.88 $* | 29.46 $* |
| Feb-19-2025 | 28.83 $* | 29.37 $* |
| Jan-19-2025 | 28.76 $* | 29.69 $* |
Характеристики
Product Overview

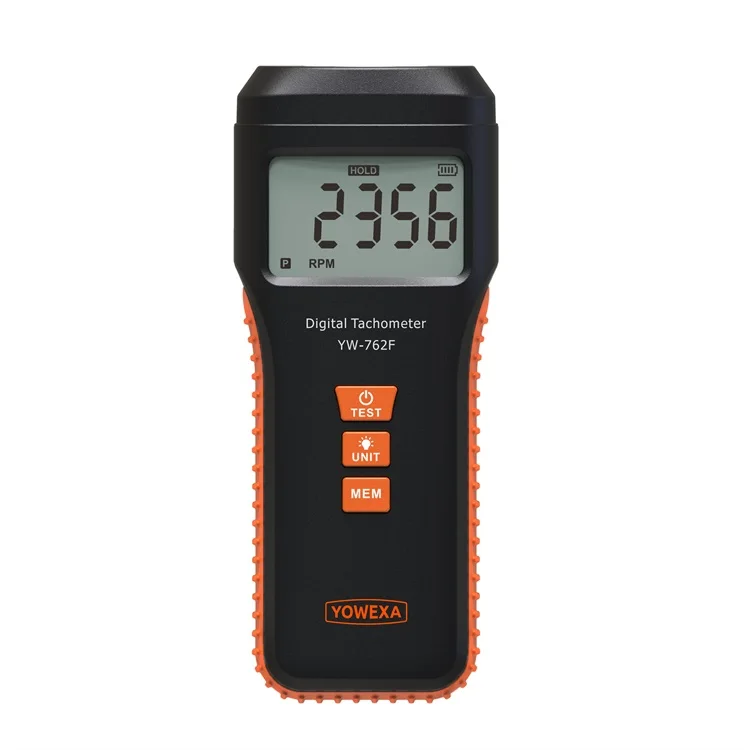

YW-762F Non-contact Digital Tachometer RPM Meter
YW-762 series of instruments are used to measure rotational speed, line speed and flicker frequency of light source. YW-762 series of instruments has three models: YW-762, YW-762F and YW-762J.
YW-762F is photoelectric non-contact measurement, the instrument does not need to contact the object to be tested;
YW-762J is contact measurement, there are four kinds of contact accessories can be replaced, as long as the appropriate accessories can be installed when measuring;
YW-762 includes two measurement methods.
YW-762F is photoelectric non-contact measurement, the instrument does not need to contact the object to be tested;
YW-762J is contact measurement, there are four kinds of contact accessories can be replaced, as long as the appropriate accessories can be installed when measuring;
YW-762 includes two measurement methods.
FEATURES AT A GLANCE
Data memory function
APPLICATION:
Cars
Ships
Textiles
Papermaking
Motor
Chemical fiber
Cars
Ships
Textiles
Papermaking
Motor
Chemical fiber

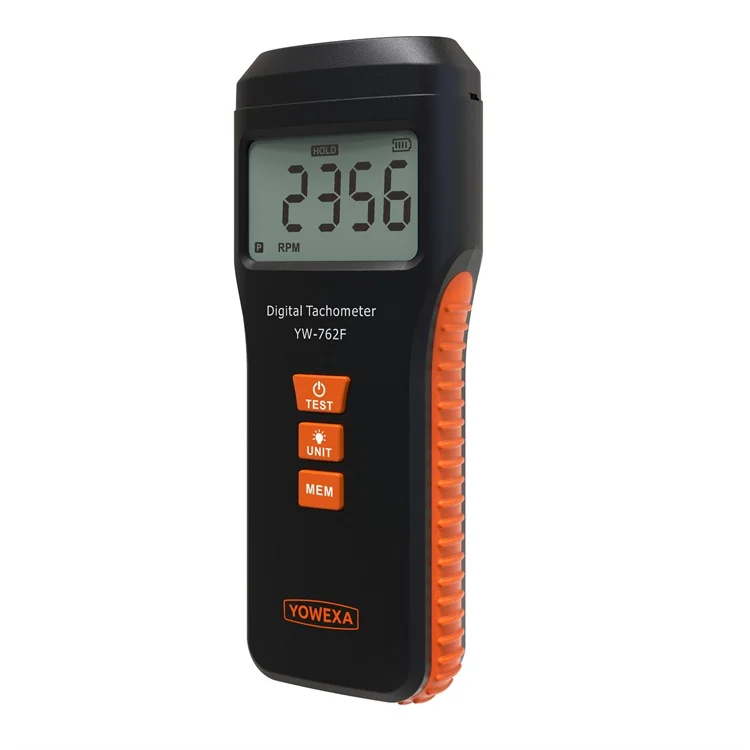

Profile elevation

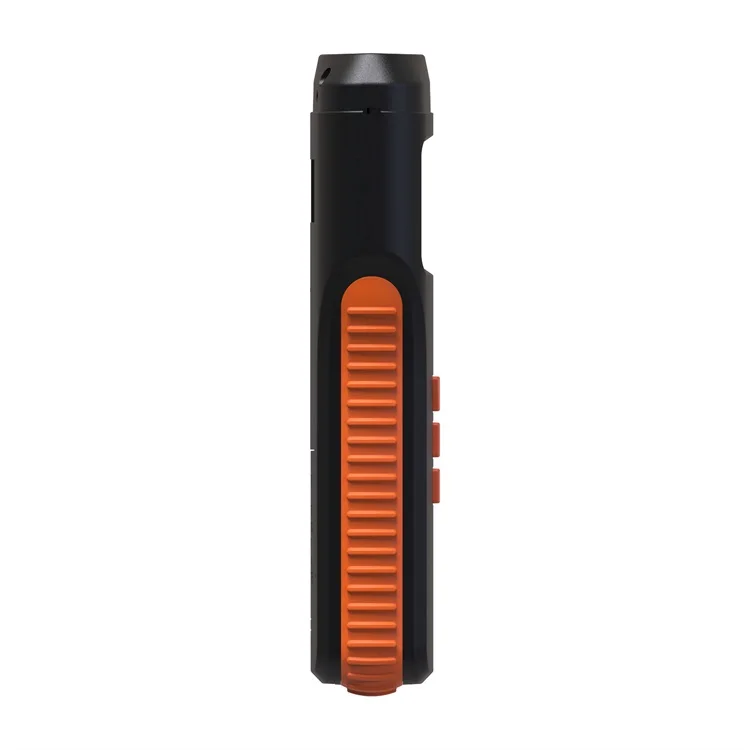

Side elevation

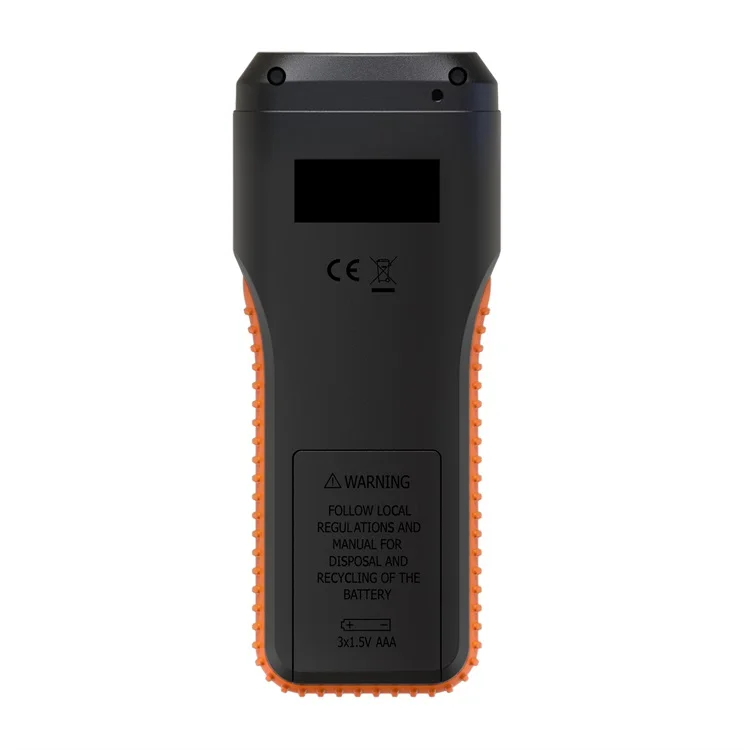

Back elevation
PRODUCT SPECIFICATIONS
Model | YW-762 | YW-762J | YW-762F | ||
Measuring range | Photoelectric speed: 9.0~99999RPM | Speed of contact: 1.0~19999RPM | Photoelectric speed: 9.0~99999RPM | ||
Light source flicker frequency: 0.1~6000.0Hz | Line velocity: 0.10~1999.9m/min | Light source flicker frequency: | |||
Speed of contact: 1.0~19999RPM | 0.4~6560ft/min | 0.1~6000.0Hz | |||
Line velocity: 0.10~1999.9m/min | |||||
0.4~6560ft/min | |||||
Accuracy | ±(0.5% reading+5) | ||||
Resolution | Photoelectric speed: 0.1RPM (9.0~999.9RPM) | Speed of contact: | Photoelectric speed: | ||
1RPM (over 1000RPM) | 0.1RPM (1.0~999.9RPM) | 0.1RPM (9.0~999.9RPM) | |||
Light source flicker frequency: 0.1Hz | 1RPM (over 1000RPM) | 1RPM (over 1000RPM) | |||
Speed of contact: 0.1RPM (1.0~999.9RPM) | Line velocity: | Light source flicker frequency: 0.1Hz | |||
1RPM (over 1000RPM) | 0.01m/min (0.10~99.99m/min) | ||||
Line velocity: 0.01m/min (0.10~99.99m/min) | 0.1m/min (over 100m/min) | ||||
0.1m/min (over 100m/min) | 0.1ft/min (0.4~999.9ft/min) | ||||
0.1ft/min (0.4~999.9ft/min) | 1ft/min (over 1000ft/min) | ||||
1ft/min (over 1000ft/min) | |||||
Unit | RPM, Hz, m/min, ft/min | RPM, m/min, ft/min | RPM, Hz | ||
Effective distance | 50~500mm (non-contact measurements) | No | 50~500mm | ||
Range selection | Automatic range | ||||
Display | Large LCD screen with backlight | ||||
Contact accessories | Yes | No | |||
Protection level | IP43 | ||||
Power supply | 3 pcs of 1.5V AAA alkaline batteries /1.2V AAA rechargeable batteries | ||||
Dimension | 190*68*33mm | 190*68*33mm | 157*65*30mm | ||
Material | ABS | ||||
weight | About 149g | About 149g | About 126g | ||
(without batteries) | |||||
SIMILAR PRODUCTS
FAQ
Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our clients.
Q. How long is your lead time for samples?
A. 5-7 days. For bulk orders, 10-30 days depending on the quantity.
Q. What is your terms of payment?
A. 100% for small orders. Bulk orders 30% in advance as deposit and 70% balance before the delivery.
Q. How can we pay?
A. You can pay via T/T, PayPal and Western Union.
A. Yes, we offer OEM/ODM solutions for our clients.
Q. How long is your lead time for samples?
A. 5-7 days. For bulk orders, 10-30 days depending on the quantity.
Q. What is your terms of payment?
A. 100% for small orders. Bulk orders 30% in advance as deposit and 70% balance before the delivery.
Q. How can we pay?
A. You can pay via T/T, PayPal and Western Union.
Why Choose Us
Company Information
Shenzhen Yowexa Sensor System Co., Ltd., established in 2010, is a high-tech enterprise with 3 holding subsidiaries and a production area of 1,500 square meters, focusing on the R&D, manufacturing, sales, and solutions of precision measuring instruments and sensors. There are more than 30 R&D personnel and dozens of independent intellectual property rights.
