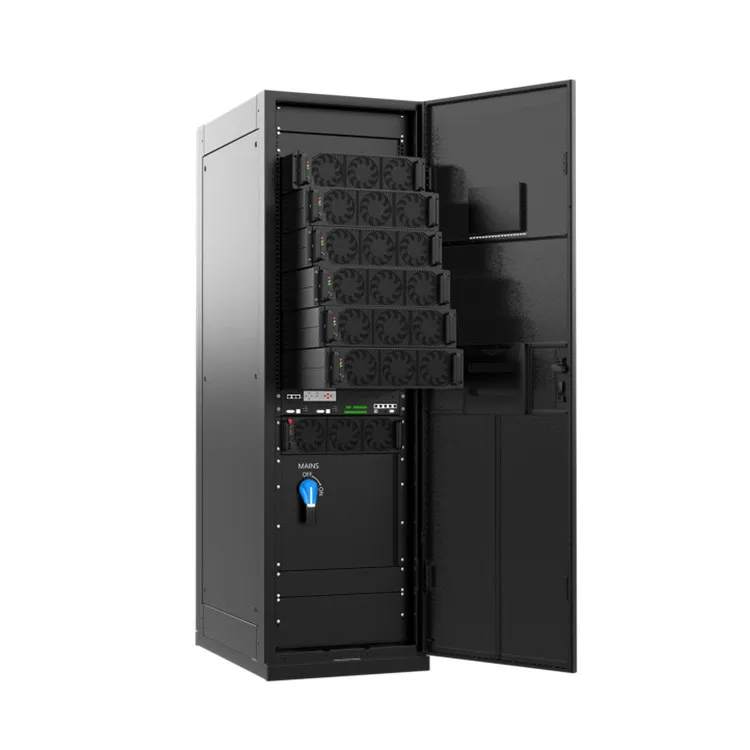

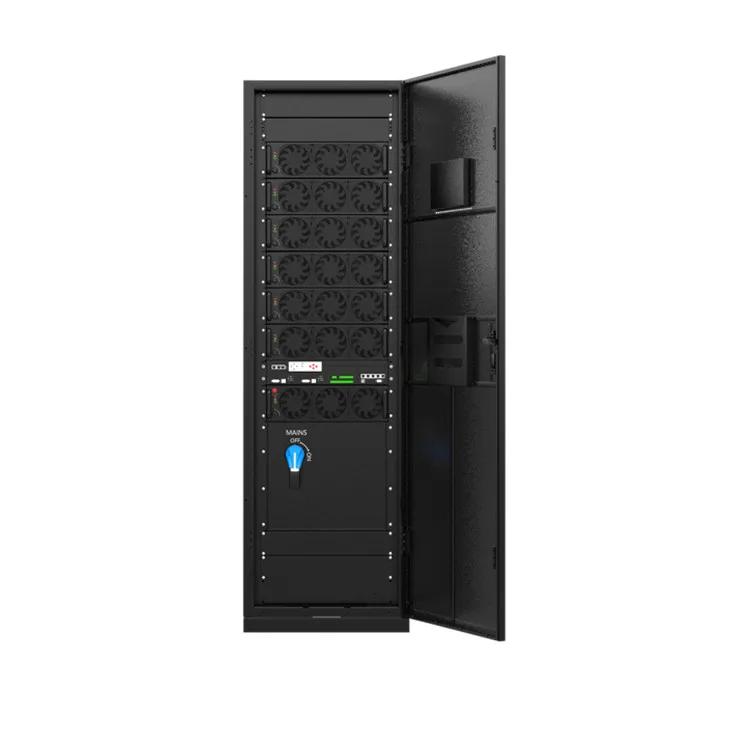

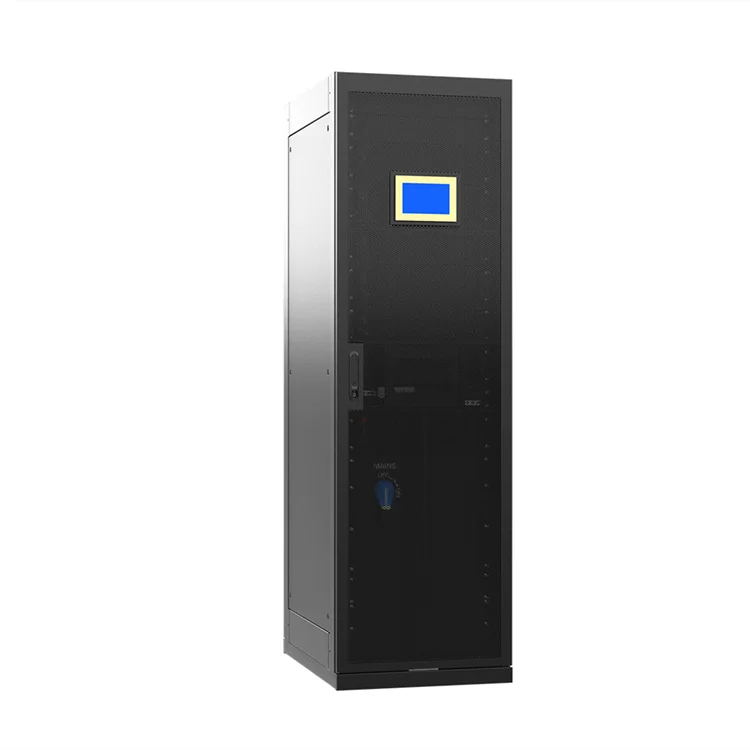

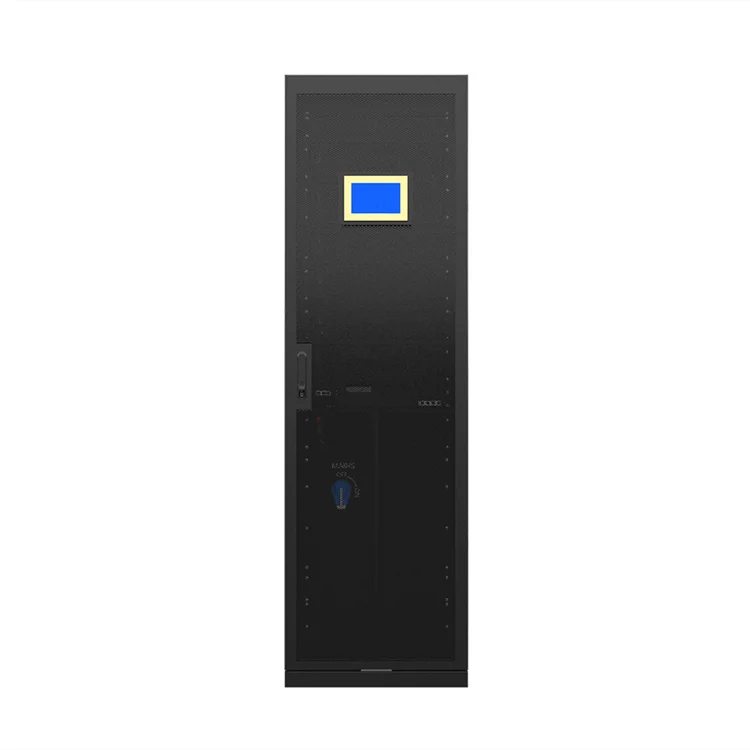

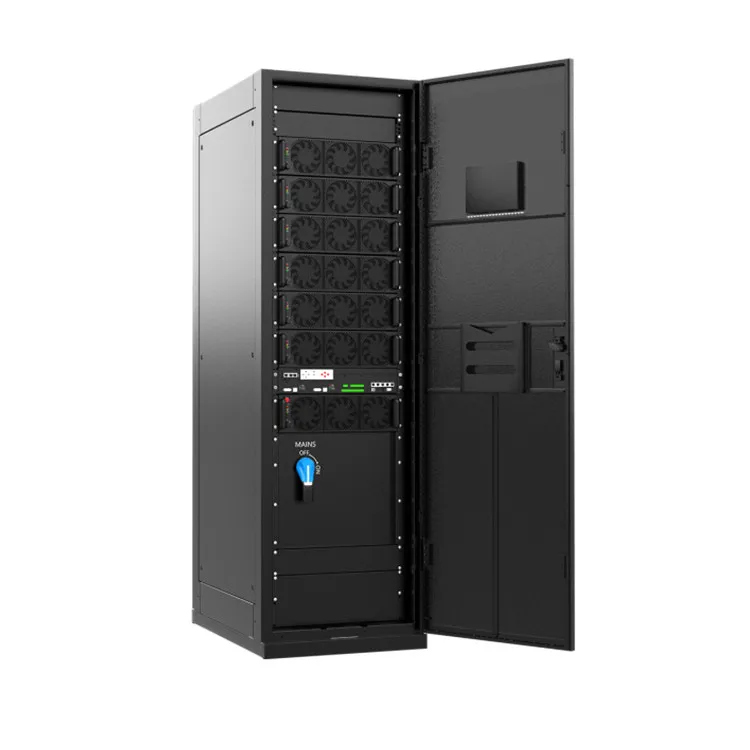

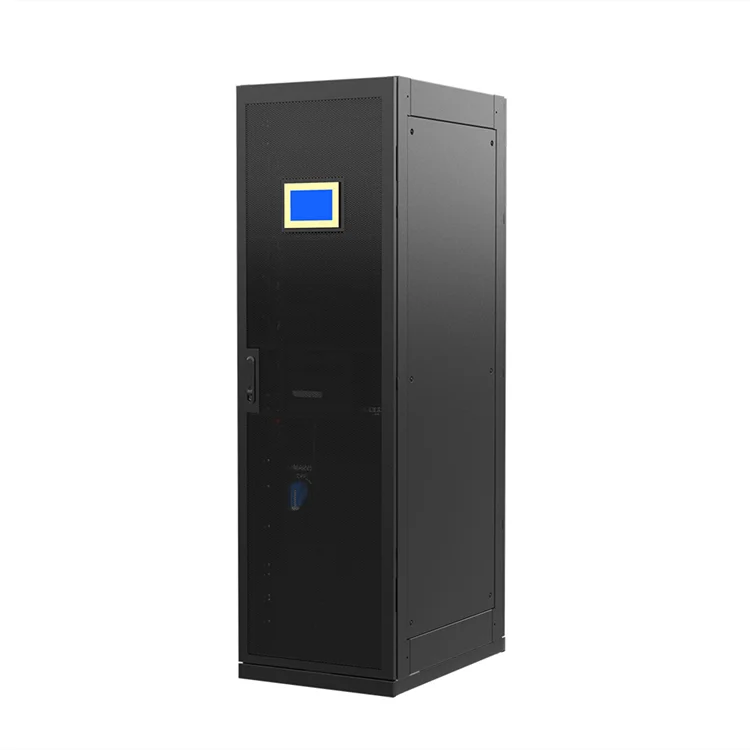

Iteaq мощность китайской промышленности центр обработки данных 50kva 100kva 150kva 200kva 250kva 300kva
- Категория: Uninterruptible Power Supplies (UPS) >>>
- Поставщик: Shenzhen,Iteaq,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.66 $* | 0.35 $* |
| Aug-17-2025 | 0.83 $* | 0.26 $* |
| Jul-17-2025 | 0.89 $* | 0.8 $* |
| Jun-17-2025 | 0.71 $* | 0.51 $* |
| May-17-2025 | 0.78 $* | 0.89 $* |
| Apr-17-2025 | 0.59 $* | 0.49 $* |
| Mar-17-2025 | 0.18 $* | 0.50 $* |
| Feb-17-2025 | 0.11 $* | 0.98 $* |
| Jan-17-2025 | 0.59 $* | 0.56 $* |
Характеристики
Product Description
Specification
Input | Modular UPS 300KVA with 6pcs 50KW modules | ||
Model | ECOplus300-50 | ||
Phase | 3 Phase 4 Wires and Ground | ||
Rated Voltage | 380/400/415Vac | ||
Voltage Range | 138～485Vac | ||
Frequency Range | 40Hz-70Hz | ||
Power Factor | ≥0.99 | ||
Current THDi | ≤3%(100% linear load) | ||
Bypass Voltage Range | Max.voltage: 220V:+25 %( optional +10%, +15%, +20%); 230V:+20 %( optional +10%, +15%); 240V:+15 %( optional +10%) Min. voltage:-45 %( optional -10%, -20%,-30%) Frequency protection range: ±10% | ||
Power Walking In | Yes | ||
Bypass back irrigation | Bypass back irrigation | ||
Generator access | Yes | ||
Phase | 3 Phase 4 Wires and Ground | ||
Rated Voltage | 380/400/415Vac | ||
Power Factor | 1 | ||
Voltage Regulation | ±1% | ||
Frequency-Utility Mode | ±1%/±2%/±4%/±5%/±10% of the rated frequency(optional) | ||
Frequency-Battery Mode | (50/60±0.1%)Hz | ||
Crest Factor | 3:1 | ||
THD | ≤2% with linear load, ≤4% with non linear load | ||
Effieiency | 96% | ||
Overload | ≤ 110%, to bypass after 60 min; ≤ 125%, to bypass after 10 min; ≤ 150%, to bypass after 1 min | ||
Battery | ±180V/192V/±204V/±216V/±228V/±240/±252/±264/±276/±288/±300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional) | ||
Module charge current | Max 20A | ||
Transfer Time | Transfer Time | Utility to Battery : 0ms; Utility to bypass: 0ms | |
Protection | Alarm | overload, utility abnormal, UPS fault, battery low, etc | |
Protection | short circuit, overload, over temperature, battery low, fan fault alarm | ||
Communication Interface | CAN, RS485, FE, LBS, Parallel card, Relay card, SNMP card(optional) | ||
Operating Temperature | 0℃～40℃ | ||
Storage Temperature | -25℃～55℃ | ||
Altitude | < 1500m | ||
Noise level | <65dB | ||
Phisicals | Cabinet Dimensions (W*D*H)mm | ||
Module Dimensions (W*D*H)mm | 440*620*131 | ||
Cabinet Weight (Kg) | 272 | ||
Module Weight (Kg) | 33 | ||
Standards | EN62040-1, EN62040-2 | ||
Packing & Delivery
1pcs into master carton on pallet
Company Profile
Company
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’ experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’ experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Receiption
View of industrial Park
HF 3 phases production line
Modular UPS production line
100KW Test station 1
100KW Test Station 2
800KVA Test station 1
800KW Test Station 2
2000KW Load Test room
PCBA soldering
PCBA soldering machine
PCBA production line
Advanced Material management
Certifications
Exhibition
2OCT 2019 SINGAPORE DATA CENTER WORLD
2020 DATA CENTER SOLUTION EXHIBITION
2021 IT SOLUTION NATIONAL TOUR EXHIBITION
2021 IT SOLUTION NATIONAL TOUR EXHIBITION
FAQ
Q1: Are you a factory or trading company?
A1: Yes, We are leading modular UPS products factory with 20 years experiences
Q2: How about the Shipping Method?
A2:Mainly deliver by sea as the products’ weight and size , if customer require, also can deliver by air.
Q2: How about the delivery date?
A2: In General, the delivery date will be 15-30 working days for normal buy quantity. But if bigger order, please check us
further.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ ?
A4: Neatral products Moq 1pcs , OEM products Moq:10pcs
A1: Yes, We are leading modular UPS products factory with 20 years experiences
Q2: How about the Shipping Method?
A2:Mainly deliver by sea as the products’ weight and size , if customer require, also can deliver by air.
Q2: How about the delivery date?
A2: In General, the delivery date will be 15-30 working days for normal buy quantity. But if bigger order, please check us
further.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ ?
A4: Neatral products Moq 1pcs , OEM products Moq:10pcs
Any other questions , welcome click here to contact the factory customer service by click view more in folowing
