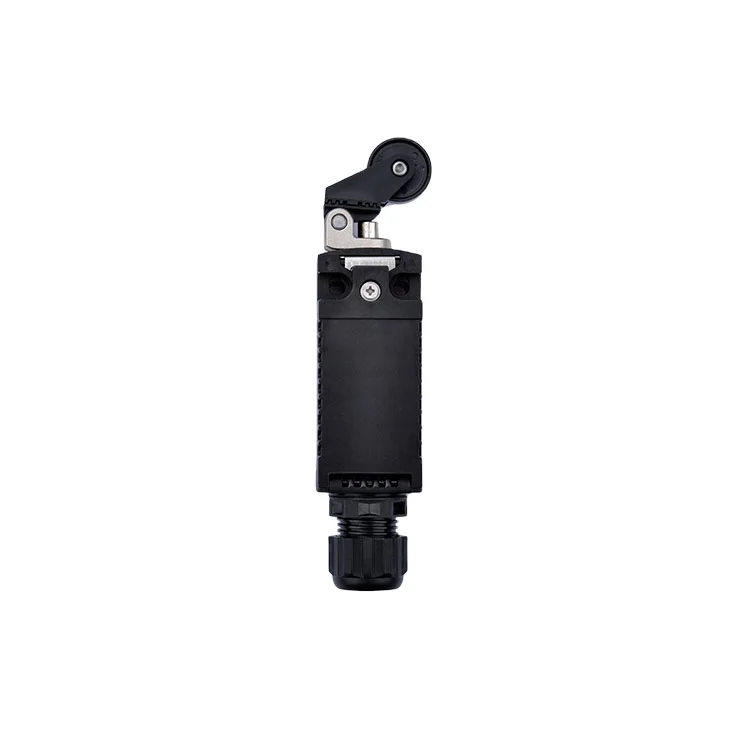

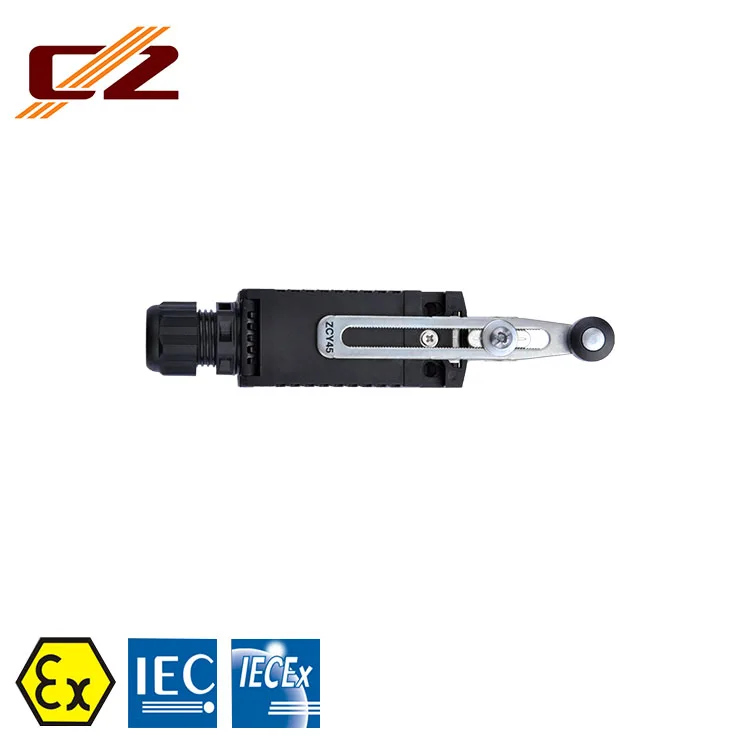

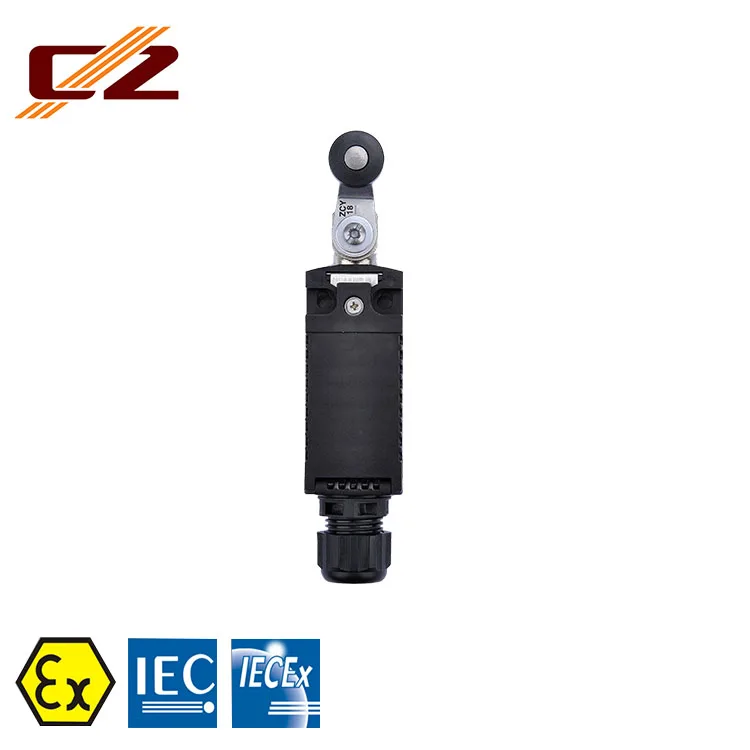

Сертифицированный взрывозащищенный концевой выключатель ATEX и IECEx 1NO INC 2NC

Сертифицированный взрывозащищенный концевой выключатель ATEX и IECEx 1NO INC 2NC

Категория: Limit Switches >>>
Поставщик: CZ,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.11 $*	0.16 $*
Aug-19-2025	0.72 $*	0.62 $*
Jul-19-2025	0.63 $*	0.65 $*
Jun-19-2025	0.92 $*	0.53 $*
May-19-2025	0.51 $*	0.75 $*
Apr-19-2025	0.42 $*	0.84 $*
Mar-19-2025	0.41 $*	0.37 $*
Feb-19-2025	0.61 $*	0.85 $*
Jan-19-2025	0.24 $*	0.94 $*

Характеристики

HTB1vsI

all our certifications is REAL ONE.

NOT FAKE , NOT FAKE , NOT FAKE !!!

PLEASE CONTACT US TO SHOW YOU!!!

Certification

Ex mark

IECEx

Ex db e IICT6 Gb Ex tb IIIC T80°C Db(Ie <6A,Ta <+50°C)
Ex db e IICT5 Gb Ex tb IIC T95°CDb(6A <Ie <10A,Ta <+ 40°C)

ATEX

ATXE 2 II GD Ex db e II C T6 Gb Ex tb IIIC T80°C Db(Ie ≤6A,Ta ≤+ 50°C)

ATXE 2 II GD Ex db e II C T6 Gb Ex tb IIIC T95°C Db(6A <Ie ≤10A,Ta ≤+ 40°C)

Intended use	zone 1 and zone 2 zone 21 and zone 22
Ambient temperature	-20°C< Ta≤ +40°C(6A <Ie≤10A) -20°C<Ta≤ +50°C(Ie ≤ 6A)
Degree of protection	IP66
Material of enclosure	Alloy plastic of static resistence
Rated voltage/current	max 320V AC, 250V DC
Rated current	Max 10A
Component terminal	4x0.5~ 1.5mm2
Cable entry	Molded plastic 1 * M20, cable outer dameter D5.5- 13mm
Rated frequency	50/60Hz

Descriptions:

Explosion-proof limit switches mainly apply to on-off controls of the active parts in hazardous areas. The protective enclosures are made of hard and anti-static plastic alloy, also have good performance in high and low temperature. There are Ex switch components to be mounted inside, with many different contacts types you're your options. The operation head can be directed in 24ways And adjusted each 15 Manydifferent operation heads are available for your different requests.

IECEx International Approval, ATEX European Approval

Certified builtin Ex component (U-certificate)o 4types ot contacts( tastaction, slowaction)
Easy installation
Degree of protection IP66

High chemical performance

Installation diagram of operation head:
