Мобильная асфальтосмесительная установка YIMA 40 т/ч для дорожного строительного
- Категория: Asphalt Mixers >>>
- Поставщик: Jiangyin,Zhongxin,Engineering,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.51 $* | 0.37 $* |
| Aug-19-2025 | 0.80 $* | 0.57 $* |
| Jul-19-2025 | 0.72 $* | 0.64 $* |
| Jun-19-2025 | 0.82 $* | 0.5 $* |
| May-19-2025 | 0.49 $* | 0.64 $* |
| Apr-19-2025 | 0.80 $* | 0.78 $* |
| Mar-19-2025 | 0.59 $* | 0.34 $* |
| Feb-19-2025 | 0.82 $* | 0.18 $* |
| Jan-19-2025 | 0.24 $* | 0.11 $* |
Характеристики
Product Description

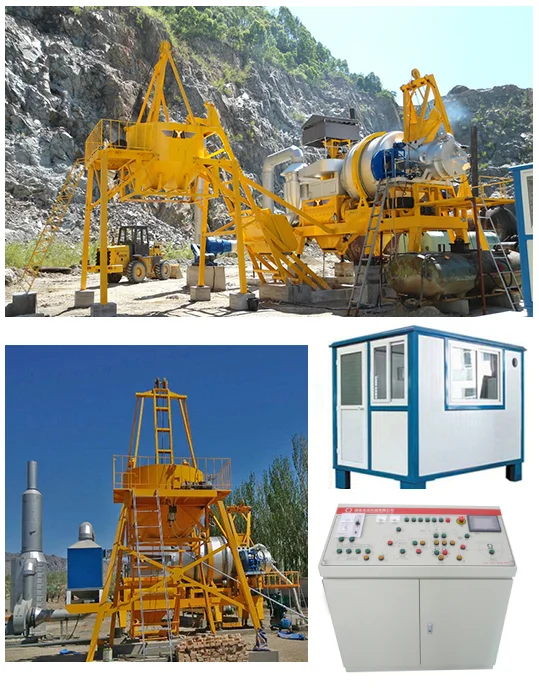

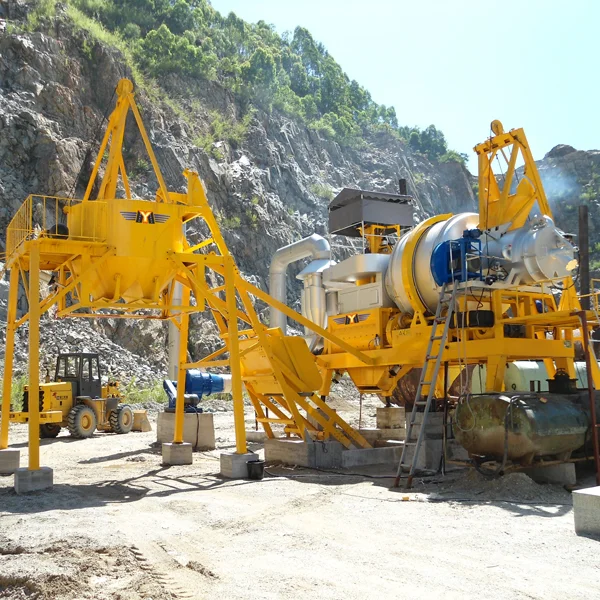

YIMA 40t/h mobile asphalt batch mixing plant for road construction equipment
1.Asphalt Mixing Plant for Sale Road Construction 40t/h used in road construction.
Our company producing capacity: 40t/h,60t/h,80t/h,120t/h,160t/h,240t/h,320t/h,400t/h asphalt mixing plant.
Our asphalt mixing plant is container typed asphalt mixing plant, it's convenient for shipping and installation in the construction site.
2.Asphalt Mixing Plant for Sale Road Construction 60t/h Consist of

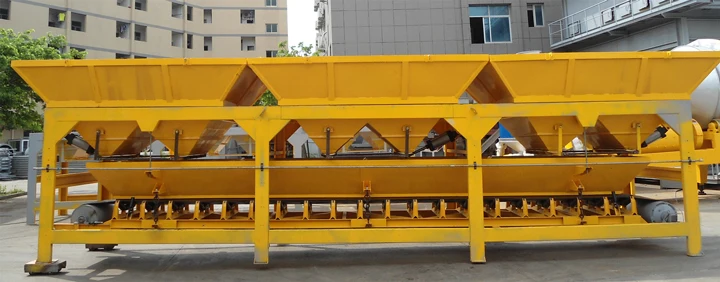

1. PZ50 Cold feed system

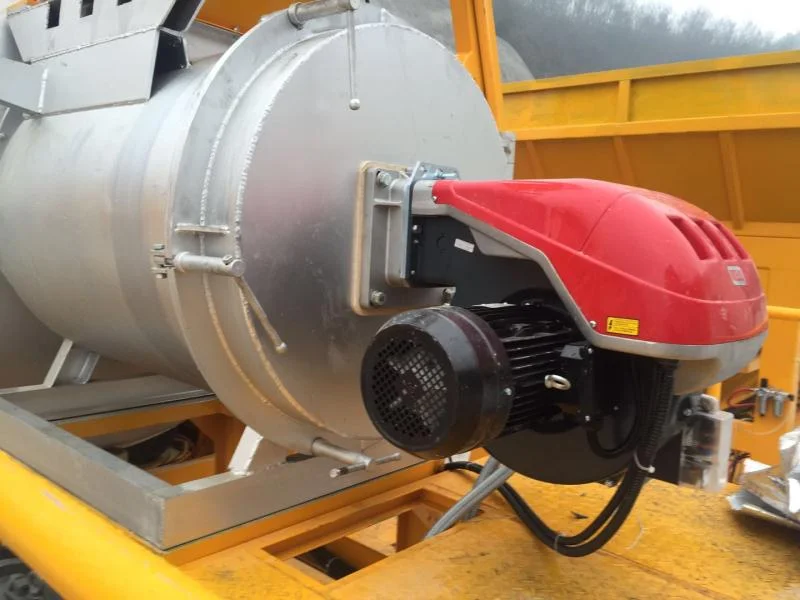

2. Diesel burner
3.Dryer drum
4.Aggregate elevador system
5. Fillier conveys and measurement system
6. Bitumen conveys and measurement system
7.Mixer
8.Dust removal system
9.Beam
10.Pneumatic system
11.Electronic control system
12.Finished storage system
13.RY-30 bitumen tank
3. Feature
1. Easy to ship and install in the construction cite.
2. Removable, can remove to other place after one road project is finished.
3. Environmental protection. No environmental harm after dust removal system.
CSM40 Asphalt Mixing Plant Configuration Table
Asphalt mixing plants | ||
Rated production capacity | 40t/h | |
Model | CSM40 | |
Rated working condition | Asphalt mix is medium grain size (AC-20) | |
Aggregate Specification | ||
100% | ||
Pass through 3mm screen | 40% | |
Dryer drum outlet temperature | 160℃ | |
Ambient atmospheric pressure | 760 mmHg | |
Ambient temperature | 20℃ | |
Aggregate density | 1650 kg/m3 | |
Aggregate moisture content | ≤5% | |
Aggregate specific heat | 0.21 Kcal/kg℃ | |
Powder content | 5% | |
Asphalt content | 5% | |
Fuel calorific value | ||
Heavy oil | 9,850 Kcal/kg | |
Diesel | 10,500 Kcal/kg | |
Single phase | 220v | |
Three phase | 380v | |
Frequency | 50HZ | |
CSM40 Asphalt Mixing Plant Technical parameters
Productivity | 40t/h | |
Feeding bin volume | 1200kg | |
Mixture output | 1.8t/bin | |
Agg. size | <=50mm | |
Agg. bins | 3 bins, single volume:5m3, cumulative measurement | |
Weighing range and precision | Agg. | ≤2000kg±2.5% |
Filler | ≤200kg±2.0% | |
Bitumen | ≤200kg±2.0% | |
Products temp | 120~170 ℃, (adjustable) | |
Company Information
Packaging & Shipping
Our product directly load on the boat . Will save the transport cost for about 50%.
FAQ
1. Who are we?
We are based in Jiangsu, China. We are factory that producing Asphalt mixing plant.
2. What is your terms of payment?
A: T/T 30% in advanced,70% see the B/L copy . B.100% Irrevocable LC
3.What is your terms of delivery?
A. FOB, CFR ,CIF or as your requirement.
4. How about your delivery time?
A: Generally, it will take 30-40 days after receiving your advanced payment.
5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
