Детали для электрического скутера на заказ FR4 Pcb Assembly Factory Max черный желтый зеленый золотой красный белый синий Genesis Double
- Категория: >>>
- Поставщик: Yuwei,Electronic,Technology,(Wuhan),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.19 $* | 0.44 $* |
| Aug-19-2025 | 0.19 $* | 0.92 $* |
| Jul-19-2025 | 0.30 $* | 0.15 $* |
| Jun-19-2025 | 0.14 $* | 0.34 $* |
| May-19-2025 | 0.60 $* | 0.34 $* |
| Apr-19-2025 | 0.0 $* | 0.38 $* |
| Mar-19-2025 | 0.17 $* | 0.90 $* |
| Feb-19-2025 | 0.87 $* | 0.12 $* |
| Jan-19-2025 | 0.19 $* | 0.83 $* |
Характеристики
We were founded in 1995 and has 25+ years of PCB and PCBA production experience. We have built a modern factory, which has greatly improved in Production Capacity and Quality Control. In order to adapt to the upgrading speed of electronic products, we can provide customers with One-Stop service (PCB + PCBA), which not only shortens the product launch cycle, but also saves customers' Research and Development costs. We can provide flexible production of Prototypes and Small&Middle volume production to meet customers' requirements from r&d to product launch.

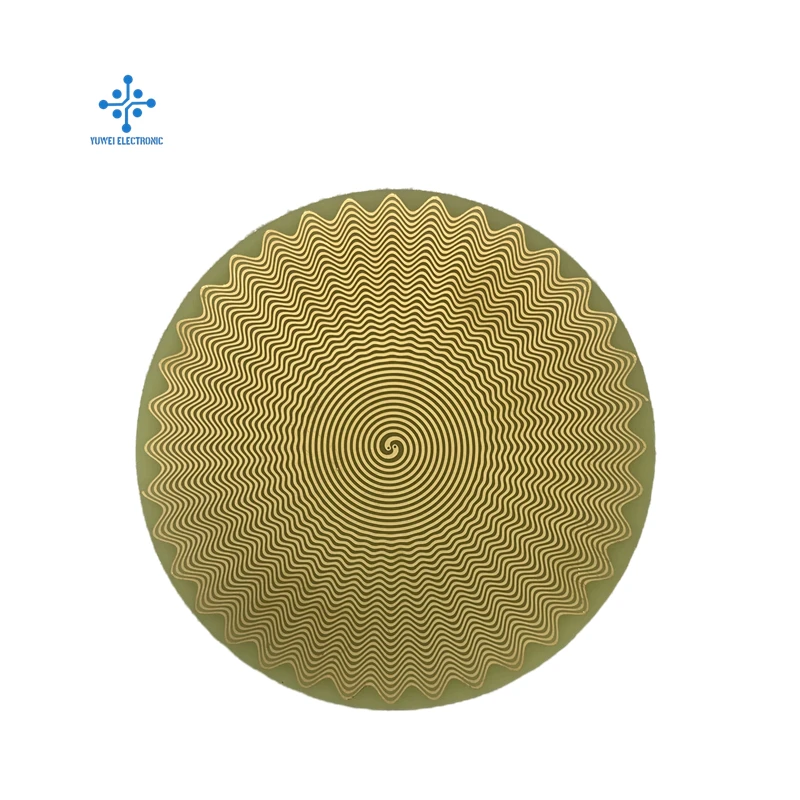

Loop Circuit PCB
2-Layer of Loop Circuit PCB
Surface technology is ENIG, line width 5mil, the whole surface is loop-shaped line, for etching is relatively difficult.

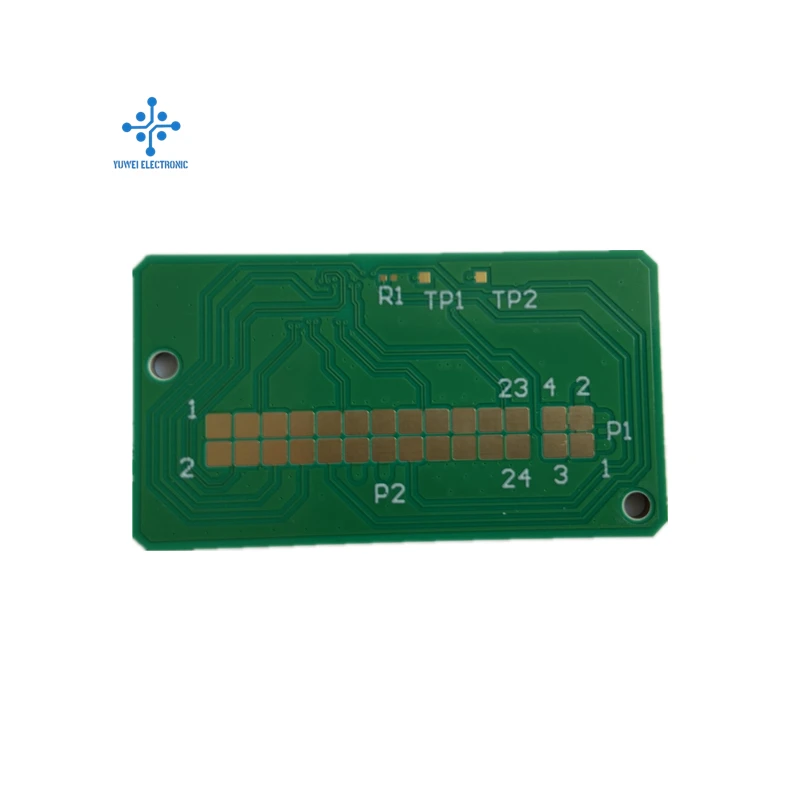

Small Size PCB
2-Layer of Small Size PCB
The size of the single board is only 10*10mm, which requires high precision for the routing.
Red Soldermask PCB
2-Layer of Red Soldermask PCB
Red soldermask, for the appearance of the requirements are relatively high.

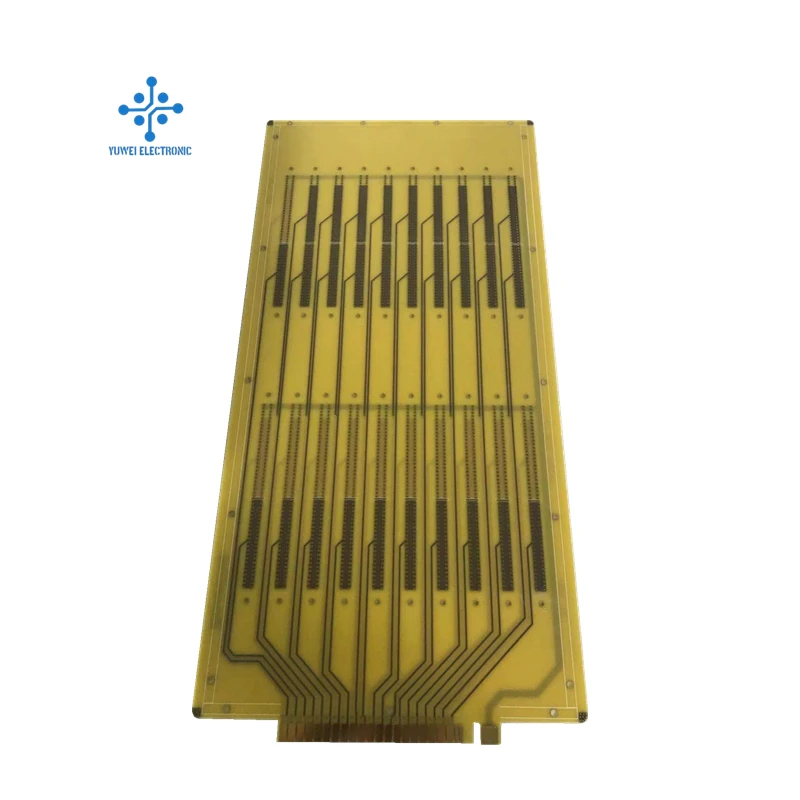

Long Size PCB
2-Layer of Long Size PCB
The size is 680mm*350mm, the surface technology is ENIG+ Gold Finger.
1. Service Advantages
2. Quality Advantages
Key Parameters Of Normal Rigid PCB | ||||||
ITEM | Standard | Advanced | ||||
Layer Count | Max Layer Count | 36L | 48L | |||
Board Thickness | Max PCB Thickness | 5.0mm | 6.5mm | |||
Min PCB Thickness | 0.2mm | 0.1mm | ||||
Finished Size | Max Finished Size | 24*35inch | 24.5*47inch | |||
Board Size Tolerance | Min Routing Tolerance | ±0.1mm | ±0.05mm | |||
Max Base Copper Weight | Inner | 6OZ | 12OZ | |||
Outer | 6OZ | 12OZ | ||||
Min Trace/Spacing | Inner | 75/75um | 50/50um | |||
Outer | 75/75um | 45/45um | ||||
Drilling Size | Min Mechanical Drilling | 6mil | 6mil | |||
BGA Pitch | Min BGA Pitch | 0.45mm | 0.35mm | |||
PCB Aspect Ratio | Max PCB Aspect Ratio | 10：1 | 20：1 | |||
Solder Mask Dam | Min Solder Mask Dam | 3mil | 2.5mil | |||
Core Thickness | Min Core Thickness | 0.05mm | 0.05mm | |||
Bow & Twist | Min Bow & Twist | 0.75% | 0.5% | |||
Impedance Control | Min Impedance Tolerance | ±10% | ±8% | |||
Surface Treatment | Electronic Gold Plating、ENIG、Hard Gold Plating、Gold Finger、LF-HAL、OSP、ENEPIG、Soft Gold Plating、Immersion Silver、Immersion Tin、ENIG+OSP、ENIG+G/F、Flash Gold+G/F、Immersion Silver+G/F、Immersion Tin+G/F、HASL | |||||
Material | Normal TG FR-4 | Shengyi, ITEQ, KB, Nanya | ||||
Middle TG FR4 | Shengyi S1000H, ITEQ IT158, Nanya NY2150 | |||||
Shengyi S1000‐2M,S1190，EMC EM827，Isola 370HR，185HR，ITEQ IT180A，TUC TU-768，TU-862 HF，Panasonic R1755V | ||||||
Mid-Loss(1-5G)：Isola FR408, Isola FR408HR，TU-862 HF，ITEQ IT-170GRA1，EMC EM-355(D)，EMC EM-370(5) Low-Loss(5-10G)：EMC EM828, EM888(S), EM888(K)，TU-872 SLK，R-5725S/M4S，Nelco N4103-13/13 EP/SI/EPSI Very-Low-Loss(10-25G)：Isola I‐Speed, I‐Tera MT，Panasonic R-5775G/M6G，ITEQ IT-968 Ultra-Low-Loss1(25-40G)：Panasonic R-5775N/M6N，R-5785/M7 Ultra-Low-Loss2(40-56G)：Panasonic R-5785N/M7N， Nelco Meteorwave4000 | ||||||
High Frequency Materials | Rogers RO4350, RO4003C，RO3010，Taconic RF‐30, RF‐35, TLC, TLX, TLY，Taconic 601, 602, 603, 605 | |||||
Metal Substrate | Shengyi SAR20, Yugu YGA，T110/1/2，T112B/C，VT-4A1/2/3/5，1KA04/6/8 | |||||
PCB LEAD TIME | ||||
Layer | Quick Turn/Normal Time | Mass Production | ||
2L | 24hours/4 days | 8-10 days | ||
4L | 48hours/6 days | 10-12 days | ||
6L | 72hours/6 days | 12-14 days | ||
8L | 72hours/7 days | 16-18 days | ||
10L | 96hours/8 days | 18-20 days | ||
≥12L | 96hours/10 days | 18-20 days | ||
1.What's the order process?
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
