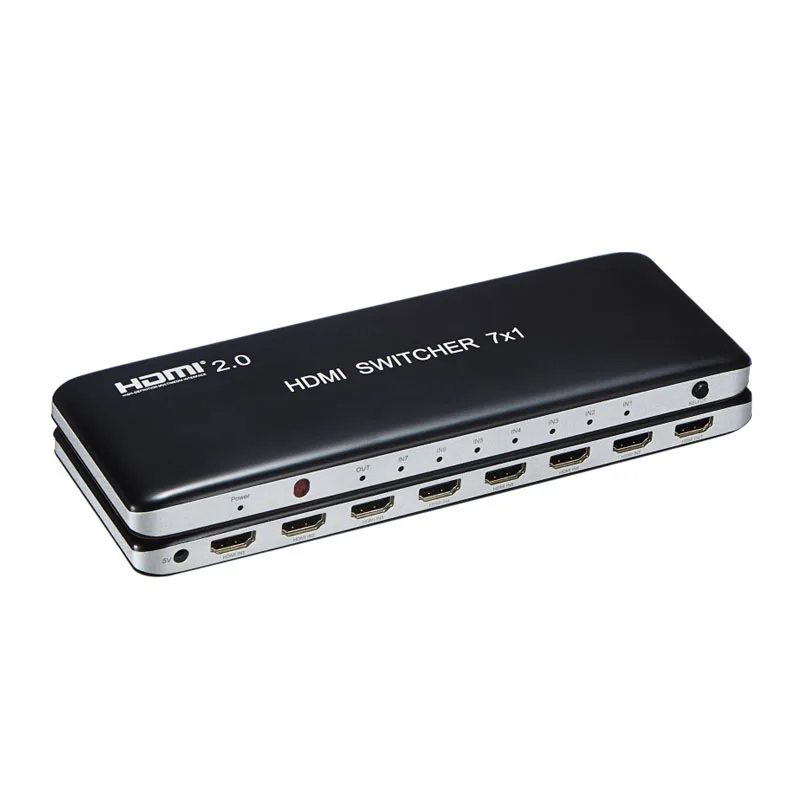

Коммутатор 4k HDMI 7x1 5x1 4x1 3x1
- Категория: KVM Switches >>>
- Поставщик: Shenzhen,Bits,Information,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 17.69 $* | 17.96 $* |
| Jul-18-2025 | 13.93 $* | 13.40 $* |
| Jun-18-2025 | 16.44 $* | 16.60 $* |
| May-18-2025 | 16.34 $* | 16.82 $* |
| Apr-18-2025 | 13.61 $* | 13.87 $* |
| Mar-18-2025 | 16.17 $* | 16.8 $* |
| Feb-18-2025 | 16.32 $* | 16.30 $* |
| Jan-18-2025 | 16.58 $* | 16.9 $* |
Характеристики
Products Description
INTRODUCTION

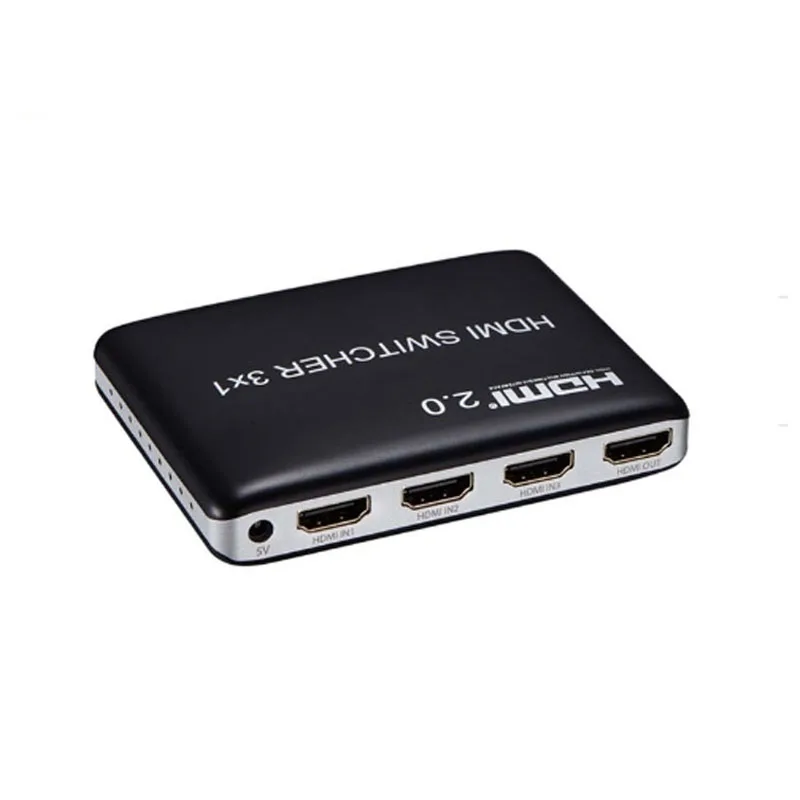

The 3- Port HDMI switch allows 3 HDMI ports to be switched to a single display terminal via
remote control or buttons on unit. This HDMI Switch supports video formats including 720p, 1080i ,
1080p, 4K/30HZ，4K/60HZ.
FEATURES
Support 6Gbps data rate for tmds clock up to 600MHz
Support HDMI2.0b
Support 3D
Supports highest video resolution 4K/60Hz
Support HDR
Support 24/30/36 bit deep color
Support AWG26 HDMI standard cable,Input up to 8metres ,output up to 8metres (4K/30Hz resolution and below)
Support 2.0 HDMI standard cable, input up to 3 meters, output up to 5 meters (4K/60Hz resolution)
Supports single high definition display for multiple sources, such as DVD Players, PS4 and HD players, Set Top Boxes
Needs 5V/1A power adapter.
SPECIFICATIONS
HDMI version …………………………………….……………………………….. HDMI 2.0b
HDMI resolution ………………………...........................................Up to 4K/60Hz
Support video format……………………………………………………………3D
Support video color format …………………............………..……… 24/30/36 bit deep color
Support audio format……………..............….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………….600MHz
Max baud rate……………….…….………………….……………………………..6Gbps
Input cable distance..…... ……..…..……≤8m AWG26 HDMI standard cable under 4K/30Hz; ≤3m 2.0
HDMI standard cable in 4K/60Hz Output cable distance……….…...≤8m AWG26 HDMI standard cable in 4K/30Hz;
≤5m 2.0 HDMI standard cable in 4K/60Hz Max working current……………………………….....350mA
Operating Temperature range……..……………..……………………………… (-10 to +55℃)
Power adapter specification………………………………………….….….……..AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Dimension (L x W x H) ……………………….……….…………........………102x79x22 (mm)
Weight…..…………………………………………….…………..…….………………………90g
The 3- Port HDMI switch allows 3 HDMI ports to be switched to a single display terminal via
remote control or buttons on unit. This HDMI Switch supports video formats including 720p, 1080i ,
1080p, 4K/30HZ，4K/60HZ.
FEATURES
Support 6Gbps data rate for tmds clock up to 600MHz
Support HDMI2.0b
Support 3D
Supports highest video resolution 4K/60Hz
Support HDR
Support 24/30/36 bit deep color
Support AWG26 HDMI standard cable,Input up to 8metres ,output up to 8metres (4K/30Hz resolution and below)
Support 2.0 HDMI standard cable, input up to 3 meters, output up to 5 meters (4K/60Hz resolution)
Supports single high definition display for multiple sources, such as DVD Players, PS4 and HD players, Set Top Boxes
Needs 5V/1A power adapter.
SPECIFICATIONS
HDMI version …………………………………….……………………………….. HDMI 2.0b
HDMI resolution ………………………...........................................Up to 4K/60Hz
Support video format……………………………………………………………3D
Support video color format …………………............………..……… 24/30/36 bit deep color
Support audio format……………..............….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………………….600MHz
Max baud rate……………….…….………………….……………………………..6Gbps
Input cable distance..…... ……..…..……≤8m AWG26 HDMI standard cable under 4K/30Hz; ≤3m 2.0
HDMI standard cable in 4K/60Hz Output cable distance……….…...≤8m AWG26 HDMI standard cable in 4K/30Hz;
≤5m 2.0 HDMI standard cable in 4K/60Hz Max working current……………………………….....350mA
Operating Temperature range……..……………..……………………………… (-10 to +55℃)
Power adapter specification………………………………………….….….……..AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Dimension (L x W x H) ……………………….……….…………........………102x79x22 (mm)
Weight…..…………………………………………….…………..…….………………………90g
