5-тонное гидравлическое лебедка Лебедка для грузовика
US $900.00-$1000
Заводская поставка двухскоростная Лебедка 5-тонная лебедка с дизельным двигателем для судостроительной горной
- Категория: Winches >>>
- Поставщик: Shandong,China,Coal,Industrial,&,Mining,Supplies,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 301769.19 $* | 307804.46 $* |
| Jul-19-2025 | 244741.5 $* | 249636.5 $* |
| Jun-19-2025 | 297016.42 $* | 302956.25 $* |
| May-19-2025 | 294640.51 $* | 300533.59 $* |
| Apr-19-2025 | 235237.82 $* | 239942.30 $* |
| Mar-19-2025 | 289888.29 $* | 295686.61 $* |
| Feb-19-2025 | 287512.60 $* | 293262.52 $* |
| Jan-19-2025 | 285136.38 $* | 290839.74 $* |
Характеристики
Company Profile
Products Description
Introduction of Factory Supply Double Speed Winch 5ton Diesel Engine Powered Winch For Marine Construction Mining Winch
JSDB Series double-speed winch is an explosion-proof winch, which is mainly used for the shifting, dumping and handling of the mining materials under the coal mine. The mine raises and lowers the heavy objects on the working surface or the roadway with a dip angle of less than 30 degrees. The double-speed winch has two speeds, fast and slow, which can be used to change speed and traction according to the needs of the site.zmwm02
Product Paramenters
Parameter of Factory Supply Double Speed Winch 5ton Diesel Engine Powered Winch For Marine Construction Mining Winch
Model | JSDB-10 | JSDB-12 | JSDB-13 | JSDB-15 | ||||||||||||
Fast | Slow | Fast | Slow | Fast | Slow | Fast | Slow | |||||||||
Wire rope static tension KN | Outer layer Max. | 14.5 | 100 | 15 | 120 | 15 | 130 | 18 | 150 | |||||||
Inner layer Max. | 22.1 | 140 | 22.1 | 160 | 29.1 | 200 | 30 | 250 | ||||||||
Average | 18.3 | 120 | 18.3 | 140 | 22.05 | 165 | 23 | 200 | ||||||||
Wire Rope speed m/s | Max. | 1.3 | 0.2 | 1.3 | 0.2 | 1.3 | 0.2 | 1.39 | 0.2 | |||||||
Outer layer | ||||||||||||||||
Average | 1.075 | 0.18 | 1.075 | 0.18 | 1.11 | 0.18 | 1.235 | 0.17 | ||||||||
Drum Size | Wire Rope Length m | 120 | 180 | 180 | 300 | |||||||||||
Drum Dia.*Width | ф430*430 | ф430*443 | ф435*530 | ф470*530 | ||||||||||||
Wire Rope size | Dia. | 20 | 22 | 24 | 28 | |||||||||||
Structure | 6*19 | |||||||||||||||
Nominal tensile strength kn | 1670 | |||||||||||||||
Motor | Type | YBK2-200L1-6 | YBK2-200L2-6 | YBK2-200L2-6 | YBK2-200L2-6 | |||||||||||
Power KW | 18.5 | 18.5 | 22 | 22 | ||||||||||||
Revolution rpm | 970 | 970 | 970 | 980 | ||||||||||||
Voltage V | 660/1140 | 660/1140 | 660/1140 | 660/1140 | ||||||||||||
Dimension | L*W*H | 2540*785*800 | 2540*785*800 | 3182*968*987 | 3260*1060*1060 | |||||||||||
MM | ||||||||||||||||
Weight | 2340 | 2600 | 3900 | 4400 | ||||||||||||
（with motor）（kg） | ||||||||||||||||

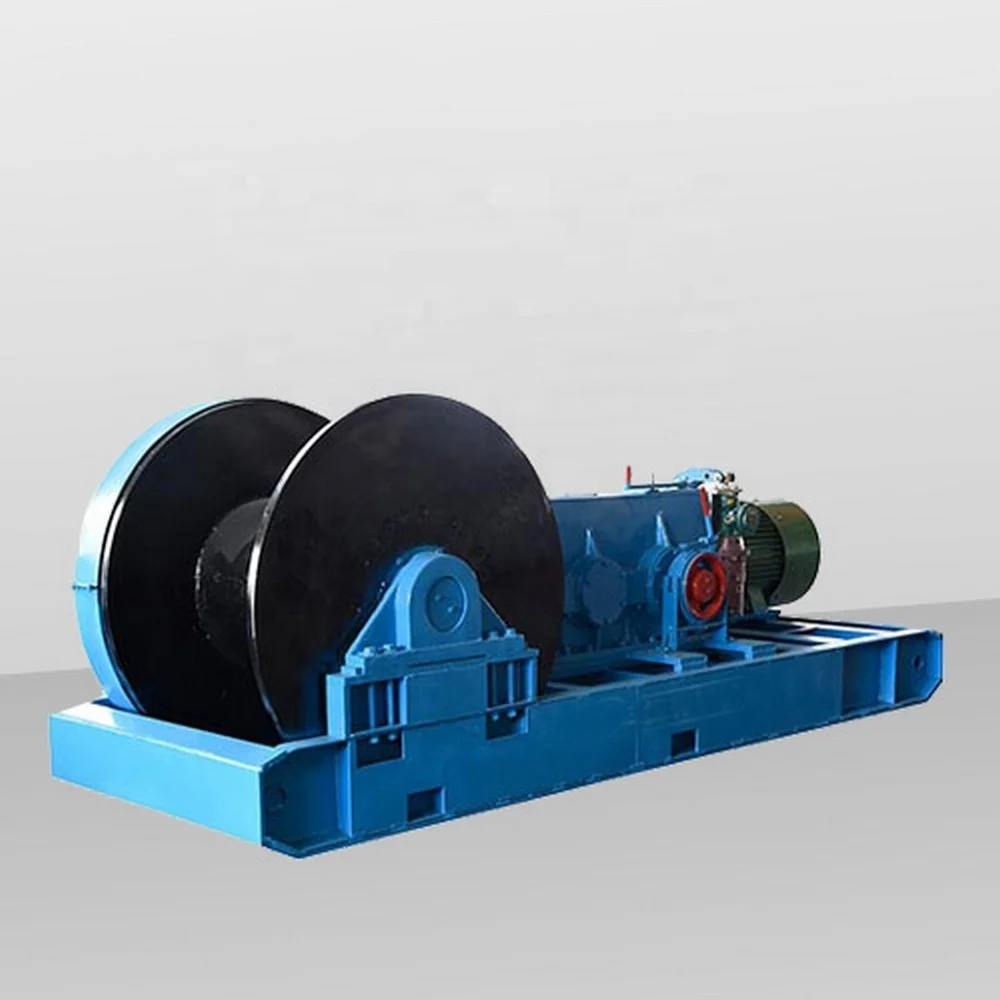

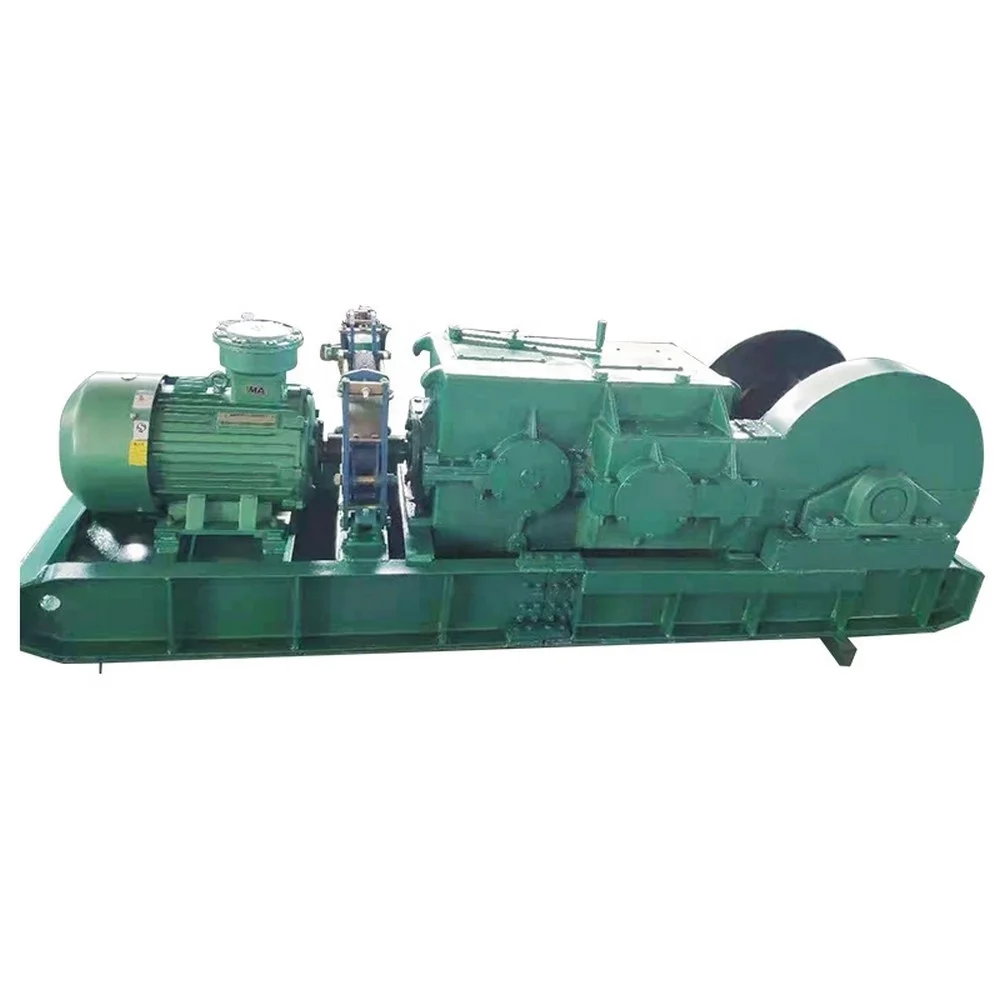

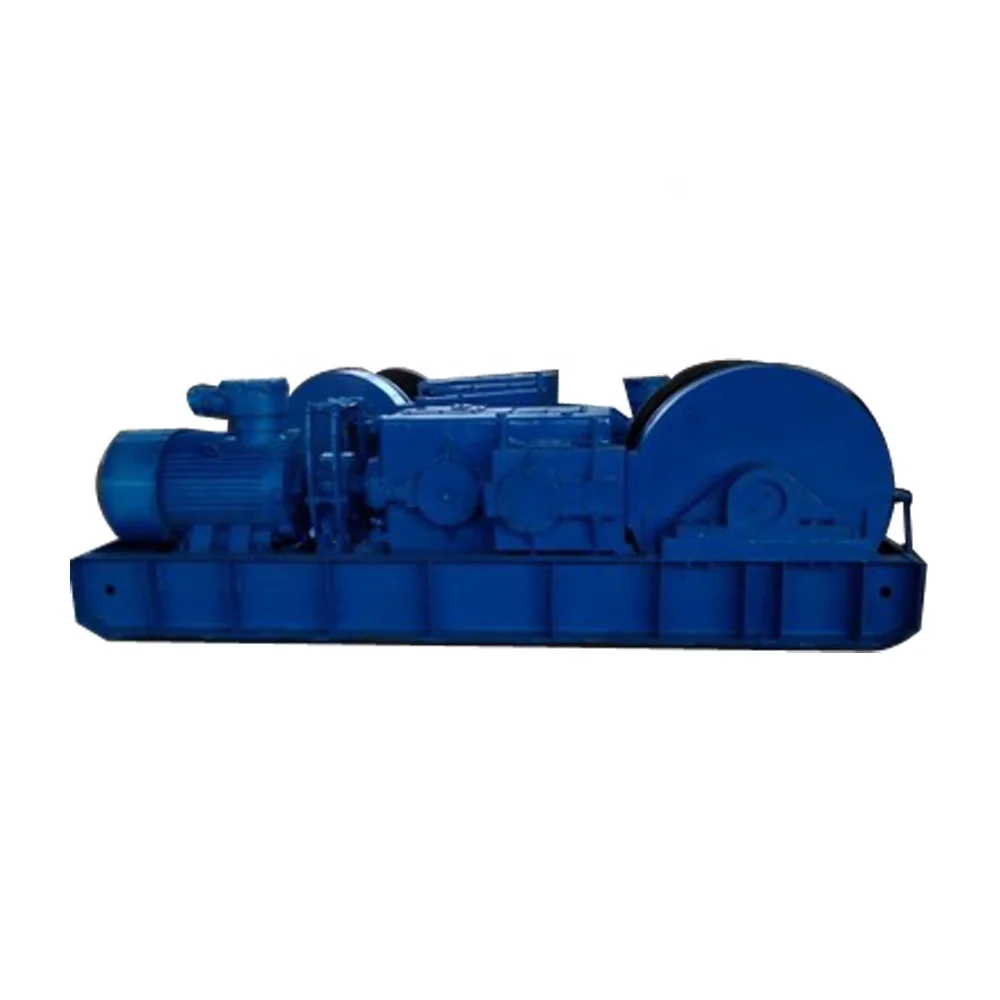

Details Images
Photos of Factory Supply Double Speed Winch 5ton Diesel Engine Powered Winch For Marine Construction Mining Winch
Certifications
Why Choose Us
Product packaging
