Машина для горячей резки тканых сумок машина изготовления
- Категория: Packaging Material Making Machine >>>
- Поставщик: Pingyang,China,World,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 14875.18 $* | 15619.91 $* |
| Aug-18-2025 | 14750.85 $* | 15488.5 $* |
| Jul-18-2025 | 12375.44 $* | 12994.78 $* |
| Jun-18-2025 | 14500.13 $* | 15225.49 $* |
| May-18-2025 | 12625.49 $* | 13256.53 $* |
| Apr-18-2025 | 14250.6 $* | 14963.57 $* |
| Mar-18-2025 | 14125.64 $* | 14831.2 $* |
| Feb-18-2025 | 14000.6 $* | 14700.65 $* |
| Jan-18-2025 | 13875.98 $* | 14569.21 $* |
Характеристики
FEATURES AT A GLANCE

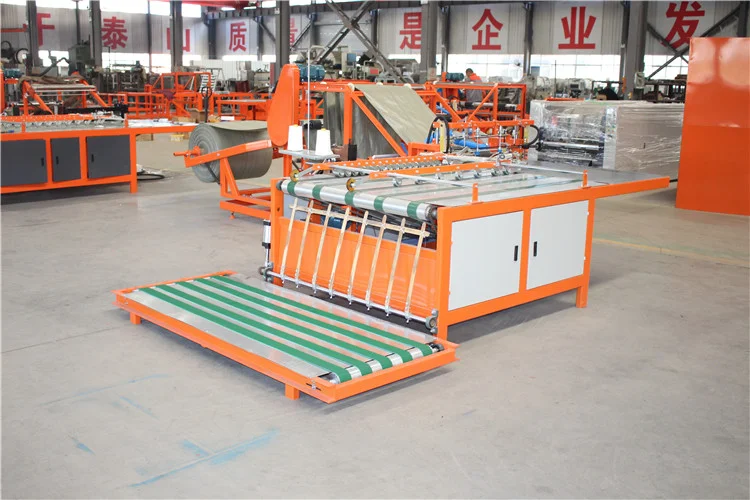

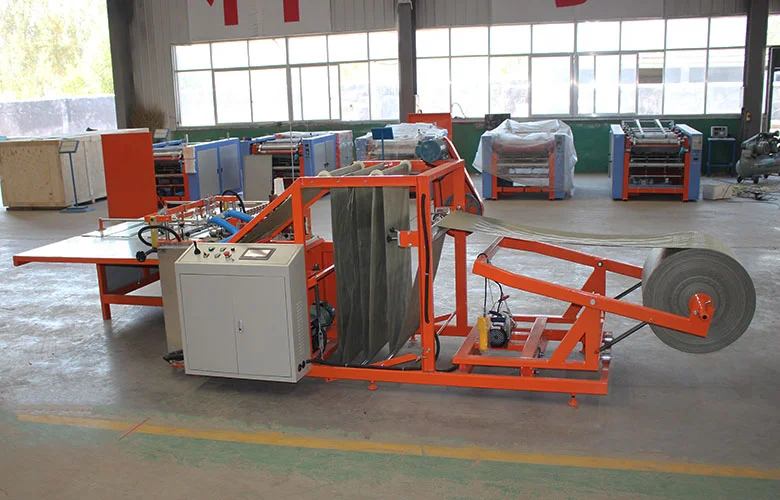

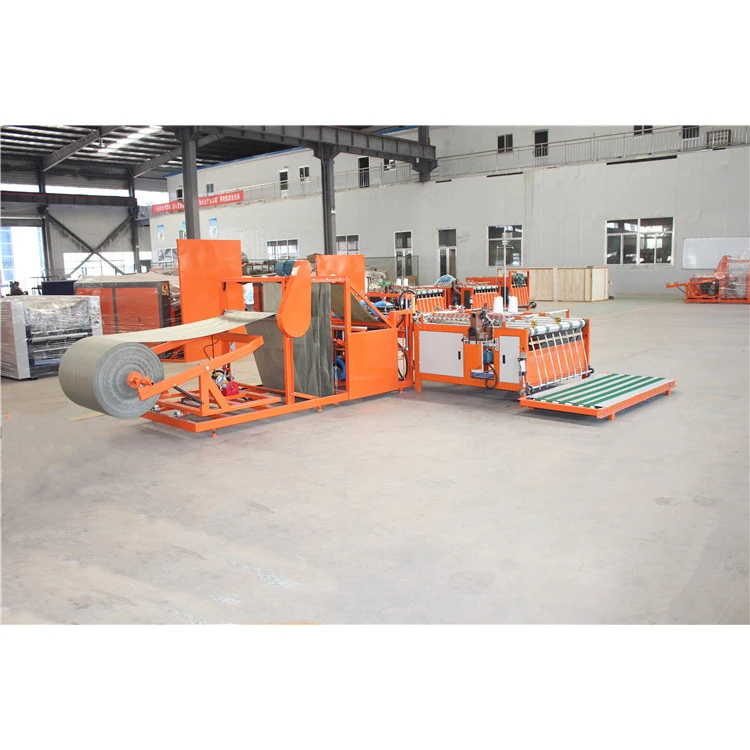

Woven bag hot cutting sewing machine
Performance and Application

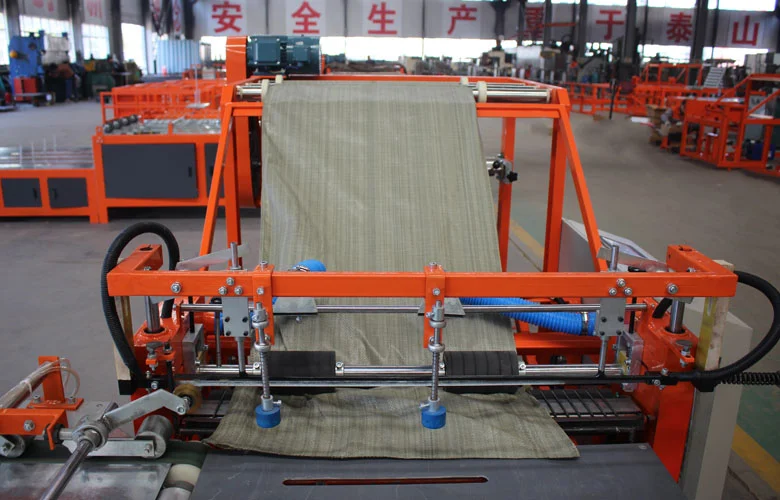

(1)Automatically complete fixed length hot cutting, folding, bottom sewing and bagging of the woven barrel cloth to save labor;
(2) After hot-cutting, the bag does not adhere and opens easily.
(3) Automatic counting, stackable feeding, adjustable quantity;
(4) PLC control, servo motor drive, accurate control of bag length;
(5)Pneumatic winding up, accurate photoelectric tracking edge rectification, easy operation, reliable quality, stable performance, low failure rate;

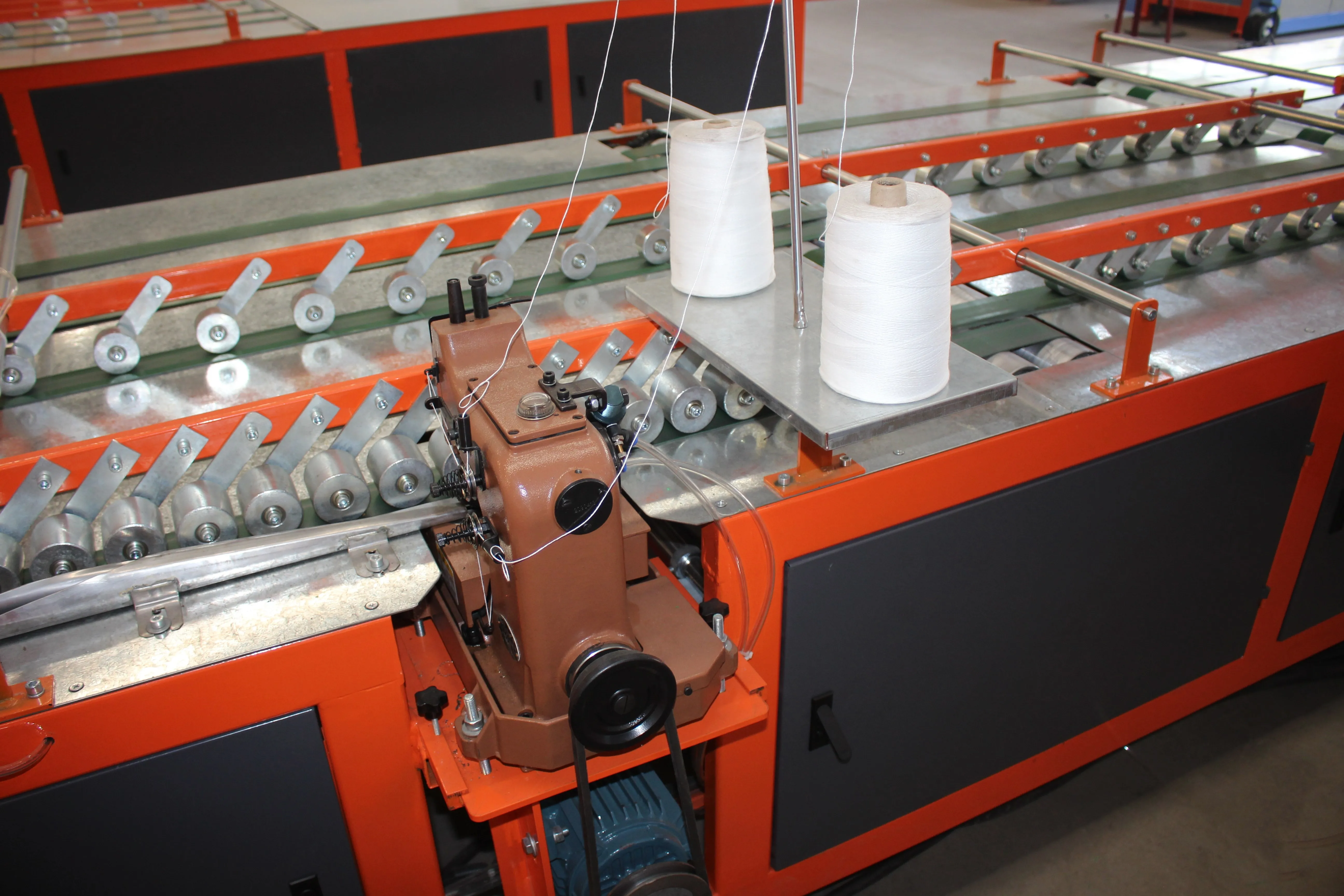

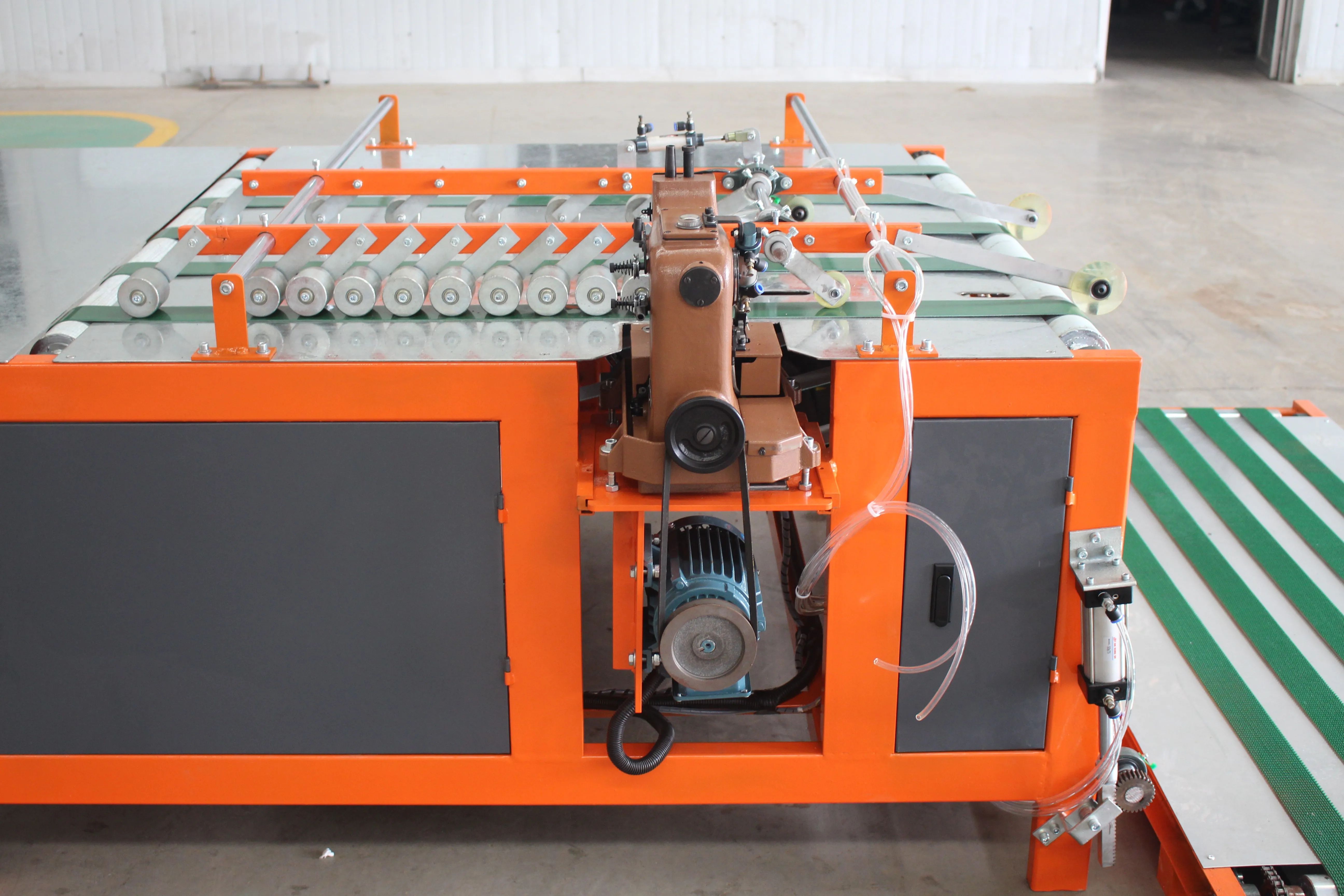

(6) The bottom of the bag sheet can be single and double folded, the folded edge is uniform, and the length of the thread head can be adjusted.
(7) The cutting tool is controlled by servo motor, which makes the cutting more stable, accurate and smooth.
(2) After hot-cutting, the bag does not adhere and opens easily.
(3) Automatic counting, stackable feeding, adjustable quantity;
(4) PLC control, servo motor drive, accurate control of bag length;
(5)Pneumatic winding up, accurate photoelectric tracking edge rectification, easy operation, reliable quality, stable performance, low failure rate;
(6) The bottom of the bag sheet can be single and double folded, the folded edge is uniform, and the length of the thread head can be adjusted.
(7) The cutting tool is controlled by servo motor, which makes the cutting more stable, accurate and smooth.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Folding width | 20-30mm |
2 | Max diameter of coil | 1200 mm |
3 | Production capacity | 40-45pcs/min |
4 | Number of operators | 1 person |
5 | Cutting width | 400-800 mm |
6 | Cutting length | 500-1300 mm |
