Автоматический сварочный аппарат для циркулярной и продольной
- Категория: Seam Welders >>>
- Поставщик: Shandong,Shuipo,Intelligent,Equipment,Co.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.84 $* | 0.31 $* |
| Aug-17-2025 | 0.49 $* | 0.84 $* |
| Jul-17-2025 | 0.64 $* | 0.70 $* |
| Jun-17-2025 | 0.14 $* | 0.13 $* |
| May-17-2025 | 0.95 $* | 0.10 $* |
| Apr-17-2025 | 0.3 $* | 0.96 $* |
| Mar-17-2025 | 0.77 $* | 0.72 $* |
| Feb-17-2025 | 0.92 $* | 0.0 $* |
| Jan-17-2025 | 0.28 $* | 0.69 $* |
Характеристики
HOT SALE QUALITY Automatic welding machine for circular and longitudinal seam welding
Product information

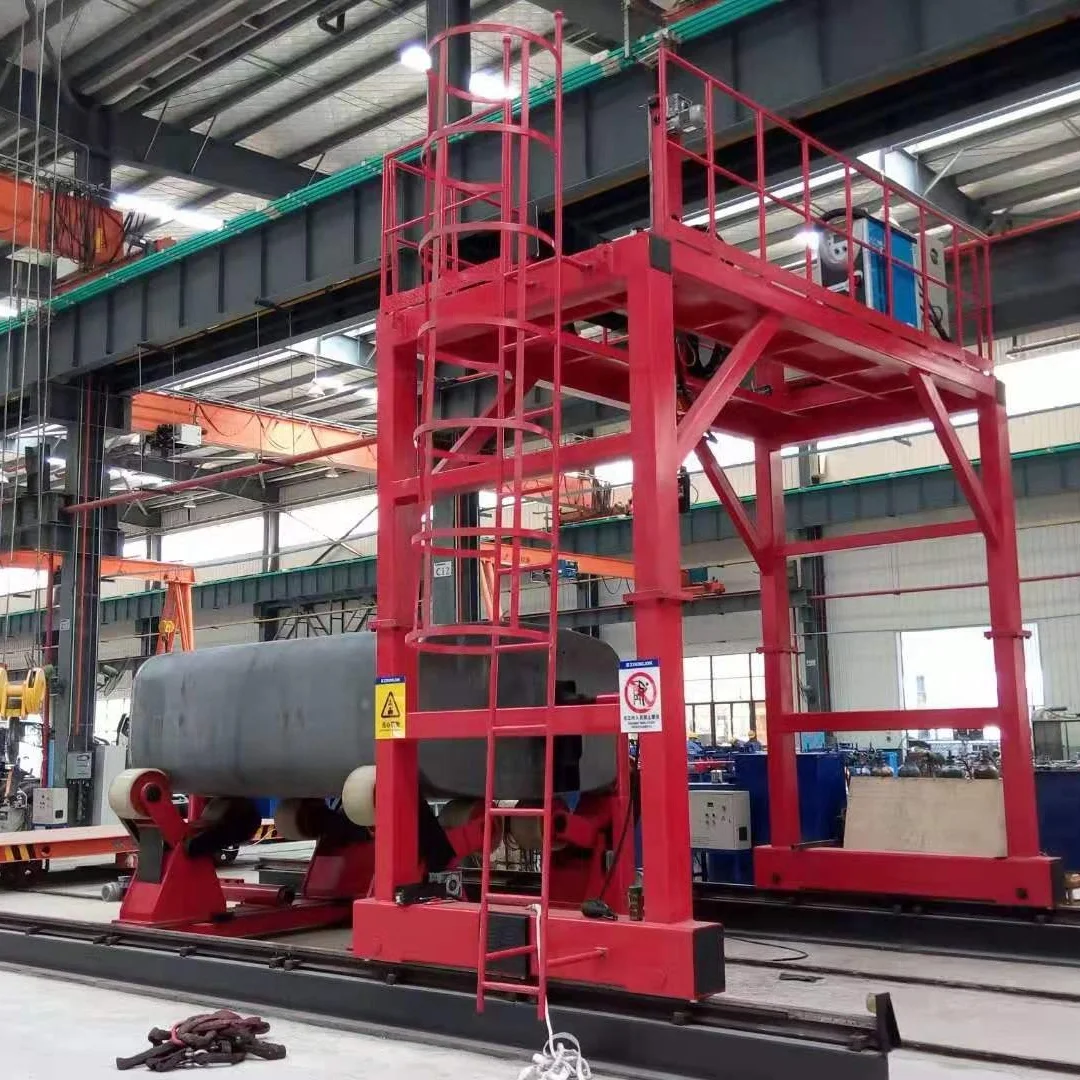

1.Product picture of HOT SALE QUALITY automatic welding machine for longitudinal seam welding
2. HOT SALE QUALITY automatic welding machine for longitudinal seam welding Introdction
| 1. Advanced computer controlling technology | |||||
| 2. PLC technology | |||||
| 3. Micro-electronics and the frequency conversion technology | |||||
| 4. The welding seams are good in appearance, high in welding quality and production efficiency, simple and convenient in operation, which has improved both the efficiency and quality. | |||||
| 5. Make sure that the welding of a circumferential seam completed in one operation. |
HOT SALE QUALITY automatic welding machine for longitudinal seam welding
Technical parameter
| Maximum Diameter | 3200mm | ||||
| Minimum Diameter | 1200mm | ||||
| Rail Length | 18000mm | ||||
| Maximum welding length | 16000mm | ||||
| Guide rail type | Exact railway | ||||
| Welding Speed | 50-600mm/min | ||||
| Gantry Max Returning Speed | Can adjust by servo | ||||
| Welding Wire Diameter | 1.2mm and 1.6mm | ||||
| Welding manner | TIG/MIG | ||||
| Cable Conveying | Drag chain | ||||
| Power Supply | AC 380V 50HZ 3-phase 4-wire | ||||
| Thickness of workpiece | 3-8mm(Make groove if the thickness of plate more than 6mm) | ||||
| Workpiece material | Aluminium alloy Carbon steel Stainless steel | ||||
| Workpiece shape | Round, ellipse,square | ||||
| Min R | 400mm | ||||
| Welding gun cooling mode | Water cooling | ||||
| Power | About 40KVA | ||||
| Rotating device | Tank roller | ||||
HOT SALE QUALITY automatic welding machine for longitudinal seam welding

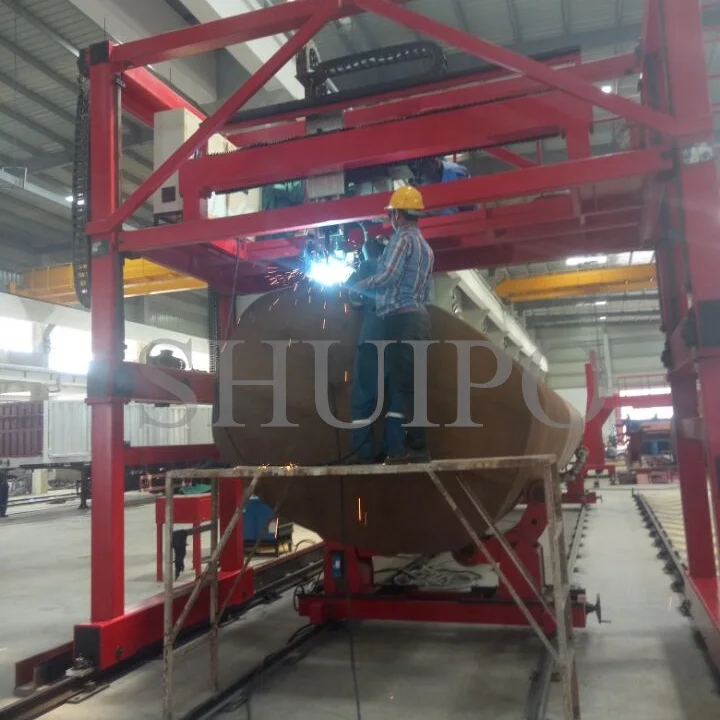

Welding effect
3.Our other products about HOT SALE QUALITY automatic welding machine for longitudinal seam welding
Company information
1.About us
Shandong Shuipo Welding & Cutting Equipment Manufacture Co., Ltd., founded in May 2004, is located in Liangshan Marsh, the place in which the well-know story of Water Margin or Outlaws of the Marsh was set. It faces the Jinan-Heze Highway on the east and the Beijing-Jiulong Railway on the west, and the national highway 220 that threads China from south to north passes before our company. The convenient traffic lends wings to the rapid development of the company. It has a registered capital of RMB 50 million, and covers an area of 100mu, in which production plants cover the area of 28,000 . Among its over 400 employees, there are 78 engineering technical personnel. Its total assets reached RMB 190 million in 2013, and its annual production capacity is RMB 300 million.
