0 5 мм CRNGO неориентированная незернистая ориентированная электрическая Кремниевая сталь цена для EI33 EI70 EI сердечник ламинирования 50W800
- Категория: Carbon Steel >>>
- Поставщик: Shanghai,Lulu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.25 $* | 0.9 $* |
| Aug-19-2025 | 0.20 $* | 0.90 $* |
| Jul-19-2025 | 0.17 $* | 0.6 $* |
| Jun-19-2025 | 0.4 $* | 0.70 $* |
| May-19-2025 | 0.17 $* | 0.17 $* |
| Apr-19-2025 | 0.6 $* | 0.44 $* |
| Mar-19-2025 | 0.30 $* | 0.50 $* |
| Feb-19-2025 | 0.72 $* | 0.58 $* |
| Jan-19-2025 | 0.17 $* | 0.79 $* |
Характеристики
Product Description
The difference between oriented silicon steel and non-oriented silicon steel
Non-oriented silicon steel: ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips, which are mainly used to manufacture motors and generators.
Oriented silicon steel: It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic
permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N)..
Non-oriented silicon steel: ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips, which are mainly used to manufacture motors and generators.
Oriented silicon steel: It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic
permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N)..
Product Advantages
1.Stable performance
2.Excellent processing performance: High precision dimension and excellent mechanical properties make it easy to be sheared,punched and stacked by high speed punch machine. It also have good welding performance.
3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and
excellent processing performance
1.Stable performance
2.Excellent processing performance: High precision dimension and excellent mechanical properties make it easy to be sheared,punched and stacked by high speed punch machine. It also have good welding performance.
3.Excellent performance of Insulating coating: Uniform color, good insulation, high adhesion, excellent heat resistance and
excellent processing performance
Specification
Product Name | Electrical Steel, Silicon Steel, motor Steel |
Category | Grain-Oriented Electrical Steel; Non-oriented electrical steel |
Standard | AISI, ASTM, DIN, GB, JIS, EN |
Thickness | 0.35mm,0.50 mm,0.65mm |
Width | 50-1250 mm |
Grade | Yeild Strength(N/mm2) | Ultra-tension strength(N/mm2) | Ductility(%) | Hardness |
M35W230 | 430 | 560 | 20 | 225 |
M35W250 | 415 | 550 | 20.5 | 220 |
M35W270 | 400 | 515 | 20.5 | 215 |
M35W300 | 360 | 480 | 21.5 | 195 |
M35W360 | 350 | 480 | 23.5 | 190 |
M35W440 | 275 | 420 | 27.5 | 165 |
M35W550 | 265 | 415 | 33.5 | 160 |
M50W250 | 430 | 560 | 19 | 230 |
M50W270 | 410 | 550 | 21.5 | 225 |
M50W290 | 395 | 545 | 22.5 | 220 |
M50W310 | 385 | 510 | 24.5 | 210 |
M50W350 | 350 | 475 | 26.5 | 190 |
M50W400 | 320 | 460 | 36 | 170 |
M50W470 | 295 | 425 | 35 | 160 |
M50W600 | 280 | 410 | 37 | 140 |
M50W800 | 285 | 405 | 38.5 | 135 |
M50W1300(D) | 250 | 360 | 40 | 115 |
Insulating Coating | ||||
Coating types | M11 | M21 | ||
Component | Chromium containing , semi organic coating | Chromium free, semi organic coating | ||
Coating thickness(μm) | 0.7~1.5 | 0.8~5.0 | ||
Interlayer resistance(Ω•mm2 /slice) | ≥100 | ≥100 | ||
Adhesive property | Class A or class B | Class A or class B | ||
Punching property | Excellent | Excellent | ||
Antirust property | Excellent | Excellent | ||
Heat resisting property | Resistant annealing at 750 C, N2 protection, for 2h | Annealing resistance in general | ||
workshop show
Manufacturing process
Quality Certification

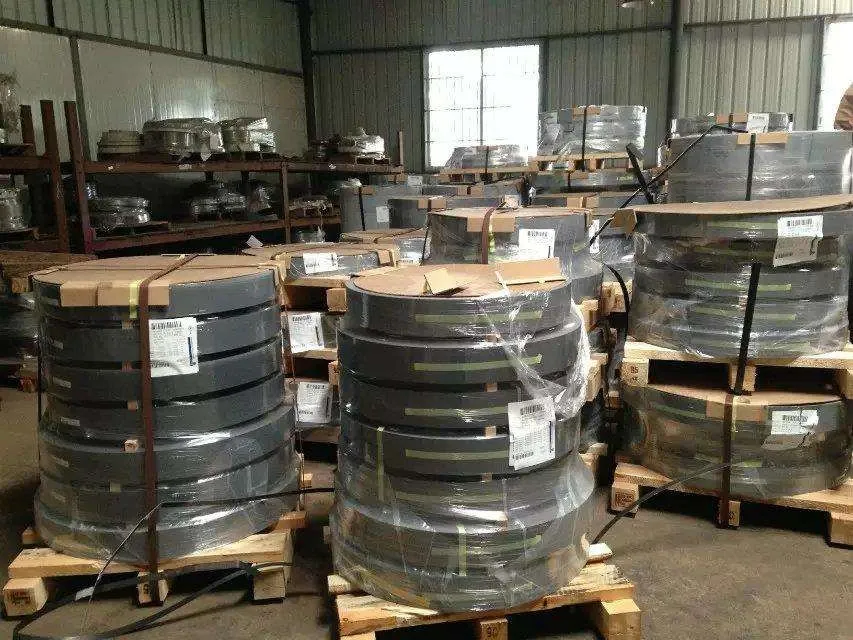

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Advantages
1, Large scale factory, our production capacity is very high, can meet your urgent and large order.
2, Our products quality is very high, our group has done for over 40 years, good market and feedback in domestic market and abroad market.
3, We can make most specification and grades, meet your different requirement.
4, We have perfect and satisfied after-sale service, if clients have any problem, we will solve it in time.
5,We pack products safely and deliver in time and have super cooperation with logistics, can help you reduce your purchase cost.
3, We can make most specification and grades, meet your different requirement.
4, We have perfect and satisfied after-sale service, if clients have any problem, we will solve it in time.
5,We pack products safely and deliver in time and have super cooperation with logistics, can help you reduce your purchase cost.
