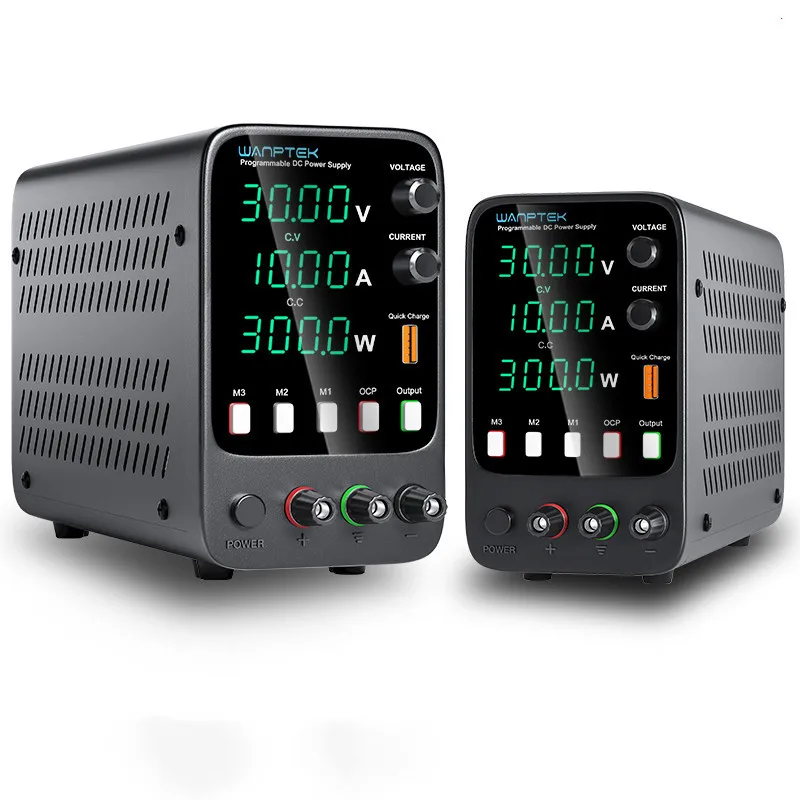

Источник питания постоянного тока wanptek APS3010H лабораторный Регулируемый источник 30 в 10 А для ремонта мобильных

Источник питания постоянного тока wanptek APS3010H лабораторный Регулируемый источник 30 в 10 А для ремонта мобильных

Цена:49,99 $ - 59,99 $*

Количество:

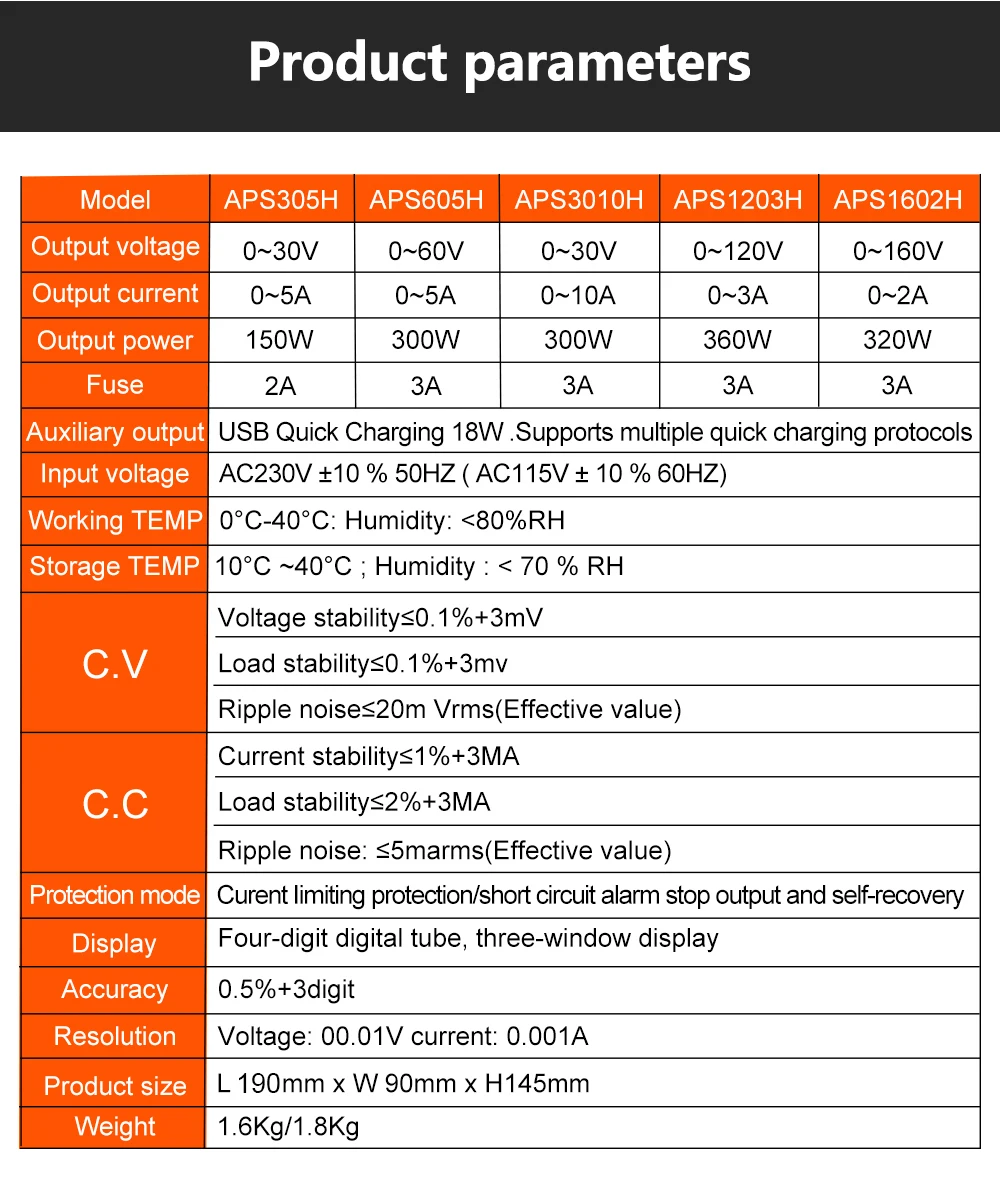

Product model	WPS305H	WPS3010H	WPS605H	WPS1203H	WPS1602H
output power	150W	300W	300W	300W	300W
output voltage	0~30V	0~30V	0~60V	0~120V	0~160V
output current	0~5A	0~10A	0~5A	0~3A	0~2A
Auxiliary function	USB quick charge, OUT output on and off, USB PC communication (optional)
Protect the way	OVP overvoltage protection, OCP overcurrent protection, overtemperature protection, short circuit alarm stop output.
work environment
	Input power: AC 230V/115V±10%; 50Hz/60Hz
		Operating temperature: 0℃ ~ 40℃; Relative humidity :< 80%RH
		Storage temperature: -10℃ ~ 70℃; Relative humidity :< 70%RH
Steady state CV
	Voltage stability: 0.5%±3mV
		Load stability: 0.5%±3mV
		Ripple voltage: ≤0.5% VP-P
		Adjustable continuously from 0 to rated voltage
Steady flow state CC
	Current stability: 0.5%±3mA
		Load stability: 0.5%±3mA
		Ripple current: ≤0.5% VP-P
		Recovery time: ≤500μS
		Temperature coefficient: ≤100ppm/℃
		Continuously adjustable from 0 to rated current
Header display
	0.4 "white light four digit tube display three groups
		Display accuracy: 0.5%±5 words
		Display resolution: voltage 0.01V, current 0.001a
Product characteristics

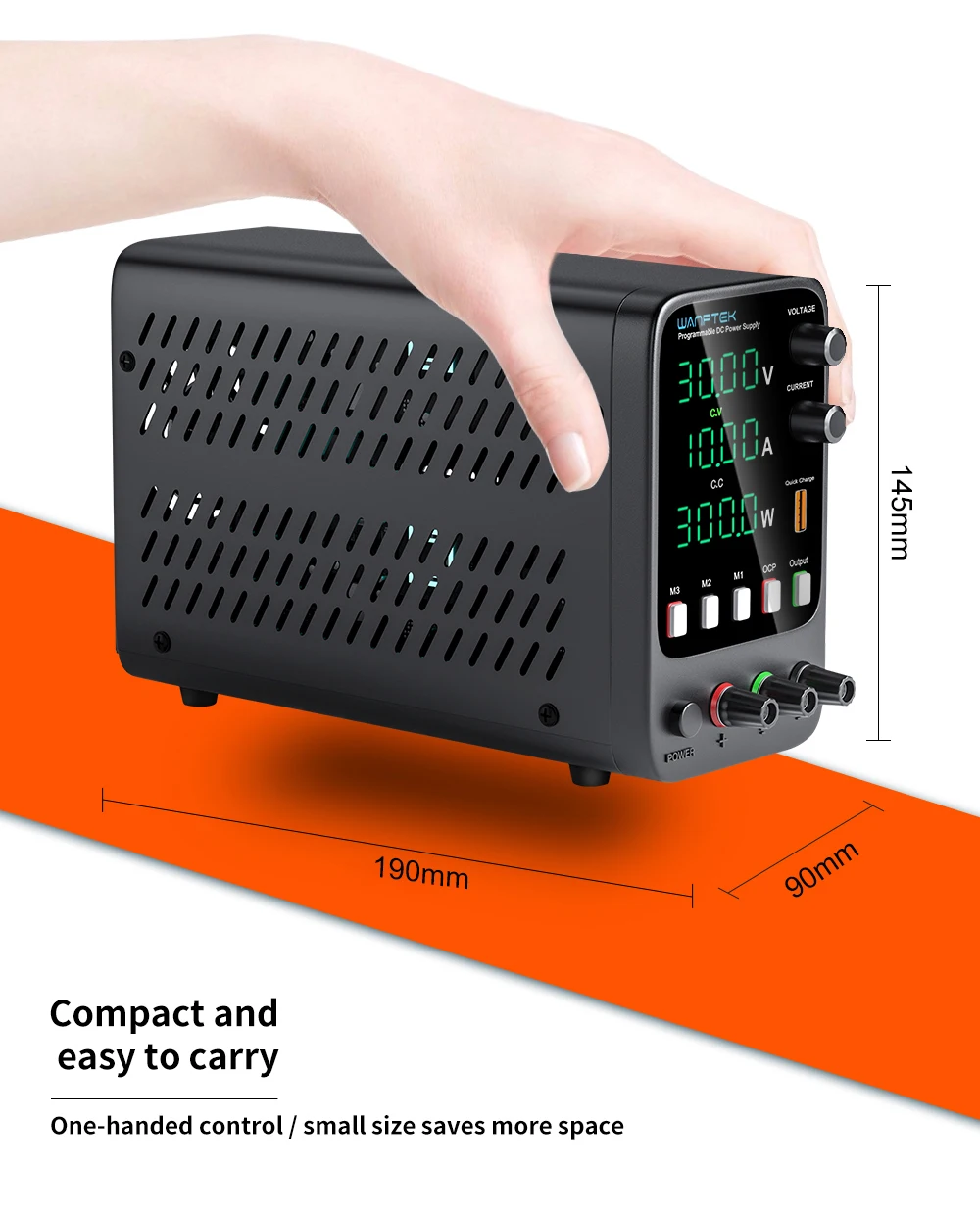

	Product size: 190mm (l) X 90mm (W) X 145mm (h)
		Package size: 265(l) x 135(W) x 195(H) mm
		Weight: 1.15Kg
		Weight including packing accessories: 1.5Kg
		8 sets/whole, whole box size: 550275405mm, whole box weight: 12.5kg

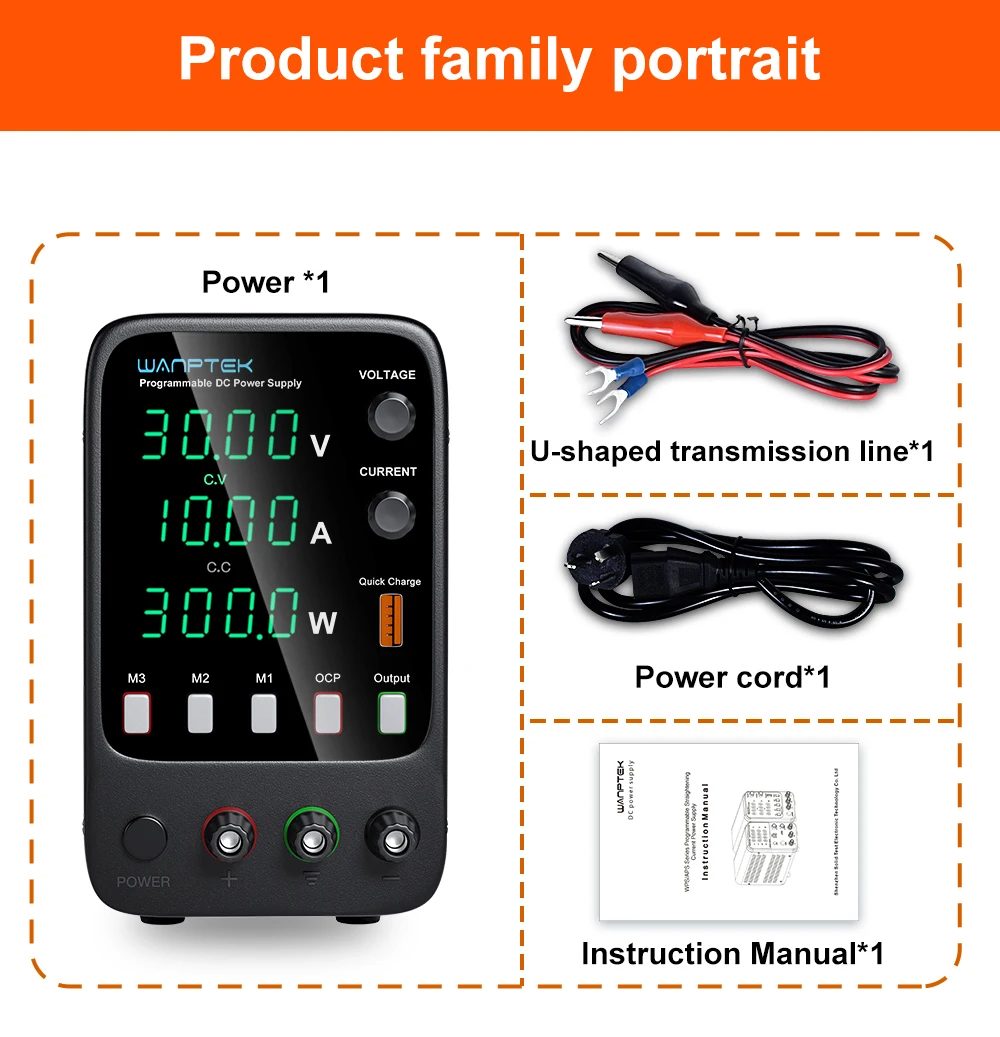

accessories
	AC power cord X 1, (optional: GB, American standard, European standard, British standard, etc.)
		Operation Manual X 1,
		Output test line x 1,
fuselage color	black
