Тяжелый грузовик-цистерна SHACMAN 6x4 20000 литров с заправочным пистолетом и расходомерами для транспортировки на большие
- Категория: Tanker Trucks >>>
- Поставщик: Chengli,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.76 $* | 0.81 $* |
| Aug-19-2025 | 0.61 $* | 0.98 $* |
| Jul-19-2025 | 0.74 $* | 0.81 $* |
| Jun-19-2025 | 0.66 $* | 0.46 $* |
| May-19-2025 | 0.97 $* | 0.53 $* |
| Apr-19-2025 | 0.60 $* | 0.92 $* |
| Mar-19-2025 | 0.77 $* | 0.99 $* |
| Feb-19-2025 | 0.16 $* | 0.85 $* |
| Jan-19-2025 | 0.7 $* | 0.75 $* |
Характеристики
Product Description
SHACMAN 6X4 Fuel Tanker Truck 20,000 Liters with Refueling gun and flow meters
SHACMAN 6X4 Fuel tanker Truck
The SHACMAN Fuel Tanker Truck can carry about 20, 000 liters liquid fuel. The tanker is separated into 4 or 5 compartment, so it can transport both gasoline and diesel at the same time.
The tanker body is made of high quality carbon steel, the material of aluminium alloy for the tanker body is optional.
The Chassis parameters of SHACMAN 6x4 Fuel tanker Truck are as blow:
Dimension | 10000X2550X3450MM | Drive Type | 6x4 | ||
Chissis No. | SX1269MB4WZ1 | Wheelbase | 3775+1400 | ||
Gross Weight | 26000kgs | Curb Weight | 12870kgs | ||
Engine Model | WD610.336E22 | Net Power | 336HP | ||
Fuel Type | Diesel | Emission Standard | Eour 3 | ||
Transmission system | 10JSD180 | Brake System | Air brake | ||
Tire Quantity | 10pcs + spare wheel | Tire Specification | 12.00R20 18PR | ||
Cabin | F3000 model, driver's cabin of 3 persons (in cluding driver),ABS, electric glass, air condition, adjustable headlights, USB, etc. | ||||
Specifications
Tank Body | Capacity | 20,000 liter | |
Material | Carbon steel, aluminum alloy is optional | ||
Filling Medium | Gasoline or Diesel | ||
Equipment | a.\tIt can be equipped with a tax-controlled computer refueling machine (mass flow), equipped with a 10-15 meters automatic retractable reel, with a refueling gun b.\tBottle loading system. c.\tThere is a container indicator which can indicate the tank volume when filling or discharging. d.\tIn order to ensure the pressure in the tank is basically the same as the atmospheric pressure during the working process. A breathing valve is installed on the large cover of the tank. When the internal pressure of the tank is higher than 8KPa, the value plate on the breathing valve is open, and when the internal pressure is lower than 3PKa, the valve under the breathing valve is open. | ||
Coating | a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects. b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability. c. Tank color is customerized if necessary | ||
Product Picture

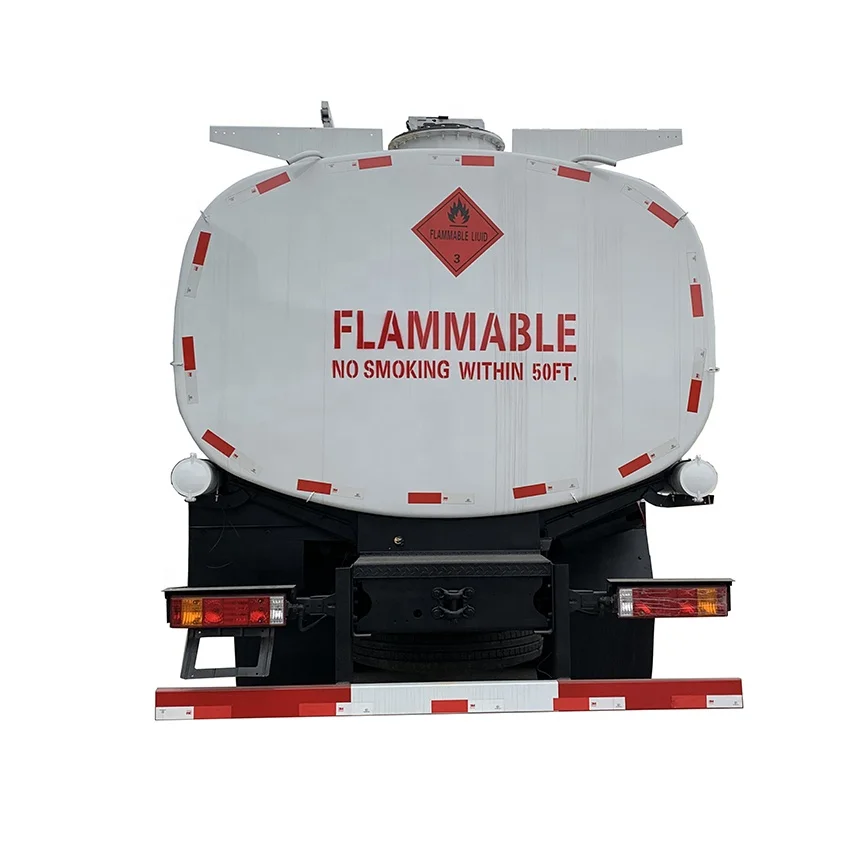

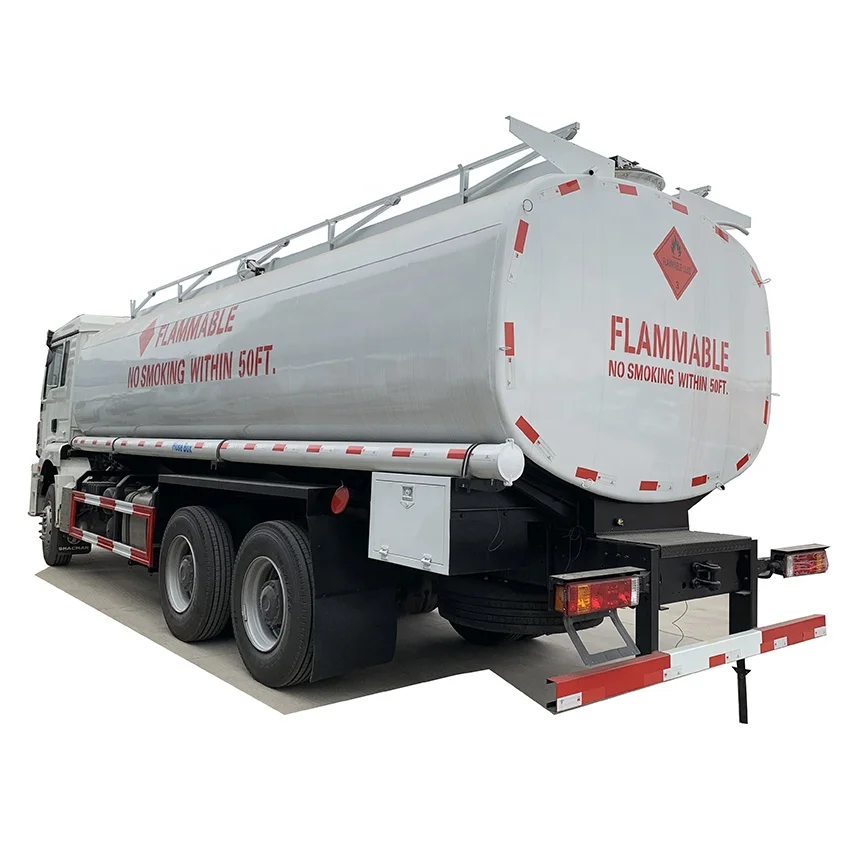

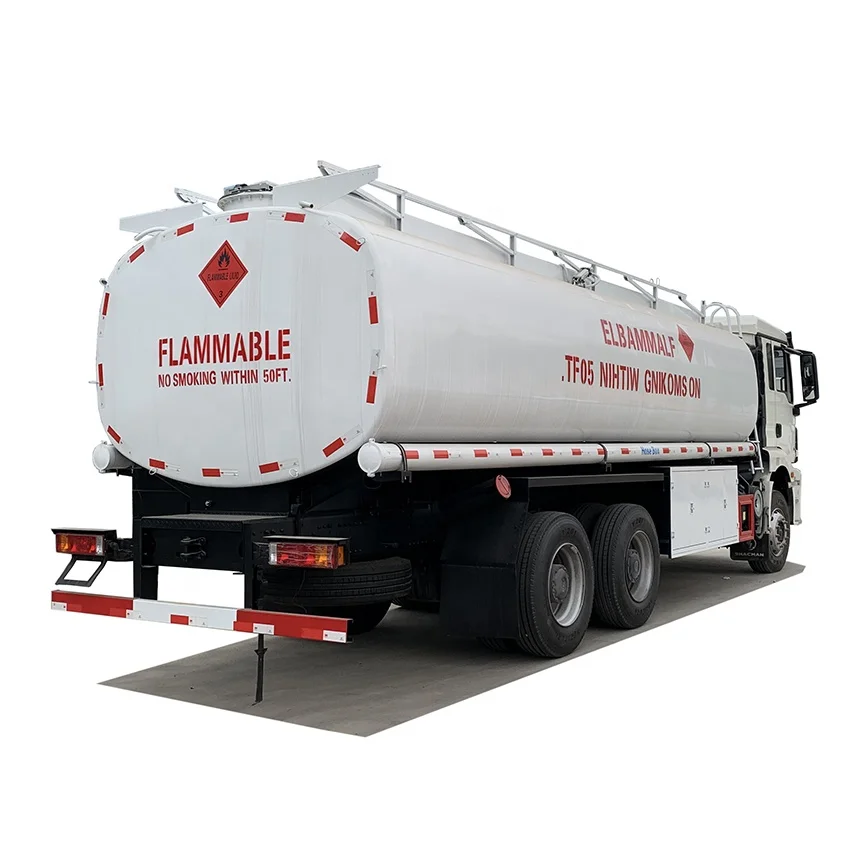

SHACMAN 6x4 Fuel Tanker Truck 's product photos are as showing
The material of SHACMAN 6X4 Fuel tanker truck is carbon steel.
The capacity of SINOTRUK HOWO 6x4 gallon oil tanker 20000liters fuel tank truck is around 25m3.
The fuel tanker truck is made in China.
The fuel tanker truck is customized.
oil dispenser metering
We install the domestic high-quality brand of fuel metering under the truck.
Bottom Loading System & Vapor Collecting System
