Сборный Легкий Стальной каркасный

Сборный Легкий Стальной каркасный

Категория: >>>
Поставщик: Jiangyin,Bosj,Science,And,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.24 $*	0.36 $*
Aug-19-2025	0.1 $*	0.48 $*
Jul-19-2025	0.50 $*	0.45 $*
Jun-19-2025	0.94 $*	0.61 $*
May-19-2025	0.42 $*	0.20 $*
Apr-19-2025	0.5 $*	0.40 $*
Mar-19-2025	0.34 $*	0.91 $*
Feb-19-2025	0.87 $*	0.82 $*
Jan-19-2025	0.52 $*	0.73 $*

Характеристики

Product Overview

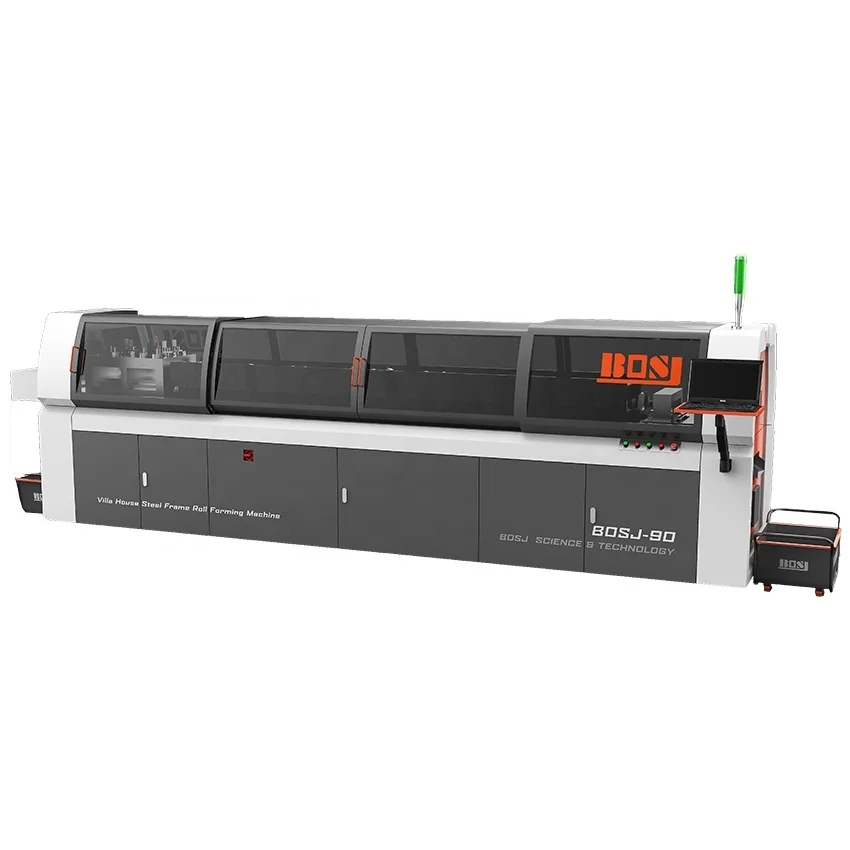

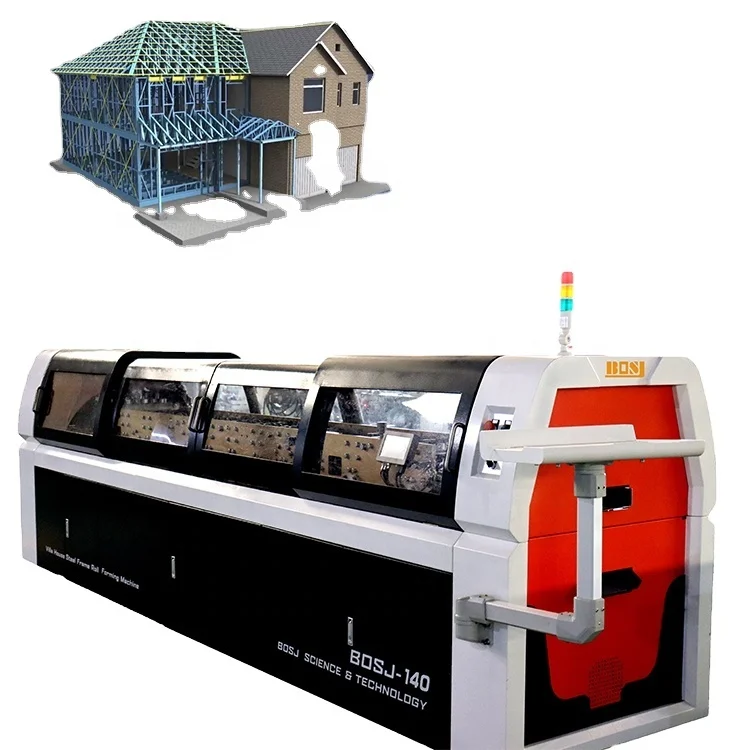

Light Gauge Steel Framing roll forming machine

Why choose BOSJ?
1. fast production speed :40m/min
2. good price
3. stable performance: globally first offer with AC syste
4. easy operation: 7 days training,PLC interface
5. auto injector: auto design for logo
6. high precision: less than 0.02mm, forming/punching/cutting one process
7. two options for holes: Rivet and screw holes,optional change with American technology

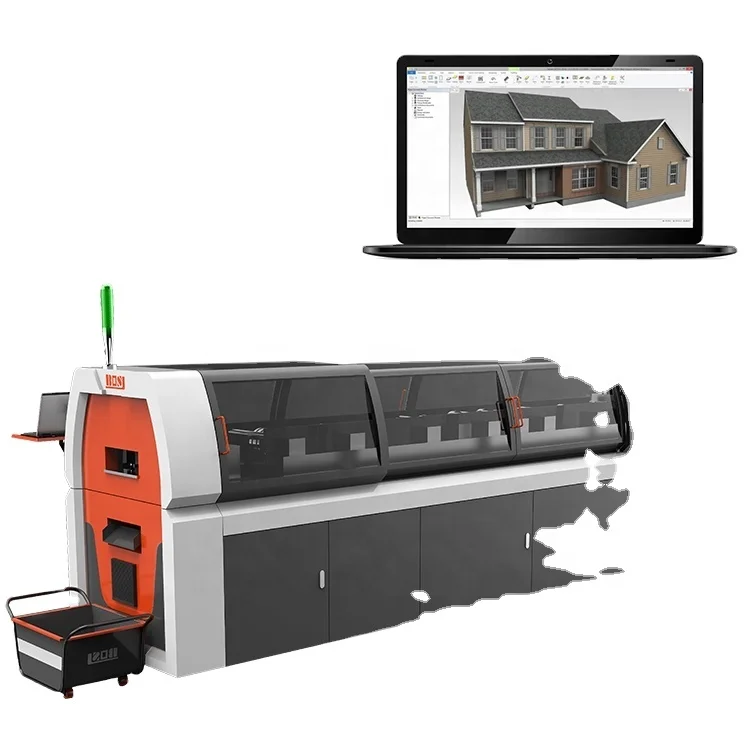

8. Advanced programming: production software with Windows 10,auto memory
9. fast delivery time
10.after-sales service support:

Decoiler

Feeding width: 50-500mm
* Jack lifting device, automatic start and stop device, custom speed ratio reducer,motor drive
* Coil ID: Ф450mm-Ф530mm, Coil OD:≦1300mm
* Dimension：1600x700x1050mm
* Main motor: 550w

PRODUCT SPECIFICATIONS

Production process
Decoiler---- punching----forming---cutting---printing-----collection

1	Profile sizes	G300-G550 galvanized steel
2	Production speed	40m/min(without punching and cutting)
3	Material of roller	Cr12Mov After CNC machining, vacuum heat treatment to HRC56-62
4	Drive type	Gear transmission + chain drive
5	Motor Power	7.5 KW Servo motor
6	Electric control system	PLC interface
7	Main axis	40Cr Heat treatment after NC machining to HRC28-32, then polishing, polishing and electroplating.
