Характеристики

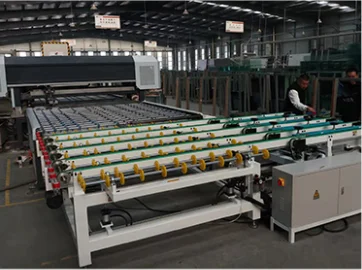

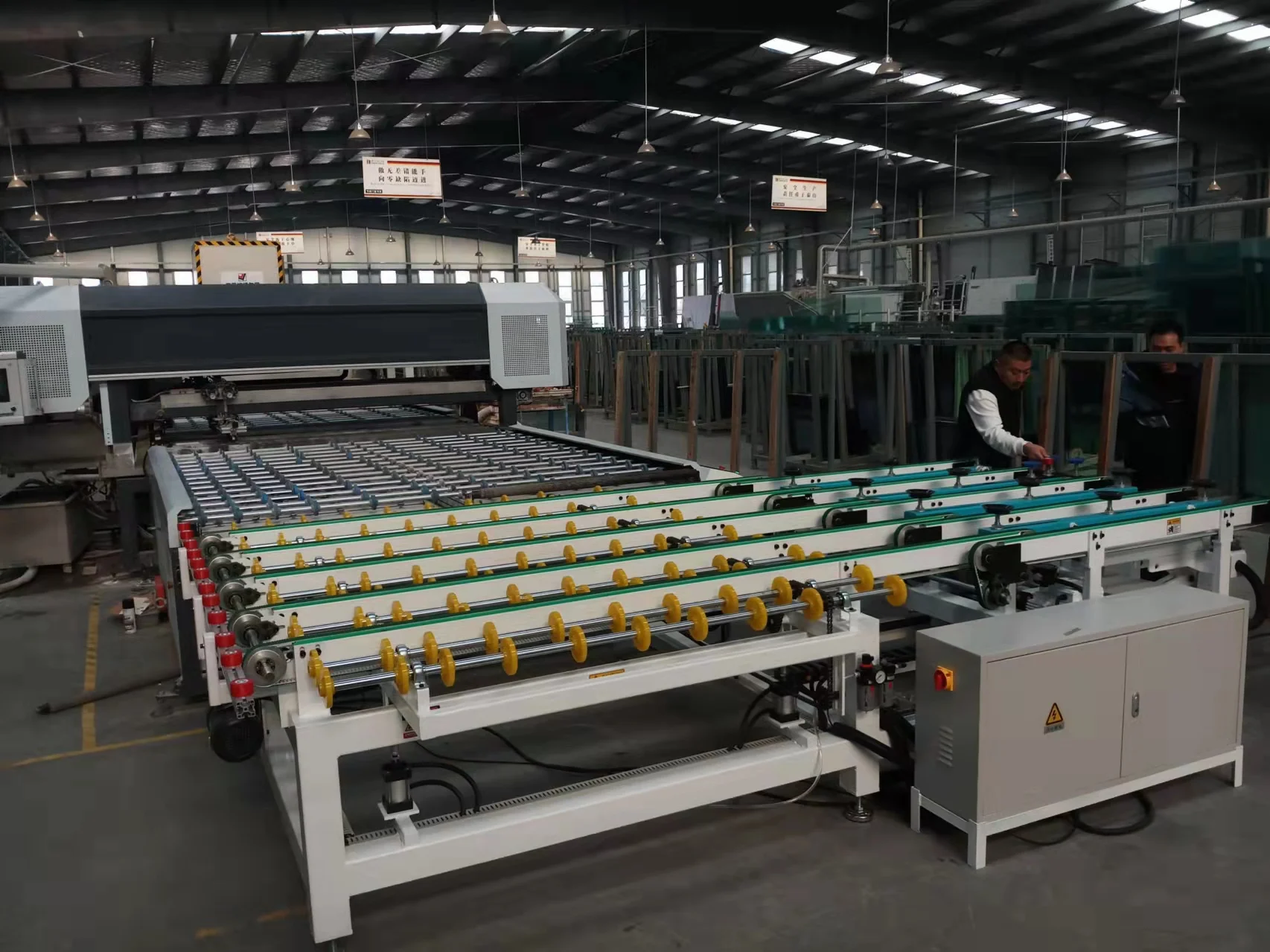

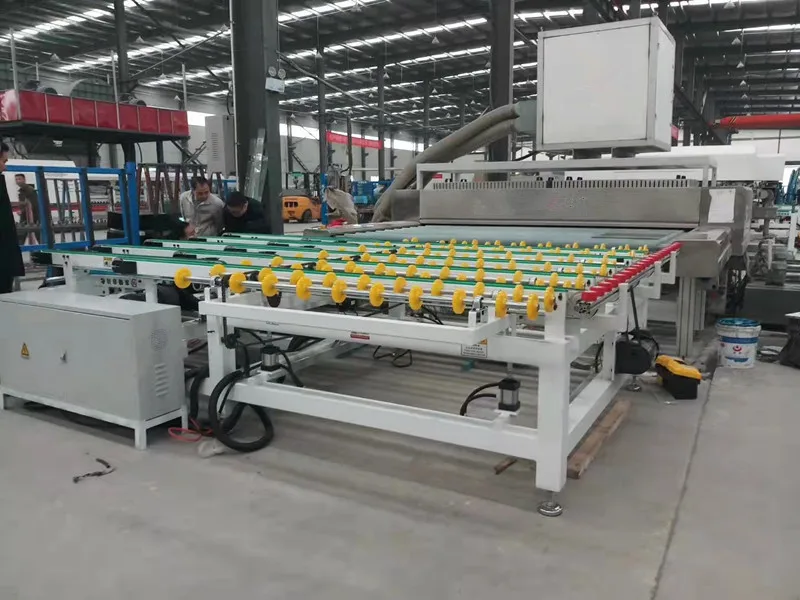

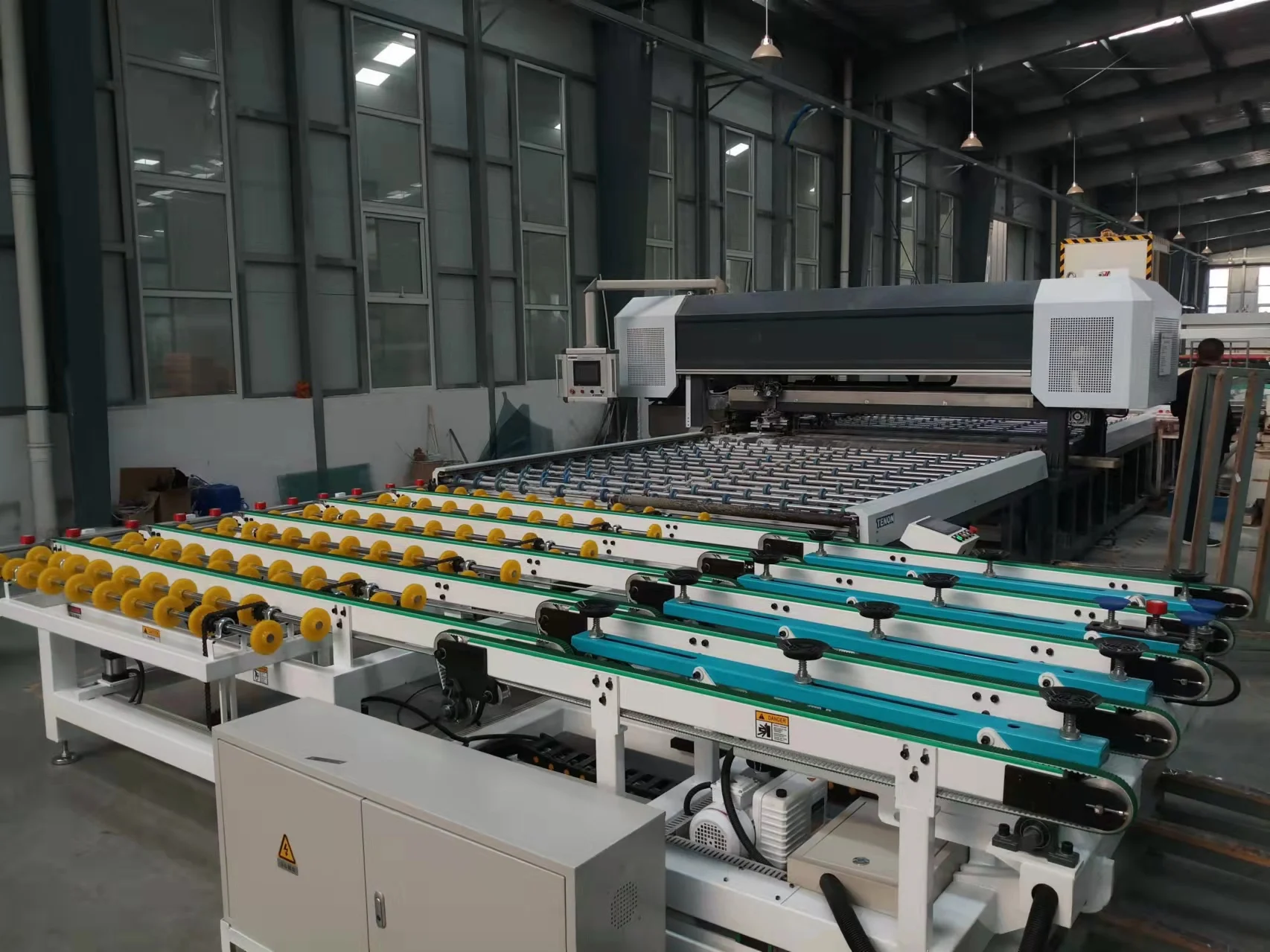

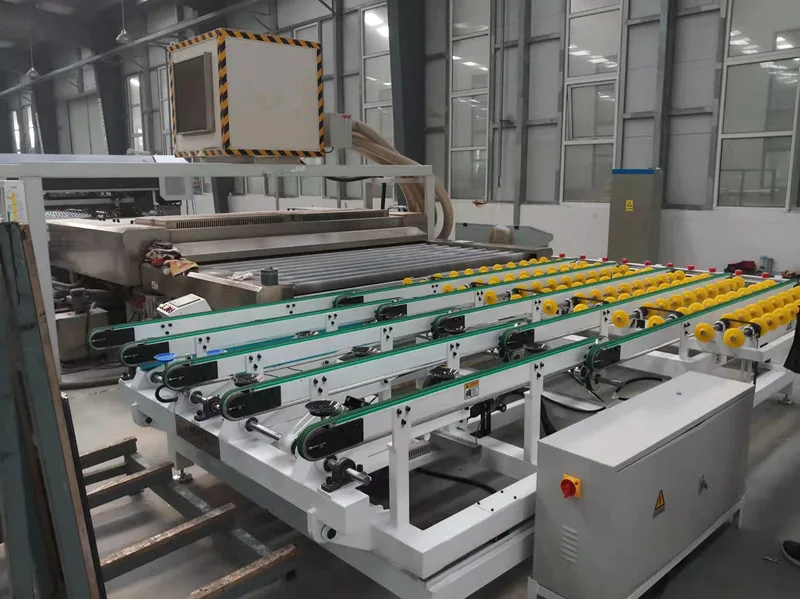

Smart Glass Loading and Unloading Equipment
Products Description
This equipment is suitable for four-side grinding, two-side grinding, multi-function edging machine, washing machine, cutting machine, silk screen, coating, mirror making, photovoltaic, frosted glass production line, etc.
Product Parameters
Model | DX2520 | DX3020 | DX3025 | ||
Voltage | 380 V | ||||
Power | 7.5 KW | ||||
Air pressure | 0.5-0.7 Mpa | ||||
Vacuum pressure | -70-90 Kpa | ||||
Max glass size | 2500*2000 mm | 3000*2000 mm | 3000*2500 mm | ||
Min glass size | 350*450 mm | ||||
Glass thickness | 3-12 mm | 4-16 mm | 4-16 mm | ||
Processing speed | 4-6 pieces/min | ||||
Number of robotic arms | 4 | 5 | 5 | ||
Weight | 3000 kg | ||||
Machine dimensions | 4000*2500*900 mm | 4000*3000*900 mm | 4300*3000*900 mm | ||
Product detail
01.
Top domestic brand--Zhejiang VRLUE Vacuum Pump
02.
03.
A full set of Delta servo motors, the machine is accurate and stable
04.
Mitsubishi PLC imported from Japan with high impact resistance.
05.
Pure white paint body, full of sense of technology. The grab arm of the trolley adopts Miami blue, neutral color, oil and ash
resistance. The double station is welded into one body.Details Images
