Характеристики
Product Description

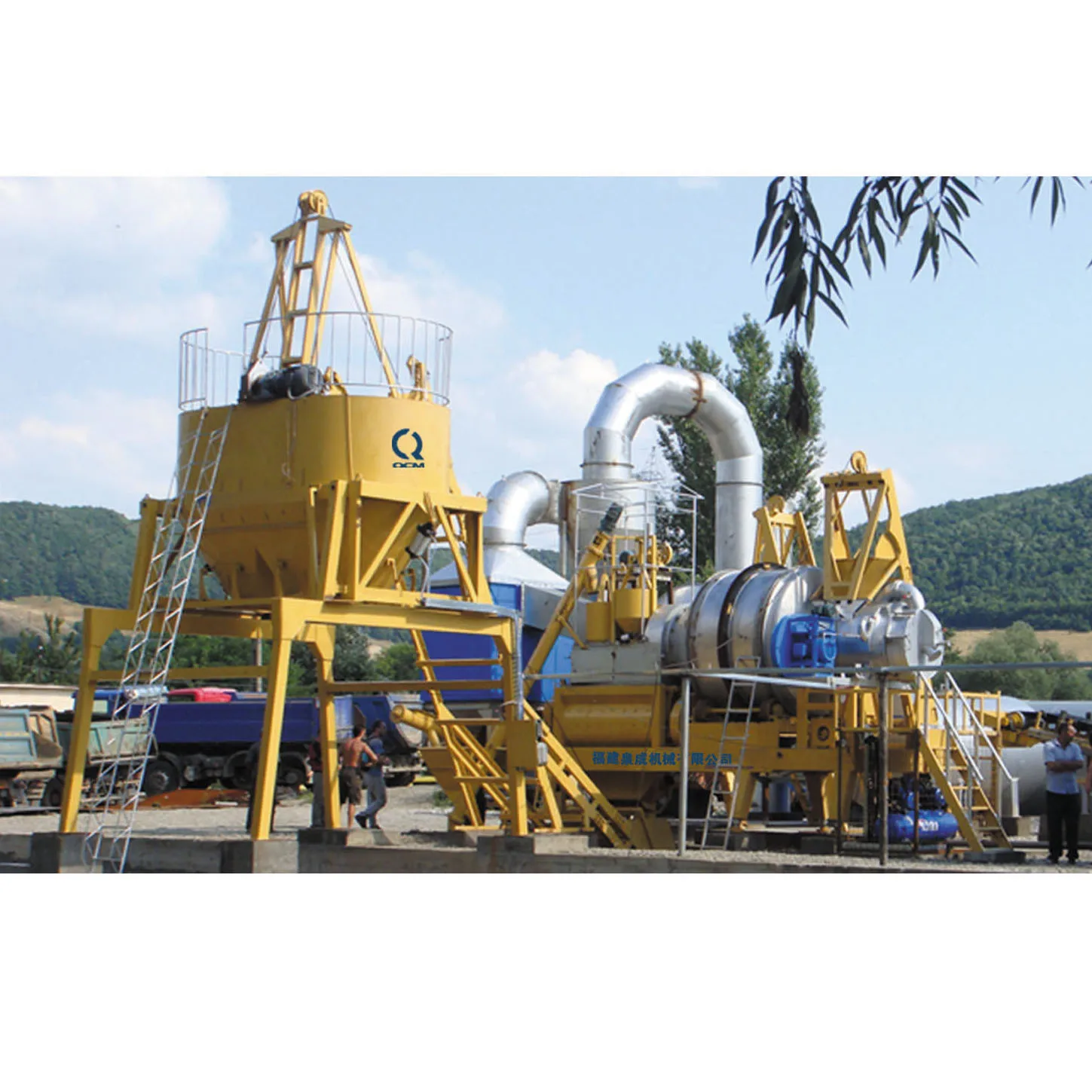

CSM80 Asphalt Mixing Plant Description:

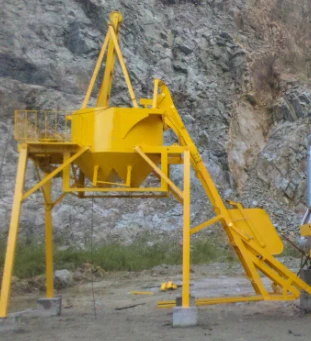

1. PZ50 Cold feed system
2. Diesel burner
3. Dryer drum
4. Feeder system
5. Filler conveys and measurement system
6. Bitumen conveys and measurement system measurement system
7. Mixer

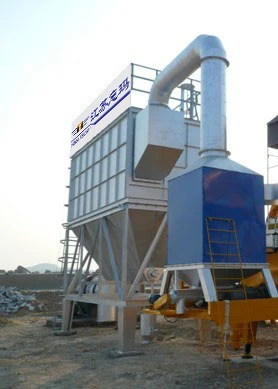

8. Dust removal system
9. Beam
10. Pneumatic system
11. Electronic control system
12. Finished storage system
Optional Part:
Secondary dust removal bag dust removal (Choose one of two)
Secondary dust removal water dust filter (Choose one of two)
RY-30 Bitumen tank
CSM80 Asphalt Mixing Plant Configuration Table
Equipment Name | Asphalt mixing plants |
Rated production capacity | 80t/h |
Model | CSM80 |
Aggregate Specification | |
Agg. temp of discharge end of drying drum | 120-170℃ |
Nomal atmospheric pressure | 760 mmHg |
Ambient temperature | 20℃ |
Specific gravity of aggregate | 1650 kg/m3 |
Aggregates moisture content | ≤5% |
Aggregates specific heat | 0.21 Kcal/kg℃ |
Filler content | 5% |
Fuel calorific value | |
Diesel | 10,500 Kcal/kg |
Fuel calorific value | 5% |
Electrical Design | |
Single phase | 220v |
Three phase | 380v |
Frequency | 50HZ |
CSM80 Asphalt Mixing Plant Technical parameters
Productivity | 80t/h | |
Feeding bin volume | 1.1 m3×2 | |
Mixture output | 1.1 m3×2 | |
Agg. size | <=50mm | |
Agg. bins | 4 bins,single volume:5m3 ,cumulative measurement | |
Weighing range and static measurement accuracy | Agg. | ≤2000kg±0.5% |
Filler | ≤200kg±0.5% | |
Bitumen | ≤200kg±0.25% | |
Products temp | 120~170 ℃, (adjustable) | |
Terms:
1. Payment: the above offer is the FOB XIAMEN, 50% by T/T as advance payment within 10 days after the contract, 50% by T/T should be paid 5 days before the shipment.
2. Delivery: Within 45 working days after receipt of the deposit.
3. Valid for 30 days from the date of quotation.
4. Warranty: 12 months.
Packaging & Shipping
The above quotation without optional parts and can be packed in 6* 40’HQ containers.
Our Services
Installation and training: We will send a technician to your place for training and installation. Buyer to pay for round trip air ticket, visa cost, food, accommodation, translation fee and a daily allowance of USD*** per person per day for our service engineer(according to actual situation). Time calculation: From the date of leaving the factory to the date of returning to the factory (including the isolation time), during the epidemic period, try to coordinate remote installation and commissioning.
