Экологически чистый автоматический кованый станок с индукционной головкой болтов для
- Категория: Metal Forging Machinery >>>
- Поставщик: Zhengzhou,Daqing,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3630.68 $* | 3812.86 $* |
| Aug-19-2025 | 3599.4 $* | 3779.14 $* |
| Jul-19-2025 | 3020.58 $* | 3171.88 $* |
| Jun-19-2025 | 3538.2 $* | 3715.3 $* |
| May-19-2025 | 3081.64 $* | 3235.58 $* |
| Apr-19-2025 | 3477.70 $* | 3651.73 $* |
| Mar-19-2025 | 3447.65 $* | 3619.28 $* |
| Feb-19-2025 | 3416.84 $* | 3587.20 $* |
| Jan-19-2025 | 3386.27 $* | 3555.67 $* |
Характеристики
Environmental friendly automatic induction bolts head forging machine for sale
Product Description
■ Adopted with MOSFET, IGBT power device and variable frequency control,high frequency induction heaters enjoy high efficiency, energy saving and larger output power.
■ With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
■ Saving double electricity more than traditional high frequency induction heating device under the same conditions.
■ With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
■ With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
■ The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.
IGBT
Board
Our induction heating machine with multi-protective functions to over-voltage, over-current, over-temperature, water fail, phase fail and is safe and reliable.
Lower power consumption, the IGBT technology save 15-30% energy, 100% full load, working 24 hours continuously.
Lower power consumption, the IGBT technology save 15-30% energy, 100% full load, working 24 hours continuously.
Product Paramenters
SMC-15KW
SMC-35KW
SMC-45KW

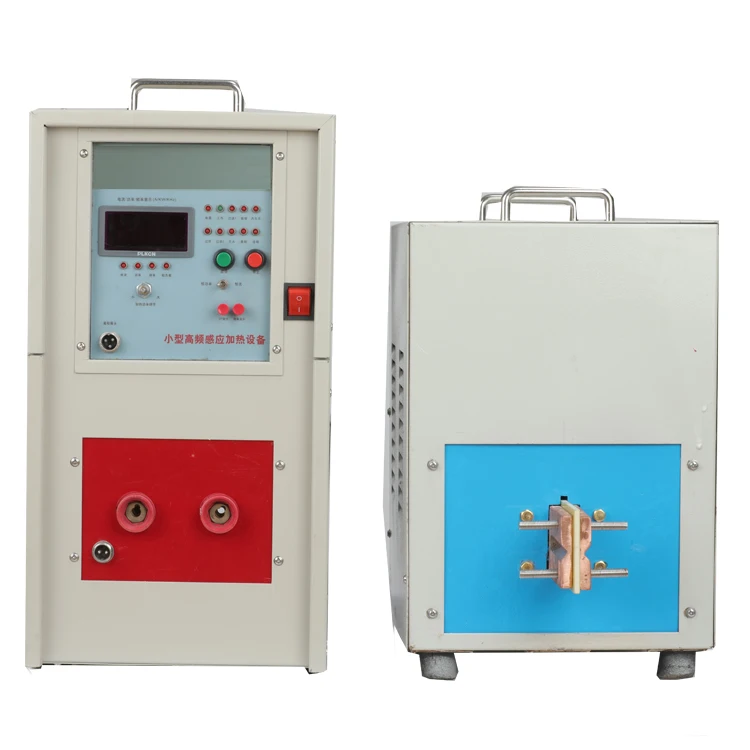

High Frequency Induction Heating Machine | ||||||||||
Model | SMC-15KW | SMC-35KW | SMC-45KW | SMC-60KW | SMC-80KW | |||||
Input voltage | 220V,380V,480V | |||||||||
Output power | 15kw | 35kw | 45kw | 60kw | 80kw | |||||
Frequency | 30-80KHZ | 30-80KHZ | 30-80KHZ | 30-80KHZ | 30-80KHZ | |||||
Output current | 200-600A | 400-1600A | 400-2000A | 400-2400A | 400-3200A | |||||
Timing | 1-99s | 1-99s | 1-99s | 1-99s | 1-99s | |||||
Cooling water | 0.06-0.12Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | |||||
Alarm temperature | 40°C | 40°C | 40°C | 40°C | 40°C | |||||
Generator weight | 25kg | 35kg | 35kg | 37kg | 54kg | |||||
Transformer weight | / | 10kg | 10kg | 36kg | 47kg | |||||
Generator dimension(mm) | 535*245*550 | 595*275*580 | 595*275*580 | 650*320*590 | 745*345*600 | |||||
Transformer dimension(mm) | / | 485*275*450 | 485*275*450 | 485*275*450 | 790*425*580 | |||||
Application
Application for induction furnace:
Heating/Hot forging:
hot forging and hot rolling of fastener standard parts, automobile parts, hardware, cables, twist drill, etc.
Hardening/Quenching:
for shafts, gears, chain wheels, castellated shafts, machine tools surfaces and bodies, automobiles, motorcycle parts, etc. quenching.
Welding/Brazing:
brazing of diamond saw blade, alloy tools(lathe tool, reamer, milling tool) mining tools(drill bits, cutting picks) copper tubes, motor copper line, copper bars.
Metal smelting:
gold, silver, copper, iron, aluminum and other metals (vacuum) melting, casting molding and evaporation coating.

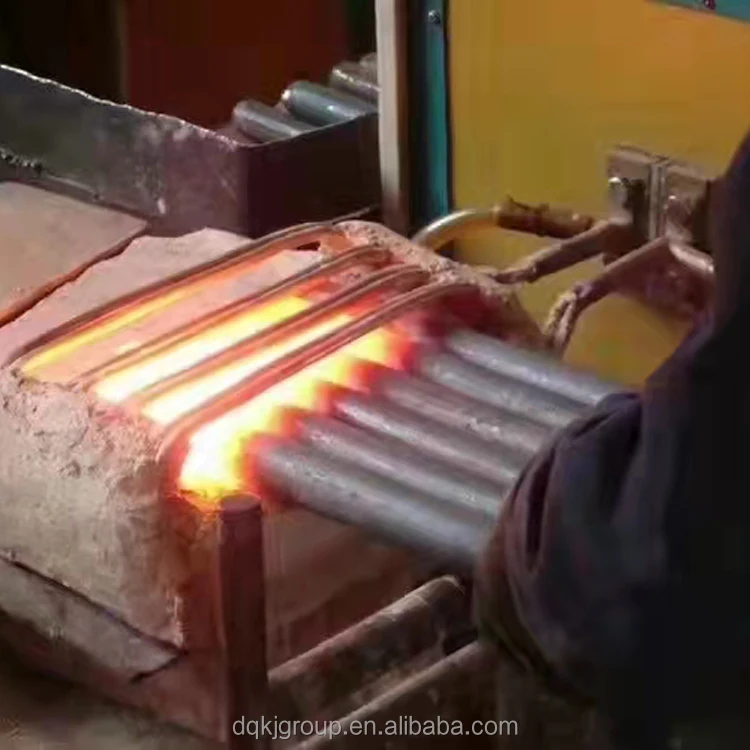

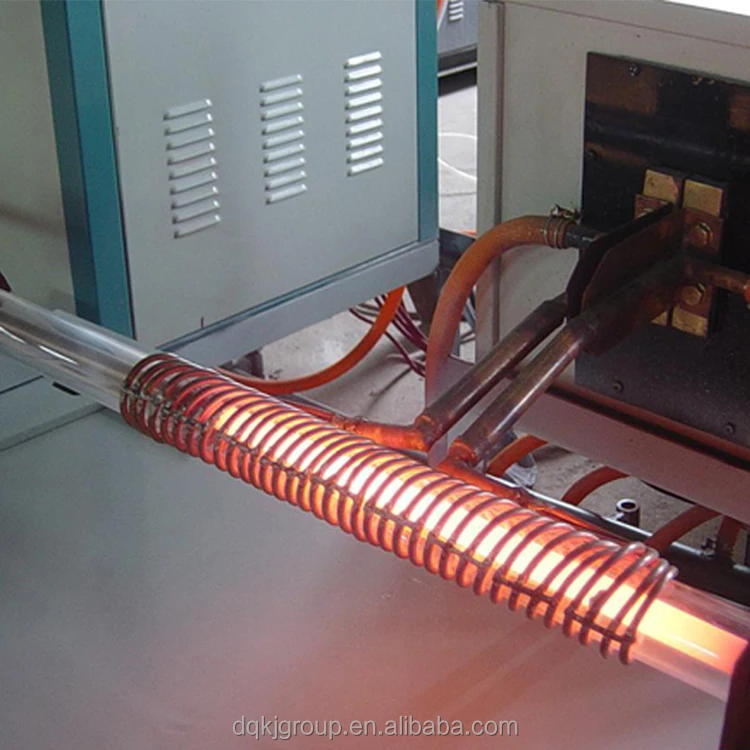

STEEL ROD HEATING
PIPE BRAZING

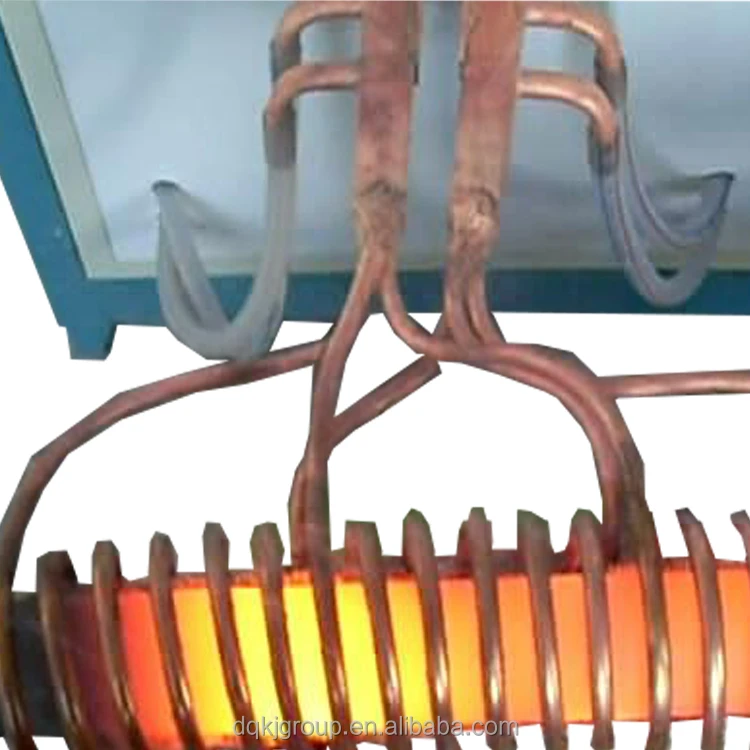

SHAFT HARDENING
SHAFE QUENCHING

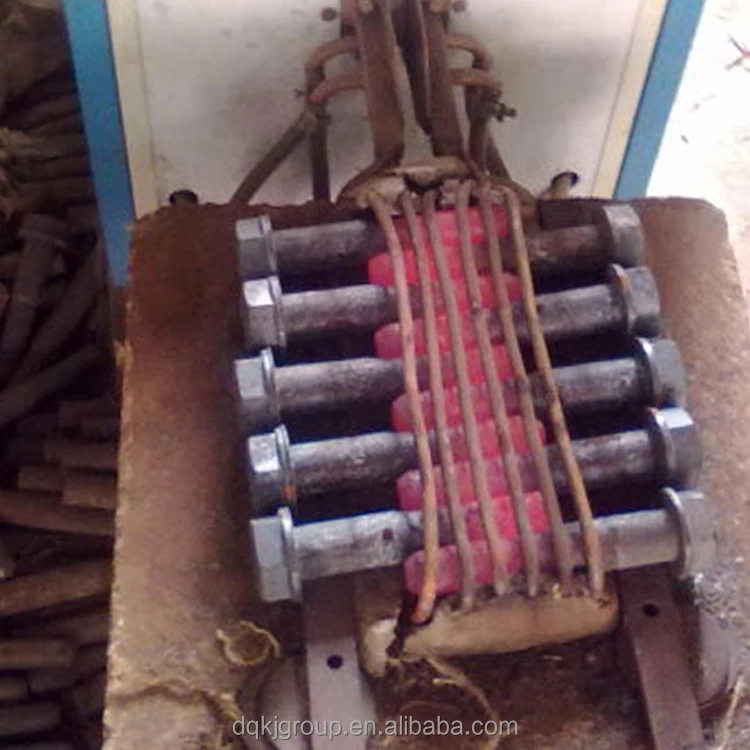

ROD FORGING

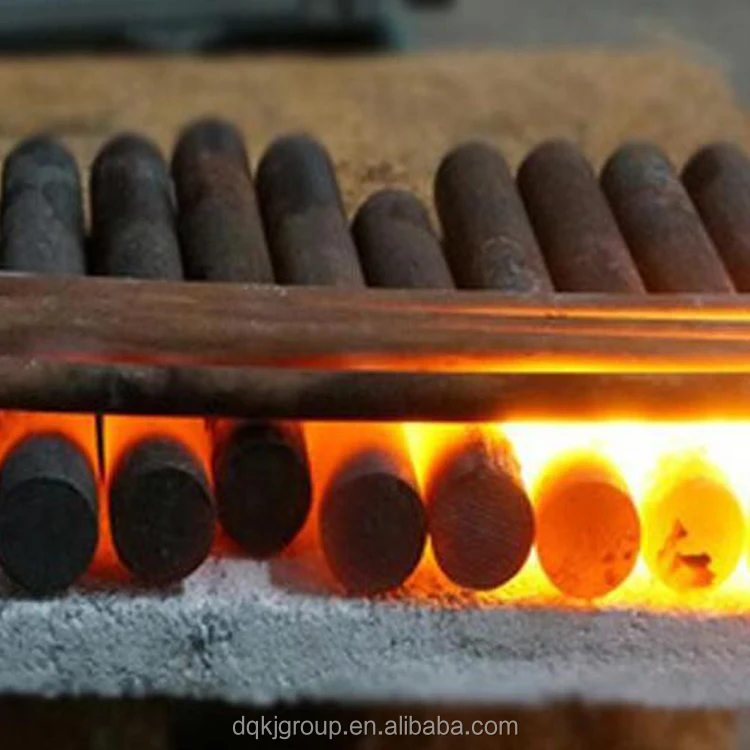

STEEL BAR FORGING
METAL MELTING
GOLD MELTING
Recommend Products
Production Process
Company Profile
DQAUTO company has been committed to the development, production as well as the sales of induction heating equipments since 2017. Our factory covers an area of 1000+ square meters. DQAUTO obtained the honor of national high-tech enterprise and more than 47+ patent certificates.
And we provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is DQAUTO's goal!
And we provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is DQAUTO's goal!
Partner
FAQ
Q1: If the device fails, how can it be solved quickly?
A1: The engineer will quickly determine the cause of the fault and guide the replacement of the accessories based on the operator's description, as well as the pictures and videos. If it can't be solved, we will send engineers to the site for repair.
Q2: What advantages do you have compared to others?
A2: We can customize the most suitable products according to the customer's specific conditions, so that the equipment is more stable and more efficient, and the customer's benefit is maximized.
Q3: Why is your induction furnace more stable?
A3: With more than 5+ years of experience, we have developed a reliable control system and a simple operating system. We have a number of technical patents.
Q3: Why is your induction furnace more stable?
A3: With more than 5+ years of experience, we have developed a reliable control system and a simple operating system. We have a number of technical patents.
Q4: What is your warranty?
A4: We provide you with lifetime technical support for free. Spare parts are provided free of charge during the warranty period. In the case of more than one year warranty, we will provide spare parts at cost price.
Q5: Are you the Manufacturer or a trading company?
A5: We are a scientific and technological innovation enterprise integrating R&D, design, production and service.
