Модуль Rs232/485 Modbus RJ45 IO Tcp/ipp Rtu 8 аналоговый вход 4 цифрового входа релейного выходного
- Категория: >>>
- Поставщик: Guangzhou,Mylan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.51 $* | 0.87 $* |
| Aug-17-2025 | 0.18 $* | 0.21 $* |
| Jul-17-2025 | 0.70 $* | 0.25 $* |
| Jun-17-2025 | 0.83 $* | 0.43 $* |
| May-17-2025 | 0.75 $* | 0.29 $* |
| Apr-17-2025 | 0.94 $* | 0.75 $* |
| Mar-17-2025 | 0.89 $* | 0.98 $* |
| Feb-17-2025 | 0.70 $* | 0.9 $* |
| Jan-17-2025 | 0.52 $* | 0.12 $* |
Характеристики
Products Description

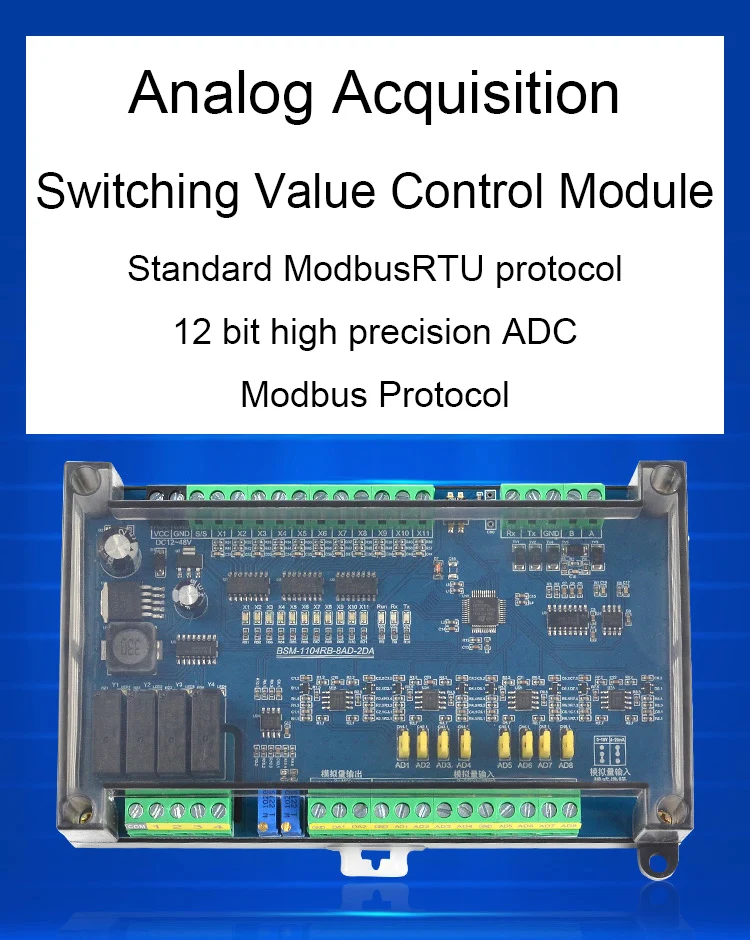

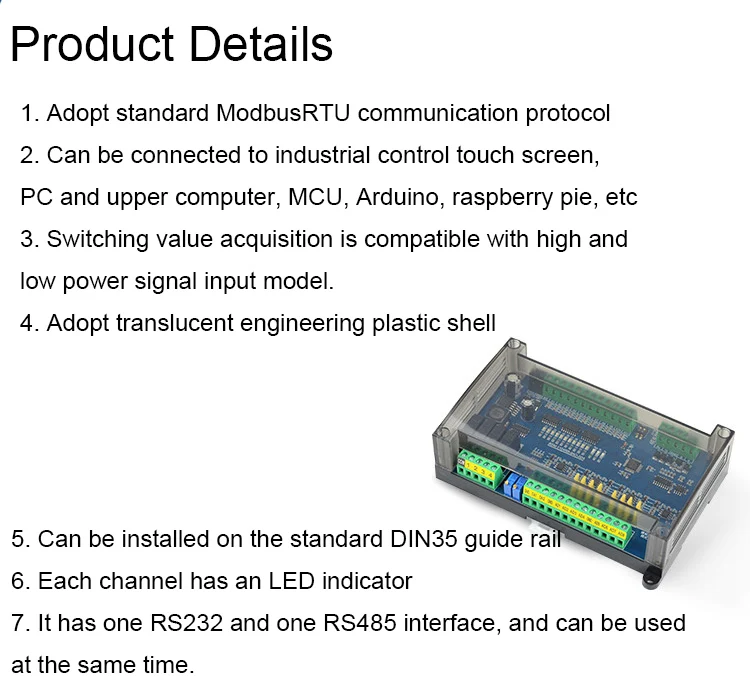

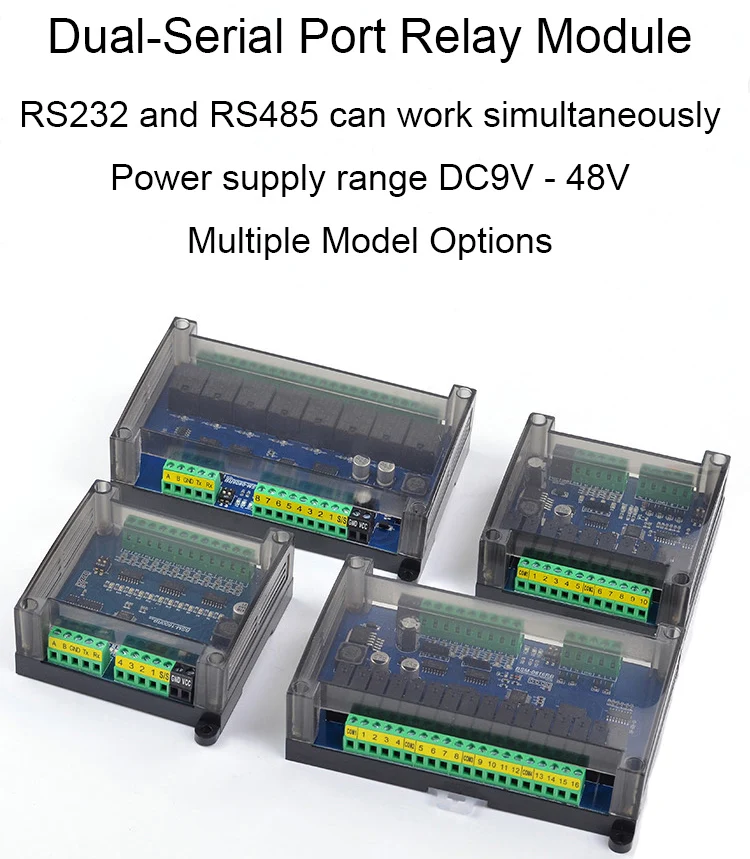

Modbus module 485 / 232 communication Dual serial port relay module industrial data IO extended serial port control module
Item | Performance specifications |
voltage | DC9-48V (analog function module DC12-48V) |
Switch output type | Relay dry contact/NPN transistor |
Switch signal acquisition | DC5V-24V |
Analog input type*1 | 0-20mA/0-10V |
Analog output type*1 | 0-20mA/0-10V |
Communication baud rate | Default value: 9600bps (can be modified by software, up to 115200bps) |
Station No | Default value: 1 (can be modified by software, range: 1-255) |
Communication response time | 15ms(9600bps) 3ms(115200bps) |
shell material | Engineering plastics |
Installation method | DIN35 rail installation |
Maximum output current | Relay 5A |
Transistor 200mA | |
Output response time*2 | Relay 20ms or less |
Transistor 15ms or less | |
Ambient temperature | -40~+70*C (no icing, no condensation) |
environment humidity | 5-80%RH |

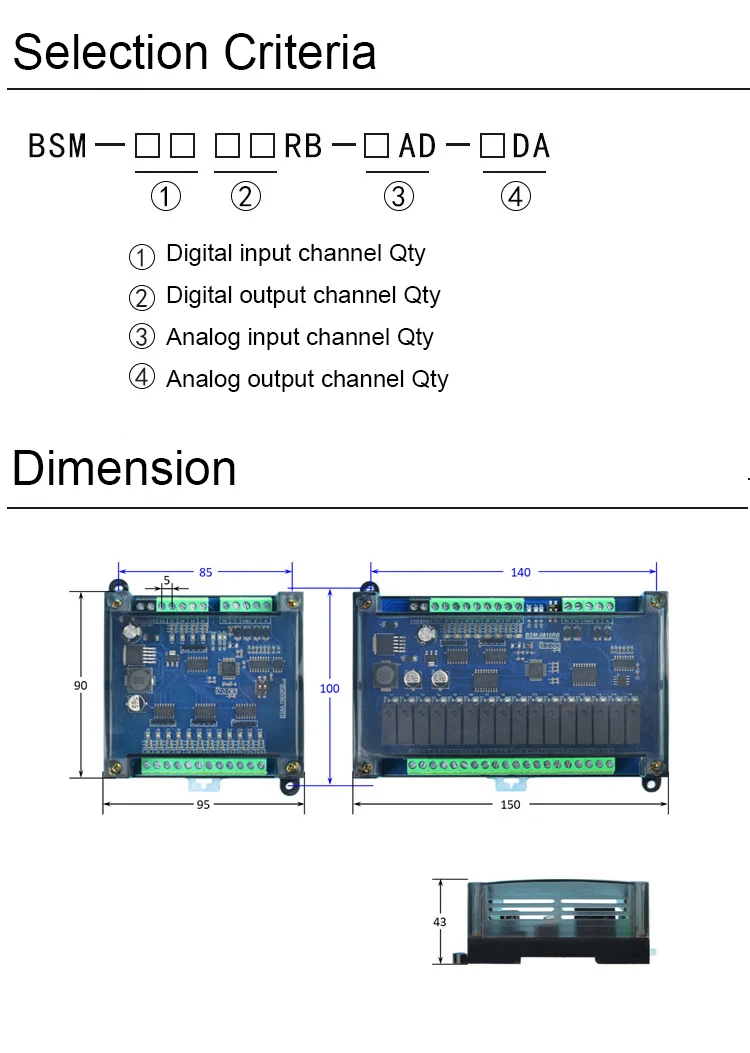

Model | Digital input and output | Communication Interface | Analog input | Analog Output |
BSM-1600RB | 16 switch inputs | RS232+RS485 | No | No |
BSM-0404RB | 4 switch inputs 4 relay outputs | RS232+RS485 | No | No |

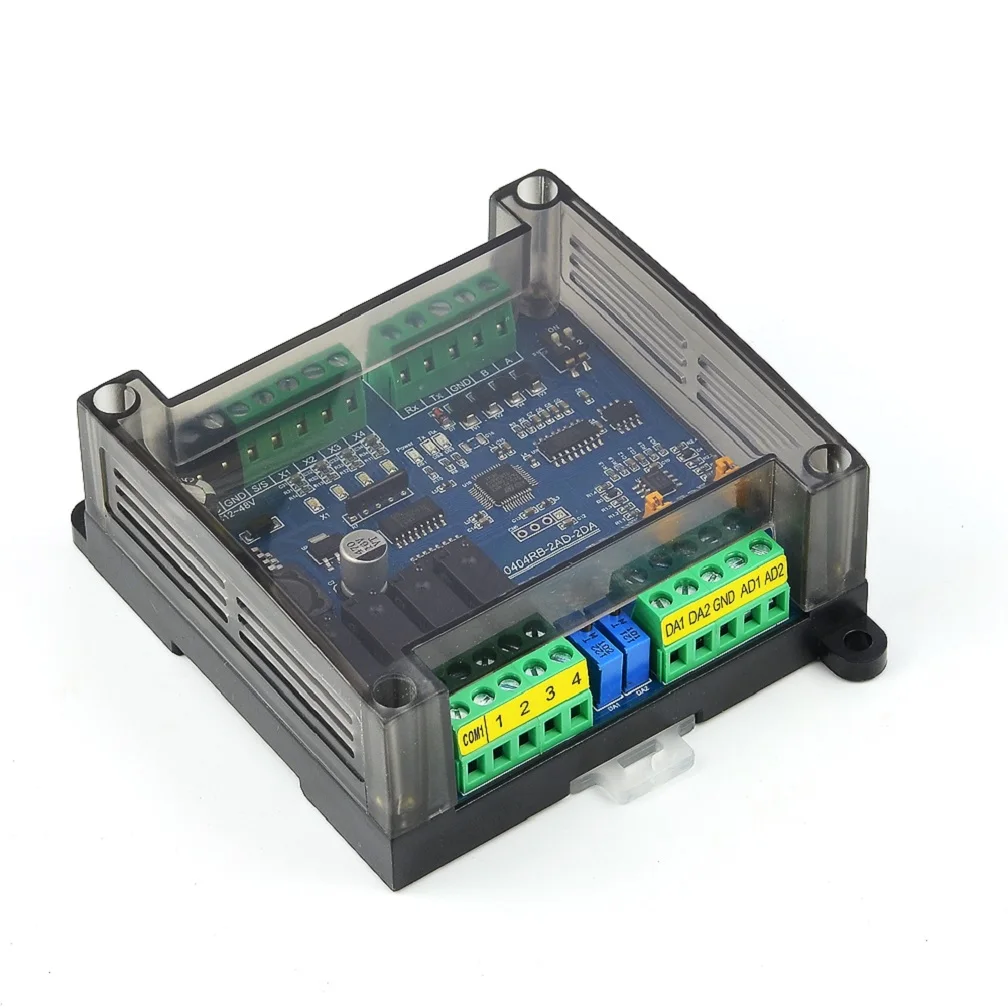

BSM-0404RB-2AD-2DA | 4 switch inputs 4 relay /transistor outputs | RS232+RS485 | 0～10V or 4～20mA 2 Channels | 0～10V 1 Channel 0～20mA 1 Channel |
BSM-0410RB | 4 switch inputs 10 relay/transistor outputs | RS232+RS485 | No | No |
BSM-0808RB | 8 switch input 8 relay outputs | RS232+RS485 | No | No |
BSM-0816RB | 8 switch input 16 relay/transistor output | RS232+RS485 | No | No |
BSM-1616RB | 16 switch inputs 16 relay/transistor output | RS232+RS485 | No | No |
BSM-1104RB-8AD-2DA | 11 switch inputs 4 relay/transistor output | RS232+RS485 | 0～10V or 4～20mA 8 Channels | 0～10V 2 Channels |
BSM-0404E | 4 switch inputs 4 relay/transistor output | RJ45 + RS232+RS485 | No | No |
BSM-1216E | 12 switch input 16 relay/transistor output | RJ45+RS485 | No | No |
BSM-0404E-8AD-2DA | 4 switch inputs 4 relay outputs | RJ45+RS485 | 0～10V or 4～20mA 8 Channels | 0～10V 2 Channels |
New Model | 8 switch inputs 8 relay outputs | RJ45+RS485 | 0～10V 3 Channels 4～20mA 3 Channels | 0～10V 2 Channels or 0～20mA 2 Channels |
