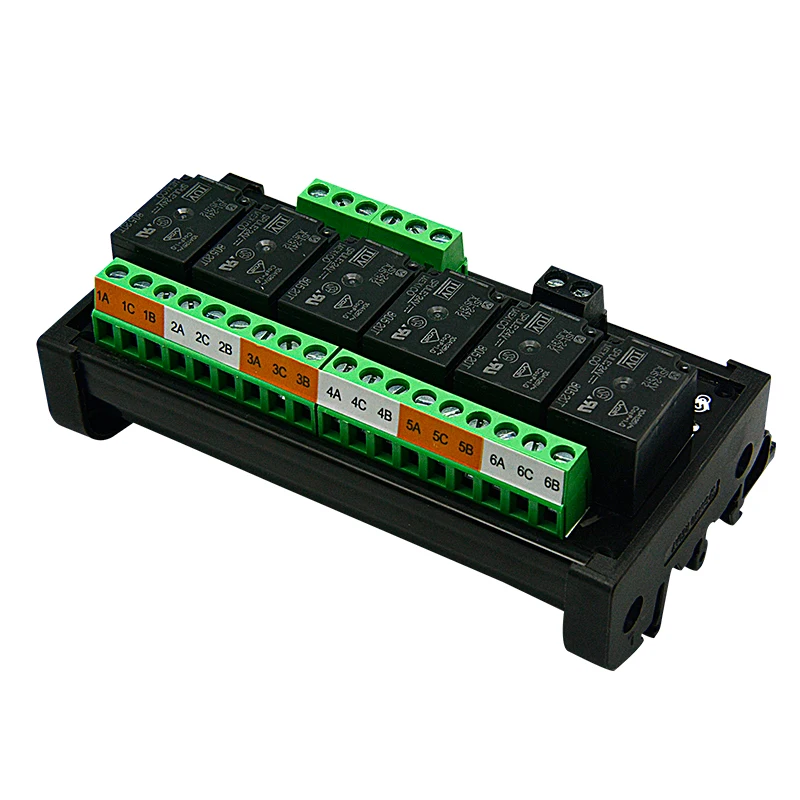

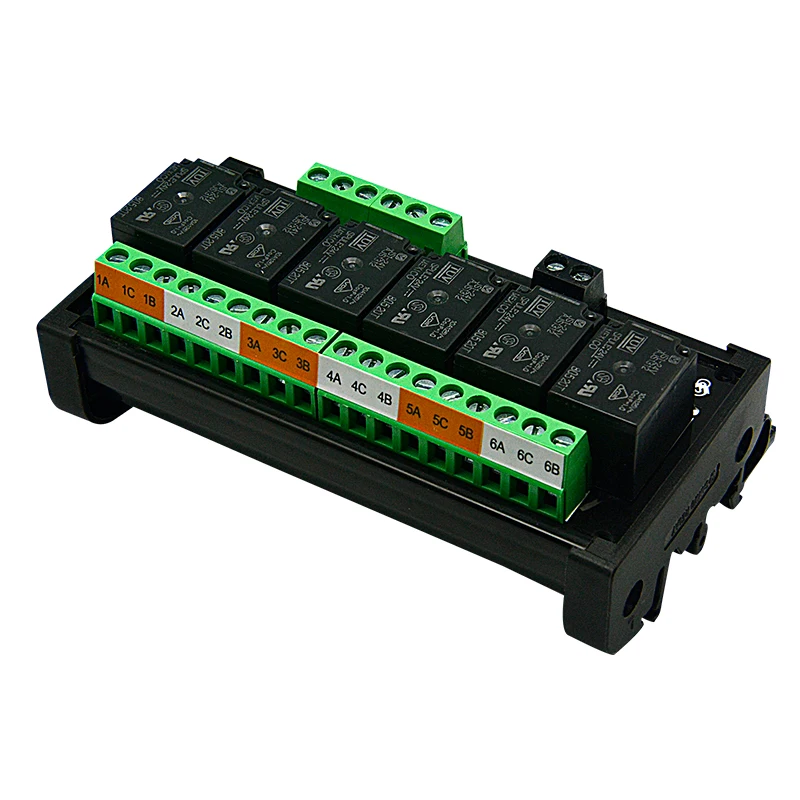

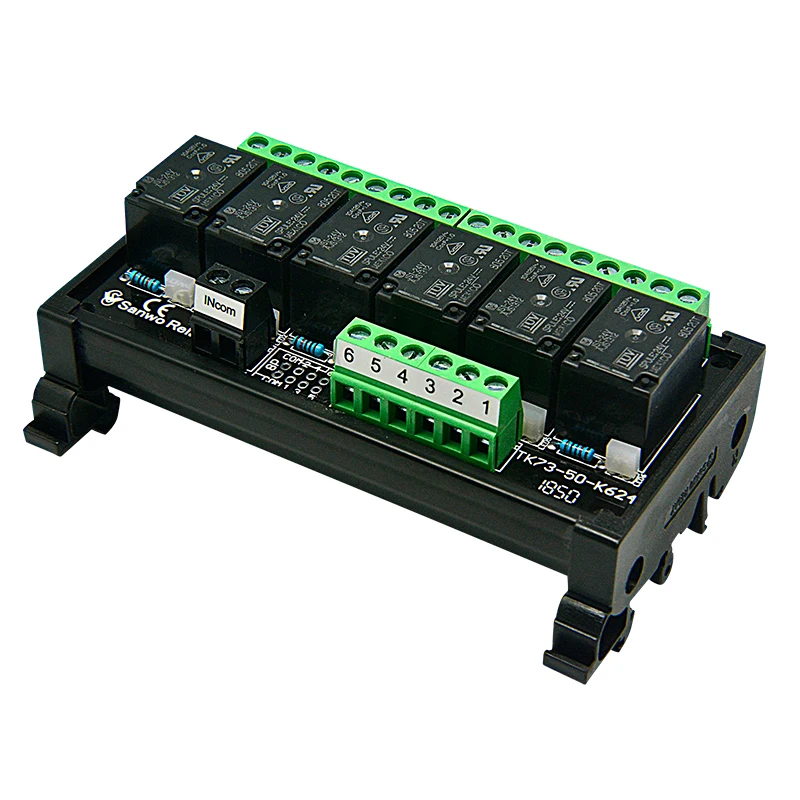

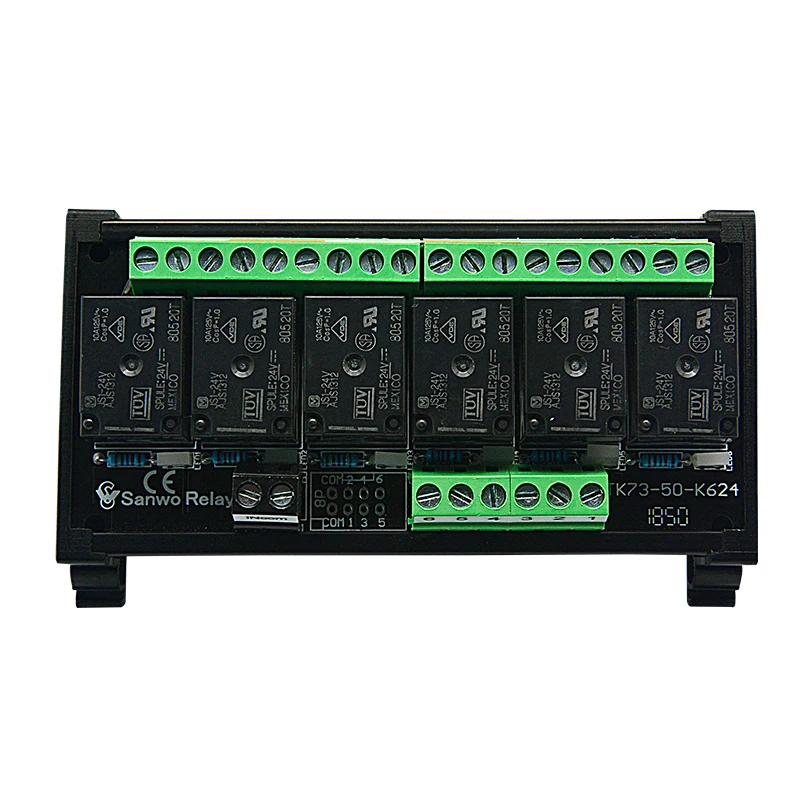

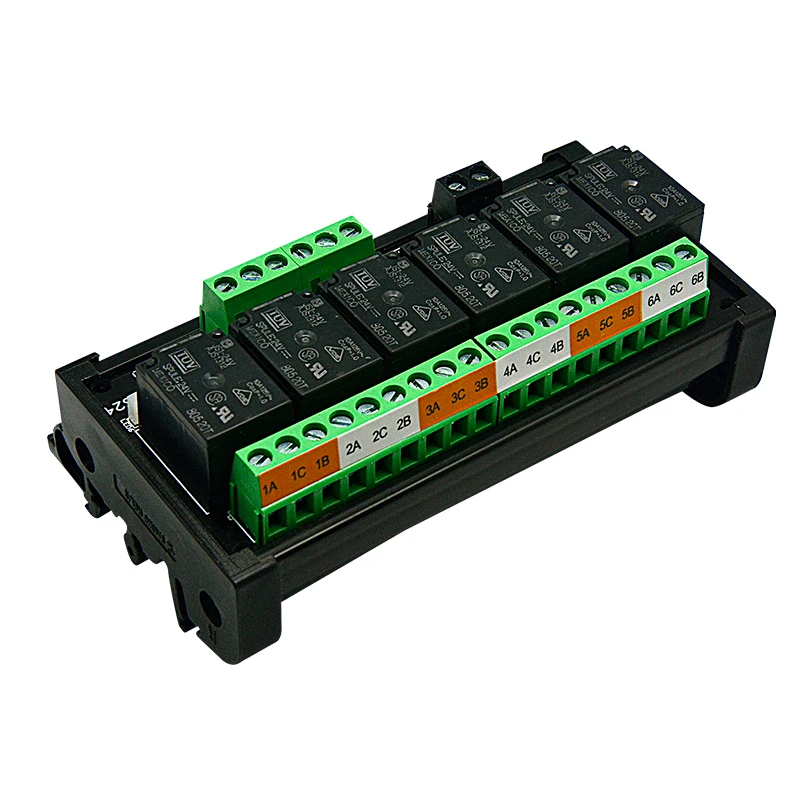

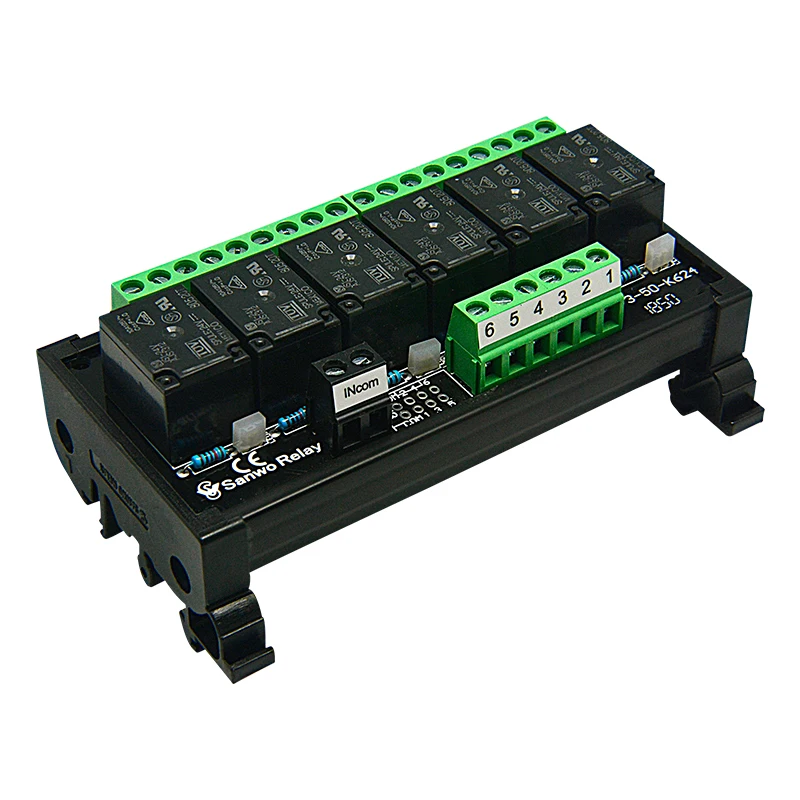

От оригинального производителя onlywheel в 6-канальный мини-модуль управления с оптопарой реле диски DC Плата усилителя 5VDC /
- Категория: Relays >>>
- Поставщик: Dongguan,Shanhao,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10.73 $* | 11.20 $* |
| Aug-18-2025 | 9.88 $* | 9.11 $* |
| Jul-18-2025 | 8.29 $* | 8.71 $* |
| Jun-18-2025 | 9.28 $* | 9.50 $* |
| May-18-2025 | 8.74 $* | 8.18 $* |
| Apr-18-2025 | 9.12 $* | 9.67 $* |
| Mar-18-2025 | 9.60 $* | 9.87 $* |
| Feb-18-2025 | 9.47 $* | 9.95 $* |
| Jan-18-2025 | 9.67 $* | 9.27 $* |
Характеристики
| Product name | One on one off relay module |
| Product brand | SANWO RELAY |
| Relay brand | Panasonic |
| Product model | TK73-50-K |
| Relay model | JS1-()VDC |
| input voltage | DC24V / DC12V/DC5V |
| Input current | 21.8mA / 43.6mA / 106mA |
| Power consumption (va.w) | 0.36W |
| Coil resistance | 1100Ω / 275Ω / 47Ω |
| Action time | Less than 15ms |
| control voltage | DC30V and AC250V |
| Rated load | 10A |
| Number of contacts | Open and close |
| On resistance | 30mA |
| switching frequency | Mechanical 18000 times / h; rated load 1800 times / h |
| Input signal | Common to NPN and PNP |
| Suction time | 6ms |
| Mechanical life | More than or equal to 10 million ACCS and more than 10 million DCCS |
| Electrical life | ≥ 100000 times |
| Explain the time | 3ms |
| Isolation voltage | 4000V |
| ambient temperature | -40°~55°C(no icing, no frosting) |
| ambient humidity | 5-82%RH |
| Installation mode | Ts35 / 7.5/ns32 standard rail |
Product Category
Company Information
About Us
Dongguan Shanhao Technology Co., Ltd. is a powerful company integrating production and sales. The company has its own professional scientific research and technical backbone, and has its own production plant and manufacturing workshop. Strong grade production capacity, using original authentic materials, strict product quality control, CE product certification, stability, safety and reliability, quality assurance.
Product information
Product Details
Features
Security
Circuit safety guarantee, high safety performance, strong protection, current feedback diode protection, effective protection of components from being burned out
DIN-Rail Mounting
DIN rail installation, convenient, fast, firm and stable installation, more convenient disassembly and assembly
The printing is clearly visible
The circuit board shall be clearly marked to prevent the trademark from aging and falling off after long-term use
High material flame retardant shell
It is made of high-quality flame retardant material, which is firm and wear-resistant
