Характеристики
Specification

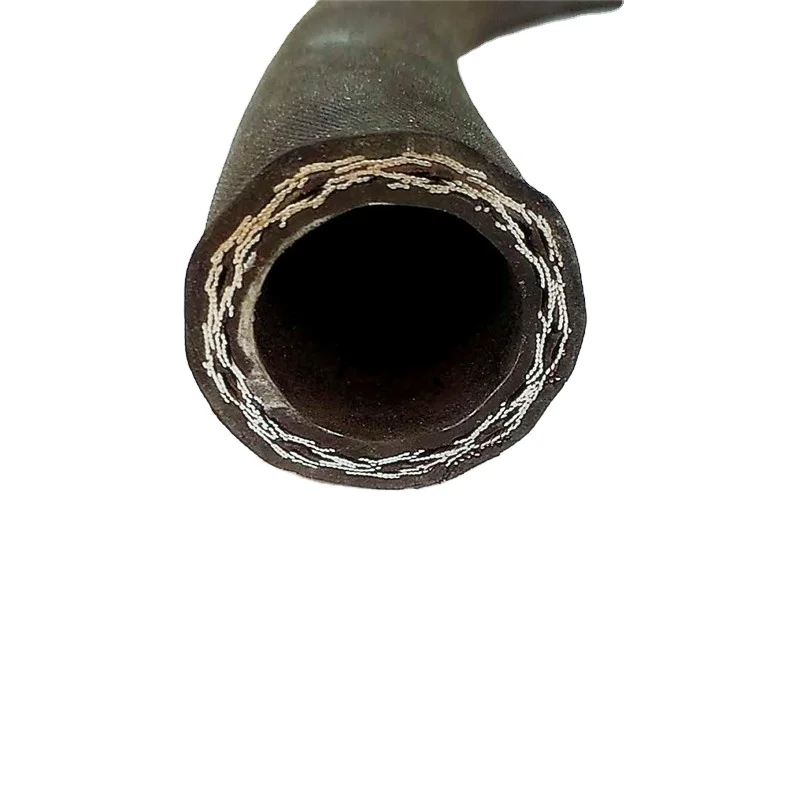

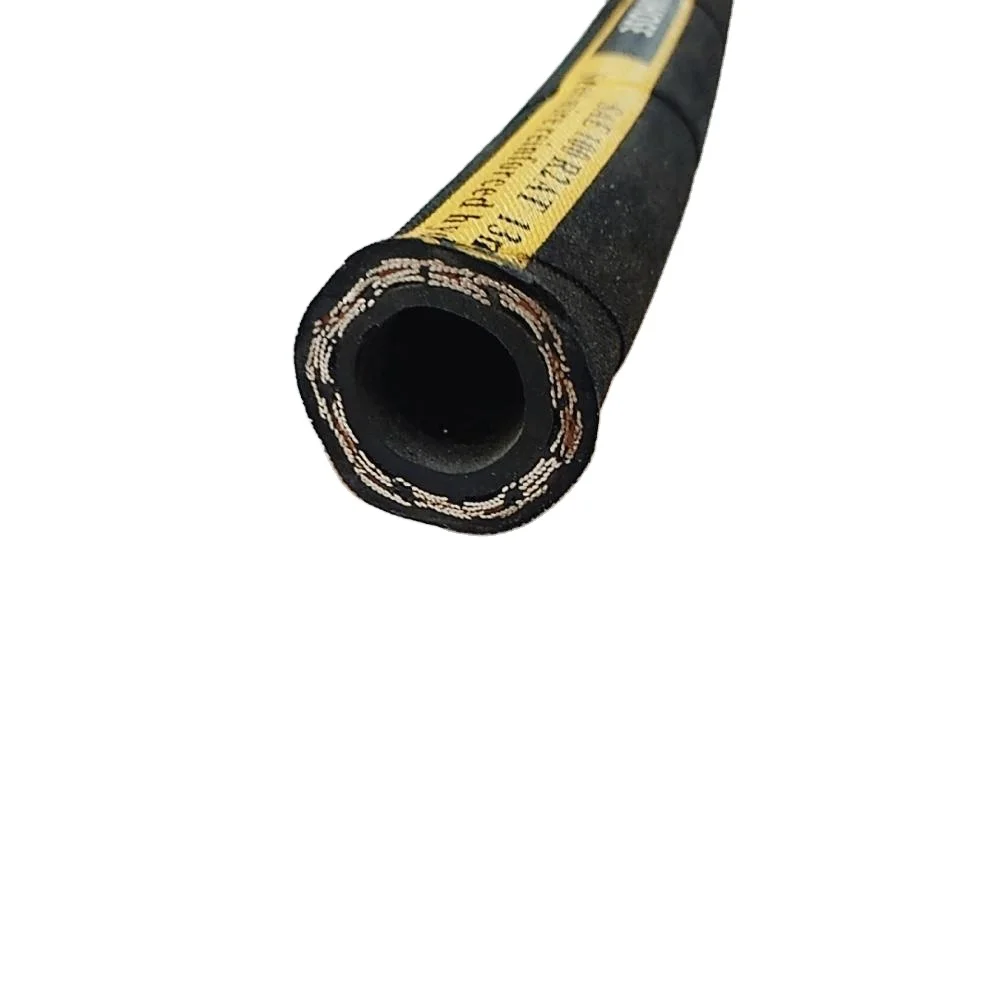

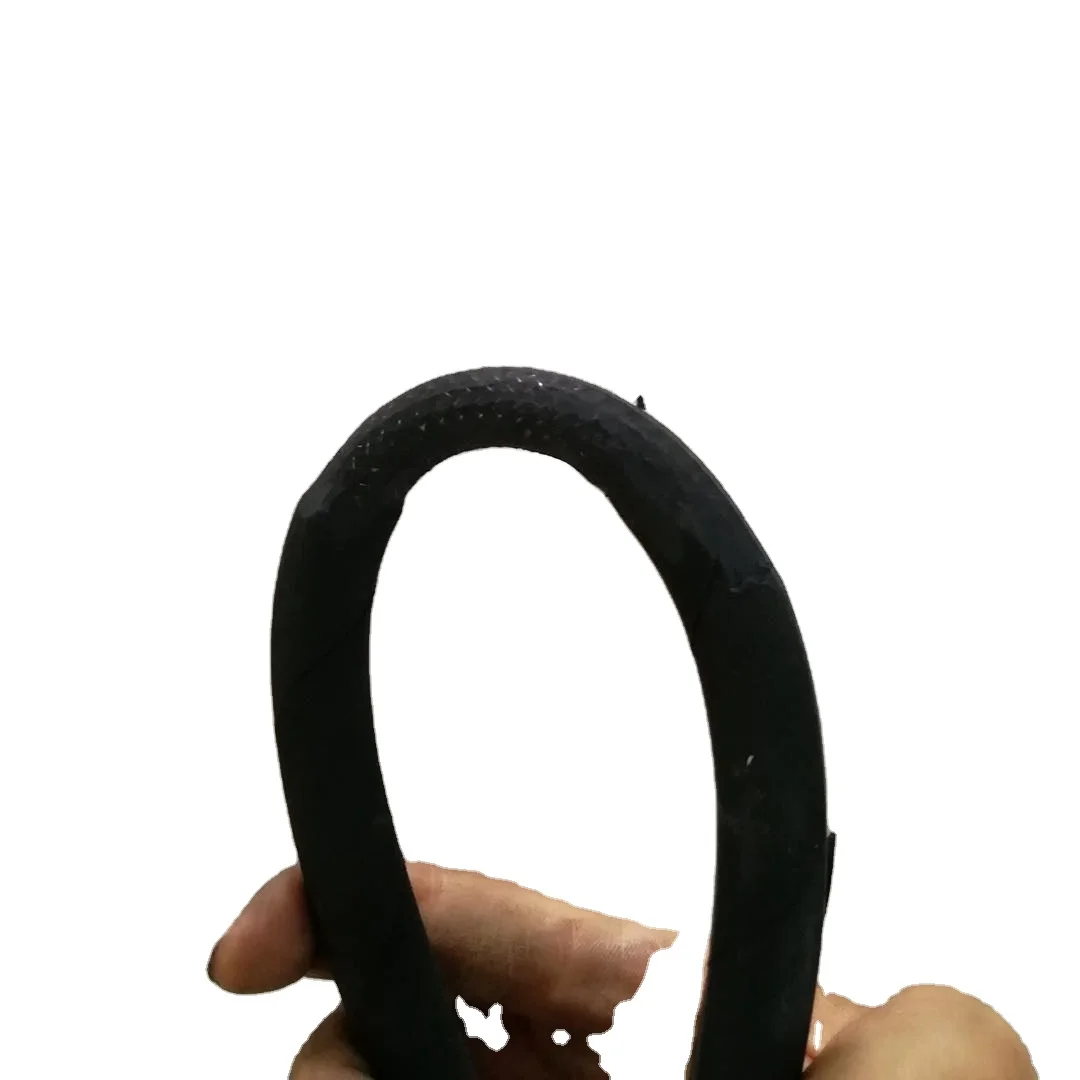

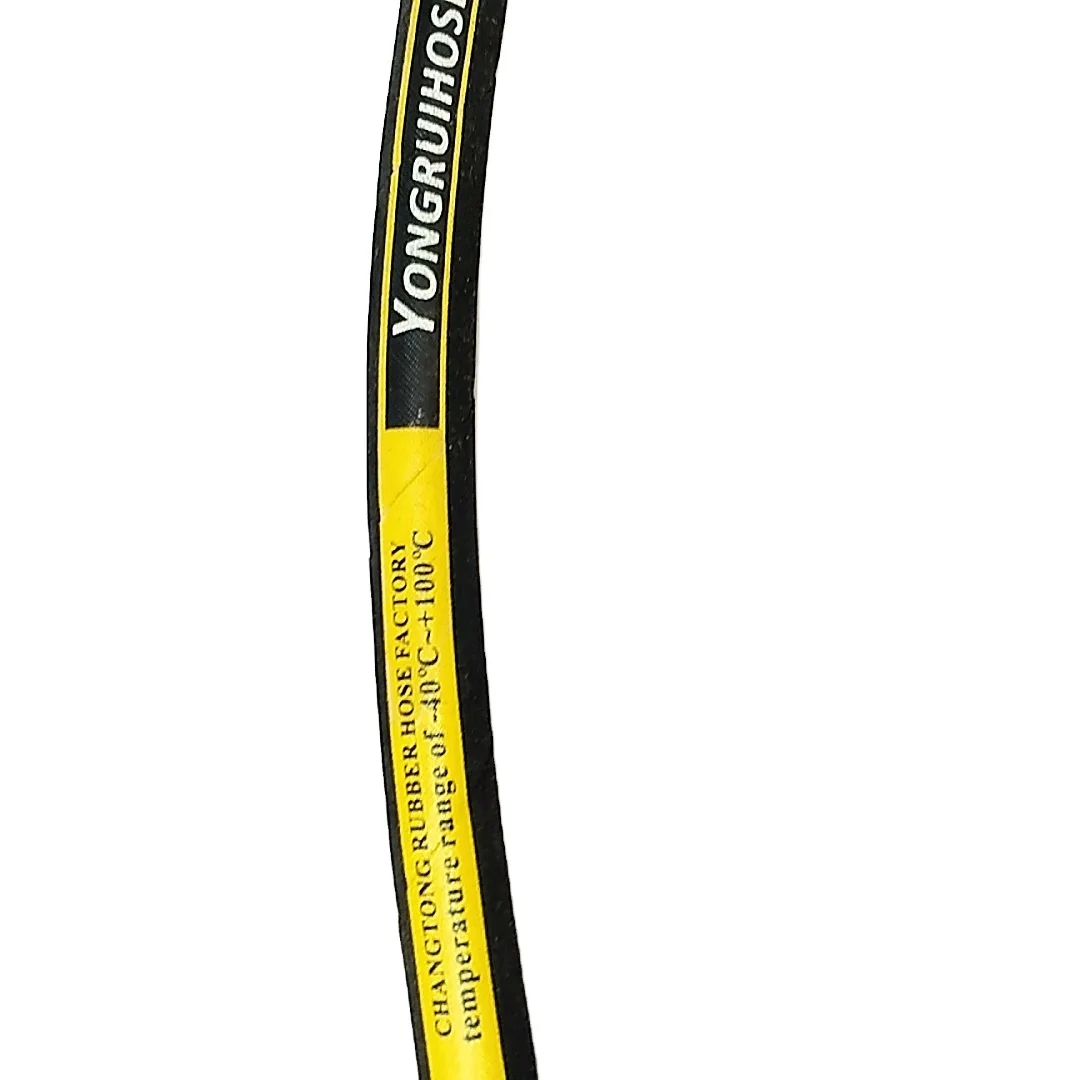

high pressure hydraulic hose steel wire reinforced rubber hose
Recommended For : High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2AT& R1 AT performance requirements of EN853 2SN/1SN.
Application Fields : For high pressure hydraulic systems in industry and agriculture.
Tube: Black, oil resistant, synthetic rubber.
Reinforcement: One or two braids of fiber reinforcement.
Cover: Black, oil, abrasion and weather resistant, thin synthetic rubber.
Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)
Recommended For : High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2AT& R1 AT performance requirements of EN853 2SN/1SN.
Application Fields : For high pressure hydraulic systems in industry and agriculture.
Tube: Black, oil resistant, synthetic rubber.
Reinforcement: One or two braids of fiber reinforcement.
Cover: Black, oil, abrasion and weather resistant, thin synthetic rubber.
Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)
item | value |
Place of Origin | Hebei,China |
Brand Name | changtong |
Model Number | 1/4--2 |
Processing Service | Moulding |
Material | NBR |
Reinforcement | High Tensile Steel Wire |
Certification | ISO9001 |
Color | Black，blue,red... |
Standard | SAE100/DIN EN853 |
Length | 20m 40m 50m 100m |
Products Description
Hydraulic Hose | Reinforcement | Product Name | |||||
SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17 | |||||||
Two steel wire braided | SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC | ||||||
One/two wire braided | SAE R16 | ||||||
Four steel wire spiral | SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH | ||||||
High flexibility nylon or thermoplastic | SAE R7,SAE R8 | ||||||
Industrial Hose | Steam hose,Water/Air hose,Fuel/Oil hose,Washer hose | ||||||
EN853 1SN
EN853 1SN steel wire reinforced hydraulic hose is mainly used in high pressure conditions for its high tensile strength reinforcement.
EN853 2SN
EN853 2SN steel wire reinforced hydraulic hose workswell in very high pressure conditions because of its high tensile wire reinforcement.
EN857 1SC
EN857 1SC steel wire reinforced hydraulic hose is suitable for the equipment pipe whose installation space is compact and narrow.
SAE100 R1
SAE100 R1 steel wire reinforced hydraulic hose is suitable for high pressure working conditions for its high tensile steel wire reinforcement.
SAE100 R2
SAE100 R2 steel wire reinforced hydraulic hose is ofter used in mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment.
EN857 2SC
EN857 2SC steel wire reinforced hydraulic hose is suitable for equipment hose whose installation space is compact and narrow.

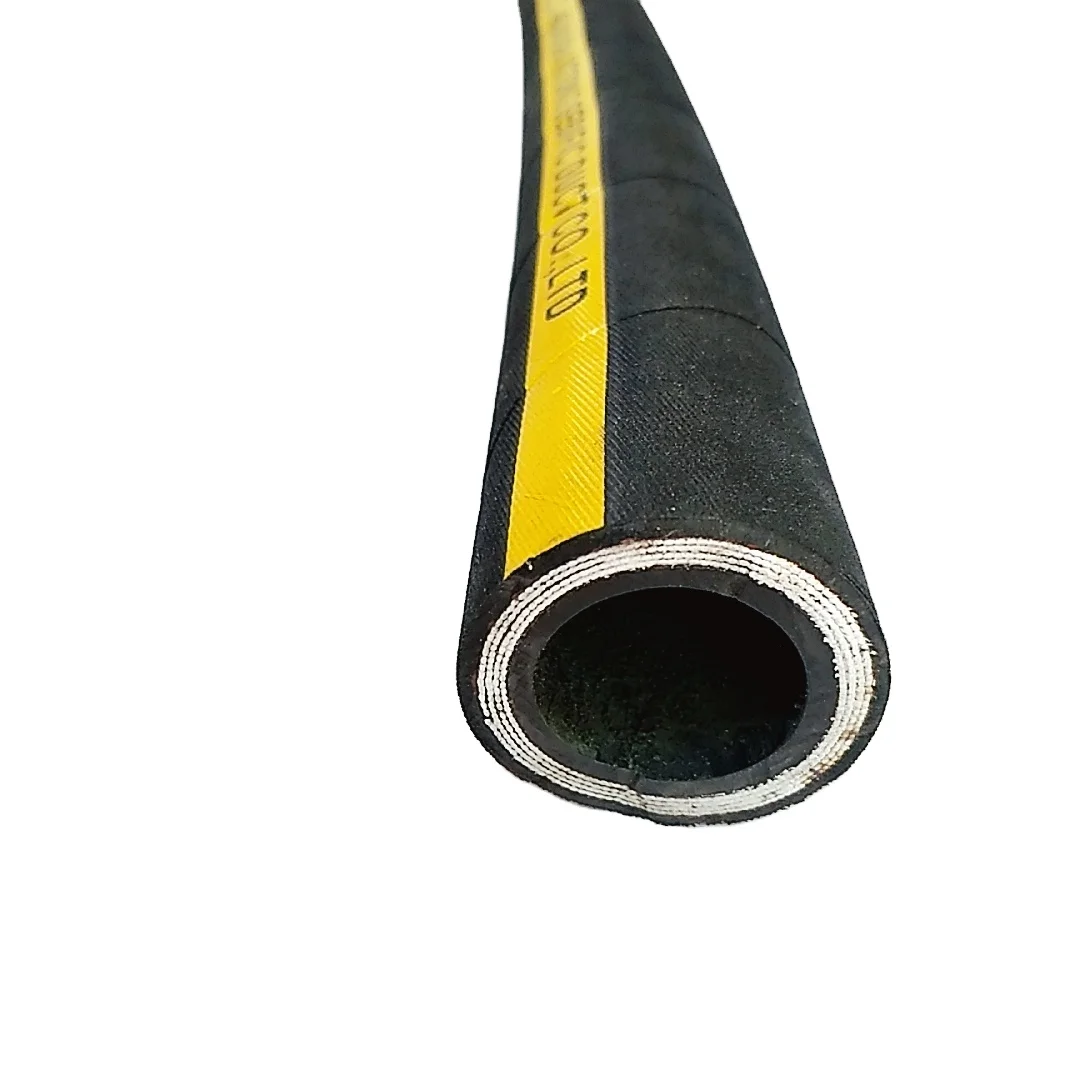

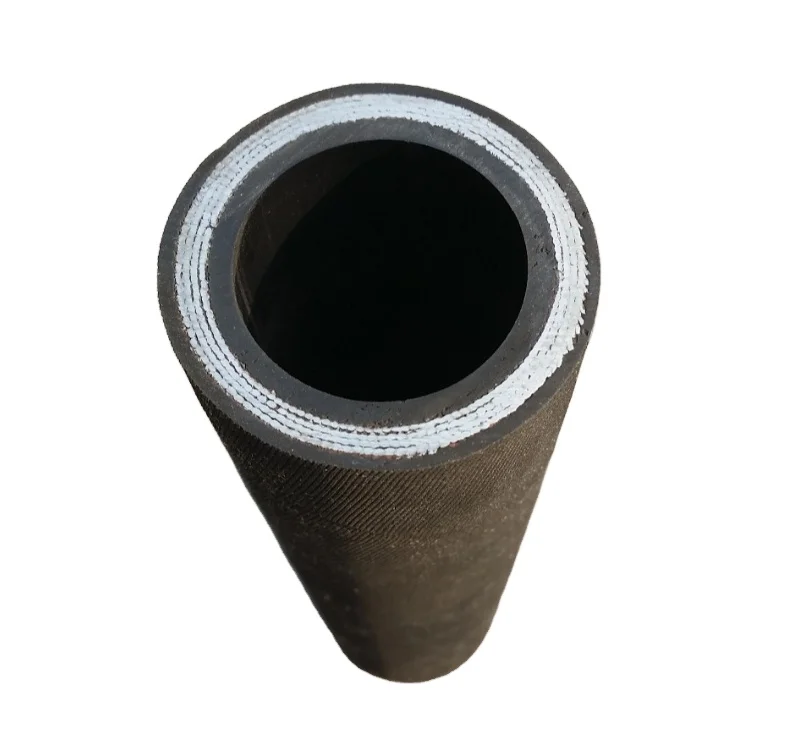

EN856 4SH
EN856 4SH steel wire spiraled hydraulic hose is suitable for extremely high pressure conditions due to its four layers of steel wire reinforcement.
EN856 4SP
EN856 4SP steel wire spiraled hydraulic hose is suitable for mine hydraulic equipment and its related euqipment.
SAE 100 R15
SAE 100 R15 steel wire spiraled hydraulic hose is suitable for petroleum-based hydraulic oils and it is mainly used in high pressure enviroment.
Packing & Delivery
Wapped in plastic or according to customer requirements.
Company Profile
Our factory was founded in 1999. for many years the entire factory staff, in humanist , the innovation, the earnest, the responsible manner,achieves the human character to decide in the product, has won the user's trust and the support.
Hejian Changtong Sebific Duct Co.,Ltd
located in Hejian, Hebei province, China, with Beijing, Tianjin, Shijiazhuang adjacent, 150 kilometers away from Tianjin port ,traffic is very convenient, strategic location, industrial development.
Factory reference to international advanced technical standards,
Factory reference to international advanced technical standards,
CT HOSE main production:
1) Steel wire braided hydraulic hose
SAE 100 R1AT/DIN EN 853 1SN
SAE 100 R2AT/DIN EN 853 2SN
DIN EN 857 1SC / 2SC
SAE 100 R1A/R2A SAE 100 R16/R17
Steam hose((1W,2W)
SAE 100 R5
2) Multi steel wire Spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
3) Other hydraulic hose
SAE 100 R3/R6
SAE 100 R7/R8
SAE 100 R14(Teflon hose)
4) Industrial hose
air/water/oil hose
sand blast hose
suction and discharge hoses
SAE 100 R1AT/DIN EN 853 1SN
SAE 100 R2AT/DIN EN 853 2SN
DIN EN 857 1SC / 2SC
SAE 100 R1A/R2A SAE 100 R16/R17
Steam hose((1W,2W)
SAE 100 R5
2) Multi steel wire Spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
3) Other hydraulic hose
SAE 100 R3/R6
SAE 100 R7/R8
SAE 100 R14(Teflon hose)
4) Industrial hose
air/water/oil hose
sand blast hose
suction and discharge hoses
