Высокопроизводительная ударная Дробилка 450-520 tph
US $42999-$43200

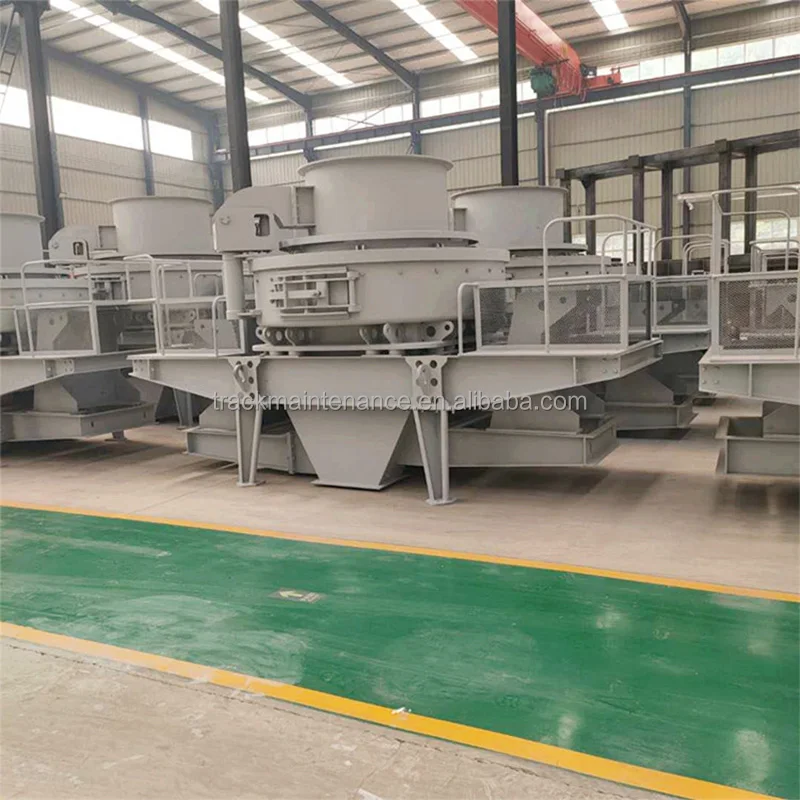

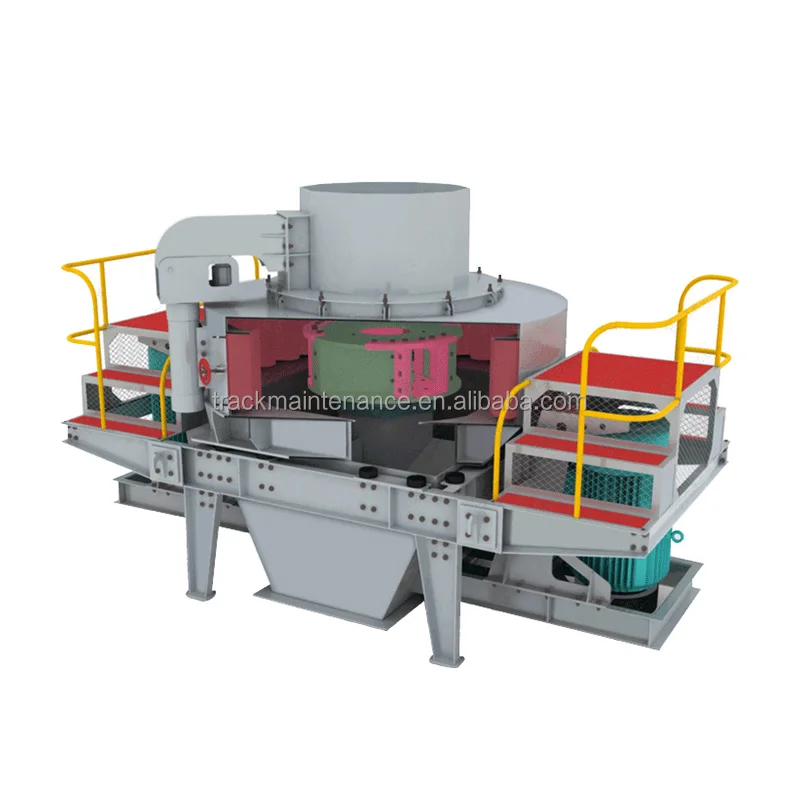

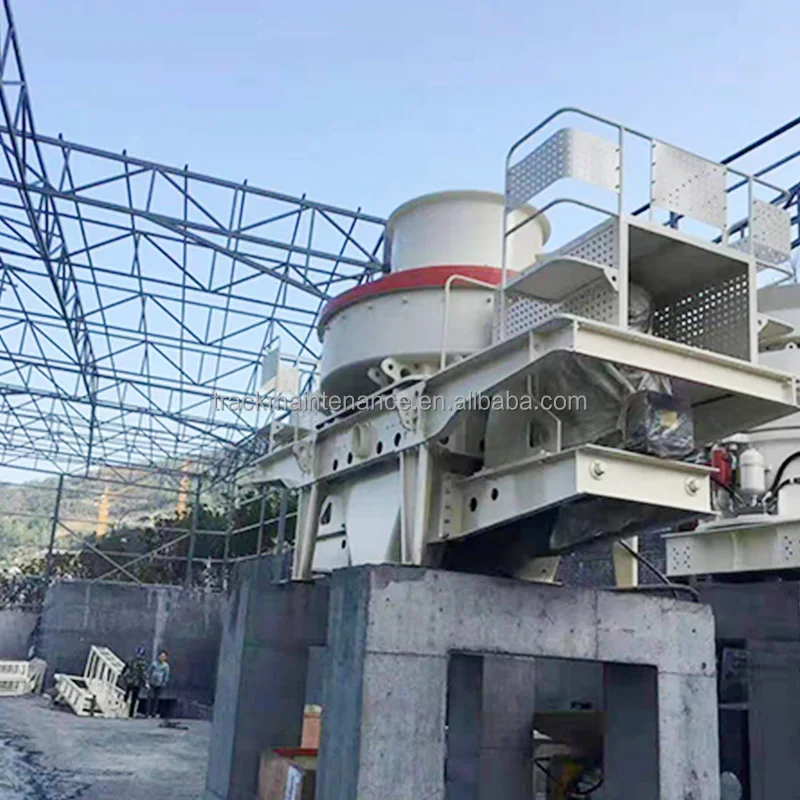

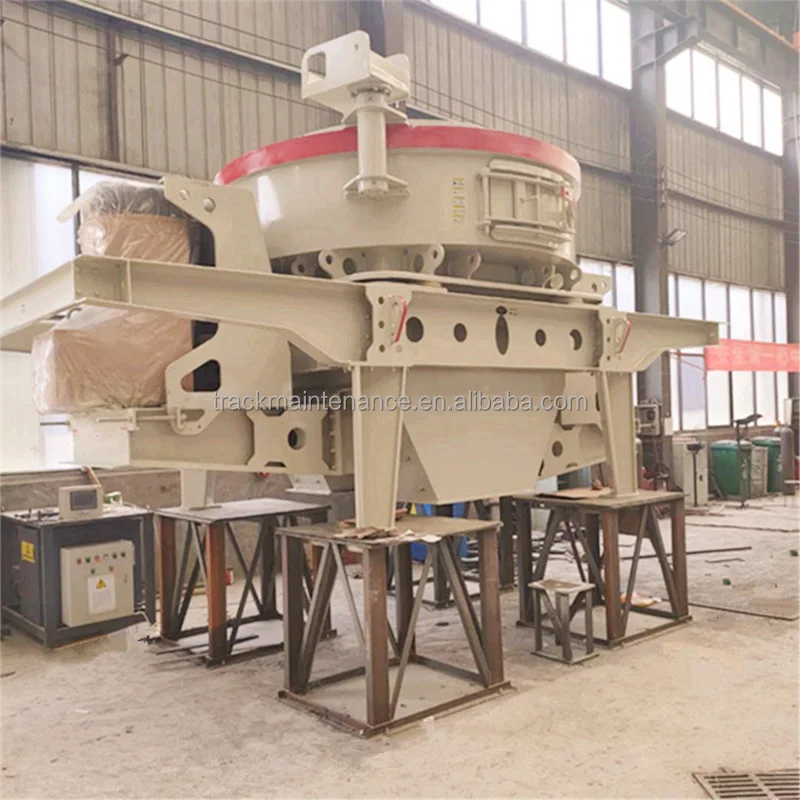

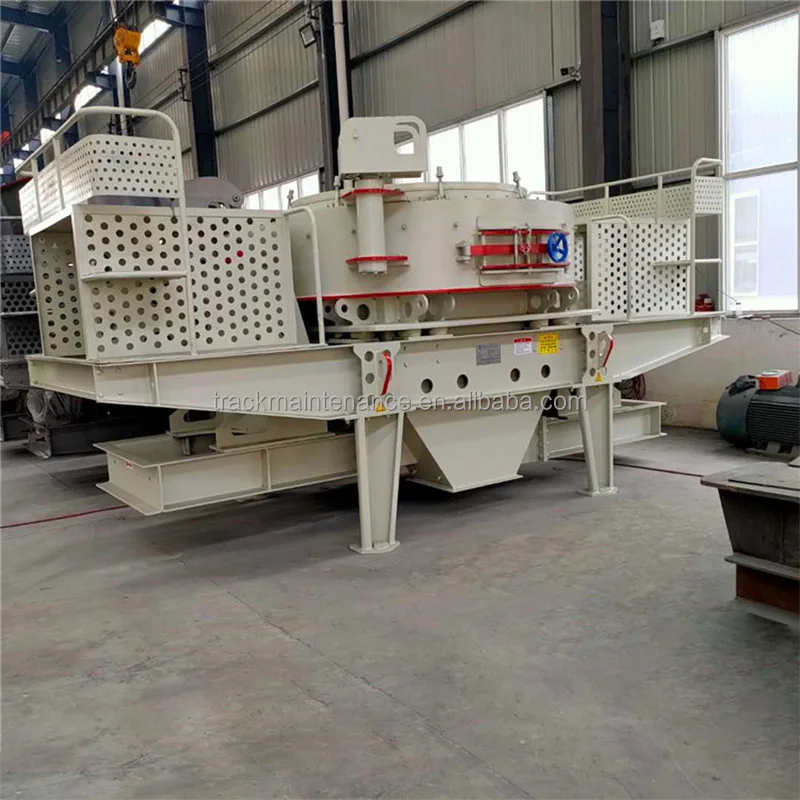

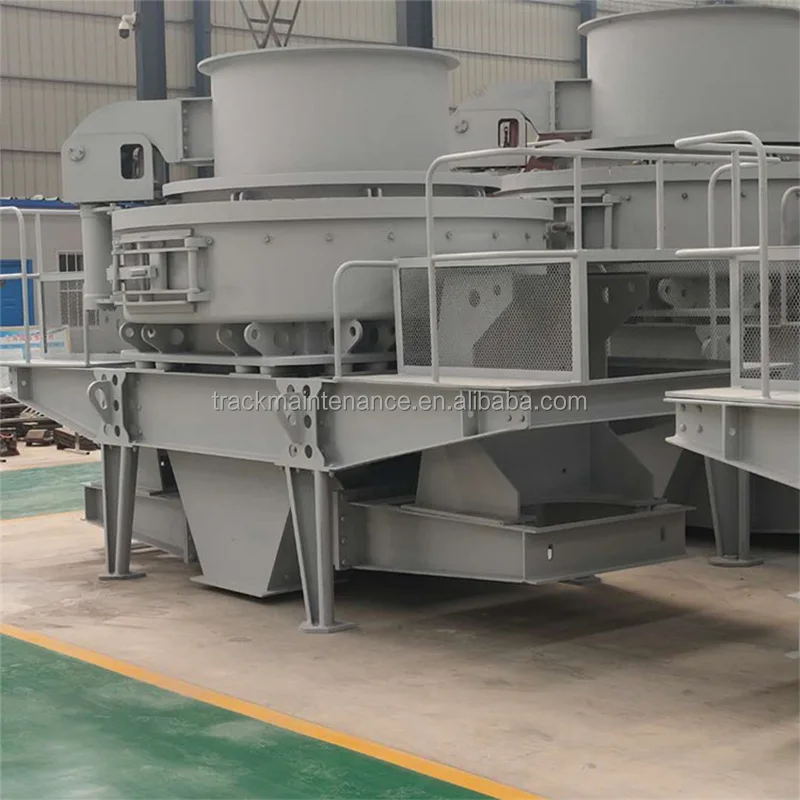

Машина для производства песка и гравия Vsi
- Категория: >>>
- Поставщик: Henan,Qiangli,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 47600.92 $* | 49980.19 $* |
| Aug-20-2025 | 47200.60 $* | 49560.68 $* |
| Jul-20-2025 | 39600.17 $* | 41580.52 $* |
| Jun-20-2025 | 46400.29 $* | 48720.2 $* |
| May-20-2025 | 40400.81 $* | 42420.20 $* |
| Apr-20-2025 | 45600.56 $* | 47880.7 $* |
| Mar-20-2025 | 45200.7 $* | 47460.73 $* |
| Feb-20-2025 | 44800.84 $* | 47040.58 $* |
| Jan-20-2025 | 44400.17 $* | 46620.70 $* |
Характеристики
Product Description
Sand Making Machine Price, Granite Silica Stone Sand Production Line, Mini Gravel Sand Maker Stone Crusher Machine For Sale
1)Introduction of the full production line
sand making machine is widely used for fine crusher and coarse grinding of metal and non metal ores, cement, refractory material, grinding material, glass raw material, building aggregates, artificial sand and all kinds of metallurgical slags. It is especially suitable for medium hardness materials, high hardness materials and corrosion resistance materials, such as carborundum, emery, magnesia etc.
sand making machine is widely used for fine crusher and coarse grinding of metal and non metal ores, cement, refractory material, grinding material, glass raw material, building aggregates, artificial sand and all kinds of metallurgical slags. It is especially suitable for medium hardness materials, high hardness materials and corrosion resistance materials, such as carborundum, emery, magnesia etc.
2)Machine inrtoduction
Sand making machine is the latest product of authoritative experts from both home and abroad,connecting with quarry,mining present working conditions.
Specification
model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | VSI-1145 | ||||||
Capacity (t/h) | Cascade and Center Feeding | 120-180 | 200-260 | 300-360 | 450-520 | 490-600 | |||||
Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-310 | ||||||
Feeding Size (mm) | Soft Material | < 35 | < 40 | < 45 | < 50 | < 50 | |||||
Hard Material | < 30 | < 35 | < 40 | < 45 | < 45 | ||||||
Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1180-1280 | ||||||
Power of the Double Motors (kw) | 110-150 | 180-220 | 264-320 | 400-440 | 440-520 | ||||||
Overall dimension L*W*H (mm) | 3700*2150*2100 | 4140*2280*2425 | 4560*2447*2278 | 5000*2700*3300 | 5100*2790*3320 | ||||||
Power Source | 380v:50hz | ||||||||||
Vibrating Sensor | Inspection Scope:0.1-20mm/s, it can be adjusted continuously. | ||||||||||
Hydraulic Lubrication Station | Power of Double Oil Pump | 2x0.31kw | |||||||||
Safety | Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter. | ||||||||||
Overall Dimension L*W*H (mm) | 820x520x1270 | ||||||||||
Power of Oil-Box Heater | 2kw | ||||||||||
Our Advantages
Working principle
VSI series sand making machine adpots high-speed movement of materials mutual self-broken and friction between materials to crush.This series of equipment is not only crushing stone, making sand and also playing shaping role with the finished products.
The raw material is high strength cast iron, with good mechanical property, as well as good ability of absorbing the energy of crusher's vibration. It's a great help to make the rotation of main shaft running steady, which can continuously stable the output of your crusher. The heat treatment of tempering is applied to release the internal stress. It's a great help to prevent the part's dimension change in the daily operation of your crusher. It obviously can prolong the life of your crusher. The final machining is carried by CNC machine to ensure each dimension tolerance, which helps to make your assembly easy and fast, to improve the efficiency of your production and maintenance.
Company Profile
FAQ
1. who are we?
We are based in Henan, China, start from 1995,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Petrol Rail Cutting Machine and grinding machine,Rail drilling machine and Bolt Wrench,Ballast Tamper And Pulling Machine For Sleeper Screw,mining machine,construction machine
4. why should you buy from us not from other suppliers?
We have more than 30 years experience in machinery manufacturing . Our products all is popular in inner markst and outer market . We have professional engineers and many departsments ,it is strong support to our factory and company business .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Henan, China, start from 1995,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Petrol Rail Cutting Machine and grinding machine,Rail drilling machine and Bolt Wrench,Ballast Tamper And Pulling Machine For Sleeper Screw,mining machine,construction machine
4. why should you buy from us not from other suppliers?
We have more than 30 years experience in machinery manufacturing . Our products all is popular in inner markst and outer market . We have professional engineers and many departsments ,it is strong support to our factory and company business .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
