NICON диффузный кремний компактный авиационный разъем датчик
- Категория: >>>
- Поставщик: ZHENGZHOU,NICON,TECH,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 33.54 $* | 35.20 $* |
| Aug-16-2025 | 33.16 $* | 35.72 $* |
| Jul-16-2025 | 28.58 $* | 29.74 $* |
| Jun-16-2025 | 32.5 $* | 34.83 $* |
| May-16-2025 | 28.43 $* | 29.78 $* |
| Apr-16-2025 | 32.13 $* | 34.97 $* |
| Mar-16-2025 | 32.27 $* | 34.3 $* |
| Feb-16-2025 | 31.84 $* | 33.38 $* |
| Jan-16-2025 | 31.7 $* | 33.98 $* |
Характеристики

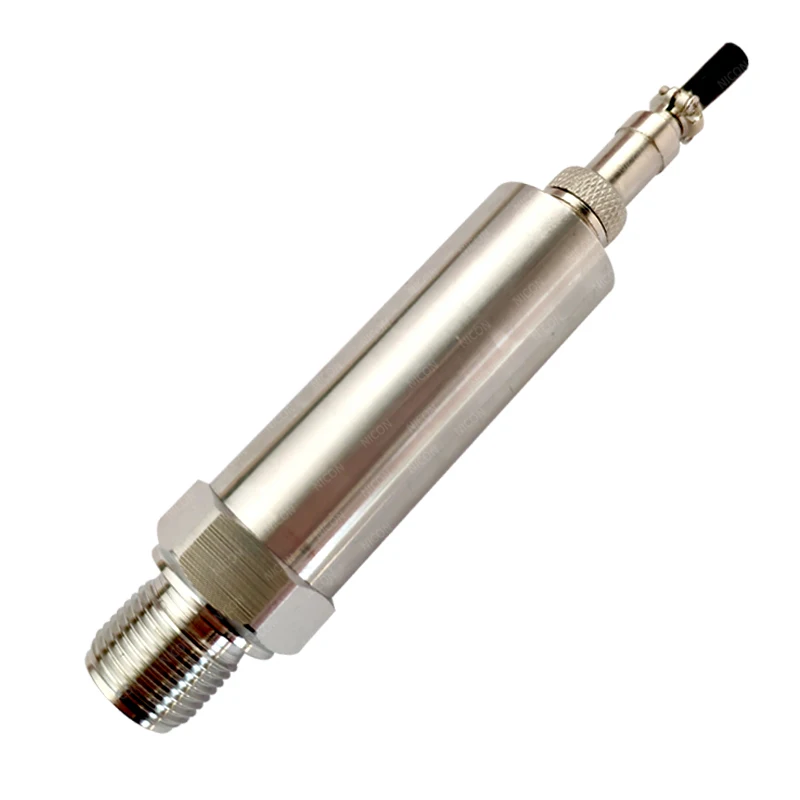

NICON diffuse silicon compact aviation plug pressure liquid level transmitter
Products Description
NICON diffuse silicon compact aviation plug pressure liquid level transmitter
Waterproof design, threaded extruded rubber plug, super sealing P68 waterproof grade, suitable for outdoor or underwater installation in wet environment, without affecting performance
Product Paramenters
Model | NIC-2166-S |
Outline mode | Air plug/Hersman/direct outlet |
Measuring range | -100kpa~0~100mpa |
Output signal | 4-20ma、0-10VDC、0-5VDC、0.5-4.5VDC、RS485 |
screw | M20*1.5、G1/2（customizable） |
Power | 12~36 VDC/5VDC |
Temperature: | -30~80℃ |
Relative humidity: | 0~90% |
Overload: | 150% |
Pressure form: | gauge,absolute,negative |
Level of accuracy: | 0.1%,0.25%,0.5% |
long term stability： | ±0.2%/year |
Note | medium temperature over 70℃ need to choose high temperature accessories. |

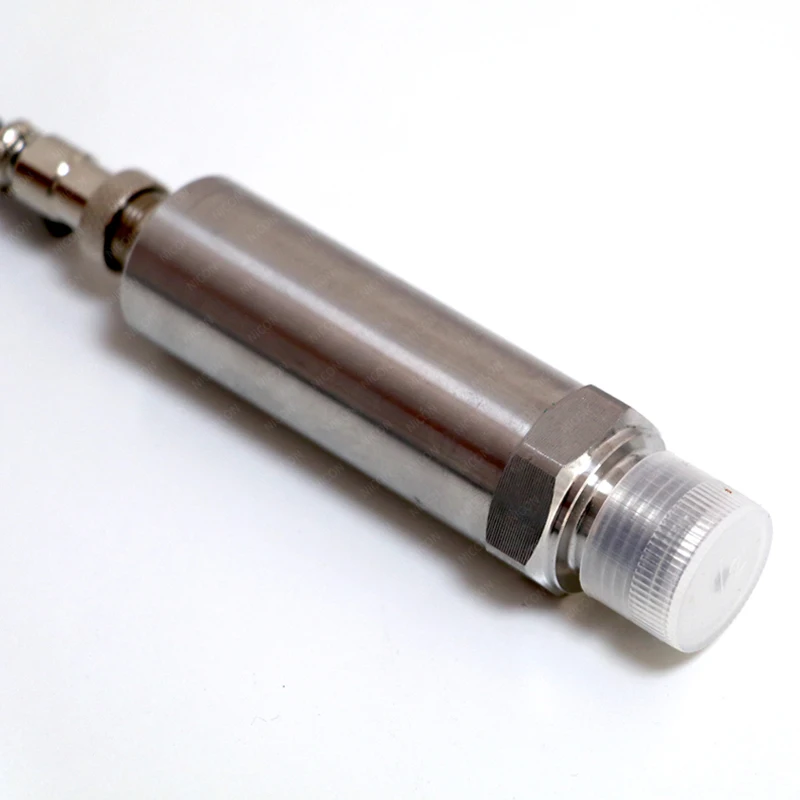

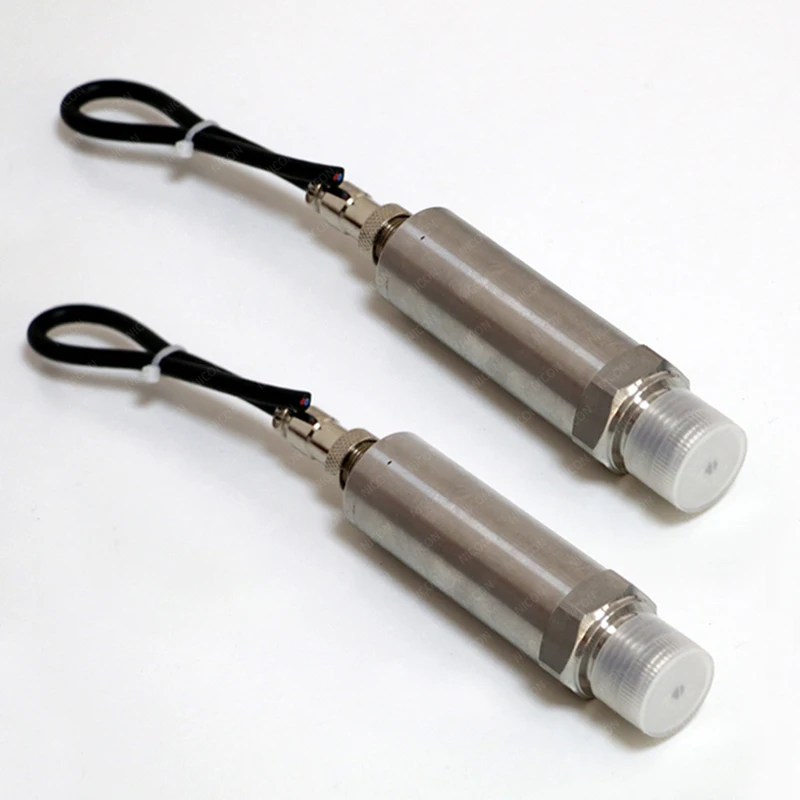

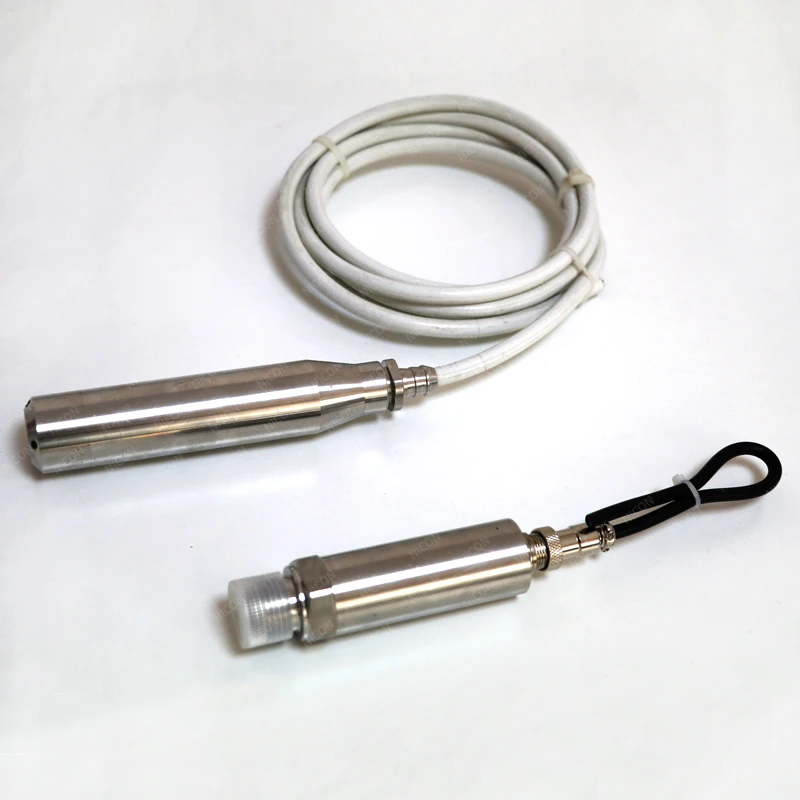

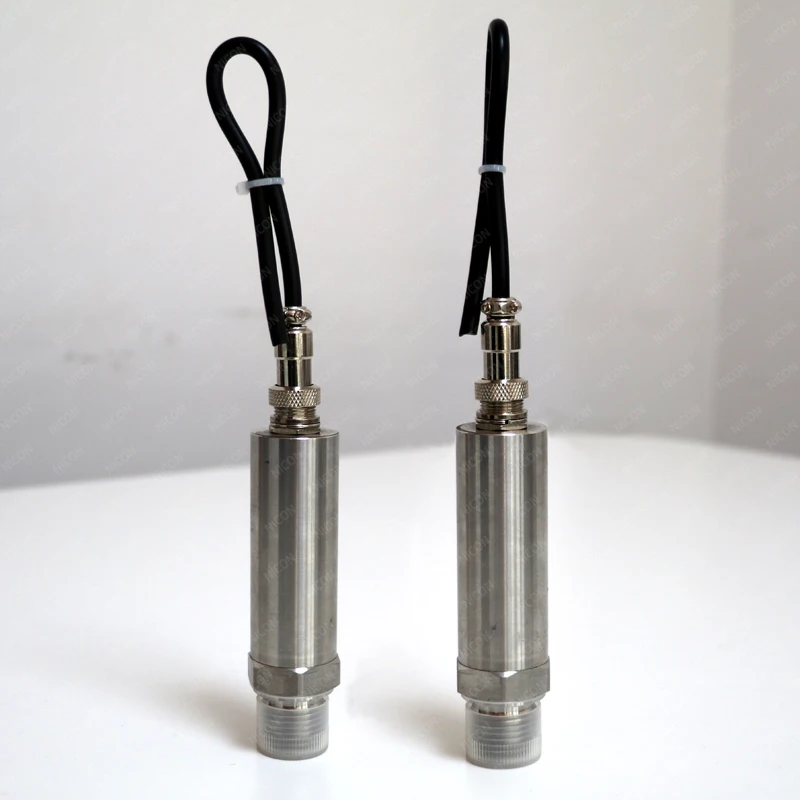

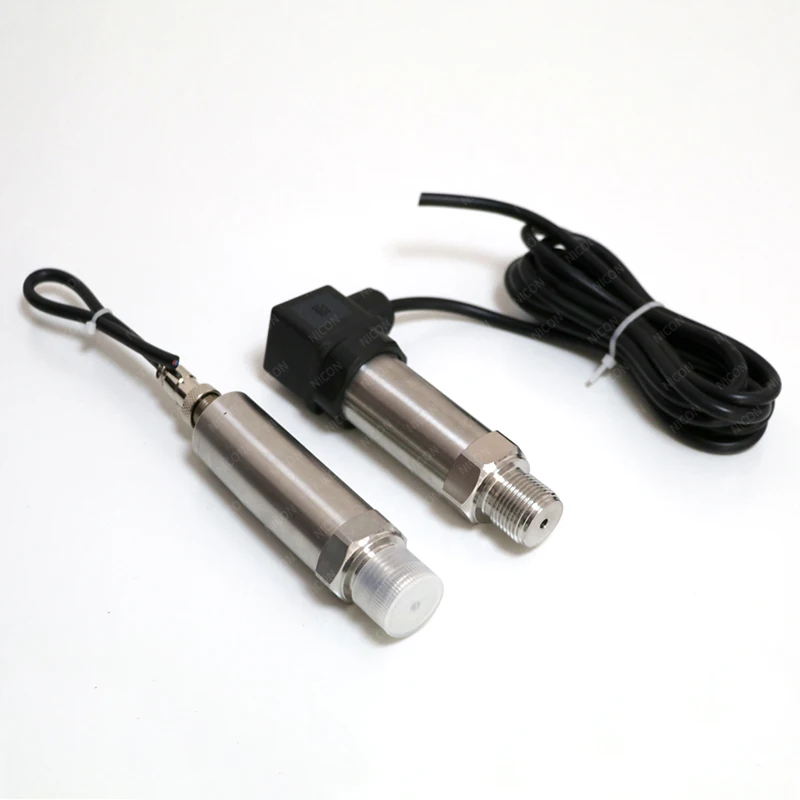

Details Images
Features of diffuse silicon compact aviation plug pressure liquid level transmitter:
1.High precision, good stability
2.Wide coverage
3.Non-moving parts, high reliability, long service life
4.not affected by the size of the measured medium mass
5.Stainless steel case, IP65 grade of protection
2.Wide coverage
3.Non-moving parts, high reliability, long service life
4.not affected by the size of the measured medium mass
5.Stainless steel case, IP65 grade of protection
Application
The diffuse silicon compact aviation plug pressure liquid level transmitter adopts diffused silicon core as sensitive element and intelligent digital circuit. The overall performance is stable and reliable, and can be transmitted over long distance. Easy installation, suitable for gas, liquid, steam pressure measurement and control.
Use scenarios
■ Constant pressure water supply for buildings and water pressure monitoring
■ Hydraulic monitoring
■ Air tightness monitoring
■ Negative pressure measurement
■ Hydraulic monitoring
■ Air tightness monitoring
■ Negative pressure measurement
Packaging & Shipping
Company Profile
NICON is a high-tech technology enterprise integrating R&D, design, manufacturing, sales service, engineering design and complete system of industrial automation control equipment. The company has strong technical force, advanced production and testing equipment, excellent product technology, reliable quality, and timely after-sales service, and is deeply trusted by users.
Certifications
High standard production processes
1. The screening of components, using pearl cotton all-round package storage, to prevent shell collision scratch. Layer by layer control for you to provide high-quality pressure transmitter.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality.
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
2. Six accurate calibration, using the United States General Electric automatic calibration system, each product from production to delivery, after six accurate calibration. Zero point, midpoint, full degree of three-point detection, covering the full range, the measurement accuracy is much higher than two-point calibration.
3. High temperature aging test 72 hours aging test to ensure stable and reliable quality.
4. Laser marking, each pressure transmitter has a corresponding'identity number, from production to use, can detect maintenance records, one-click query, digital management, to give you a better use of experience.
FAQ
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Zhengzhou city, Henan province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
8.How many days we can deliver?
In general, 2-3 days if sample order. 7-10 days if less than 100 pcs.
