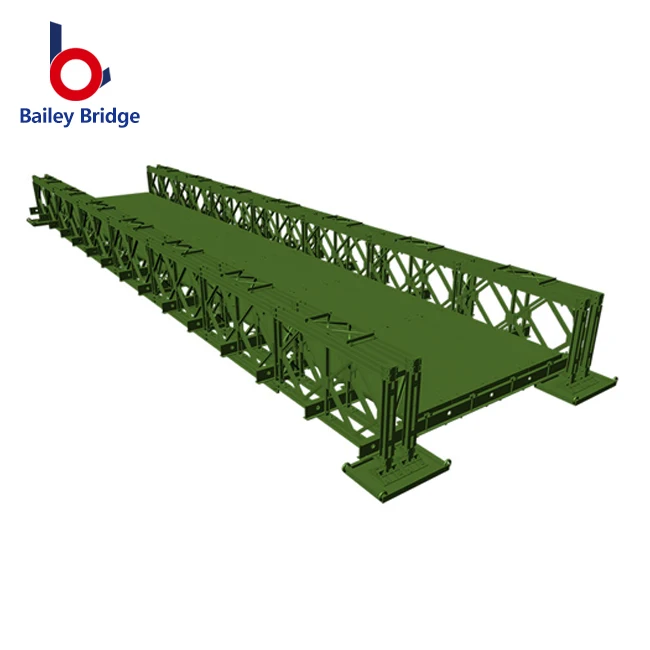

Стальная конструкция фермы мост Бэйли для военных
- Категория: Steel Structures >>>
- Поставщик: Jiangsu,Bailey,Steel,Bridge,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 357.53 $* | 375.26 $* |
| Aug-18-2025 | 354.80 $* | 372.79 $* |
| Jul-18-2025 | 297.62 $* | 312.81 $* |
| Jun-18-2025 | 348.45 $* | 365.34 $* |
| May-18-2025 | 303.88 $* | 318.59 $* |
| Apr-18-2025 | 342.34 $* | 359.88 $* |
| Mar-18-2025 | 339.36 $* | 356.54 $* |
| Feb-18-2025 | 336.0 $* | 353.35 $* |
| Jan-18-2025 | 333.62 $* | 350.62 $* |
Характеристики
ZB200 truss press limited table | ||||||||||||||||||
No | internal force | structure form | ||||||||||||||||
not reinforced model | reinforced model | |||||||||||||||||
SS | DS | TS | QS | SSR | DSR | TSR | QSR | |||||||||||
200 | standard truss moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 | |||||||||
200 | standard truss shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 | |||||||||
201 | high bending truss moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 | |||||||||
202 | high bending truss shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 | |||||||||
203 | Shear force of super high shear truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 | |||||||||
ZB200 Table of geometric characteristics of truss bridge（Half bridge） | ||||||||
structure | geometric characteristics | |||||||
structure | geometric characteristics | chord area(cm2) | Section properties（cm3） | Moment of inertia(cm4) | ||||
ss | SS | 25.48 | 5437 | 580174 | ||||
SS | SSR | 50.96 | 10875 | 1160348 | ||||
DS | DS | 50.96 | 10875 | 1160348 | ||||
DSR1 | 76.44 | 16312 | 1740522 | |||||
DS | DSR2 | 101.92 | 21750 | 2320696 | ||||
TS | TS | 76.44 | 16312 | 1740522 | ||||
TSR2 | 127.4 | 27185 | 2900870 | |||||
TS | TSR3 | 152.88 | 32625 | 3481044 | ||||
QS | QS | 101.92 | 21750 | 2320696 | ||||
QSR3 | 178.36 | 38059 | 4061218 | |||||
QS | QSR4 | 203.84 | 43500 | 4641392 | ||||
