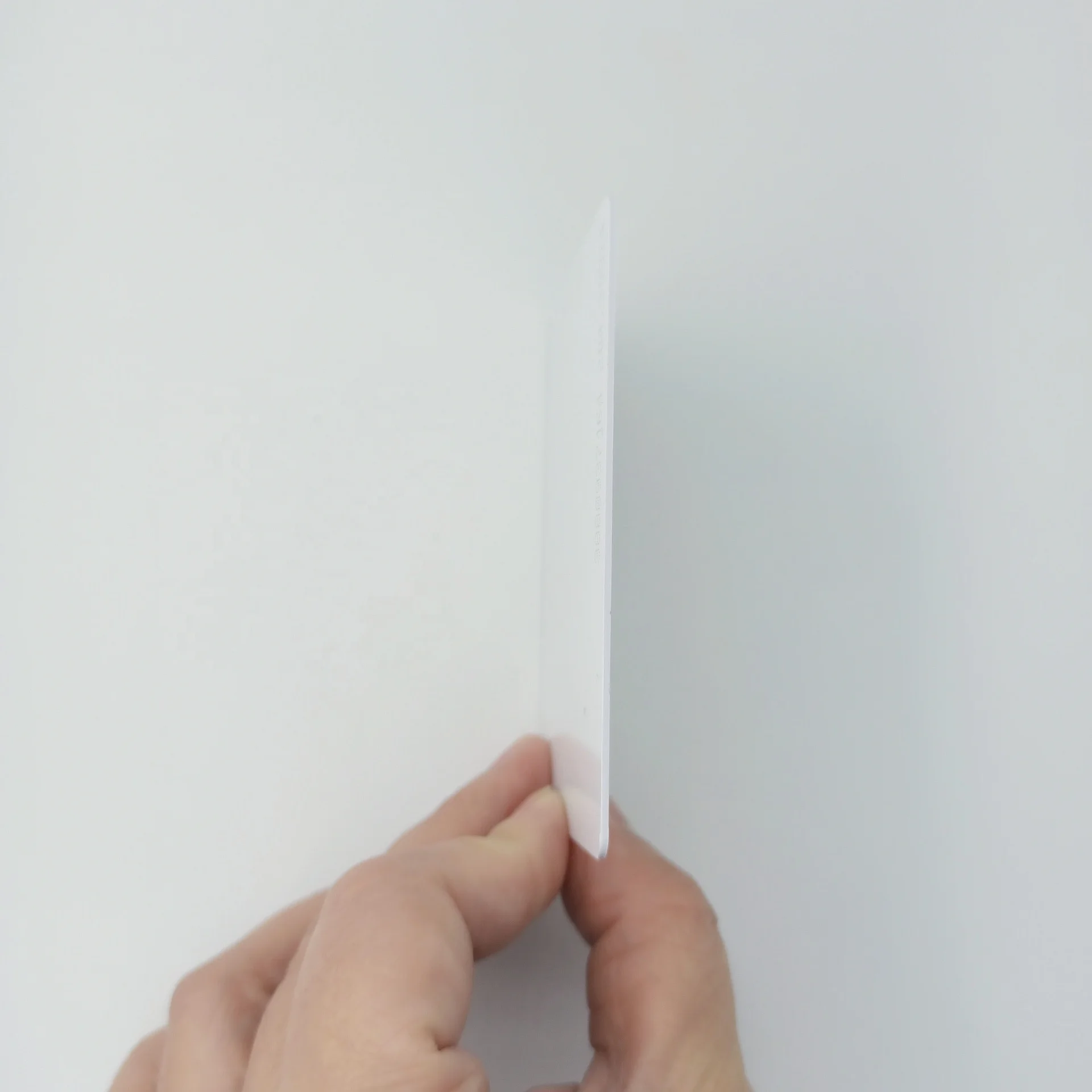

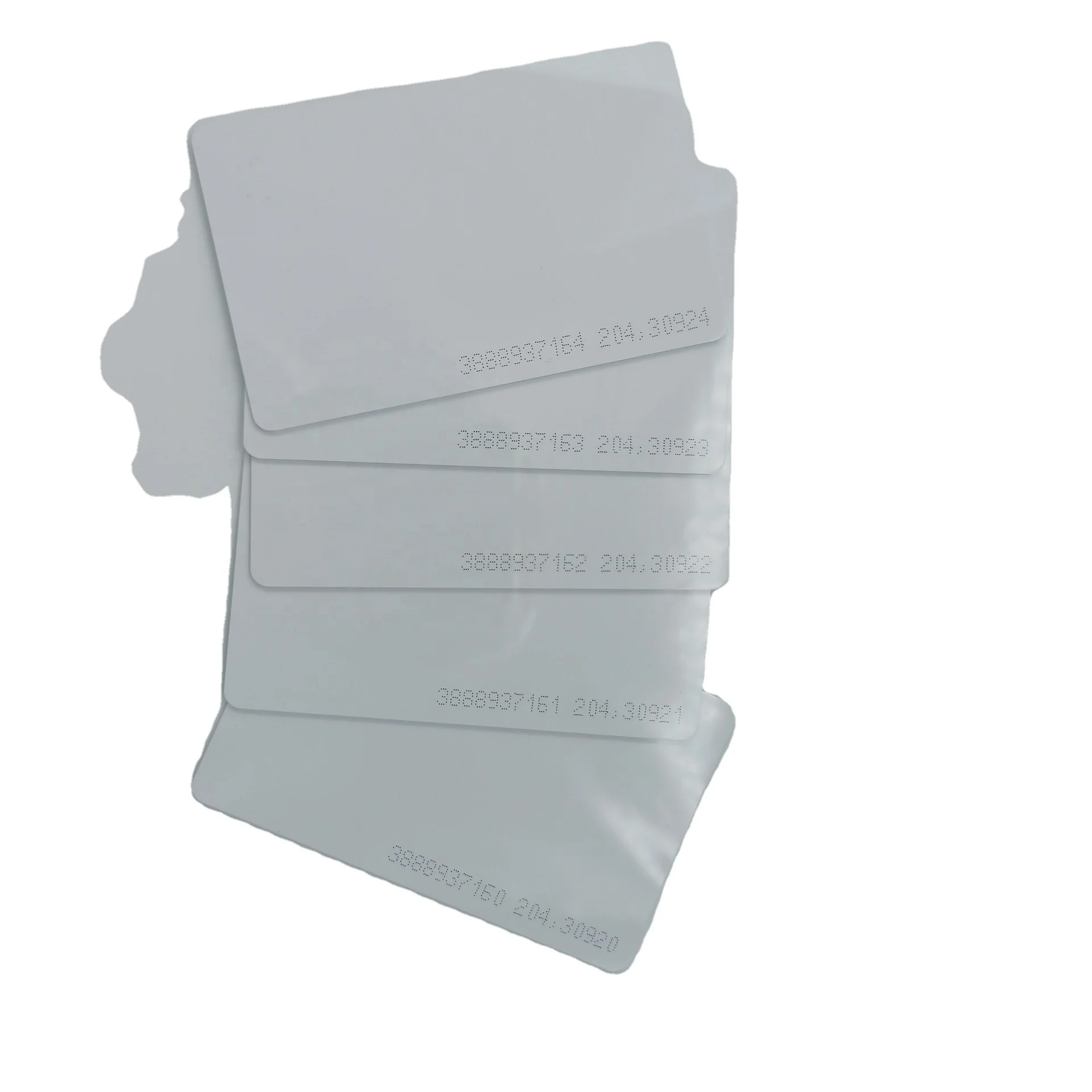

Contactless Clamshell Card125 KHz EM4305 Tarjetas en Blanco Low Frequency EM4205/4305 blank business card



What is the EM4305 RFID Card?

EM4305 RFID Card,otherwise known as EM4305 proximity card is a kind of common 125KHZ RFID card made of PVC or PET. It is often used as an access card, you maybe have used it but unknown its name. What is the difference between the EM4305 card and the EM4200 card ? The big difference between them is that the EM4200 card can only read, while the EM4305 card can read and write.

EM4305 RFID Card features 32-bit Password read and write protection, low power consumption, 512 bit EEPROM, no external supply buffer capacitor needed, and compatible with the EM4469/4569 family, etc. And it is very cheap and often used in low-cost applications that require tracking and identification, such as access control in campus, community, library, parking plot, etc.

Features:

If you want to know the complete function of the EM4305 RFID card, you must learn the characteristic of the EM4305 chip that plays a core role in the EM4305 card. Here some central features, and you can download the EM4305 DataSheet.

• 512 bit EEPROM organized in 16 words of 32 bit


• 32 bit unique identifier (UID)


• 32 bit Password read and write protection


• ISO 11784 / 11785 Standard Compliant


• Lock feature converts EEPROM words into Read Only


• Two data encodings: Manchester and Bi-phase


• Multi-purpose data rate: 8, 16, 32, 40 and 64 RF clocks


• Reader Talk First feature


• Very low power consumption and High performances


• Compatible with EM4469/EM4569 communication protocol


• 100 to 150 kHz frequency range


• On-chip rectifier and voltage limiter


• No external supply buffer capacitor needed


• -40°C to +85°C temperature range


• Very low power consumption


• Enlarged bumped pads (200m x 400m) for direct connection of coil (EM4305)


• EM4205: 2 resonant capacitor versions 210pF or 250pF selectable by mask option. The resonant capacitor can be trimmed, at factory level, to offer accuracy on the tolerance of 3%.


• EM4305: 3 resonant capacitor versions 210pF, 250pF or 330pF selectable by mask option


• Available in plastic extremely thin small outline package; 2 terminals; body 1.1 * 1.4 * 0.46 mm

Applications:

EM4305 chip is suitable for low-cost solutions like animal tagging applications and can be encapsulated into different forms, like tag, wristband, card, etc. widely used in the following applications:

• Animal Identification according to ISO FDX-B


• Pigeon races standard


• Waste management standard (BDE)


• Access Control


• Industrial

As a card, EM4305 RFID Card is mainly used in the access control for community, company, school, library, exhibition, parking lot, etc.



Product Description:



Item	125 kHz RFID Blank Card
Material	PVC,PET
Chip Number	EM4305
Frequency	125 kHz
Color	White or Customizable
Size	CR80 (85.5*54mm) or Custom
Reading distance	0-10cm
Write Endurance	100000 times
Working Temperature	-25°C to 65°C
Data Retention Time	10 years
Printing Options	Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc.
Crafts Available	Logo or number printing, Bar code, QR code, etc.
Samples	Free samples are available upon request

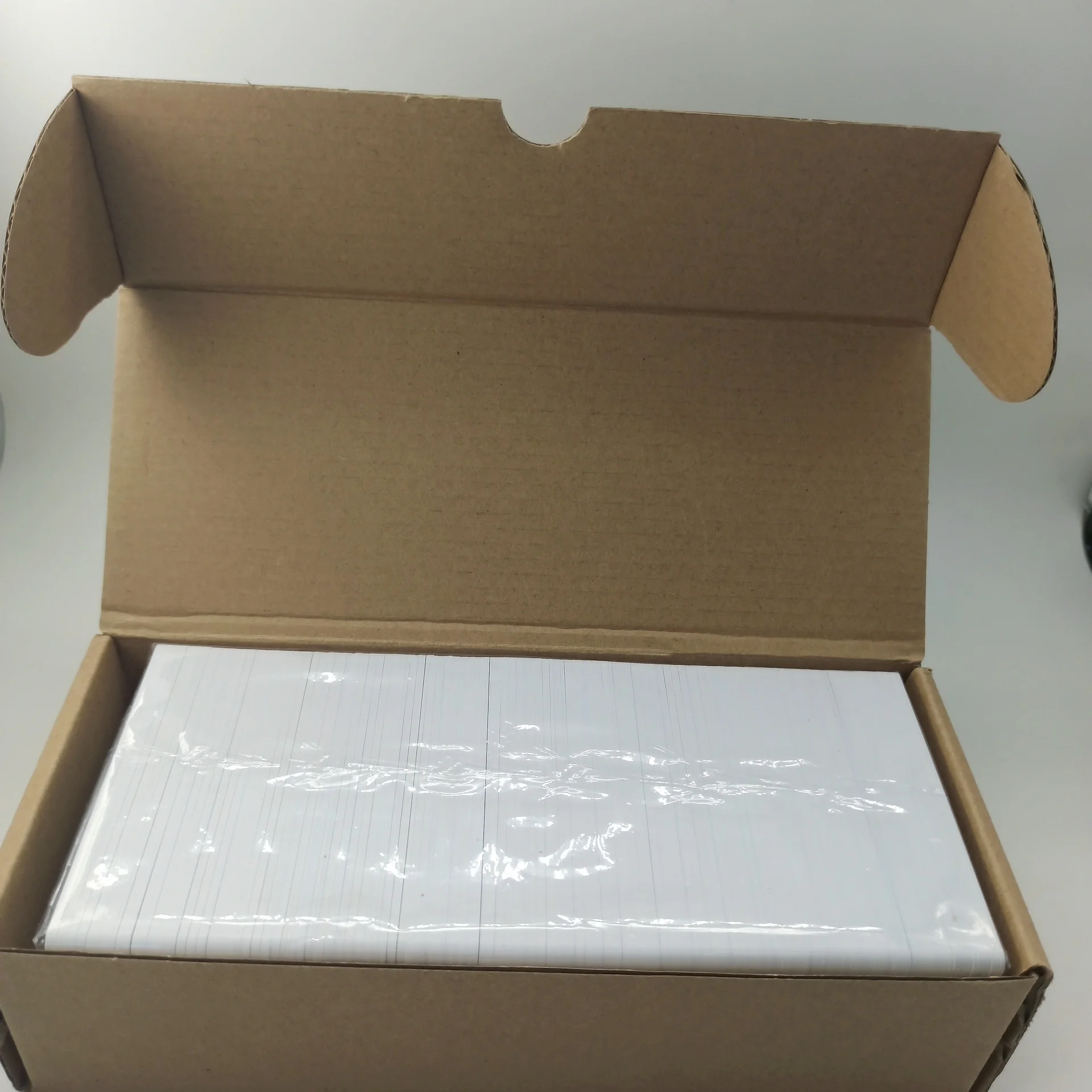

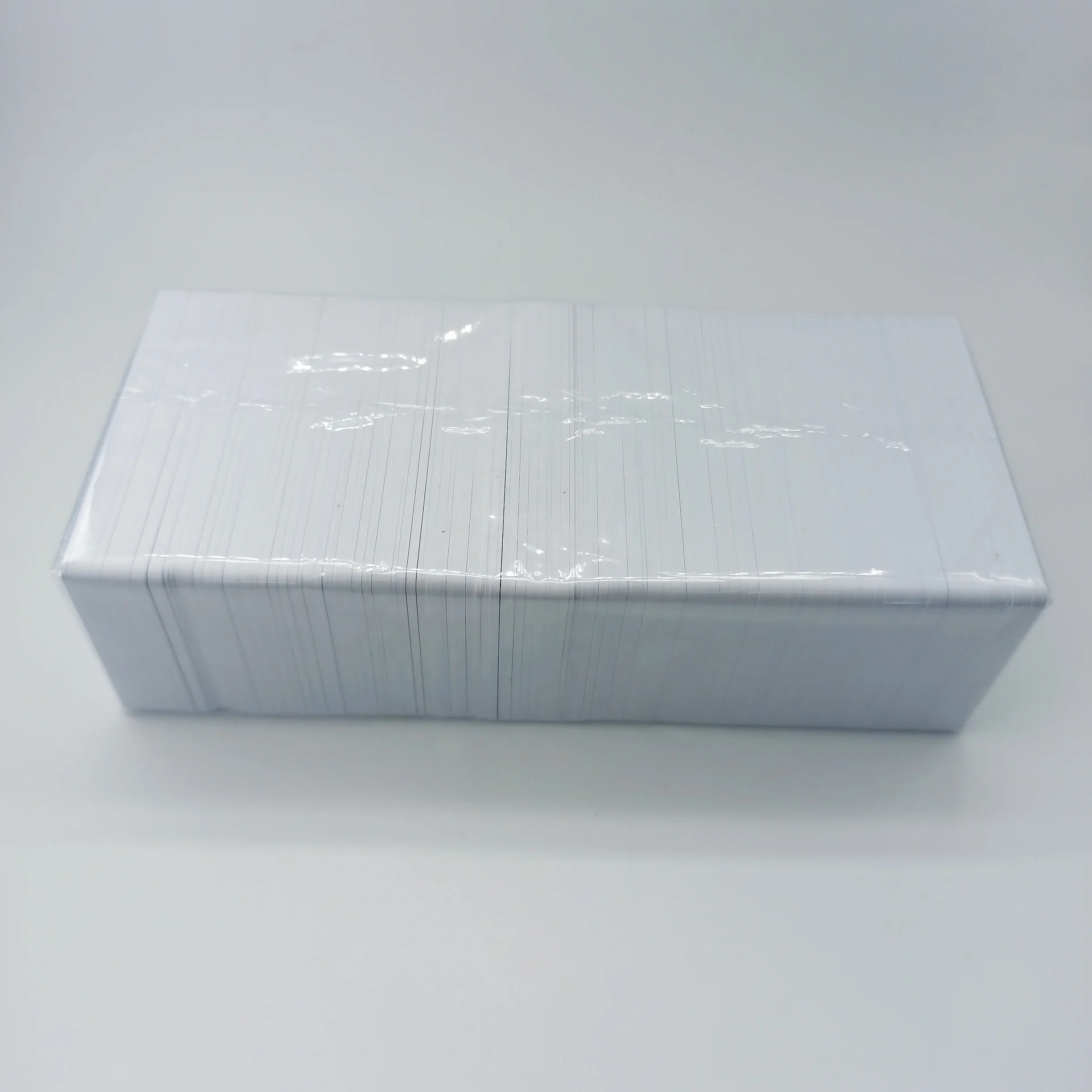

Volume	Chip Card: 200pcs cards with chips in one box, 5000pcs per carton
Weight	6.5KG for 1000pcs



Packing:
