Низкая цена профессиональная различные гибкие печатные
- Категория: >>>
- Поставщик: Yuwei,Electronic,Technology,(Wuhan),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.85 $* | 0.73 $* |
| Aug-19-2025 | 0.9 $* | 0.74 $* |
| Jul-19-2025 | 0.49 $* | 0.95 $* |
| Jun-19-2025 | 0.83 $* | 0.19 $* |
| May-19-2025 | 0.34 $* | 0.73 $* |
| Apr-19-2025 | 0.12 $* | 0.92 $* |
| Mar-19-2025 | 0.43 $* | 0.0 $* |
| Feb-19-2025 | 0.11 $* | 0.8 $* |
| Jan-19-2025 | 0.44 $* | 0.33 $* |
Характеристики
We were founded in 1995 and has 25+ years of PCB and PCBA production experience. We have built a modern factory, which has greatly improved in Production Capacity and Quality Control. In order to adapt to the upgrading speed of electronic products, we can provide customers with One-Stop service (PCB + PCBA), which not only shortens the product launch cycle, but also saves customers' Research and Development costs. We can provide flexible production of Prototypes and Small&Middle volume production to meet customers' requirements from r&d to product launch.

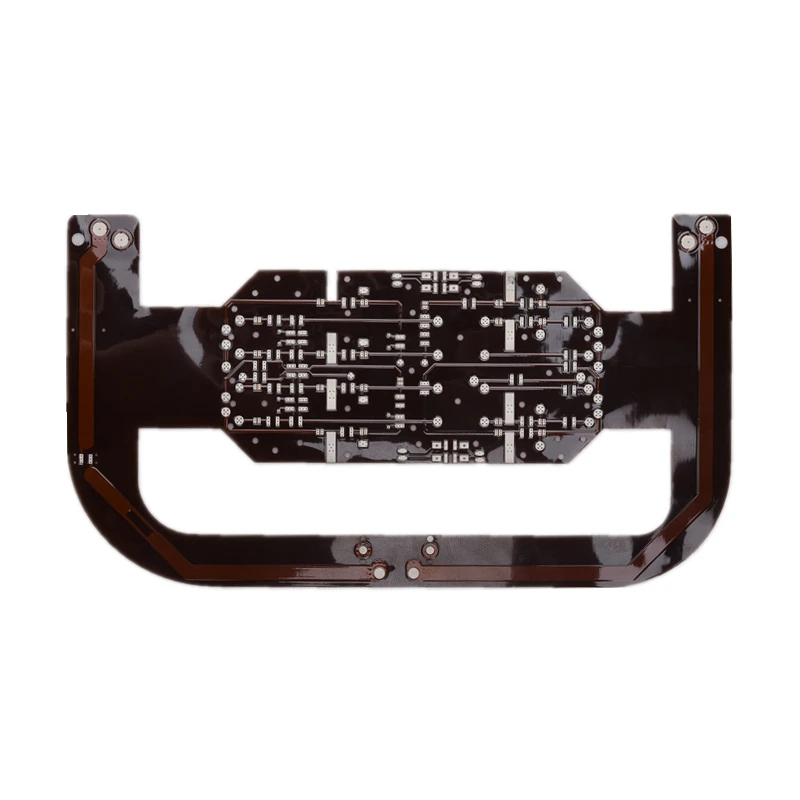

2-Layer Flex PCB
Materials: Panasonic
Thickness: 0.15mm
Surface: ENIG
Thickness: 0.15mm
Surface: ENIG

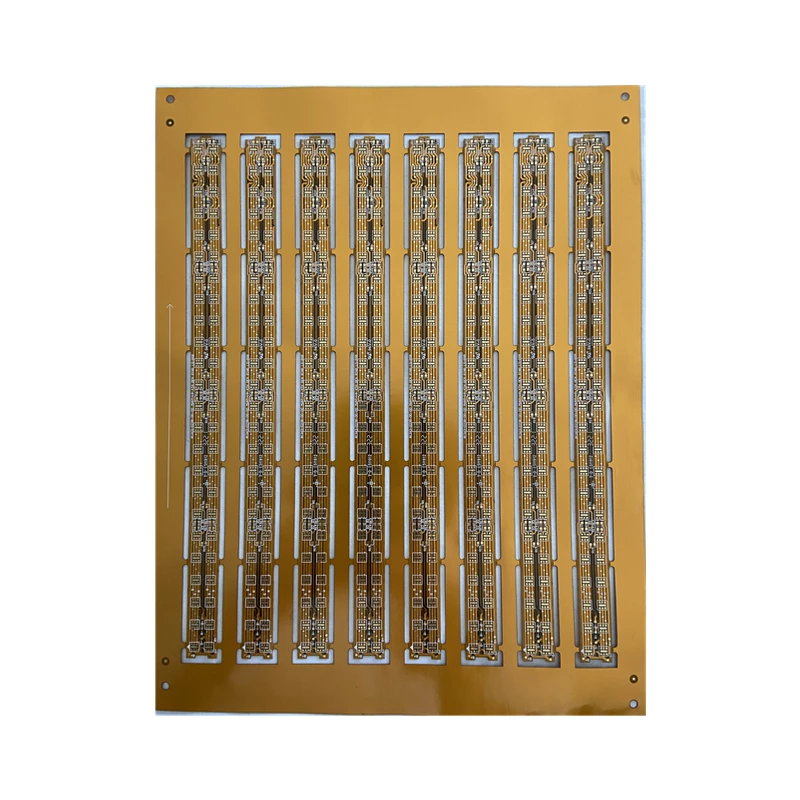

4-Layer Flex PCB(2+2)
Materials: Dupont
Thickness: 0.3mm
Surface: ENIG

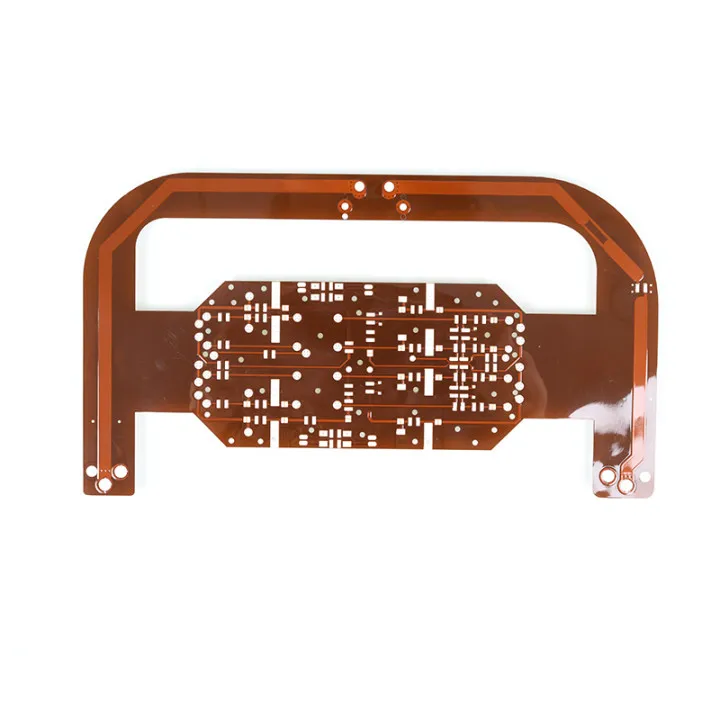

2-Layer Flex PCB
Thickness: 0.15mm
Materials: Shengyi
Surface: ENIG
Special: Coverlay+Soldermask
Materials: Shengyi
Surface: ENIG
Special: Coverlay+Soldermask

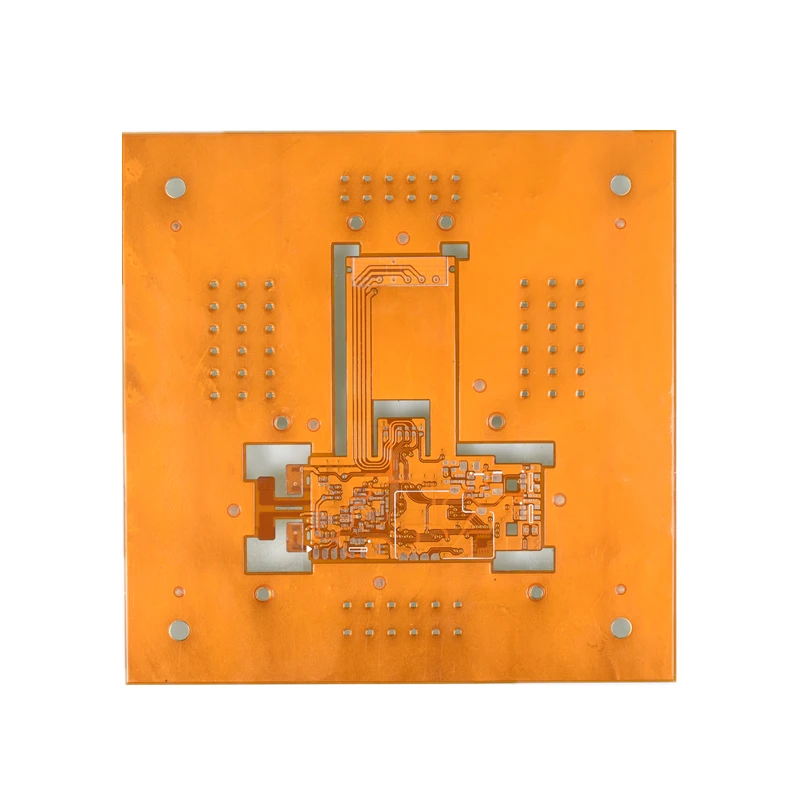

2-Layer Flex PCB+ESA-8853 Adhesive Type
Thickness: 0.16mm
Material: Panasonic
Surface: ENIG
Special: The back needs to be pasted with ESA-8853 Adhesive Type
Material: Panasonic
Surface: ENIG
Special: The back needs to be pasted with ESA-8853 Adhesive Type
1. Service Advantages
2. Quality Advantages
Key Parameters Of Rigid-Flex And Flex PCB | ||||||
Item | Flex | Rigid-Flex | ||||
Layer Count | Max Layer Count | 12L | 20L | |||
Finish Size | Max Finished Size | 9inch*98inch | 20inch*24inch | |||
Board Size Tolerance | Min Routing Tolerance | ±0.05mm | ±0.1mm | |||
Min Trace/Spacing | Outer | 3/3mil | 3/3mil | |||
Inner | 2.5/2.5mil | 3/3mil | ||||
Board Thickness | Max PCB Thickness | 0.5mm | 6.0mm | |||
Min PCB Thickness | 0.06mm | 0.25mm | ||||
Board Thickness Tolerance | Min Tolerance | ±0.03mm | ±0.1mm | |||
Drilling Size | Min Mechanical Drilling | 0.1mm | 0.15mm | |||
Impedance Control | Min Tolerance | / | ±10%(≥50Ω) ,±5Ω(<50Ω) | |||
Max Base Copper Weight | Inner | 2OZ | 6OZ | |||
Outer | 2OZ | 3OZ | ||||
Bow & Twist | Min Bow & Twist | / | 0.50% | |||
Surface Treatment | Surface Treatment | LF-HAL、HASL、ENIG、ENEPIG、Electronic Gold Plating、Soft Gold Plating、Hard Gold Plating、Immersion Silver、Immersion Tin、OSP、Gold Finger | ||||
Stiffener | Stiffener Type | FR4/PI/PET/SUS/PSA | / | |||
Flex Material | Shengyi SF305，Panasonic RF-775，Panasonic RF-777，Dupont AP，Thinflex，Taiflex | |||||
FLEX PCB LEAD TIME | ||||
Layer | Quick Turn/Normal Time | Mass Production | ||
2L | 3 days / 5 days | 9-12 days | ||
4L | 5 days / 8 days | 11-15 days | ||
6L | 5 days / 9 days | 13-16 days | ||
8L | 6 days / 10 days | 15-17 days | ||
10L | 7 days / 11 days | 17-20 days | ||
≥12L | 8 days / 12 days | 20-25 days | ||
1.What's the order process?
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Prototypes usually takes about 5-10days depending on product type.Small&Middle volume usually takes about 20 days.
5.How would I get a price list for a wholesaler ?
Please E-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
