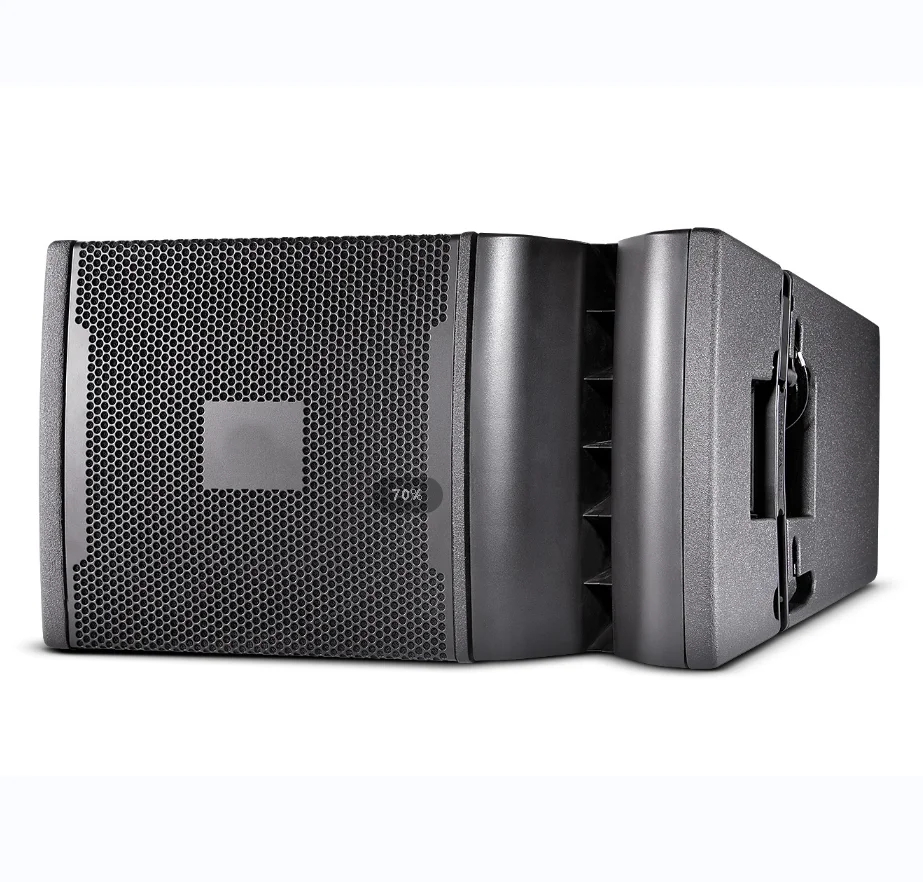

Акустическая система с двусторонним линейным массивом Merry
- Категория: Audio Sound Equipment >>>
- Поставщик: Guangzhou,Merry,Audio,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.19 $* | 0.15 $* |
| Aug-17-2025 | 0.10 $* | 0.36 $* |
| Jul-17-2025 | 0.29 $* | 0.77 $* |
| Jun-17-2025 | 0.62 $* | 0.97 $* |
| May-17-2025 | 0.22 $* | 0.13 $* |
| Apr-17-2025 | 0.36 $* | 0.39 $* |
| Mar-17-2025 | 0.60 $* | 0.69 $* |
| Feb-17-2025 | 0.76 $* | 0.49 $* |
| Jan-17-2025 | 0.46 $* | 0.24 $* |
Характеристики
Products Description
Great power handling and sound

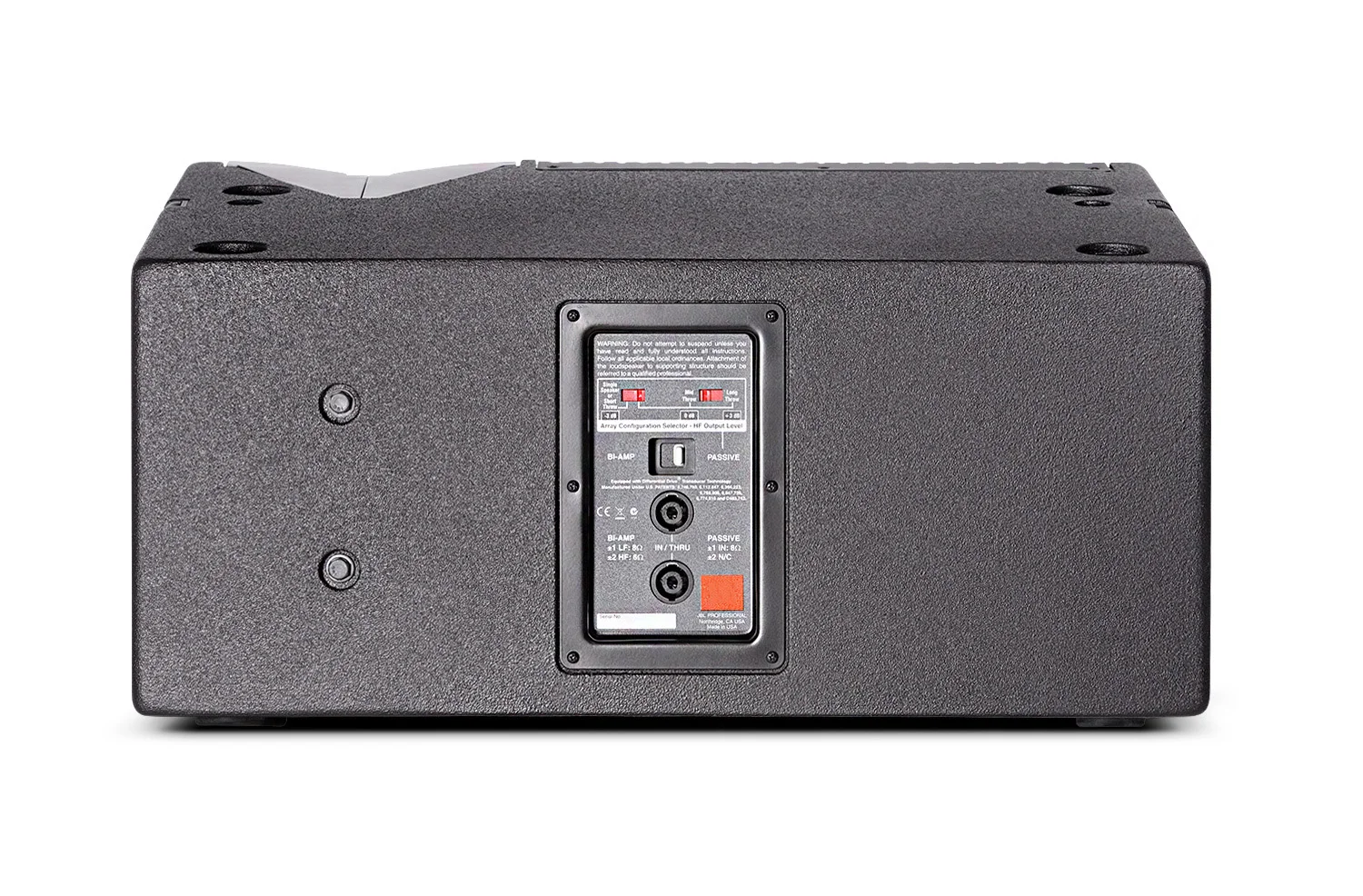

Since there are two HF drivers in each MR932LA, the combined power handling and acoustic output of the system is far greater than a single driver could achieve. MR932LA uses "amplitude shading" to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach the distant rear of a room while the lower box is shaded back to reduce excessive level at the front of the listening area.
Frequency Range (-10dB)1: 57Hz - 20kHz
Frequency Response (+/-3dB)1: 75Hz - 20kHz
Coverage Pattern: 100 x 15 nominal
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 1.2kHz
Power Rating Passive: 800W/1600W/3200W (Continuous/Program/Peak)2: Bi-amp LF: 800 W / 1600 W / 3200 W
Bi-amp HF: 75 W / 150 W / 300 W
LF Driver: 1 x 12 in Differential Drive woofer with neodymium-magnet, dual voice-coils and magnetic gap.
HF Driver: 3 x 1.0 in voice-coil, neodymium compression driver
Nominal Impedance: Passive: 8 ohm
Bi-amp LF: 8 ohms
Bi-amp HF: 8 ohms
Active Tunings: Tunings available at www.jblpro.com
Enclosure: 18 mm, 11-ply birch plywood.
Suspension / Mounting: Optional VRX-AF line array frame kit; M-10 Eyebolt Kit
Finish: Black DuraFlex finish
Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Input Connectors: Neutrik Speakon NL-4 (x2)
Dimensions (H x W x D): 13.75 in x 23.5 in x 15.0 in
Net Weight: 48 lb
Frequency Response (+/-3dB)1: 75Hz - 20kHz
Coverage Pattern: 100 x 15 nominal
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 1.2kHz
Power Rating Passive: 800W/1600W/3200W (Continuous/Program/Peak)2: Bi-amp LF: 800 W / 1600 W / 3200 W
Bi-amp HF: 75 W / 150 W / 300 W
LF Driver: 1 x 12 in Differential Drive woofer with neodymium-magnet, dual voice-coils and magnetic gap.
HF Driver: 3 x 1.0 in voice-coil, neodymium compression driver
Nominal Impedance: Passive: 8 ohm
Bi-amp LF: 8 ohms
Bi-amp HF: 8 ohms
Active Tunings: Tunings available at www.jblpro.com
Enclosure: 18 mm, 11-ply birch plywood.
Suspension / Mounting: Optional VRX-AF line array frame kit; M-10 Eyebolt Kit
Finish: Black DuraFlex finish
Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Input Connectors: Neutrik Speakon NL-4 (x2)
Dimensions (H x W x D): 13.75 in x 23.5 in x 15.0 in
Net Weight: 48 lb
Company Profile
Guangzhou Merry Audio Equipment Co., Ltd. was founded in 2005 with a concept of "Customer first, reputation premier" to specialize
in developing, manufacturing and OEM speakers. With over 10 years development, Merry Audio has become a leading professional speaker manufacturer. We have a 5,000 square meter workshop, introduced world level Class A technical equipment for producing,established 3 modern production lines and a R&D team consisted of 10 professional engineers who focusing on technical
developmentand quality control.
in developing, manufacturing and OEM speakers. With over 10 years development, Merry Audio has become a leading professional speaker manufacturer. We have a 5,000 square meter workshop, introduced world level Class A technical equipment for producing,established 3 modern production lines and a R&D team consisted of 10 professional engineers who focusing on technical
developmentand quality control.
Certifications
Why Choose Us
*Any questions from you are welcome and will be replied in 24 working hours.
*Experienced staff answer all your questions in fluent English.
*Special discount and protection of sales area provided to our distributor.
*Specialized in speakers over 11 years.
*A team of designers and engineers are capable to create new items according to personal request.
*Customized design is available.
*Welcome OEM and ODM.
*Experienced staff answer all your questions in fluent English.
*Special discount and protection of sales area provided to our distributor.
*Specialized in speakers over 11 years.
*A team of designers and engineers are capable to create new items according to personal request.
*Customized design is available.
*Welcome OEM and ODM.
packaging & shipping
Packaging :
Common carton that protect speaker from damage, or as your OEM requirements.Packaging : Common carton that protect speaker from damage, or as your OEM requirements.
Common carton that protect speaker from damage, or as your OEM requirements.Packaging : Common carton that protect speaker from damage, or as your OEM requirements.
Shipping:
Express/ Airlift / FCL(Full Container Load) or LCL, FOB / EXW / CIF or CNF. Our sales team are capable enough to arrange the shipment if you want.
Express/ Airlift / FCL(Full Container Load) or LCL, FOB / EXW / CIF or CNF. Our sales team are capable enough to arrange the shipment if you want.
