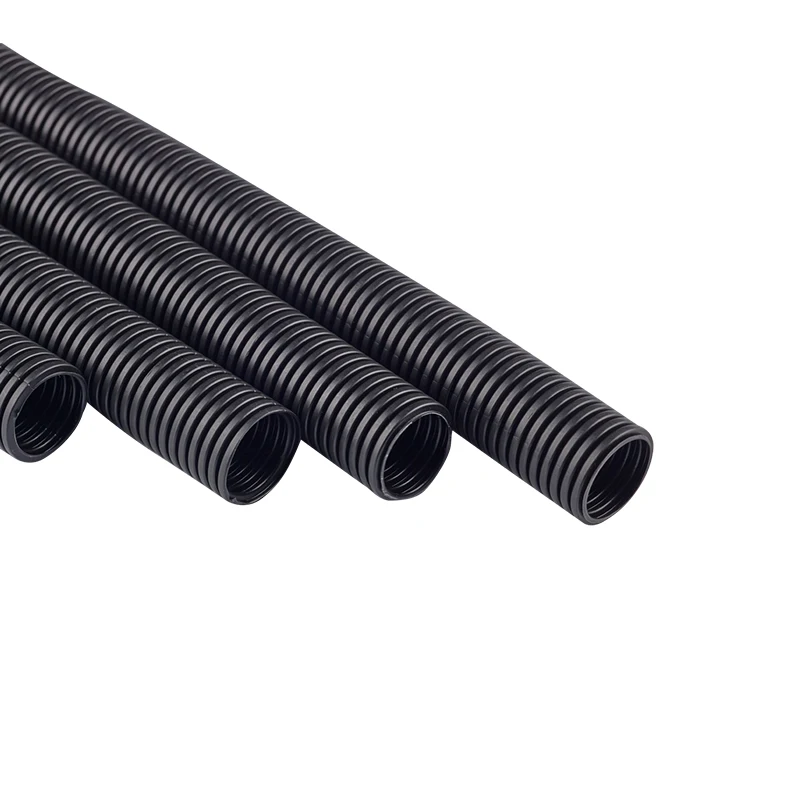

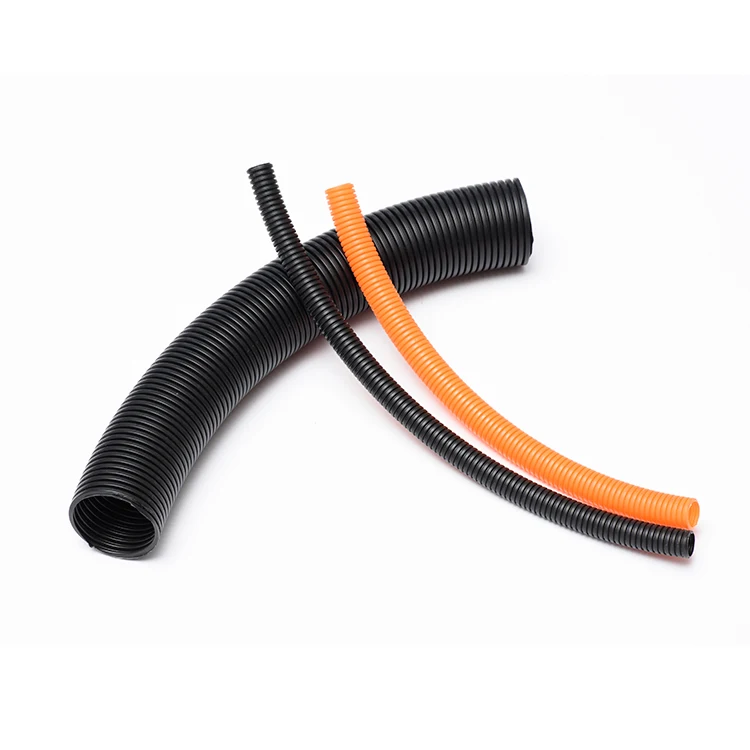

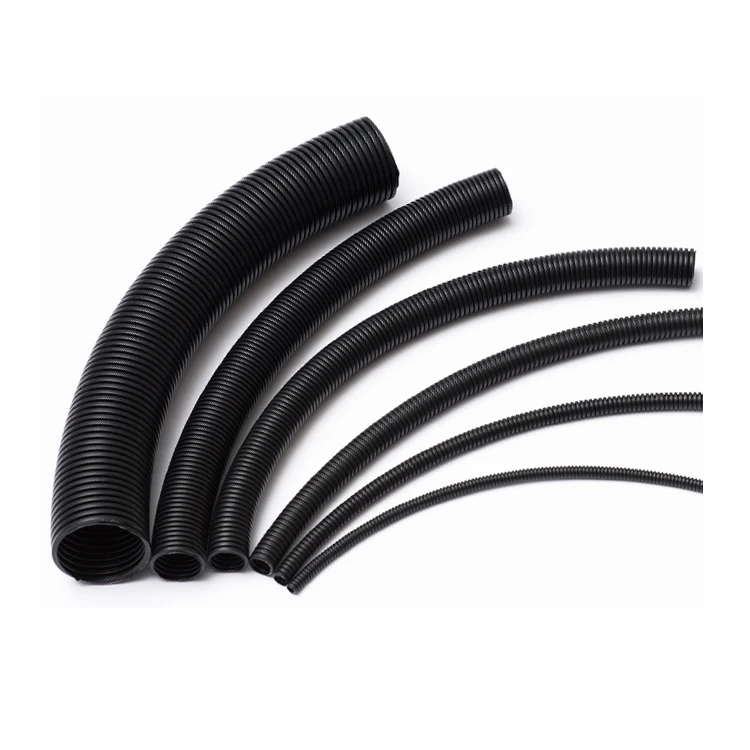

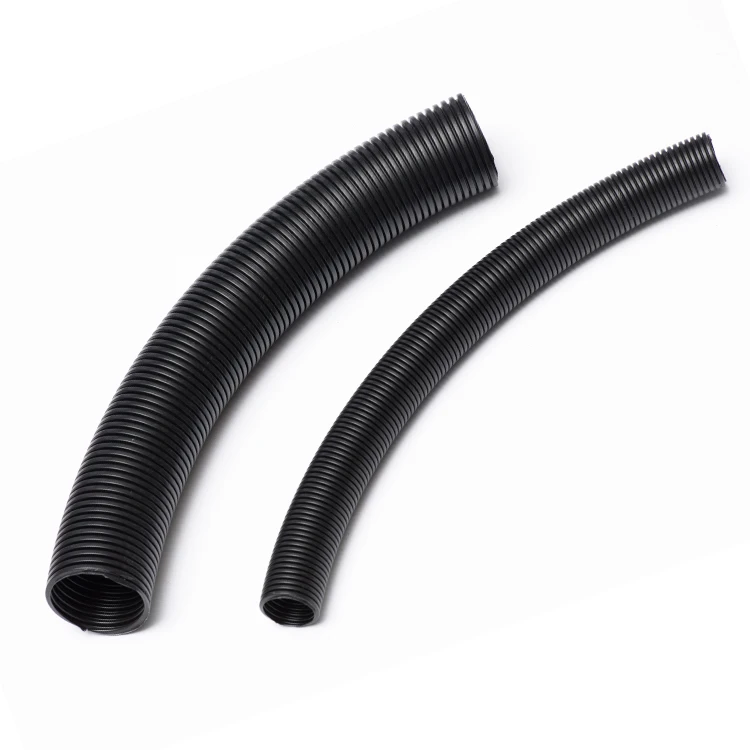

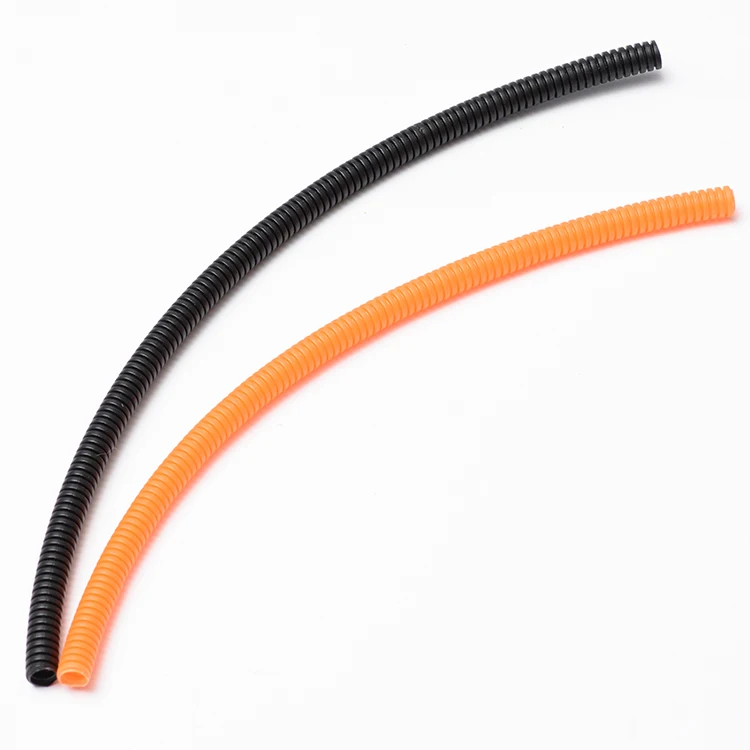

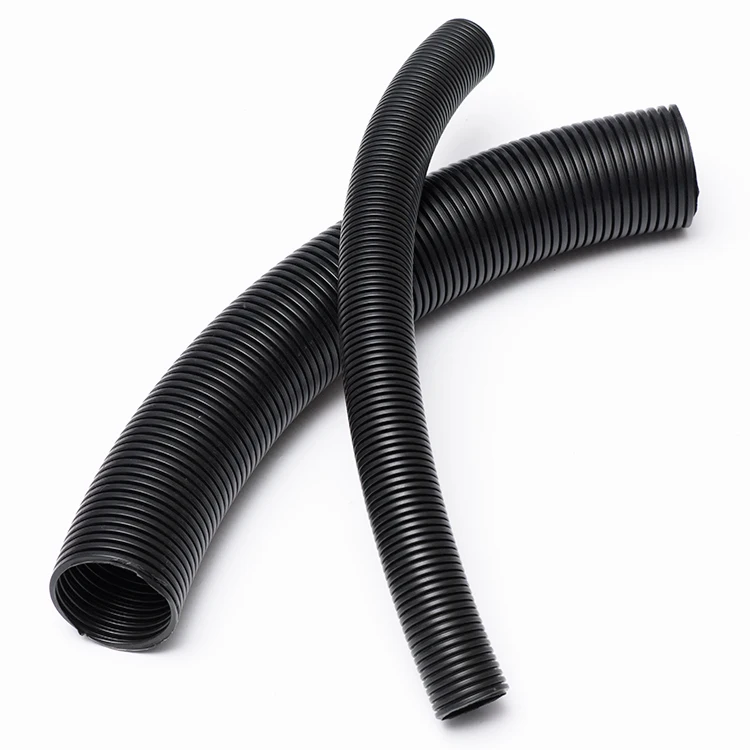

Упаковка из 50/100 метров полиэтиленового полипропилена ПА материала гибкий гофрированный провод
- Категория: >>>
- Поставщик: Dongguan,Zhonghe,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.85 $* |
| Aug-16-2025 | 0.53 $* | 0.97 $* |
| Jul-16-2025 | 0.87 $* | 0.76 $* |
| Jun-16-2025 | 0.45 $* | 0.92 $* |
| May-16-2025 | 0.24 $* | 0.83 $* |
| Apr-16-2025 | 0.51 $* | 0.63 $* |
| Mar-16-2025 | 0.57 $* | 0.38 $* |
| Feb-16-2025 | 0.21 $* | 0.31 $* |
| Jan-16-2025 | 0.9 $* | 0.98 $* |
Характеристики
Products Description
Material | PP |
Color | Black |
Working Temperature | -40℃ ~ 135℃ |
Fire Rating | UL94-V0 |
Certification | CE,RoHS, REACH More |
Specification ID*OD | Id(MM) | OD(MM) | Wall thickness H(MM) | Wave spacing A(mm) | Wave width a(mm) | Packing (M/roll) |
4.5*7 | 4.6±0.3 | 7.0±0.3 | 0.27±0.05 | 2.1 | 1.45 | 400 |
5.2*7.2 | 5.2±0.3 | 7.4±0.3 | 0.27±0.05 | 2.1 | 1.45 | 400 |
5.5*8 | 5.5±0.3 | 8.0±0.3 | 0.27±0.05 | 2.1 | 1.45 | 400 |
6*9 | 6.0±0.3 | 9.0±0.3 | 0.27±0.05 | 2.5 | 1.75 | 200 |
7*10 | 7.0±0.3 | 10.0±0.3 | 0.27±0.05 | 2.7 | 1.95 | 200 |
7.5*10.5 | 7.7±0.3 | 10.7±0.3 | 0.27±0.05 | 2.7 | 1.8 | 200 |
8.5*11.5 | 8.5±0.3 | 11.7±0.3 | 0.30±0.05 | 2.7 | 1.95 | 200 |
9*12 | 9.2±0.3 | 12.0±0.3 | 0.30±0.05 | 2.7 | 1.95 | 200 |
10* 13 | 10.2±0.3 | 13.0±0.3 | 0.30±0.05 | 2.7 | 1.95 | 200 |
11*14 | 11.2±0.3 | 14.0±0.3 | 0.30±0.05 | 2.7 | 1.95 | 200 |
12*15.8 | 12.0±0.3 | 15.8±0.3 | 0.30±0.05 | 3.2 | 2.3 | 200 |
12.9*16 | 12.9±0.3 | 16.0±0.3 | 0.30±0.05 | 3.2 | 2.15 | 200 |
13*17 | 13.2±0.3 | 17.0±0.3 | 0.35±0.05 | 3.2 | 2.3 | 200 |
14.3*18.5 | 14.5±0.4 | 18.5±0.4 | 0.35±0.05 | 3.2 | 2.3 | 200 |
15.1*19.7 | 15.1±0.4 | 19.7±0.4 | 0.35±0.05 | 3.2 | 2.3 | 200 |
15.2*18.7 | 15.2±0.4 | 18.7±0.4 | 0.35±0.05 | 3.2 | 2.35 | 200 |
... | ... | ... | ... | ... | ... | ... |
91*106 | 91±1.0 | 106±1.0 | 0.7±0.15 | 8.5 | 5.2 | 10 |
Material: PP, PA6 nylon
Working Temperature: -40℃ ~ 135℃
Fire Rating:UL94-V0
Certification:CE,RoHS, REACH
Available size:
4.5mm ID to 91mm ID
4.5mm ID to 91mm ID
Application field:Automation, Automobile,
Wire Protection
Feature
Flame retardant
High mechanical strength
Flexible & Resistance bend
Abrasion, oil, acid, alkali, ultraviolet
Company Profile
Our Advantage
10 YEARS EXPERIENCE
IATF16949
10,000 M2 Self build Plant building
3,000 M2 warehouse
9,000,000 m/month tube output
9,000,000 m/month tube output
Laboratory test & Quality control
Advanced Equipments with MES System
Reception Staff
Office Meeting
Production Workshop
30+ corrugated tube production line
9,000,000+ M/month tube output
Advanced Equipments with MES System
Full monitoring Production process
Skilled worker
Variety specification & customized mould
Original material
Laboratory test & Quality control
Skilled worker
Advanced Equipments with MES System
MES
Full monitoring Production process
Variety specification mould & customized mould
Original material no add a grain of recycled material
Certifications & Laboratory Test
IATF16949
ROHS
ECE-R118
EN45545
150℃ high temperature aging test
Low temperature test
-40℃ low temperature test chamber
High temperature test chamber
Laboratory
Tensile test
Oil resistance
Bend & flexibility test
Flame retardant rating V0 test
